Wood Based Panel Machine Small Mini Cabinet Melamine Auto Edge Bander PVC Edge Banding Machine
CE Certified ISO9001
Wood Based Panels Machinery

Wood Based Panel Machine Small Mini Cabinet Melamine Auto Edge Bander PVC Edge Banding Machine

This product is currently out of stock and unavailable. SKU: Wood Based Panel Machine Small Mini Cabine-36310928 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Description Products Disply Miniature fully automatic sealing and repairing machineFunction:automatic feedingDouble-sided adhesiveUp and down trimming and polishingAutomatic head and tailCurved line dual purposeEfficient vacuuming Product Paramenters Voltage220vSuction power1200wBelt […]

20yrs
Experience
100+
Countries
OEM
Customizable
  • CE & ISO9001 certified -- meets global import standards
  • Full OEM/ODM: custom logo, voltage (110V-440V), multilingual panels
  • Factory-direct pricing with stable supply chain
  • Professional after-sales: remote support, warranty & spare parts
  • Suitable for small workshops to large industrial factories
Request a Free Quote WhatsApp Now

Direct Contact

woodmachinebc@aliyun.com +86 156 6441 3539

Products Disply

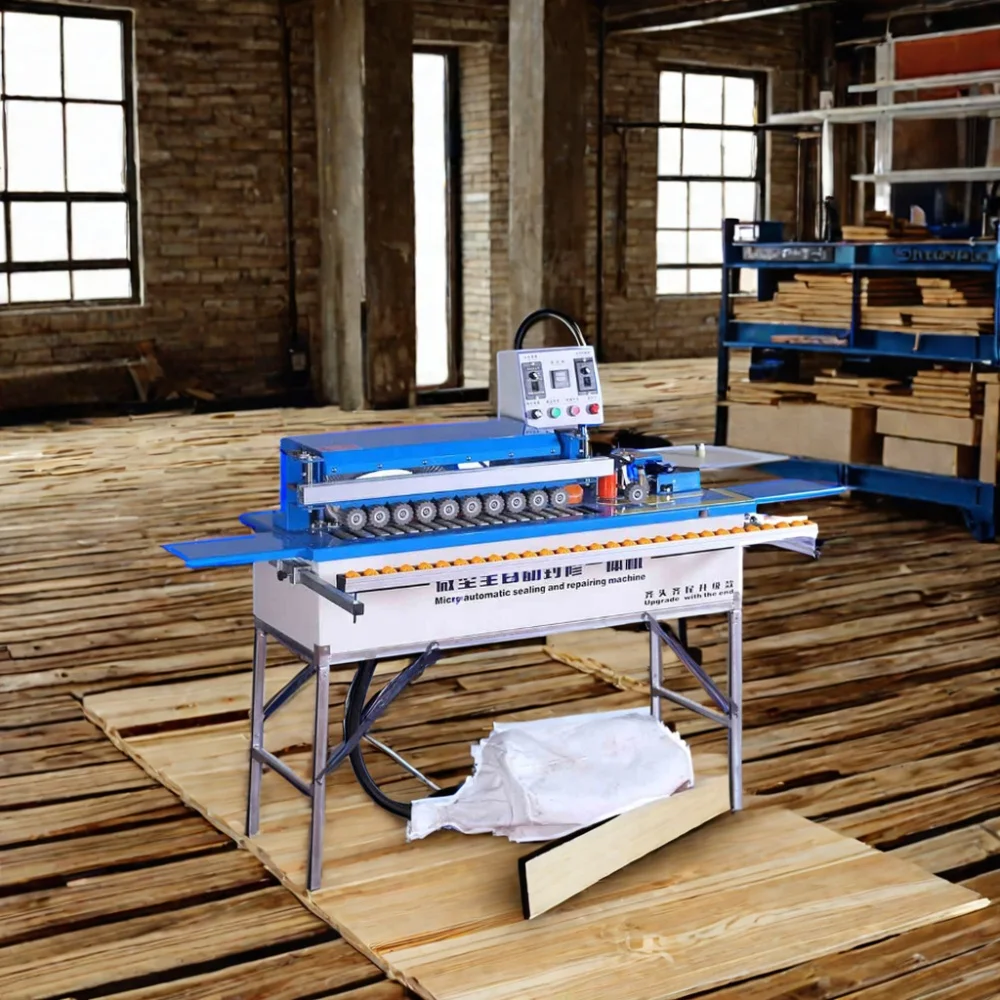

Miniature fully automatic sealing and repairing machine

Function:
automatic feeding
Double-sided adhesive
Up and down trimming and polishing
Automatic head and tail
Curved line dual purpose
Efficient vacuuming
Product Paramenters
Voltage
220v
Suction power
1200w
Belt power
25w
Transmission power
60w
Polishing power
180w*2
Trimming power
800w*2
Conveying speed
0-15m/min
Edging speed
0-6m/min
Edge height
10-60mm
Edge thickness
0.3-3mm
Overall size
120*54*72cm
Packing size/weight
132*53*63/81kg
Product details
1. Control panel. each function is controlled separately. easy to operate.2. Glue can be applied on both sides. and the adhesion is more firm.3. The gluing device can be rotated 180 degrees for curved edge banding.
Automatic board feeding
Double-row rubber pressure wheels. stable transmission. and the plate is not easy to be misaligned.
Trimming and buffing
1. Two 180-watt polishing motors. cross polishing up and down. more smooth.
2. Two 800-watt edge trimming motors. trimming up and down. with dust suction device.
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
Package And Shipping
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Technical Specifications

Certification
CE, ISO9001
Voltage Options
110V / 220V / 380V / 440V (customizable)
Origin
Shandong, China
OEM/ODM
Supported
Warranty
1 Year
After-Sales Service
Remote support & spare parts supply
Export Markets
100+ countries worldwide
Lead Time
Contact us for current lead time

* Detailed technical parameters (dimensions, motor power, processing speed, etc.) vary by model. Please contact us for the full spec sheet.

Shipping & Packaging

  • Professional export-grade wooden crate packaging
  • Stable supply chain -- on-time delivery guaranteed
  • Sea freight (FCL/LCL), air freight & express options
  • Customs clearance documentation provided
  • Exporting to 100+ countries: Europe, Americas, SEA, Africa, Latin America

After-Sales Support

  • 1-year warranty on all machines
  • Remote technical support via video call
  • English & Spanish-speaking support teams
  • Spare parts supply with fast international shipping
  • Operation manuals in multiple languages

Full OEM / ODM Customization

We support complete OEM/ODM services for global distributors, regional agents and brand owners. Customize any aspect of the machine to fit your market requirements.

Custom Logo & Branding
Your brand name, logo and color scheme on all visible surfaces
Voltage Customization
110V, 220V, 380V, 440V -- any frequency for any market
Multilingual Control Panels
English, Spanish, French, Arabic and more
Custom Packaging
Branded packaging, user manuals and accessory kits
Specification Adjustments
Motor power, processing dimensions and feature configurations
Certification Support
Assistance with CE, FCC, RoHS and other regional certifications
Get a Free Quote

Interested in This
Machine?

Tell us your factory scale, processing needs and budget -- our team will respond within 24 hours with a tailored recommendation and formal quotation.
