Description
Fast Dispatch Readiness — every ZDSF210 leaves the warehouse only after its nameplate voltage and plug type are cross-checked against your site’s electrical standard, so you unbox and run, not unbox and wait.
Technical Specifications
| Parameter | Value |
|---|---|

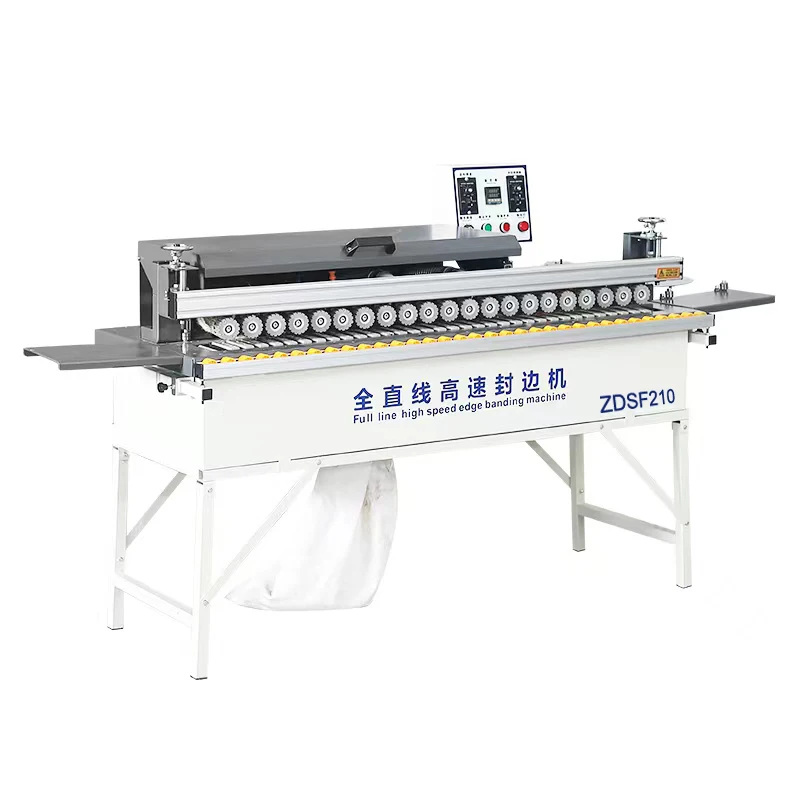

| Model | ZDSF210 |
| Product Type | Portable Automatic Edge Banding Machine |
| Function Sequence | Automatic plate feeding, double-sided gluing, trimming, scraping, polishing, board cleaning |
| Edge Profile | Straight lines |
| Voltage & Frequency | 220V / 50Hz |
| Rated Power | 4 kW |
| Heating Power | 800 W |
| Trimming Power | 800 W × 2 |
| Polishing Power | 180 W × 2 |
| Suction Power | 1200 W |
| Feed Speed | 0–14 m/min |
| Panel Thickness Range | 10–50 mm |
| Edge Strip Thickness Range | 0.5–2.5 mm |
| Glue Pot Capacity | 1000 ml |
| Rated Air Pressure | 0.4–0.6 MPa |
| Overall Dimensions | 2100 × 570 × 1120 mm |
| Net Weight | 140 kg |
| Control Interface | Multi-function button operation |

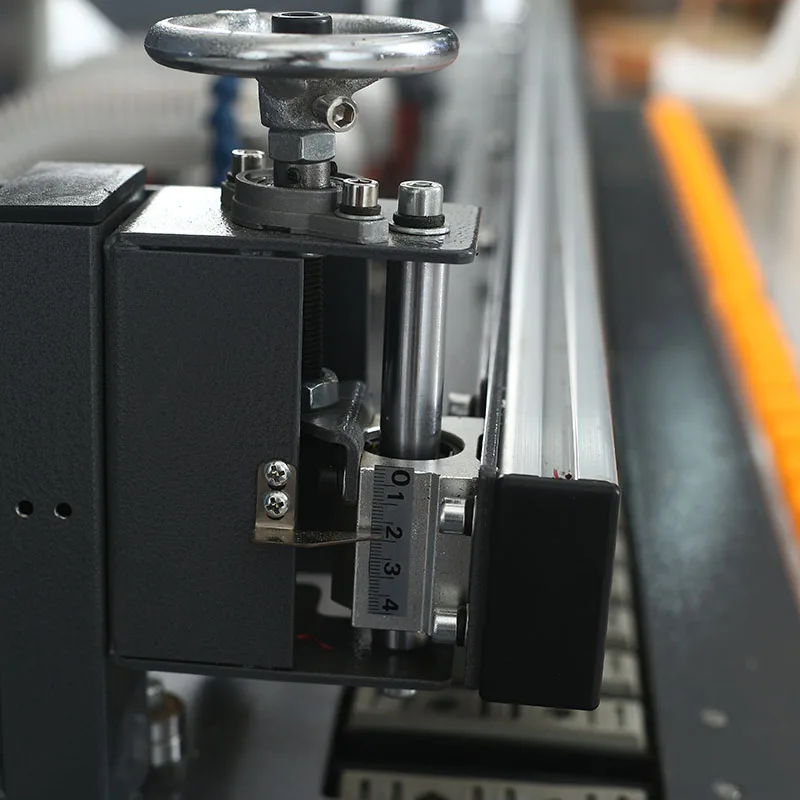

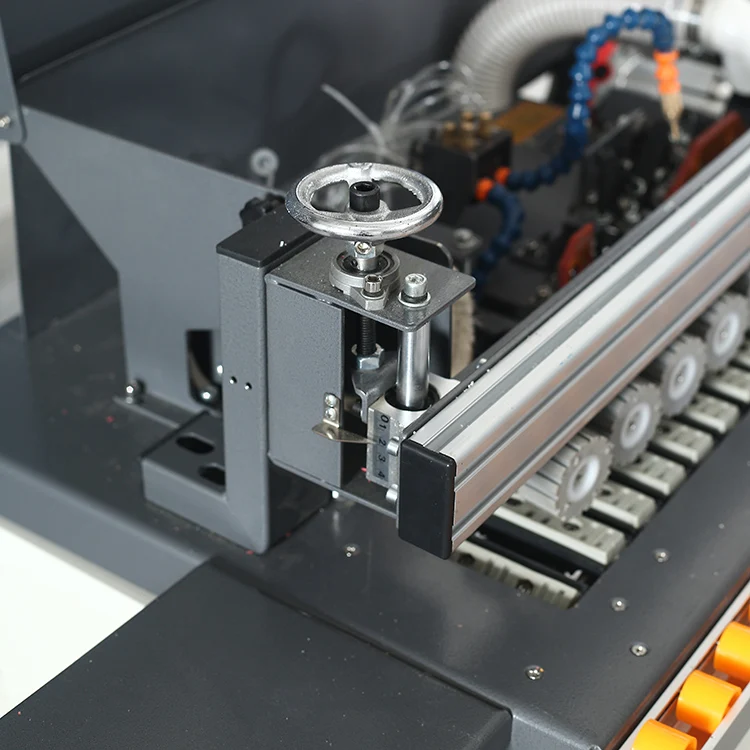

| Pressure Beam | Integrated all-aluminum, rotating hand crank with dual-side scales |

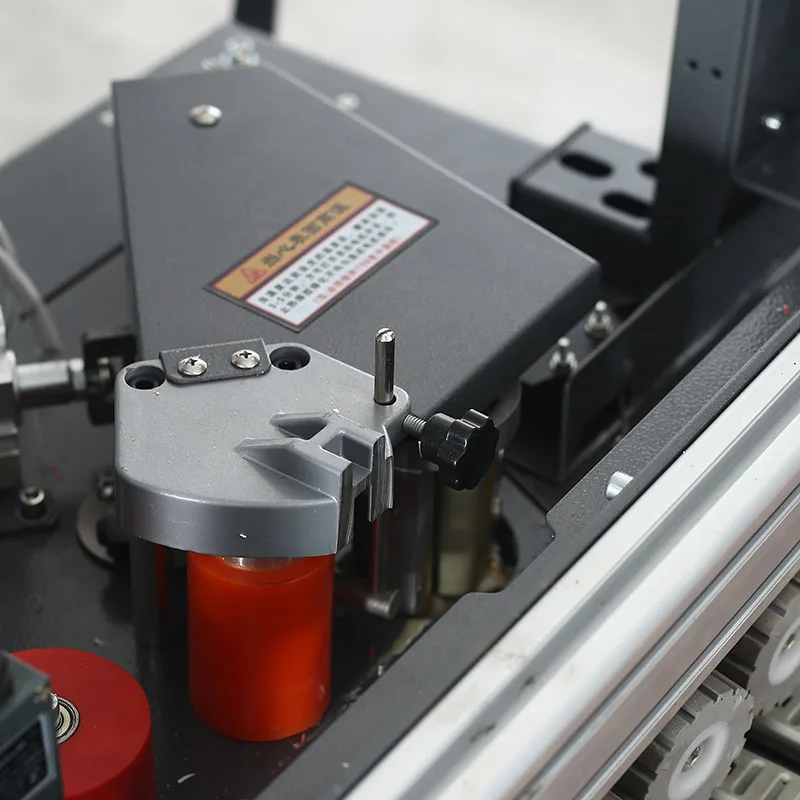

| Trimming Device | Dual high-speed motors, precision guide rail sliders, 4-edge 1.5 alloy knife |

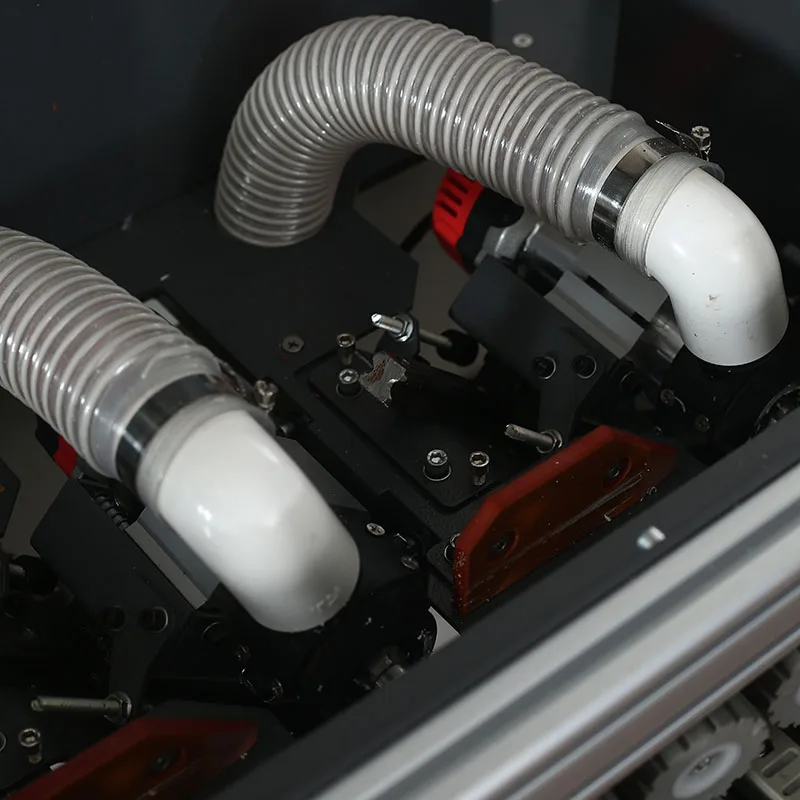

| Dust Collection | Large-diameter closed dust collector |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edging | MDF and particleboard with PVC or melamine strip |
| Small-batch furniture panels | Plywood and blockboard with veneer edge banding |
| Joinery shop straight-line finishing | Solid wood panels up to 50 mm thickness |
| On-site interior fit-out | Pre-cut boards requiring portable edge finishing |
| Startup workshop production | MDF shelving and wardrobe panels, 0.5–2.5 mm strip |
Why the Voltage Question Should Come Before the Price
Ordering a Portable Automatic Edge Bander in stock only to discover it needs a transformer you do not have is a two-week delay no small shop can absorb. Voltage confirmation before dispatch is non-negotiable, not a line-item option.
I once shipped an edge bander to a cabinet factory in Lagos rated for 380V three-phase while the workshop ran 415V/50Hz. The motor tripped on day one, and the owner sat idle for two weeks sourcing a step-down transformer. That failure had nothing to do with the machine’s build quality and everything to do with a skipped verification step. Since then, every unit I release from stock goes through a three-point nameplate, breaker, and plug cross-check against the buyer’s local supply [NEED_CITE: voltage and frequency standards by export market]. The ZDSF210 ships at 220V/50Hz single-phase, which matches standard workshop outlets across most of South Asia, West Africa, and parts of South America without any auxiliary transformer. If your site runs a different standard, flag it before the crate is closed — swapping a motor winding in the warehouse takes a day; doing it on a container floor in Mombasa takes a month.
Ready Stock Means Verified Stock, Not Just Available Stock
A Portable Automatic Edge Bander in stock should mean it can ship this week with the correct documentation and voltage tag, not simply that a crate sits in a corner of the warehouse. Each ZDSF210 is pulled from the rack, powered on, and run through a test panel cycle before packing photographs are taken and shared with the buyer. The pre-shipment test record confirms feed motor response, glue pot temperature stability, and trimming alignment on your specified panel thickness range. This step adds roughly one working day to dispatch but eliminates the far longer delay of a field fault after arrival.
Single-Unit Orders Without the Negotiation Overhead
Small workshops and joinery startups rarely need a container load. The ZDSF210 is built for single-unit orders where the buyer needs one reliable machine, not a production line. Shipping options — LCL consolidation, direct port-to-port, or door delivery where logistics allow — are quoted upfront so you know the landed cost before committing. The 140 kg net weight and compact 2100 × 570 mm footprint mean the machine fits through a standard workshop door and can be positioned by two people with a pallet jack [NEED_CITE: typical workshop entry dimensions for small-scale furniture factories]. No forklift, no rigging contractor, no extra day of setup.
Reading the Specs That Actually Matter on the Shop Floor
Feed speed on the ZDSF210 is adjustable from 0 to 14 m/min, which is relevant because running PVC strip on particleboard at maximum speed can cause the glue to cool before full adhesion, especially in workshops without climate control. A slower feed at 6–8 m/min typically gives the hot-melt adhesive more dwell time against the panel edge, producing a cleaner bond line. The integrated all-aluminum pressure beam with rotating hand crank and dual-side scales lets you dial in panel thickness from 10 to 50 mm without shim stacking, which matters when a single operator switches between 18 mm MDF cabinet sides and 36 mm blockboard shelving in the same shift. Trimming is handled by dual high-speed motors running 4-edge 1.5 alloy knives on precision guide rail sliders — this configuration cuts flush on both the top and bottom edge in one pass, so you do not need a separate scraping station for straight-line work. The 1000 ml glue pot capacity is sized for intermittent production: enough for a full morning run on standard 0.5–2.5 mm strip, but not so large that adhesive degrades from prolonged heating during low-volume afternoons.
What Happens When a Machine Arrives Unusable
A machine that cannot be plugged in or read by the operator is dead weight, regardless of its build quality. When the control panel labels are in a language the technician does not understand, commissioning stalls until someone fabricates a translation overlay — a process that introduces errors and voids warranty assumptions. When the voltage is wrong, the cost is not just the transformer; it is the idle labor, the missed delivery to your own customer, and the credibility hit with the furniture buyer waiting on their kitchen cabinets [NEED_CITE: downtime cost factors in small-scale woodworking operations]. These are the failures that never appear in a machine review because the buyer assumes they chose the wrong supplier, when in reality one verification step was missed at the quoting stage.
Why Source This Unit Through This Channel
Every ZDSF210 dispatched from this stock pool undergoes a four-stage quality check covering incoming components, in-process assembly, finished-product function, and pre-shipment verification — the same protocol applied to full-line orders. Voltage and plug configuration are confirmed against your stated supply before the crate is sealed, not assumed from a default setting. An operation and maintenance manual is provided in your agreed language so your technician can reference fault codes and belt tension adjustments on day one. A spare parts list ships with the machine, identifying wear items like trimming knives and feed belt segments by part number, so reorders do not require photographing unlabeled components. Engineer-led configuration advice is available within 24 hours if your panel mix or daily volume suggests a different model in the same product family would serve you better long-term [NEED_CITE: OEM machinery after-sales documentation standards].
Documentation & Verification
- CE declaration of conformity covering the ZDSF210 portable edge bander
- ISO 9001 certificate for the manufacturing facility producing this unit
- Pre-shipment factory test record on your specified panel thickness and strip material
- Electrical schematic confirming 220V/50Hz wiring and breaker rating for local inspection
- Operation manual in your agreed language with illustrated fault-code reference
- Packing photographs showing crate condition and nameplate before container loading
Installation, Commissioning & Support
- Requires a dedicated 220V single-phase circuit rated for at least 4 kW continuous draw
- Allow 2.5 m length and 1 m width clearance around the 2100 × 570 mm machine footprint for panel infeed and offfeed
- Connect compressed air supply at 0.4–0.6 MPa using the standard quick-fit coupling on the machine frame
- Position the 1200 W dust collector duct to the closed-port outlet before first trimming pass
- Run three test panels at low feed speed to verify glue pot temperature stability and trimming flush
- Inspect 4-edge alloy trimming knives after the first 40 hours of operation and rotate to fresh edges
What to Share Before Placing Your Order
To confirm the ZDSF210 matches your workshop, send the panel materials you cut most often, the edge strip type and thickness range you run, and your local voltage and plug standard. If you operate in a region with frequent supply fluctuation, mention that so we can advise on whether an inline voltage stabilizer is warranted. Note your preferred language for the control labels and operation manual. If your daily panel count regularly exceeds what a single-operator portable unit can sustain, we will recommend a higher-throughput model from the same range rather than ship a machine that will bottleneck your output.
Frequently Asked Questions
Q: What is the dispatch lead time for stocked ZDSF210 units?
A: Stocked units are typically ready for handover to the freight forwarder within a few working days of order confirmation, provided the pre-shipment test cycle and packing-photograph verification are completed. Dispatch timing can shift slightly if voltage or plug reconfiguration is required for your local standard, so early confirmation of your electrical specification helps keep the schedule tight.
Q: Can the voltage and plug type be confirmed before shipping?
A: Yes. Before any ZDSF210 is crated, we verify the nameplate voltage, frequency, and plug type against your stated local supply. The 220V/50Hz single-phase configuration matches standard outlets in many markets, but if your workshop runs a different standard, flag it at the inquiry stage so adjustments can be made in the warehouse rather than on your shop floor.
Q: What edge banding materials and thicknesses does this machine handle?
A: The ZDSF210 processes straight-line edge strip from 0.5 to 2.5 mm thickness, covering PVC, melamine, veneer, and thin solid wood banding. Panel thickness range is 10 to 50 mm, which includes standard MDF, particleboard, plywood, and blockboard used in cabinet and furniture production for small to medium workshops.
Q: Is this machine suitable for my daily panel volume?
A: The ZDSF210 is designed for small to medium workshops producing custom furniture, cabinets, or joinery on a per-order basis rather than continuous high-volume batch runs. If your daily output regularly requires uninterrupted multi-shift operation, a higher-tier model with automated infeed and additional trimming stations may be a better fit, and we can advise on that during the inquiry.
Q: How are spare parts and consumables ordered after delivery?
A: A spare parts list with numbered wear items — including trimming knives, feed belt segments, and polishing wheels — ships inside the documentation package. You reference the part number when reordering, so there is no need to photograph or describe components. Consumable reorders can typically be consolidated with standard courier shipments to keep freight costs manageable.
