Description
Ready Stock, Verified Voltage — every ZDSF802 unit ships only after we match your workshop’s electrical standard to our pre-dispatch confirmation sheet, eliminating the two-week transformer wait that stalls export deadlines.
Technical Specifications
| Parameter | Value |
|---|---|

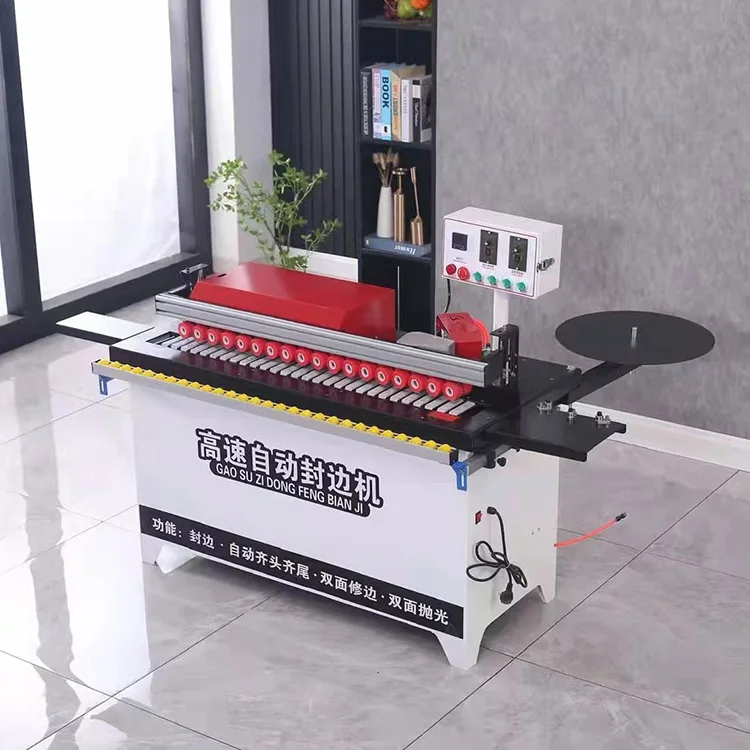

| Model | ZDSF802 |
| Product Type | Automatic Edge Banding Machine |
| Function Sequence | Automatic plate feeding, end cutting, upper/lower polishing, head/tail trimming |
| Edge Type | Straight line |
| Rated Voltage | 220V |
| Rated Power | 4 kW |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Suction Power | 1200W (Integrated dust collector) |
| Heating Power | 1000W (5–10 min heat-up) |
| Strip Thickness Range | 0.5–2.5 mm |
| Sheet Thickness Range | 10–50 mm |
| Feed Speed | 0–10 m/min |
| Glue Pot Capacity | 4000 ml |
| Rated Air Pressure | 0.4–0.6 MPa |
| Overall Dimensions (L×W×H) | 130 × 65 × 75 cm |
| Machine Weight | 150 kg |
| Gluing Method | Double-sided gluing |
| Conveyor Type | Silicone material belt |
| Pressure System | Integrated pressure beam, double-row pressure rollers |
| Belt Breaking Method | Pneumatically controlled |
| Control Panel | Digital glue pot temperature display, independent switches |
| Extendable Support | Fluent strips for large plate stabilization |
| Key Features | Integrated vacuum cleaner, pneumatically controlled belt breaking, extendable support strips |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door finishing | MDF and particleboard with 0.5–2.5 mm PVC edge banding |
| Small-batch wardrobe panel edging | Plywood panels 10–50 mm thick with veneer strips |
| Compact joinery workshop straight-edge work | Solid wood panels requiring double-sided glue application |
| On-site furniture assembly edge finishing | Pre-cut boards where floor space limits full-line installation |
Why the Voltage Question Should Come Before the Price on an Automatic Edge Banding Machine in Stock
A machine that cannot start is a machine that does not exist in your workshop.
I spent years commissioning woodworking lines across Southeast Asia, and the most expensive delay I ever witnessed had nothing to do with mechanical failure. A cabinet factory in Ho Chi Minh City received a fully automatic edge bander, crated and shipped on schedule, only to discover their workshop ran on 380V/50Hz while the machine was configured for 440V. The main breaker tripped on first startup. A step-down transformer had to be freighted from overseas, and the factory floor sat idle for two full weeks while a container of export orders waited [NEED_CITE: voltage and frequency standards by export market]. That is the reason every ZDSF802 order now includes a standalone voltage confirmation step before the crate is sealed. When you are sourcing an Automatic Edge Banding Machine in stock, availability means nothing if the electrical specification does not match your facility.
Dispatch Timing That Matches Your Production Schedule
The ZDSF802 Automatic Edge Banding Machine in stock status means the unit is assembled, tested, and sitting in the warehouse — not waiting on a production slot. For a small furniture workshop running against a delivery deadline, the difference between a machine that ships this week and one that ships in six weeks is the difference between keeping a client and losing one. This model weighs 150 kg and measures 130 × 65 × 75 cm, making it practical for standard freight without oversized cargo surcharges.
How Ready Stock Shortens the Path from Order to First Panel
When a workshop transitions from manual edge banding to machine-assisted finishing, every day of downtime is a day of inconsistent output. The ZDSF802 arrives with its 4000 ml glue pot, integrated 1200W dust collector, and silicone conveyor belt already calibrated from the factory test run. You uncrate, connect your verified 220V supply, attach the air line at 0.4–0.6 MPa, and begin feeding panels. The heating element reaches operating temperature within five to ten minutes, so the first panel of the day does not require a long warm-up wait [NEED_CITE: typical glue pot heat-up requirements for EVA hot-melt adhesives].
What the Specification Sheet Actually Means for Your Panels

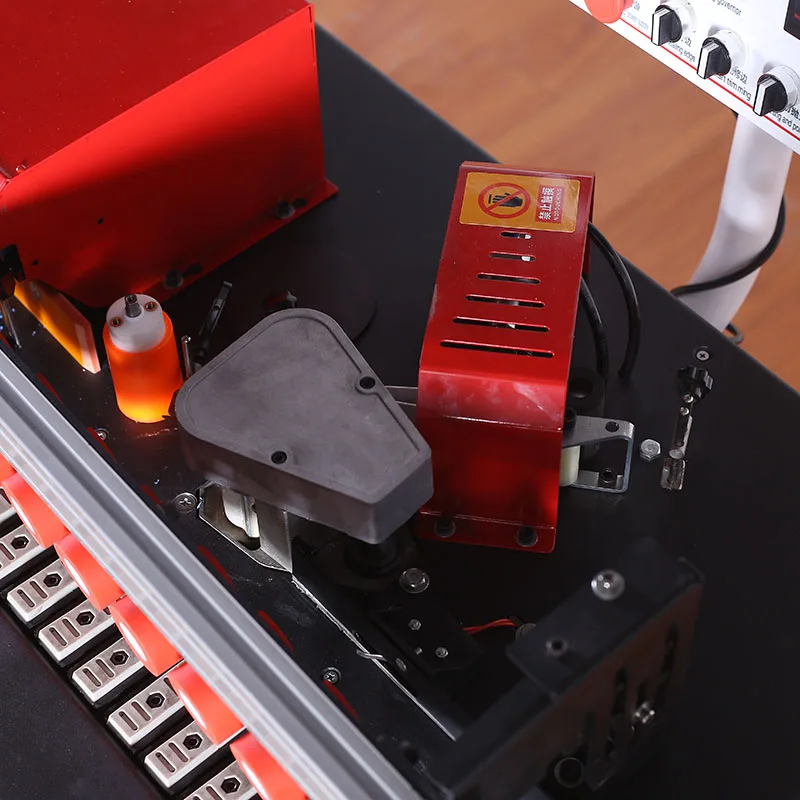

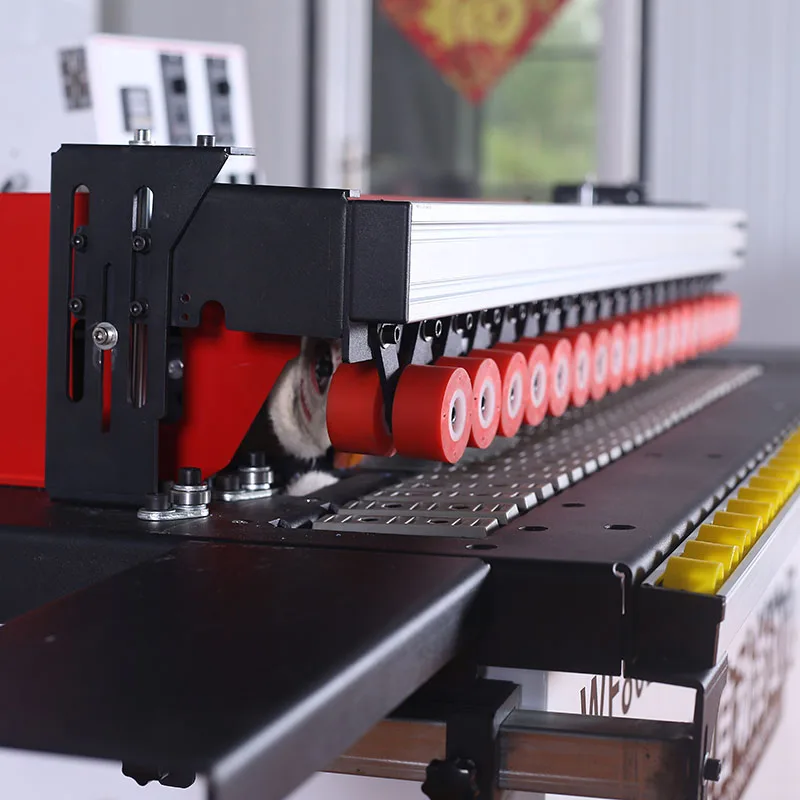

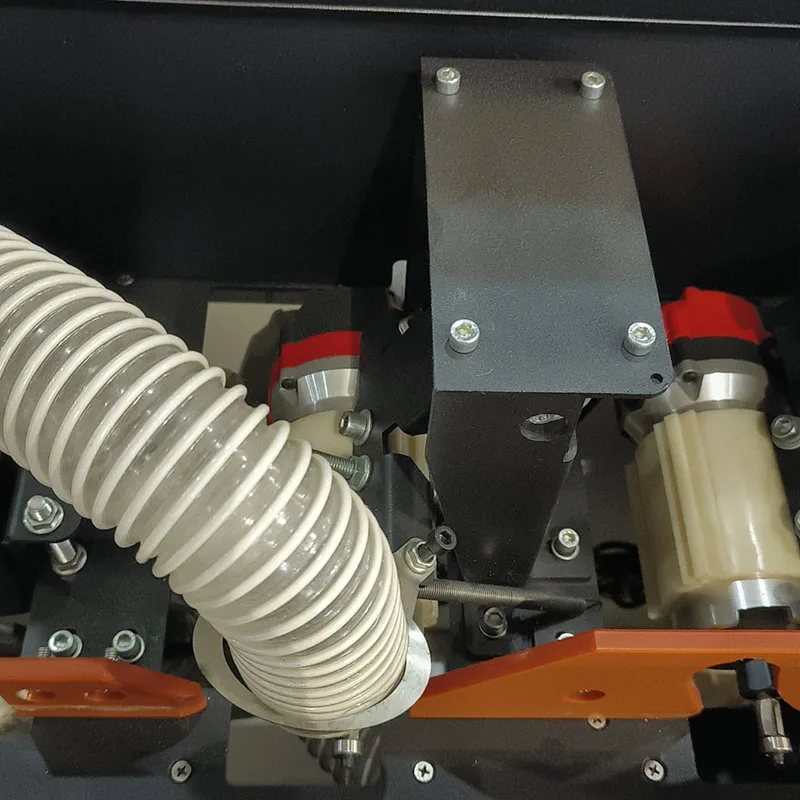

The 10–50 mm sheet thickness range covers the full span of materials a small custom furniture shop typically handles, from thin 10 mm MDF shelving to 50 mm solid wood countertop blanks. The double-row pressure rollers and integrated pressure beam keep the panel flat against the silicone conveyor belt during the feed, which matters because any lift or drift at the infeed translates directly into a visible glue line or an uneven trim. The two 800W trimming stations handle head and tail cuts as well as upper and lower edge trimming in a single pass, while the 180W × 2 polishing stations remove residual adhesive haze. Feed speed runs from 0 to 10 m/min, giving the operator control over throughput when switching between thin PVC banding at 0.5 mm and thicker veneer strips at 2.5 mm.
The Hidden Cost of Skipping Configuration Verification
A compact edge bander is often the first automated machine a growing workshop purchases, and the buying decision tends to focus on price and footprint. What gets overlooked is whether the glue pot capacity matches the daily panel count, whether the conveyor belt material will mark soft veneer, and whether the air pressure requirement can be met by the existing compressor [NEED_CITE: compressed air supply requirements for pneumatic woodworking machinery]. When any one of these mismatches surfaces after delivery, the machine sits idle while the workshop sources adapters, upgrades compressors, or orders replacement belts — costs that never appeared on the original quotation.
Why Sourcing This Model Through Ready Stock Channels Works
Every ZDSF802 unit undergoes a pre-shipment test that verifies the trimming accuracy, glue pot temperature stability, and conveyor alignment before crating. The four-stage quality process covers incoming material inspection, in-process assembly checks, finished product verification, and a final dispatch review. Voltage compatibility is confirmed in writing against your facility’s electrical standard — not assumed from a regional generalization. Spare parts lists and packing photographs are provided before the crate leaves the factory, so you know exactly what is inside when it arrives at your dock.
Documentation & Verification
- Factory test record run on your specified panel thickness range before dispatch
- Voltage confirmation sheet signed against your facility’s electrical standard
- Operation manual supplied in the language your operators read
- Spare parts list with part numbers matched to the shipped configuration
- Packing photographs showing crate contents before sealing
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated for the full 4 kW load with appropriate breaker protection
- Air supply must deliver 0.4–0.6 MPa cleanly; install a filter-regulator before the machine inlet
- Arrives fully assembled at 150 kg; position on a level floor with clearance for the extendable fluent strips
- Glue pot reaches working temperature in 5–10 minutes; run a test strip before the first production panel
- Silicone conveyor belt and pressure rollers need weekly cleaning to prevent adhesive buildup and panel drift
Before You Request a Quote
Tell us your panel material types and the thickness range you process most often, along with the edge banding strip thickness you plan to run. Confirm your workshop voltage and frequency so we can prepare the confirmation sheet before the order is finalized. If your floor space is constrained, share your available footprint so we can advise on placement with the extendable support strips deployed.
Frequently Asked Questions
Q: Is the ZDSF802 currently in stock and how fast can it ship?
A: This Automatic Edge Banding Machine in stock status is updated per order inquiry. Units are assembled and tested at the factory, so dispatch follows a short lead time once voltage confirmation and shipping details are finalized. We provide packing photographs and documentation before the crate leaves.
Q: Can you confirm 220V compatibility for my country before shipping?
A: Yes. Every ZDSF802 order includes a standalone voltage confirmation sheet that records your facility’s voltage and frequency. The machine is verified against that specification during the pre-shipment test, so there are no electrical surprises when you connect power on arrival.
Q: What edge banding materials and thicknesses does the ZDSF802 handle?
A: The machine processes PVC and veneer edge banding from 0.5 mm to 2.5 mm thick, applied to MDF, particleboard, plywood, and solid wood panels between 10 mm and 50 mm. The double-sided gluing system and 4000 ml glue pot support continuous runs without frequent refills.
Q: What spare parts are included and how do I order replacements?
A: A spare parts list matched to your shipped unit is included with every order, identifying wear items such as trimming blades, polishing wheels, and conveyor belt sections. Replacement parts can be ordered directly using the part numbers on that list.
