Description
Rapid Dispatch Configuration — Every DW985 soft forming edge banding machine ships only after voltage, plug type, and control language are matched to your facility and formally documented before the crate leaves the floor.

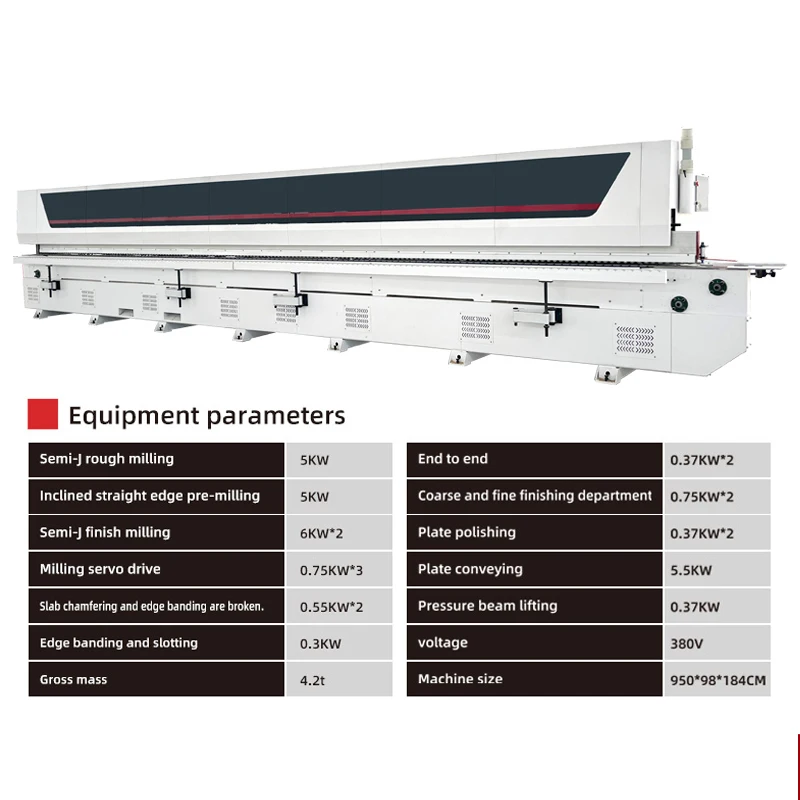

Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW985 |
| Product Type | Soft Forming Edge Banding Machine |
| Function Count | 16 integrated processing stations |
| Pre-milling Motor | 5 kW (inclined straight edge) |
| Semi-J Rough Milling | 5 kW |
| Semi-J Finish Milling | 6 kW × 2 |
| Milling Servo Drive | 0.75 kW × 3 |
| End-to-End Trimming | 0.37 kW × 2 |
| Coarse and Fine Finishing | 0.75 kW × 2 |
| Plate Polishing | 0.37 kW × 2 |
| Slab Chamfering & Edge Breaking | 0.55 kW × 2 |
| Edge Banding & Slotting | 0.3 kW |
| Plate Conveying Motor | 5.5 kW |
| Pressure Beam Lifting | 0.37 kW |
| Processing Speed | 8–12 m/min (basis not stated in source — confirm board thickness / edge material / profile type) |
| Voltage | Configurable from 110V to 440V (380V default; frequency to confirm) |
| Control Interface | Touch screen with profile shape switching; remote upgrade supported |
| Profiling System | Wheeled profiling design |
| Handle Processing | Handle-free chamfer station |
| Language Options | Chinese and English standard; Spanish, French, and others customizable |
| Plug Options | EU, USA, AU, UK |
| Overall Dimensions | 950 × 98 × 184 cm (source value — verify against manufacturer catalog) |
| Gross Mass | 4.2 t (source value — verify against manufacturer catalog) |
| Assembly State | Fully assembled in wooden box |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edging | MDF and melamine-faced board with PVC edge banding |
| Wardrobe panel soft forming | Particleboard with shaped or profiled edge contours |
| Curved furniture component edging | Plywood panels requiring handle-free chamfer and soft-form pressing |
| High-volume cupboard production | Wood-based panels processed through 16-station single-pass line |
| Office furniture edge finishing | Melamine and veneer banding on flat and contoured panel edges |
Why the Voltage Question Should Come Before the Quote
A machine that cannot power on is a machine that does not exist on your production floor.
I once arranged a fast-dispatch Auto 985 Soft Forming Edge Banding Machine for a buyer who needed stock immediately. The unit left the warehouse within days, arrived at the port, and sat in their factory for three weeks because the local supply was 60 Hz and the motor was wound for 50 Hz. The Soft Forming Edge Banding Machine in stock was technically perfect — just electrically incompatible. Now, before any DW985 ships from ruiqistore.com, voltage and frequency confirmation is the first line on the quotation, not an afterthought buried in shipping notes [NEED_CITE: voltage and frequency standards by export market].
The cost of that three-week delay was not just idle floor space. The buyer had scheduled cabinet installers, committed to a kitchen renovation timeline, and paid demurrage at the port. A Soft Forming Edge Banding Machine in stock solves the lead-time problem only when the electrical configuration is verified before the order is confirmed.
Stock Availability Without the Configuration Guesswork
When you need a Soft Forming Edge Banding Machine in stock, the urgency usually means production deadlines are already pressing. The DW985 is held ready for dispatch as a fully assembled unit, meaning there is no multi-week build cycle between order confirmation and crating. However, stock availability does not mean shipping a default configuration to every market. Each unit dispatched from ruiqistore.com goes through a pre-shipment checklist where your specified voltage, plug type, and operator language are verified against the machine’s actual wiring and control panel settings before the wooden box is sealed.
The touch-screen control panel supports profile shape switching across multiple edge contours, and remote shape upgrade capability means new profiles can be loaded without a technician visit. For a workshop taking delivery on a tight timeline, this eliminates the commissioning delay that typically accompanies a new edge bander installation.
Single-Unit Orders With Full Documentation
Many stock-focused suppliers strip down the documentation package for single-unit orders — no factory test record, no electrical schematic, just a basic manual. The DW985 ships with the same documentation bundle whether you are ordering one machine or a container load. The pre-shipment test record is generated on panel thickness and edge material matching your stated production requirements, and the operation manual arrives in the language your operators actually read.
This matters because a Soft Forming Edge Banding Machine in stock that arrives without voltage confirmation documentation or a matching-language manual creates the same commissioning stall as a machine built on long lead time [NEED_CITE: CE machinery directive requirements for industrial equipment]. Speed of delivery only has value when the machine is genuinely ready to run upon arrival.

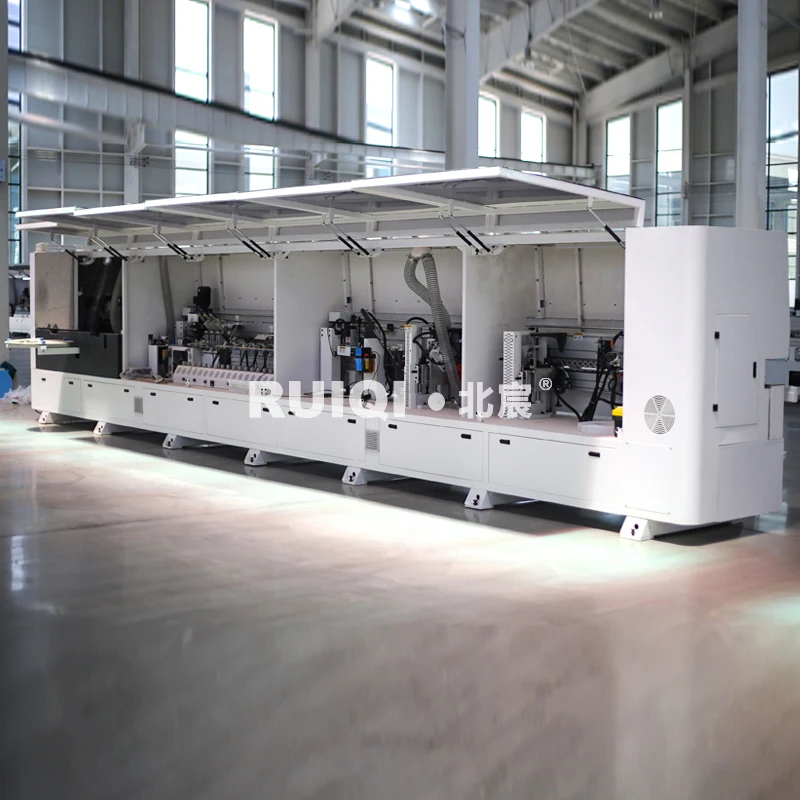

What the 16 Stations Actually Do for Your Panels
The DW985 sequences 16 distinct operations from initial pre-milling through final polishing in a single pass. The inclined straight edge pre-milling station at 5 kW removes saw marks and sizing inaccuracies from the panel edge before any adhesive is applied, which directly affects glue adhesion on MDF and particleboard where surface porosity varies. The three servo-driven milling axes at 0.75 kW each maintain consistent edge profiling across curved and flat sections — a critical factor when processing wardrobe doors or shaped cabinet components where manual tracing produces visible deviation.
The handle-free chamfer station allows soft forming on contoured panel edges without the mechanical interference that a traditional handle mechanism introduces. The separate plate heating and rubber coating stations ensure adhesive reaches proper viscosity on both the panel edge and the banding material before the soft forming and pressing station bonds them. Processing speed ranges from 8 to 12 m/min, though the sustainable rate depends on your board thickness, edge material, and profile complexity — a factor to confirm during sample processing rather than assume from the upper range figure.
The Cost of Skipping Pre-Shipment Electrical Verification
Buyers who accept a stock machine without confirming local voltage and frequency face consequences that extend well beyond the initial power-up failure. A 380V/50Hz motor running on 60Hz supply does not simply trip a breaker — it operates at elevated speed and temperature, degrading bearings and winding insulation over time. The failure may not appear during the first week of operation, making it difficult to trace back to the original voltage mismatch when the motor eventually burns out [NEED_CITE: motor failure patterns from voltage and frequency mismatch].
The DW985’s configurable voltage range from 110V to 440V exists precisely because export markets do not share a single electrical standard. Shipping a default 380V unit to a region with 220V three-phase supply means either installing a step-up transformer on your floor — adding cost, footprint, and a point of failure — or rewinding motors before the machine ever processes a single panel.
Why Source This Machine Through ruiqistore.com
The DW985 is dispatched with voltage and frequency formally confirmed in the electrical schematic before shipping, eliminating the three-week commissioning stall that occurs when these details are assumed rather than verified. Stock units are configured with your specified plug type from EU, USA, AU, or UK options, so the machine connects to your facility’s supply without adapter workarounds.
The control panel language is set to your operator’s requirement — English and Chinese standard, with Spanish, French, and other languages available on request — so commissioning does not stall because the operator cannot read the interface. Pre-shipment test records include processing verification on material matching your stated panel specifications. Spare parts lists and packing photographs ship with every unit, providing a documented baseline for condition upon arrival.
Documentation & Verification
- CE declaration of conformity issued for the DW985 edge banding configuration
- Factory test record generated on your specified panel thickness and edge material before dispatch
- Electrical schematic confirming voltage, frequency, and plug type as built and shipped
- Operation and maintenance manual delivered in the agreed operator language
- Spare parts list with part numbers matching the as-shipped machine configuration
Installation, Commissioning & Support
- Floor space requirement based on 950 × 98 × 184 cm footprint with clearance for panel infeed and outfeed
- Dedicated three-phase circuit required matching confirmed voltage and frequency specification
- Machine ships fully assembled — no on-site mechanical assembly required beyond utility connection
- Touch-screen calibration and profile shape loading performed during initial power-up sequence
- Remote upgrade capability allows new edge profiles to be loaded post-installation without service visit
- Wear parts for all 16 stations listed in shipped spare parts documentation for reorder reference
What We Need to Move Your Order Forward
To confirm stock allocation and prepare your DW985 for dispatch, provide your facility’s three-phase voltage and frequency, the plug type required at your connection point, and the primary control panel language for your operators. Share the panel materials and edge banding types you will process most frequently so the pre-shipment test record reflects your actual production conditions. If your workshop runs existing upstream sizing saws or downstream boring equipment, note the feed height and throughput expectations so the DW985’s conveying speed and pressure beam settings align with your line flow.
Frequently Asked Questions
Q: Is the DW985 currently in stock, and how fast can a single unit ship?
A: The DW985 is held as a stocked configuration at ruiqistore.com for rapid dispatch. Single-unit orders are processed through the same pre-shipment verification as larger orders. Dispatch timing depends on completing your voltage, plug, and language confirmation — once those are locked in, the machine is crated and released to your chosen shipping route without a production build cycle.
Q: Can I change voltage and control language after placing the order?
A: Voltage and language configuration must be confirmed before the pre-shipment test runs, as the test record is generated on the as-configured machine. If your requirements change after ordering but before the test stage, we accommodate adjustments at that point. Changes requested after crating require unpacking and re-verification, which affects dispatch timing.
Q: What shipping methods are available, and is delivery quoted to my door?
A: Shipping options are quoted based on your destination port or facility address at the time of order confirmation. The DW985 ships fully assembled in a wooden box, so transit handling is straightforward. Door-to-door delivery can be included in the quotation if you provide your facility address and unloading capabilities during the inquiry stage.
Q: How does the 16-station sequence handle PVC versus veneer edge banding?
A: The processing stations from plate heating through soft forming and pressing are designed to accommodate different adhesive activation temperatures and pressing pressures across PVC, melamine, and veneer materials. Profile shape switching on the touch screen allows you to store settings for each material type. Confirm your most common banding material during inquiry so the pre-shipment test runs on the correct stock.
