Description
Fast Dispatch, Verified Voltage — every unit ships with written voltage confirmation so it works the moment you plug it in.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | WF-2000 / WF-2000H |
| Product Type | Automatic Edge Banding Machine |
| Overall Dimensions | 2100×600×630 mm (WF-2000) / 2100×600×1100 mm (WF-2000H) |
| Net Weight | 137 kg (WF-2000) / 149 kg (WF-2000H) |
| Panel Thickness Range | 18–25 mm |
| Strip Thickness | 1.2 mm |
| Rated Voltage | 220V (configurable before dispatch) |
| Rated Power | 6.17 kW |
| Rated Air Pressure | 0.4–0.6 MPa |
| Feed Speed | 0–14 m/min |

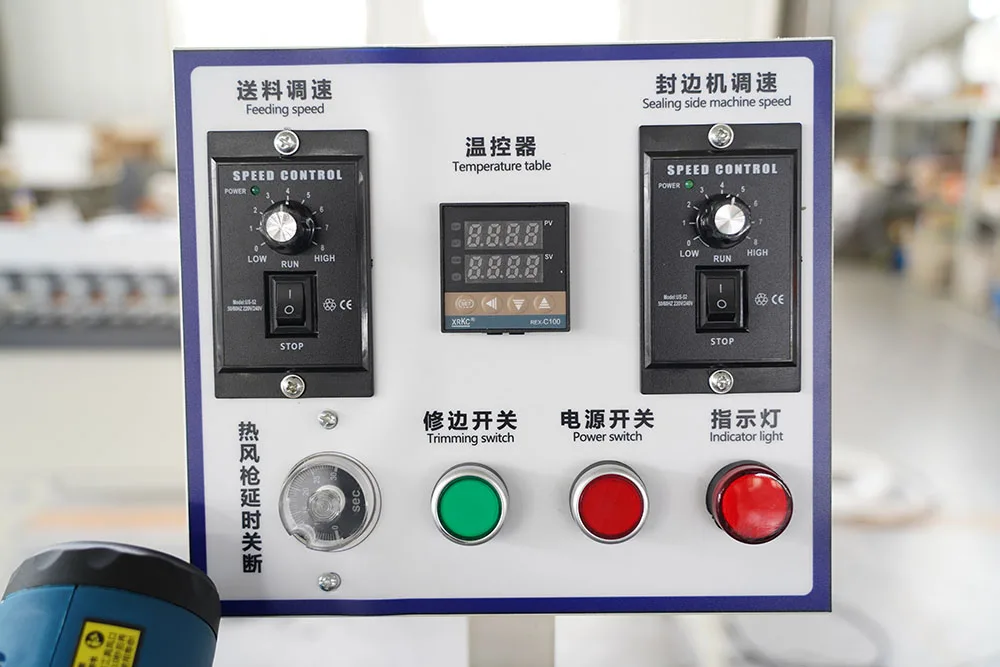

| Control System | Control panel (language options available) |
| Edge Banding Functions | Slotting edge banding, hot air heating, elastic profiling trimming, automatic belt breaking |
| Pressing System | 8 pressing rollers |
| Trimming Device | Included |
| Polishing Device | Included |
| Vacuum Device | Self-contained |
| Pressure Beam | Aluminum alloy, manually adjustable |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet edge finishing | MDF and particleboard panels, 18–25 mm thickness |
| Small workshop straight edge sealing | PVC and wood veneer strip banding up to 1.2 mm |
| On-site furniture assembly preparation | Plywood panels requiring portable edge processing |
| Starter production line edge work | Custom furniture panels in limited-space environments |
Why the Voltage Question Should Come Before the Price
Confirming local voltage and frequency before dispatch eliminates the most common cause of machine standstill after arrival.
I remember a Southeast Asian customer who received a 45-degree edge bander at his workshop, only to find it would not power on. The local grid ran on a different voltage and frequency than what the machine was built for. The unit sat idle for weeks while modifications were arranged. This kind of delay is entirely avoidable, yet it happens far more often than buyers expect when ordering an automatic edge banding machine in stock fast delivery [NEED_CITE: voltage and frequency standards by export market]. The fix is simple: lock in the electrical specification in writing before the machine leaves the factory floor.
Stock Availability Without the Guesswork
When a small workshop decides to move from manual edge banding to an automatic unit, waiting through a multi-week production cycle is often not an option. The WF-2000 series sits in the ready-stock category specifically to address this timing gap. Both the portable WF-2000 and the heavier WF-2000H variant are available for short lead-time dispatch, meaning a single-unit order can move from inquiry to shipment in a matter of days rather than weeks. The automatic edge banding machine in stock fast delivery approach means you are not waiting in a production queue behind larger bulk orders.
Dispatch Readiness Built Into the Process
Each unit undergoes a pre-shipment test that covers the full edge banding cycle, from feeding through trimming and polishing. The test runs on the exact voltage and frequency confirmed for your market, which matters because a machine tuned at the factory on one electrical standard can behave differently on another [NEED_CITE: CE machinery directive requirements for industrial equipment]. The self-contained vacuum device means the machine does not depend on external dust extraction infrastructure to begin operation. You unbox it, connect power and compressed air, and it is ready to run. This matters when you are a small operation without a dedicated maintenance team to handle complex commissioning.
How the Numbers Translate to Daily Use

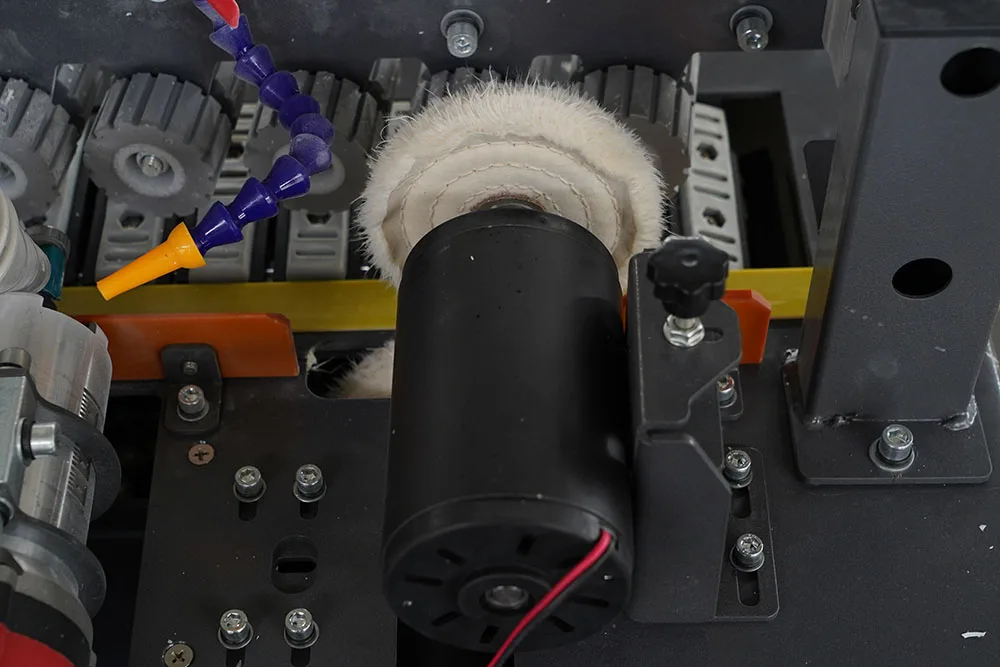

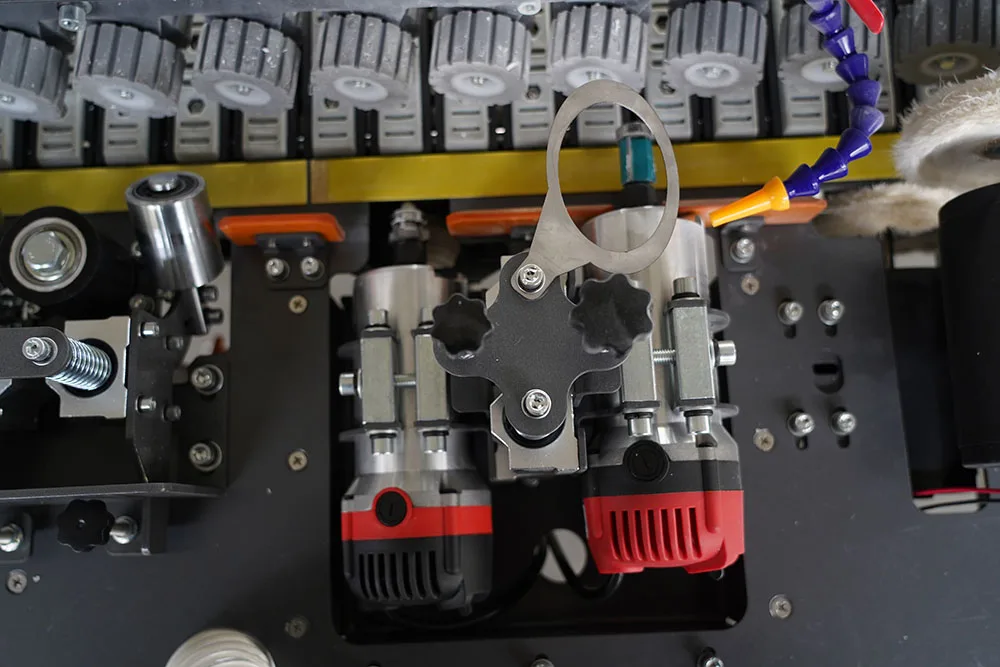

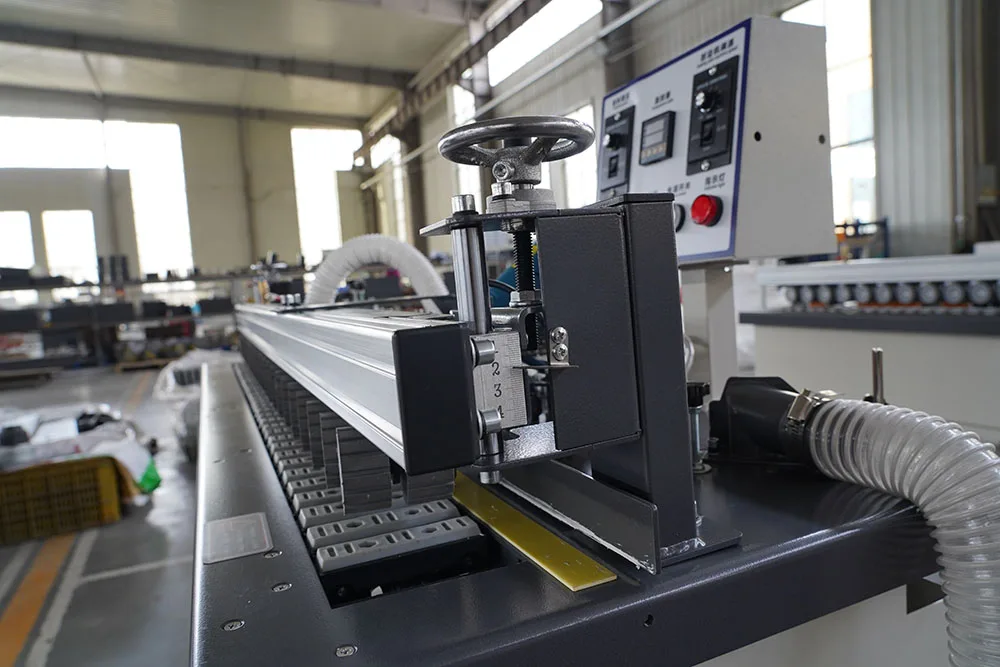

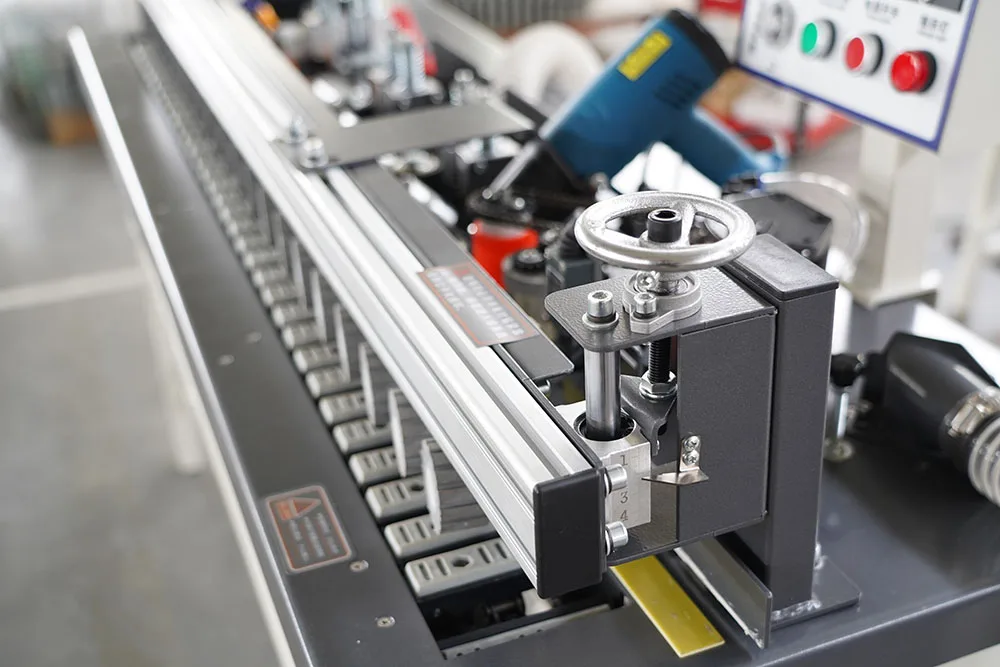

The feed speed range of 0–14 m/min allows operators to dial in the pace that suits their panel material and edge strip type. Running MDF at higher speed works fine with PVC strip, but slowing down gives the hot air heating system more dwell time when working with wood veneer that demands stronger adhesion. The 8 pressing rollers distribute pressure evenly across the strip width, which directly affects how well the glue bonds along the full edge. Panel thickness is handled between 18 and 25 mm, covering the standard board stock used in cabinet and furniture work. The aluminum alloy pressure beam adjusts manually, giving the operator direct control without complex calibration. Trimming is handled by an elastic profiling system that follows the panel contour without gouging the surface, and the polishing device finishes the edge in the same pass.
The Hidden Cost of Ordering Without Electrical Confirmation
A machine that arrives incompatible with your local power supply becomes a heavy object taking up floor space. Beyond the obvious delay, there is the cost of rewinding motors or replacing transformers, the shipping of components back and forth, and the production orders you cannot fulfill while waiting. For a small workshop operating on thin margins, this kind of disruption can cascade into missed delivery deadlines and lost customer trust [NEED_CITE: common causes of industrial equipment commissioning failure]. The problem compounds when the control panel displays in a language your operator cannot read, turning what should be a straightforward setup into a troubleshooting exercise.
Why This Channel Fits Small-Workshop Purchasing
The WF-2000 series is stocked specifically for single-unit and small-batch orders, which means you are not required to commit to volume purchasing to get short lead times. Voltage and control panel language are confirmed in writing before dispatch, addressing two of the most common post-delivery problems in cross-border equipment trade. Each machine ships with a factory test record showing it completed a full edge banding cycle at the correct electrical specification. The product range allows a workshop to start with the portable WF-2000 and later add the sturdier WF-2000H as production volume grows, staying within the same machine family and the same supplier relationship. Engineer-led configuration support is available within 24 hours of inquiry, giving you a formal quotation with confirmed specifications rather than a rough estimate.
Documentation & Verification
- Electrical schematic confirming your local voltage and frequency before dispatch
- Factory test record run on your specified panel thickness range
- Operation and maintenance manual in your agreed language
- Machine specification sheet with full parameter list and tolerance data
- Pre-shipment photographs showing packing condition and machine state
Installation, Commissioning & Support
- Requires a dedicated 6.17 kW circuit at confirmed voltage and frequency
- Compressed air supply at 0.4–0.6 MPa needed for pressing and feed systems
- Self-contained vacuum unit eliminates external dust extraction hookup
- Manual pressure beam adjustment allows quick setup for 18–25 mm panels
- Hot air heating system requires initial temperature calibration for your strip material
- Elastic profiling trimming device arrives pre-installed, no separate assembly step
What We Need to Move Your Order Forward
To prepare an accurate quotation and confirm stock availability, share your panel material type and standard thickness, the edge strip material you intend to use, and your local voltage and frequency. If you have specific control panel language requirements or need a door-to-door shipping quote, include your destination port or address. This information allows the engineering team to configure the correct variant and confirm dispatch timing.
Frequently Asked Questions
Q: Which variant is in stock now and what is the dispatch lead time?
A: Both the WF-2000 portable model and the WF-2000H heavy-duty model are kept in ready stock. Dispatch lead time for a single-unit order is typically measured in days rather than weeks, though exact timing depends on current stock rotation and your destination. Confirming voltage and language requirements at the inquiry stage prevents delays once the order is placed.
Q: Can voltage be confirmed for my country before I place the order?
A: Yes. Your local voltage and frequency are confirmed in writing before production or dispatch. This includes a review of your electrical specification against the machine’s rated system, and the confirmation is documented in the shipping paperwork so there is no ambiguity when the unit arrives at your workshop.
Q: What is the delivery arrangement for a single-unit order?
A: Single-unit orders ship with the same documentation and pre-shipment testing as larger batches. Door-to-door shipping can be arranged depending on your destination. The machine ships with operation manual, spare parts, and packing photographs so you can verify condition upon arrival.
Q: Is the machine ready to run on arrival or does it require assembly?
A: The WF-2000 series ships as a complete unit with trimming, polishing, and vacuum devices pre-installed. On arrival, you connect power and compressed air, calibrate the hot air temperature for your strip material, and the machine is ready for production. No major mechanical assembly is required at your site.
Q: What spare parts are included and how do I order replacements?
A: Each machine ships with a spare parts list covering wear items such as trimming blades and pressing roller components. Replacement parts can be ordered directly, and the parts list identifies each component by specification so reordering is straightforward even months after your initial purchase.
