Description
DW102 Edge Banding Machine for Wood Based Panels – In Stock
Voltage-Confirmed Dispatch — every DW102 leaves the warehouse only after your local voltage, frequency, and plug type are verified against the order sheet, matching our core habit of confirming electrical compatibility before production rather than after arrival.

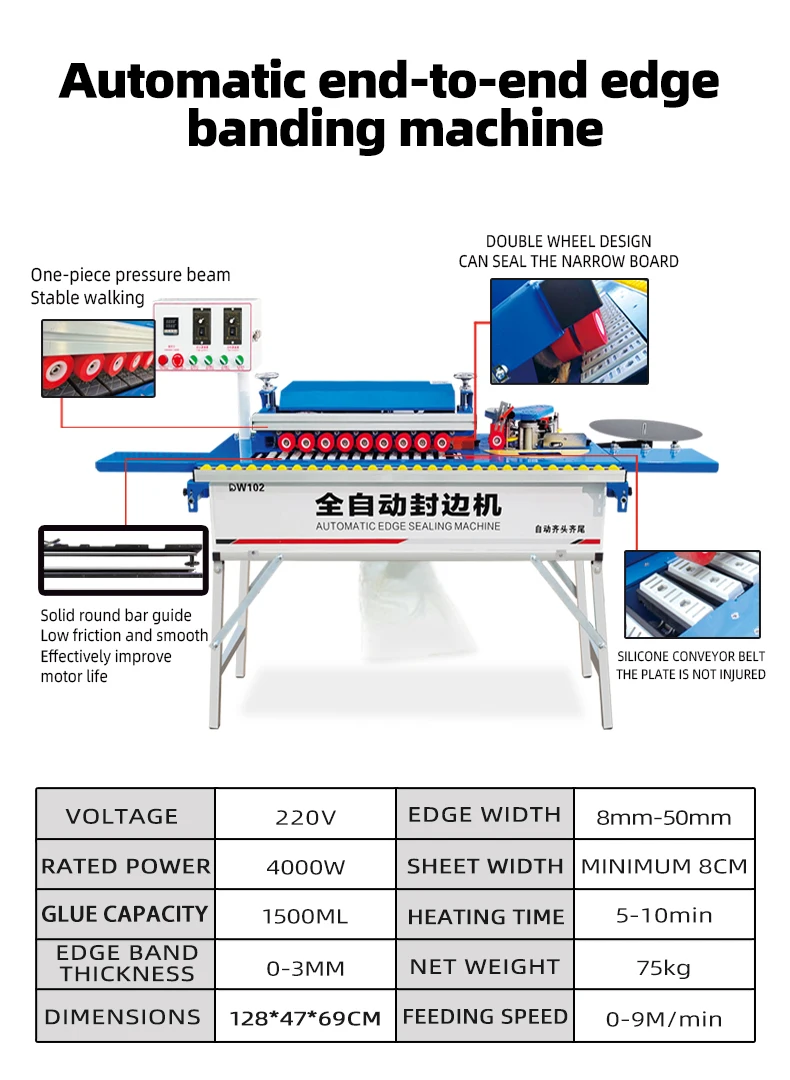

Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW102 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 3800W |
| Voltage & Frequency | 220V / 380V / customization |
| Standard Functions | Curved and straight edge banding, edge trimming, polishing, automatic head and tail cutting, vacuum feed |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 5 cm |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Trimming Power | 650W × 2 |
| Polishing Power | 180W × 2 |
| Glue Pot Capacity | 1000 ml |

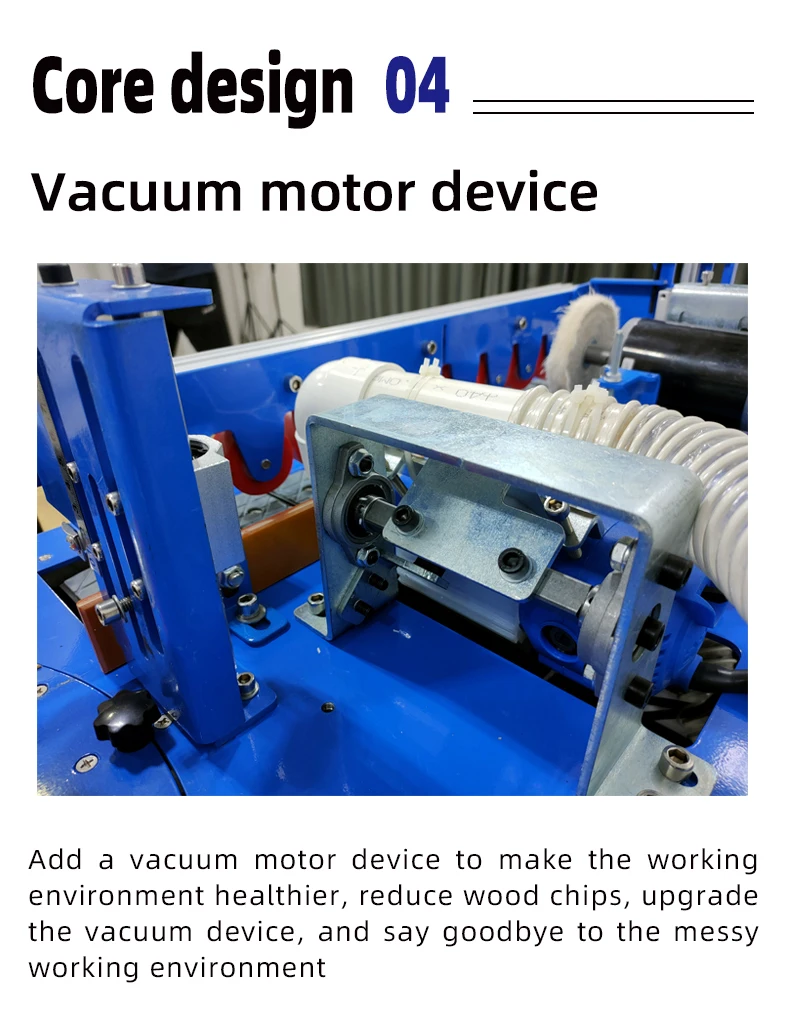

| Vacuum Power | 1200W |
| Transmission Power | 60W |
| Edge Feed Power | 20W |
| Air Source Pressure | 0.5–0.8 MPa |
| Product Size | 128 × 47 × 69 cm |
| Product Weight | 75 kg |
| Language Options | Chinese, English, Spanish, or customized |
| Plug Options | EU, USA, AU, UK |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door edge banding | MDF and particleboard with PVC or melamine edge strips |
| Custom furniture panel finishing | Plywood and blockboard with veneer or ABS banding |
| Polymer door profile edging | Polymer door blanks with curved contour edges |
| Small-batch workshop production | Solid wood panels and medium-density fiberboard for joinery |
Why the Voltage Question Must Come Before the Price
Most edge banding complaints traced to unusable machines on arrival start with a skipped voltage conversation.
When an Edge banding machine in stock ships without confirming the buyer’s local frequency and plug standard, the machine physically arrives but cannot run. Workshops in Southeast Asia on 220V/50Hz and buyers in parts of South America on 110V/60Hz have both received 380V three-phase units they could not energize. The DW102 is configurable across 220V, 380V, and custom voltages, but that flexibility only matters if the correct setting is locked in before dispatch. [NEED_CITE: voltage and frequency standards by export market]
Immediate Availability Without the Guesswork
Ordering an Edge banding machine in stock should not feel like a custom-build negotiation. The DW102 sits in the ready-stock pool with its compact 128 × 47 × 69 cm footprint, meaning it can be crated and dispatched on a short timeline once your voltage and language requirements are confirmed. Small workshops moving from manual edge trimming to their first machine-level setup typically cannot absorb multi-week production delays, and this model fills that gap directly.
Dispatch Readiness That Matches Your Panel Profile
Before any unit is packed, the glue pot temperature range and feed speed are checked against the edge banding thickness and substrate you plan to run. A cabinet maker ordering a single DW102 for 0.8 mm PVC on 18 mm particleboard gets different pre-ship settings than one running 2 mm solid wood veneer on plywood. This step eliminates the common scenario where the first week of production is spent troubleshooting glue lines that should have been set at the factory. [NEED_CITE: CE machinery directive requirements for edge banding equipment]
What the Numbers Mean on the Workshop Floor
The 0.3–3 mm edge banding thickness range covers the full spectrum from thin melamine strips for cabinet carcasses to thicker PVC and ABS profiles for visible door edges. Trimming runs through two 650W motors, which provides enough cutting torque to cleanly shear banding on dense MDF without chatter marks on the finished edge. The 1000 ml glue pot is sized for batch work rather than continuous high-volume lines, matching the DW102’s role as a single-machine or small-line unit. Polishing at 180W per head removes residual adhesive haze, leaving a surface ready for downstream handling or packaging.
The Cost of Skipping Pre-Dispatch Parameter Setting
Buyers who receive an edge bander with factory-default settings often spend their first production runs chasing visible glue lines, uneven trimming, or banding that peels at the head and tail cuts. The issue is rarely the machine itself — it is the mismatch between the glue temperature, feed pressure, and the specific combination of substrate and banding material in use. For small workshops without a dedicated technician, this commissioning gap can stall output and erode confidence in the equipment before it has had a fair run. [NEED_CITE: common commissioning faults in entry-level edge banding machines]
What You Get Beyond the Machine
Voltage and plug selection is confirmed at the quotation stage, not discovered at the port of arrival. The control panel language — Chinese, English, Spanish, or a custom option — is set before shipment so your operator reads instructions on day one. Factory test records are generated using panel material matching your stated application. OEM branding and private-label marking are available if you distribute under your own name. A four-stage quality check covers incoming components through to pre-shipment verification, so the unit you receive has been run and inspected, not just assembled and boxed.
Documentation & Verification
- CE declaration of conformity referencing the DW102 model and its electrical configuration
- Factory test record run on panel thickness matching your stated substrate range
- Electrical schematic confirming your ordered voltage, frequency, and plug type
- Operation and maintenance manual in your selected language with illustrated setup steps
- Spare parts list identifying wear items with part numbers for reorder
- Pre-shipment photograph set showing the crated unit and accessory pack
Installation, Commissioning & Support
- Requires a dedicated circuit matching the confirmed 220V or 380V supply with appropriate breaker rating
- Compact 128 × 47 × 69 cm footprint fits through standard workshop doorways without disassembly
- Air source connection at 0.5–0.8 MPa needed for pneumatic trimming and clamping functions
- First-run glue pot temperature calibrated to your specified edge banding thickness during remote commissioning
- Operator training covers curved and straight edge switching, head-tail cut timing, and polishing pass adjustment
- Wear parts for trimming blades and polishing wheels listed with reorder intervals in the spare parts document
Ready to Move Forward — What We Need From You
To confirm the right DW102 configuration for your workshop, share your primary substrate type and thickness, the edge banding material and thickness range you plan to run, and your local voltage and frequency standard. If you are replacing an existing machine or adding capacity alongside other equipment, note the feed direction and available floor space so we can advise on placement.
Frequently Asked Questions
Q: How quickly can the DW102 be shipped after I confirm my order?
A: The DW102 is held in ready-stock status, so dispatch lead time depends on configuration confirmation and destination logistics. Once your voltage, plug type, and control panel language are locked in, the unit moves to crating and forwarding. Single-unit orders are standard and do not require a production slot.
Q: Which voltage and plug options are available for my country?
A: The machine supports 220V, 380V, or custom voltage configurations, with plug options covering EU, USA, AU, and UK standards. Your local voltage and frequency are confirmed at the quotation stage so the correct electrical setup is built in before dispatch, avoiding the situation where a machine arrives but cannot be powered on.
Q: Can I order one DW102 for evaluation before committing to a larger purchase?
A: Single-unit orders are accepted and commonly used by workshops and distributors testing the machine on their own panel materials. The same pre-dispatch parameter setting and documentation package applies whether you order one unit or multiple machines for a regional inventory.
Q: Is the control panel and manual available in a language my operators can read?
A: Standard language options include Chinese, English, and Spanish, with custom language panels available on request. The operation and maintenance manual ships in the agreed language so your team can handle setup, daily operation, and routine maintenance without translation delays during commissioning.
Q: What edge banding materials and thicknesses does this machine handle?
A: The DW102 processes edge banding from 0.3 mm to 3 mm thickness and handles PVC, ABS, melamine, and veneer strips. It bands both straight and curved edges on substrates including MDF, particleboard, plywood, and blockboard, with minimum sheet dimensions of 25 cm length and 5 cm width.
