Description
Ready Stock Dispatch — every DW770 unit ships with verified voltage and plug type matching your local grid, confirmed before the crate leaves the floor.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW770 |

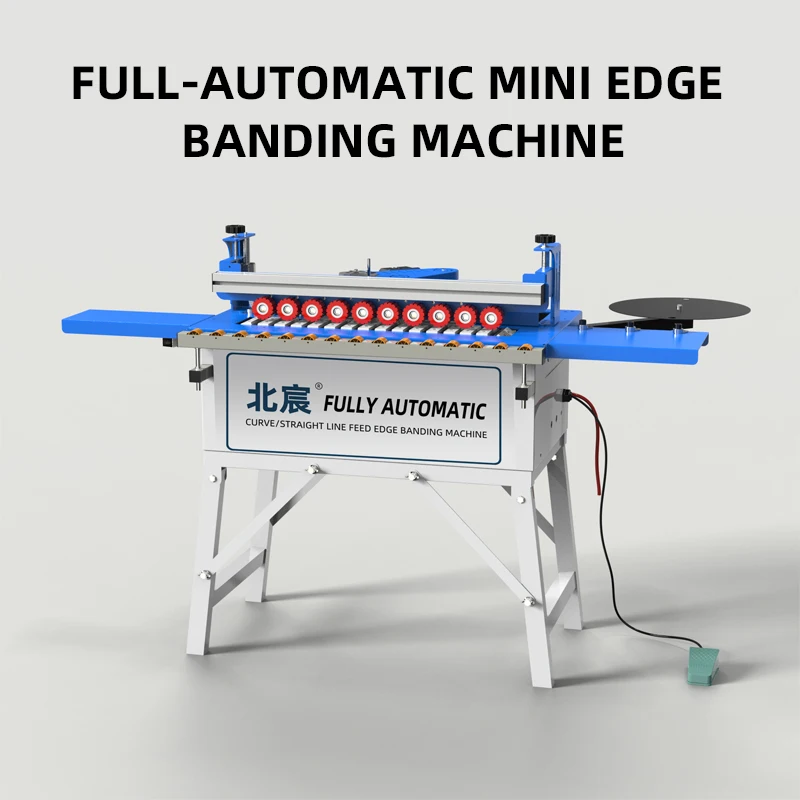

| Product Type | Automatic Mini Edge Banding Machine |
| Total Power | 1200W |
| Voltage | 220V Single-Phase |
| Edge Banding Height Range | 0–50 mm |
| Edge Banding Thickness Range | 0.3–3 mm |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 3 cm |
| Glue Pot Capacity | 1000 ml |
| Air Source Pressure | 0.5–0.8 MPa |
| Tape Feeding Mode | Fully automatic tape feeding |
| Control Panel Language | Chinese and English standard; other languages customizable |
| Plug Options | EU, USA, AU, UK plug available |
| Product Size | 77 × 49 × 45 cm |
| Product Weight | 51 kg |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and particleboard with PVC or melamine edge banding |
| Small-batch curved furniture components | Plywood and solid wood panels with veneer banding |
| On-site building decoration trim work | Pre-cut board substrates requiring portable edge banding |
| Joinery workshop transition from manual to machine | Mixed panel materials for prototyping and short runs |
Why Voltage Confirmation Must Happen Before You Approve the Order
A 220V machine wired for the wrong frequency will never reach stable glue temperature, and no amount of operator adjustment will fix it.
I learned this the hard way sourcing an automatic edge bander for a North American furniture plant years ago. The supplier shipped a 400V unit without cross-checking the facility’s 480V transformer setup. The glue pot could not maintain temperature, edge adhesion failed on every second panel, and the entire cabinet door run had to be reworked on-site. Since then, I verify the electrical schematic against the buyer’s local supply before confirming any order. The DW770 runs on 220V single-phase, which covers most small workshop grids, but plug type and frequency still vary between regions. An Edge banding machine in stock fast delivery means nothing if it arrives electrically incompatible with your workshop. [NEED_CITE: voltage and frequency standards by export market]
Dispatch Speed Without the Electrical Guesswork
Stocked DW770 units move from warehouse to crate within a short lead window, which matters when a small workshop has a deadline and cannot wait through a full production cycle. The key difference here is that dispatch speed does not come at the cost of skipped electrical checks. Each unit’s plug type — EU, USA, AU, or UK — is confirmed against the buyer’s specification before packing. An Edge banding machine in stock fast delivery should arrive ready to plug in and power on, not sitting idle while you source adapters or rewiring services locally.

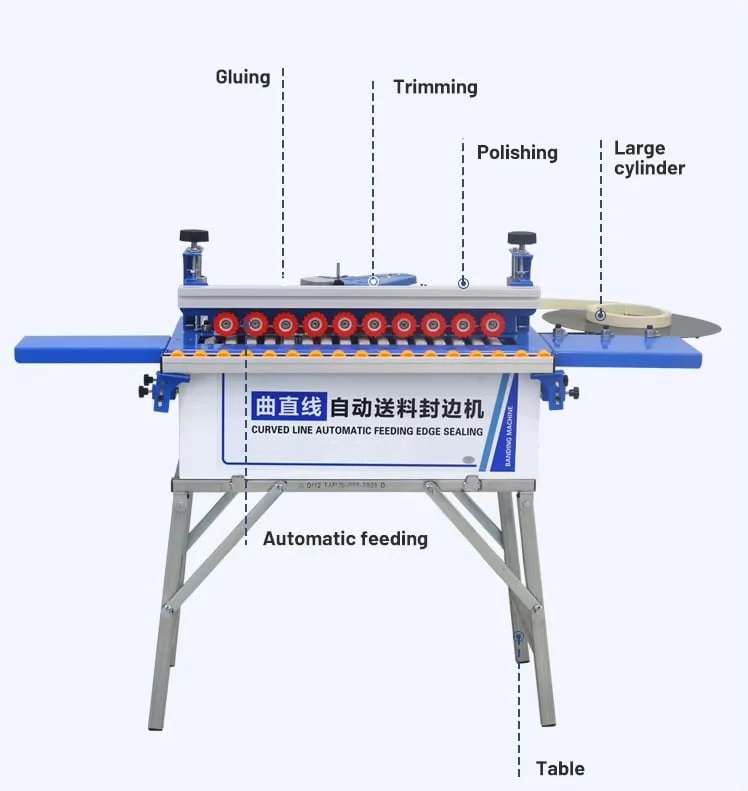

Compact Footprint, Curved and Straight in One Pass
The 77 × 49 × 45 cm frame sits on a standard workbench or a small dedicated stand, which keeps floor space free for panel storage and assembly benches nearby. The machine handles both curved and straight edge banding within a single setup, eliminating the need for a separate curved-edge unit when production volumes are still building. Edge thickness from 0.3 mm to 3 mm and height up to 50 mm cover the common PVC, melamine, and veneer tapes used in cabinet and furniture work. [NEED_CITE: common edge banding material thickness ranges in furniture manufacturing]
What the Spec Sheet Actually Means at the Workbench
The 1200W total power rating is modest, but it aligns with the machine’s role: short-run and prototype work on 220V circuits that share a breaker with lighting and other bench tools. A full-production edge bander pulling 6 kW or more would require a dedicated industrial circuit that most small workshops do not have. The 1000 ml glue pot capacity supports several hours of intermittent operation before a refill is needed, which suits batch work where the operator loads a set of panels, bands the lot, and moves to the next task. Fully automatic tape feeding at the 0.3–3 mm thickness range means the operator does not manually advance the tape or trim the leading edge by hand — a meaningful reduction in setup time per panel. The 0.5–0.8 MPa air requirement is within reach of a standard small workshop compressor, but buyers should confirm their compressor’s sustained output before assuming an existing unit is sufficient.
The Cost of Skipping the Air Supply Check

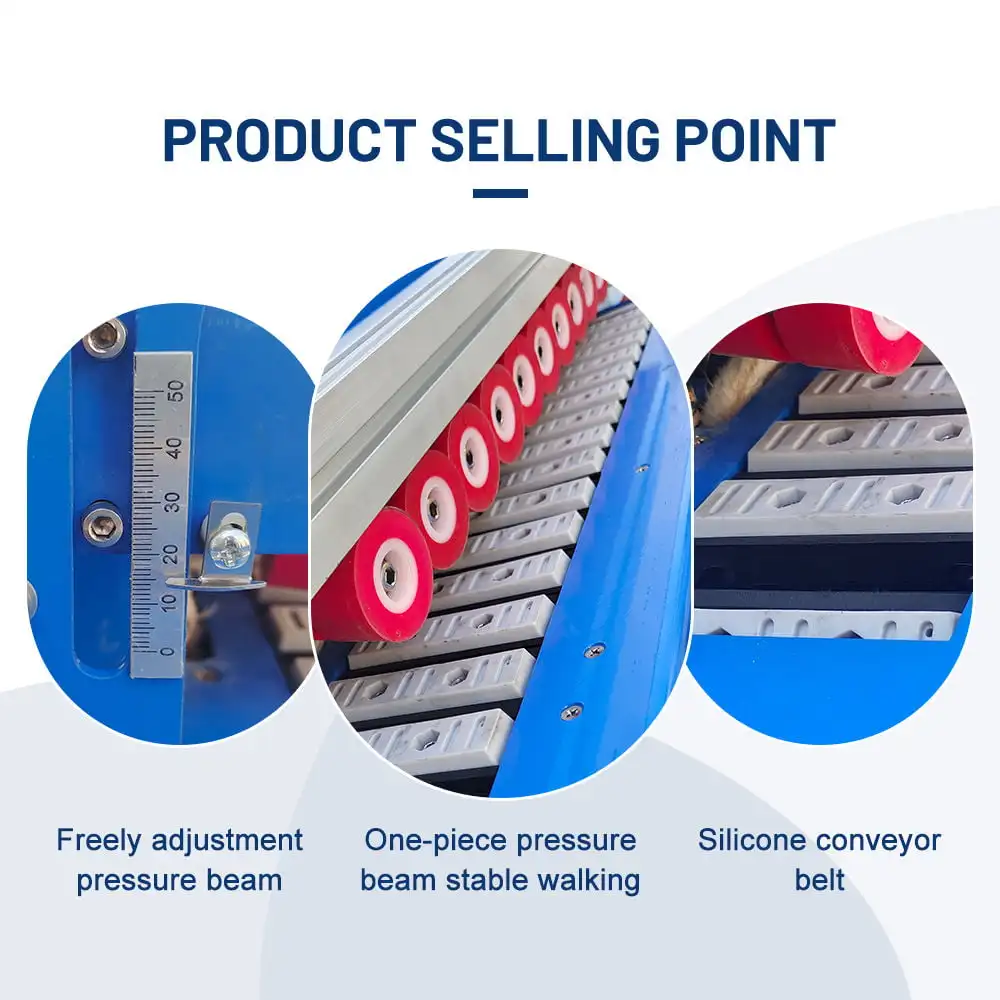

Workshops that plug in the machine and start running panels without verifying compressor capacity often see intermittent bonding failures that are hard to diagnose. The pneumatic system drives the tape feed and pressure roller, and insufficient air pressure causes uneven tape contact on the panel edge. The result is visible glue lines on some boards and clean bonds on others, which looks like a glue problem but is actually a supply problem. A small compressor rated at the lower end of the 0.5–0.8 MPa range may hold pressure for the first few panels and then drop as the tank depletes during continuous use. [NEED_CITE: pneumatic supply requirements for small-format edge banding equipment]
What Separates a Stock Order from a Blind Purchase
Voltage and plug confirmation happens at the order stage, not after the crate is sealed — this prevents the transformer incompatibility problem that stalls commissioning. The control panel ships in the language agreed at quotation, so operators can read the interface on day one rather than waiting for a translated manual. A pre-shipment test record travels with the machine, documenting that the glue pot reached temperature and the tape feed cycled correctly on the specified voltage. Spare parts and an electrical schematic are packed inside the crate, meaning a workshop can troubleshoot minor issues without waiting for a parts shipment across borders. Every Edge banding machine in stock fast delivery from this line carries the same documentation package, whether the order is a single unit or a mixed container.
Documentation & Verification
- CE declaration of conformity covering the DW770 electrical and mechanical safety scope
- Factory test record showing glue pot temperature stability at the confirmed 220V supply
- Electrical schematic with voltage, frequency, and plug type annotated for your region
- Operation manual in your agreed language, shipped inside the crate
- Spare parts list matching the DW770 bill of materials for reorder accuracy
Installation, Commissioning & Support
- Bench or stand placement on a level surface within the 77 × 49 × 45 cm footprint
- Dedicated 220V single-phase circuit rated for at least 1200W continuous draw
- Compressor connection verified at 0.5–0.8 MPa sustained output before first panel run
- Glue pot filled to 1000 ml capacity and heated to operating temperature during commissioning
- Control panel language set and verified against the operator’s working language at startup
- Spare edge banding rollers and glue scraper included for initial maintenance cycles
What to Prepare Before Requesting a Quote
Send your local voltage, frequency, and the plug type used in your workshop so the correct electrical configuration is confirmed before dispatch. Specify the edge banding material you run most often — PVC, melamine, or veneer — and the typical thickness range so the tape feed is tested against a matching sample before the machine ships. If your compressor sits at the lower boundary of the 0.5–0.8 MPa range, note the model and rated output so the pneumatic supply can be evaluated against continuous-use demand. An Edge banding machine in stock fast delivery only works if these details are locked down at the order stage.
Frequently Asked Questions
Q: How quickly can the DW770 be dispatched after I confirm my order?
A: Stocked units are prepared for shipment within a short lead window once voltage, plug type, and panel language are confirmed. The dispatch timeline begins after these specifications are verified, not at the moment of inquiry. Pre-shipment testing and packing photographs are completed before the crate leaves the facility.
Q: How do I confirm the correct voltage and plug type for my workshop?
A: Provide your local supply voltage, frequency, and the plug standard used in your facility at the quotation stage. The DW770 is configured for 220V single-phase, and plug options include EU, USA, AU, and UK types. The electrical schematic is reviewed against your specifications before the machine is packed for shipment.
Q: Can the control panel language be changed before delivery?
A: Yes. The standard panel is available in Chinese and English, and additional languages can be configured before the machine ships. Specify the operator’s working language during the order confirmation so the interface is readable from the first day of use.
Q: What spare parts and consumables arrive with the machine?
A: Each DW770 ships with a spare parts list matching the unit’s bill of materials, an electrical schematic, and an operation and maintenance manual. Wear items for initial maintenance cycles are included. Consumable edge banding tape and glue are sourced by the buyer based on local availability.
Q: Can I request a sample processing test before placing my order?
A: Yes. If you supply a sample panel and edge banding material, a processing test can be run on a DW770 unit at the confirmed voltage before you commit to the order. The test record and photographs are shared for your review before shipment is scheduled.
