Description
Immediate Dispatch Capability — DW102 units held in warehouse inventory with voltage and plug configuration confirmed before release, eliminating arrival-day power mismatches for single-unit buyers.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW102 |

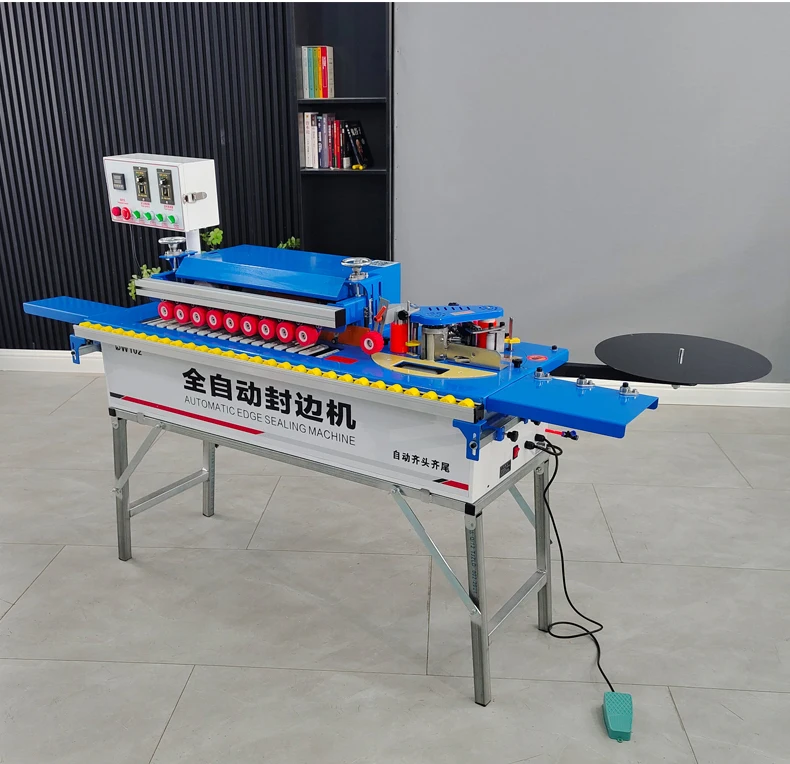

| Product Type | Automatic Curve and Linear Edge Banding Machine |
| Total Power | 3800W |
| Voltage Options | 220V / 380V / Customization |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 5 cm |
| Trimming Power | 650W × 2 |
| Polishing Power | 180W × 2 |
| Vacuum Power | 1200W |
| Glue Pot Capacity | 1000 ml |
| Air Source Pressure | 0.5–0.8 MPa |
| Overall Dimensions (L×W×H) | 128 × 47 × 69 cm |
| Net Weight | 75 kg |
| Assembly State | Floor-standing, integrated unit |
| Language Options | Chinese, English standard; Spanish and others customizable |
| Plug Options | EU, USA, AU, UK |
| Standards | CE |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door and drawer front edging | MDF and particleboard with PVC banding |
| Custom furniture curved profile finishing | Plywood and blockboard with 0.3–3 mm PVC |
| Small-batch bespoke panel edging | Solid wood panels and polymer door components |
| Workshop transition from manual to automatic trimming | Double-sided adhesive tape compatible PVC edge banding |
Why Voltage Confirmation Must Happen Before the Order Ships
An Automatic Edge Banding Machine in stock is only useful if it actually runs when you plug it in. We have seen machines arrive at workshops where the local supply is 220V single-phase, but the unit was wired for 380V three-phase — it sat on the floor for weeks while the buyer arranged a transformer or filed a return [NEED_CITE: voltage and frequency standards by export market].
The DW102 ships with configurable voltage and a selection of plug types, but those options only matter if someone asks the right questions before the crate leaves the warehouse. A 3800W total draw means some workshops need a dedicated circuit; others can run it on existing shop wiring. Getting this wrong does not damage the machine — it simply prevents it from powering on, which is a costly delay when you bought from ready stock specifically to avoid waiting.
Ready Stock Means Configured Stock, Not Generic Stock
Holding an Automatic Edge Banding Machine in stock is only half the commitment. Each DW102 is checked against the buyer’s confirmed voltage, frequency, and plug type before dispatch. A unit destined for a 60Hz market receives different motor winding verification than one heading to a 50Hz region. This is the step that separates a fast delivery from a fast disappointment.
Single-Unit Orders Without Container Commitments
Most edge banding suppliers require bulk orders or full container loads. The DW102 is stocked and sold as individual units, which suits joinery workshops adding their first automatic edger or cabinet makers replacing a single aging machine. You order one, it ships one, and the lead time is measured in days rather than production cycles [NEED_CITE: typical lead time expectations for stocked industrial equipment].
Reading the Numbers That Actually Matter on the Shop Floor
The 0.3–3 mm edge banding thickness range covers the PVC stock most MDF and plywood cabinet production uses daily. Below 0.3 mm, the material is too thin for the feed mechanism to grip reliably; above 3 mm, the trimming cutters cannot shear the excess cleanly in a single pass. The 0–50 mm banding height accommodates standard panel thicknesses from 9 mm shelving stock up through 40 mm worktop material.
Air source pressure at 0.5–0.8 MPa drives the pneumatic cylinders that press the banding against the panel edge and actuate the head-and-tail snips. A workshop compressor that cannot sustain 0.5 MPa under continuous draw will cause intermittent bonding failures — the banding lifts at the leading edge because the pressure roller never reached full clamping force. This is a compressor problem, not a machine problem, but it shows up as poor edge quality and gets blamed on the bander.
The 1200W vacuum motor holds the workpiece steady on smaller panels where the minimum sheet width is 5 cm. Without vacuum assist, a narrow strip of plywood can shift during the trimming pass, producing an uneven cut that requires manual cleanup and defeats the purpose of running an automatic unit.
What Happens When the Wrong Configuration Reaches Your Floor
A workshop in the Yangtze Delta region once ordered a straight-line edge bander for what they described as standard cabinet panels. The machine arrived quickly, but the panels they were actually running exceeded the design thickness range of that particular model. The glue roller pressure was insufficient for the heavier stock, and PVC banding lifted at the trailing edge on nearly every piece. We swapped them into a pre-milling model with higher clamping force, and the line ran clean within a day. The cost was not the machine — it was the week of rejected panels and missed delivery dates [NEED_CITE: common edge banding failures caused by configuration mismatch].
Buying from stock does not remove the responsibility of matching machine capability to actual workload. It only removes the waiting.
Why Buying from This Stock Matters
Every DW102 in the warehouse has passed a four-stage quality check before it was placed in inventory — incoming material inspection, in-process assembly verification, finished product testing, and pre-shipment confirmation. A stocked machine is not an unchecked machine.
Voltage, plug type, and control panel language are confirmed per order. The unit that ships to a Spanish-speaking operator in South America carries a Spanish interface and a matching operation manual, not a generic English-only package that stalls commissioning.
Spare parts lists ship with every unit, and consumable items like trimming blades and polishing wheels are identified by part number so reorders can be placed without measuring and guessing.
Documentation & Verification
- Machine specification sheet with confirmed voltage and frequency matched to your workshop supply
- Pre-shipment test record showing edge banding quality on your specified panel thickness
- Operation and maintenance manual in the agreed language including Spanish or English
- Electrical schematic with circuit diagram for local electrician reference during installation
- Spare parts list with part numbers for trimming blades, polishing wheels, and pneumatic seals
- CE declaration of conformity for customs clearance and regulatory compliance
Installation, Commissioning & Support
- Requires a dedicated circuit rated for 3800W total draw at the confirmed voltage
- Floor-standing footprint of 128 × 47 cm needs a level concrete surface, no anchor bolts required
- Arrives as an integrated unit — uncrate, connect air supply at 0.5–0.8 MPa, and power on
- First-run parameter setup includes glue temperature, feed speed, and trimming cutter alignment
- Vacuum system requires connection to the integrated 1200W motor or external extraction if specified
- Pneumatic line filter and regulator included for compressor connection at the workshop air supply
Before You Place the Order
Tell us your panel material, thickness range, and whether you run curved profiles or straight edges only. Confirm your workshop voltage and frequency so the correct configuration ships. If your operators speak a language other than English or Chinese, specify it so the control panel and manual arrive ready to use.
Frequently Asked Questions
Q: Is this model in stock and what is the dispatch lead time for a single unit?
A: The DW102 is held in ready stock for individual unit orders. Dispatch typically occurs within days of voltage and plug confirmation rather than weeks. Lead time depends on the shipping destination and the configuration check required before release. We confirm the exact dispatch date at the point of order so you can plan your workshop schedule around a known arrival window.
Q: Can you confirm 220V/380V/custom voltage and the correct plug type before shipping?
A: Yes. Voltage and plug type are verified against your workshop supply before the machine leaves the warehouse. The DW102 supports 220V and 380V configurations along with custom requirements, and plug options include EU, USA, AU, and UK standards. This confirmation step is mandatory — we do not dispatch an Automatic Edge Banding Machine in stock without it.
Q: Will the control panel and manual be in my language when the machine arrives?
A: Chinese and English are standard on the control panel and in the documentation. Spanish and other languages are available as customizable options and must be specified at order. The operation and maintenance manual is provided in the agreed language so your operators can begin commissioning without translation delays.
Q: What is the minimum order — can I buy just one DW102 for my workshop?
A: The minimum order is a single unit. There is no container-load requirement or bulk commitment. This suits workshops adding their first automatic edge bander or replacing one machine on an existing line. You order one DW102, it is configured and dispatched as one unit.
Q: How do I get spare parts and technical support after the machine is installed?
A: Every shipment includes a spare parts list with part numbers for consumables like trimming blades and polishing wheels. Installation guidance is provided to walk through first-run setup. After-sales support covers fault diagnosis and parts reordering so your Automatic Edge Banding Machine in stock stays productive beyond the initial commissioning period.
