Description
Stocked for immediate dispatch — this compact edge bander ships at confirmed 220V/50Hz, so your workshop can start producing finished panels the week it arrives rather than waiting for electrical rework.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF910H |
| Product Type | Fully Automatic Edge Banding Machine |
| Function | Automatic plate feeding, double-sided gluing, end cutting, upper and lower polishing, automatic head and tail trimming, integrated dust collector |
| Voltage & Frequency | 220V 50Hz |
| Rated Power | 4 kW |
| Heating Power | 800 W |
| Polishing Power | 180 W × 2 |
| Trimming Power | 800 W × 2 |
| Suction Power | 1200 W |
| Belt Power | 25 W |
| Transmission Power | 120 W |
| Rated Air Pressure | 0.4–0.6 MPa |
| Sheet Thickness Range | 10–50 mm |
| Strip Thickness Range | 0.5–2.5 mm |
| Minimum Board Width for Edge Sealing | 2.5 cm |
| Glue Capacity | 1000 ml |
| Transmission | Steel rod slide rails, crawler transmission |

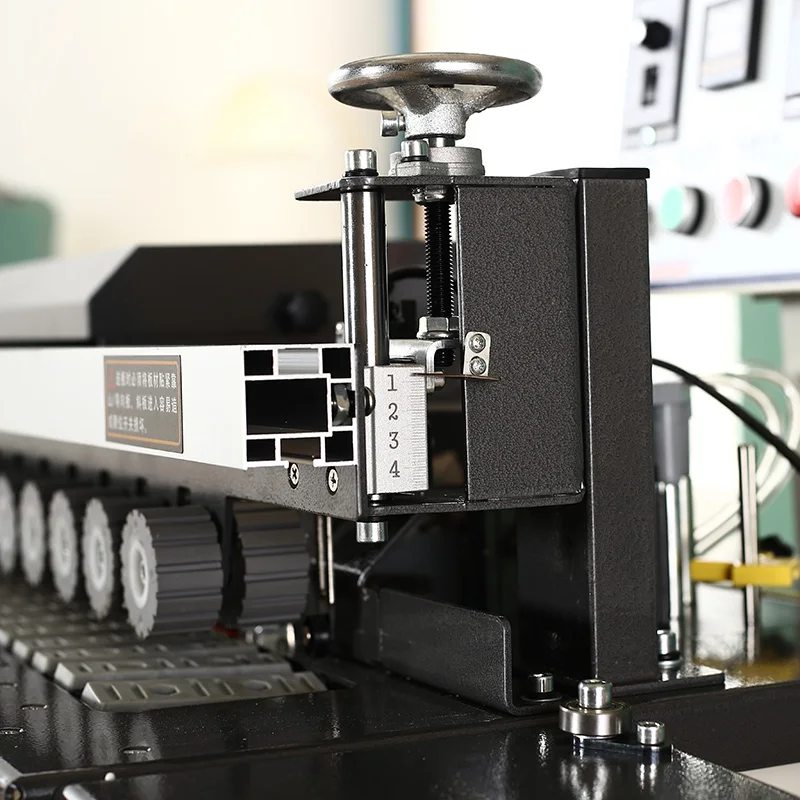

| Pressure Beam | Adjustable aluminum alloy |
| Feed Mechanism | Double-row rubber pressure wheels, automatic plate feeding |

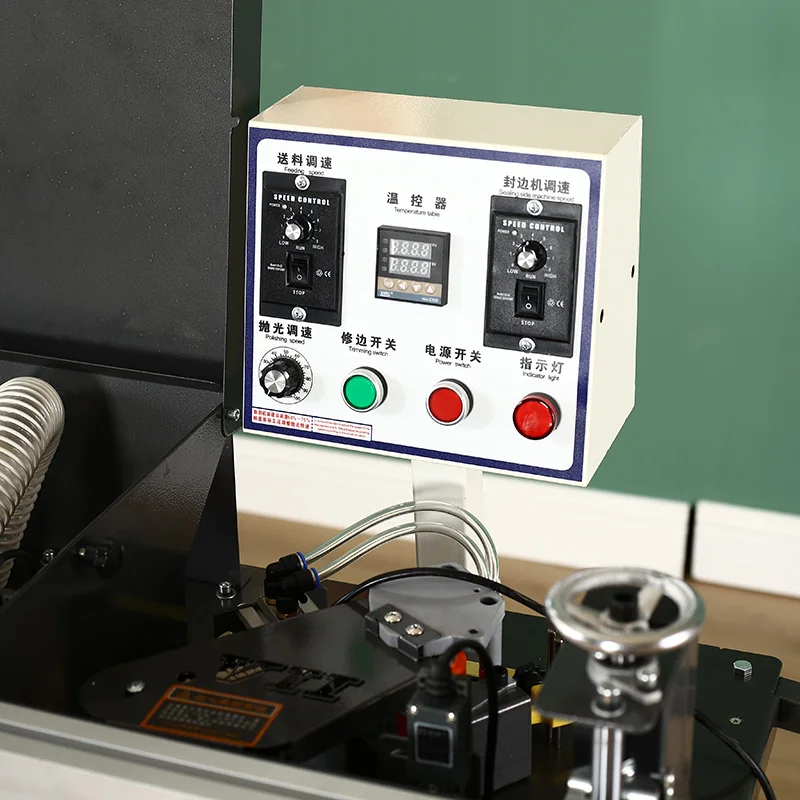

| Control System | Multi-function button operation panel |
| Overall Dimensions (L×W×H) | 1300 × 560 × 1090 mm |
| Net Weight | 185 kg |
| Dust Extraction | Full-envelope vacuuming with large-diameter dust collector |
| Warranty | 1 year (verify against manufacturer confirmation) |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge banding | MDF and particleboard with PVC strips 0.5–2.5 mm |
| Small-batch wardrobe panel finishing | Plywood and melamine-faced board with veneer or PVC banding |
| Joinery workshop first-step automation | Solid wood panels and blockboard, sheet thickness 10–50 mm |
| Narrow shelf and divider edging | Boards as narrow as 2.5 cm, single-operator workflow |
Why the Voltage Question Must Come Before the Order
Confirming your local voltage and frequency before dispatch is the single most important step in buying a Fully Automatic Edge Banding Machine in stock.
I have watched machines sit idle on workshop floors for weeks because the buyer assumed 220V meant the same thing everywhere. Frequency mismatches alone can throw off motor speeds and heating cycles, producing weak glue bonds that only show up when panels reach assembly [NEED_CITE: voltage and frequency standards by export market]. The ZDSF910H is configured at 220V/50Hz and listed that way up front — no guesswork at the commissioning stage.
Ready Stock Means Predictable Lead Times
Workshops ordering a Fully Automatic Edge Banding Machine in stock need it running quickly, not sitting in a production queue. This unit ships from available inventory, cutting out the multi-week build cycle that custom-order machines require. For a small cabinet shop adding edge banding capability for the first time, that difference determines whether you quote your next job with confidence or turn it away.
Compact Footprint Without Sacrificing Function

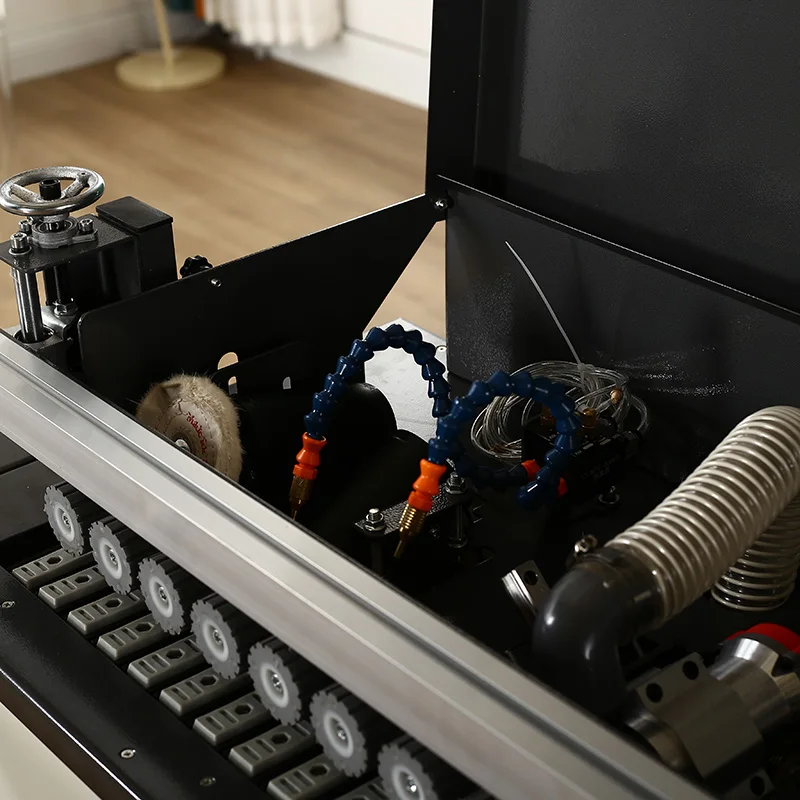

At 1300 × 560 mm, the ZDSF910H fits along a wall in workshops where floor space is already committed to saws and drills. Despite that footprint, it carries a full station set — double-sided gluing, end cutting, head and tail trimming, and upper and lower polishing — so panels leave the machine finished rather than needing a second pass on a separate unit [NEED_CITE: typical small workshop floor layouts for single-operator edge banding].
Reading the Specs That Actually Matter
The 10–50 mm sheet thickness range covers the core materials a custom furniture shop processes daily, from thin 10 mm MDF drawer sides up to 50 mm blockboard shelving. The adjustable aluminum alloy pressure beam adapts clamping force across that range, keeping the board flat against the feed bed without crushing softer substrates. Double-sided gluing from a 1000 ml glue pot applies adhesive to both the board edge and the strip simultaneously, which is what separates a clean, gap-free bond from one that peels after a few months in a humid kitchen. The 800 W trimming stations on both upper and lower axes, combined with automatic head and tail trimming, remove overhang in one pass so the operator does not need a hand router for cleanup afterward.
What Happens When Configurations Are Skipped
I once saw a small workshop receive an edge bander built for a different market’s electrical standard. The heating element could not reach proper glue melting temperature, and every strip applied that first week delaminated within days. The cost of rework — stripped panels, wasted banding material, lost production days — far exceeded any savings on the initial purchase [NEED_CITE: common commissioning failures from unconfirmed electrical specifications]. Machines quoted without confirming local voltage and frequency arrive as expensive floor weights, not production assets.
Why This Is the Right Place to Source
Voltage and specification details are confirmed in writing before any unit ships, not discovered when the crate opens. The pre-shipment test record shows your machine running your panel thickness range before it leaves the factory floor. A single-unit order from stock is treated with the same four-stage quality verification as a full container load. Spare parts lists and operation manuals ship in the language you specify at order time, so your operator is not decoding instructions in an unfamiliar script. Engineer-led configuration advice is available within 24 hours if your material or volume requirements fall outside the standard setup.
Documentation & Verification
- CE declaration of conformity applicable to this machine class
- Factory test record on your specific sheet thickness range before dispatch
- Electrical schematic confirming 220V/50Hz wiring and component ratings
- Operation and maintenance manual in your requested language
- Packing photographs showing crate condition and securing method before loading
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated for the 4 kW total draw plus starting surge
- Compressed air supply at 0.4–0.6 MPa must be plumbed to the machine inlet before first run
- KD packing on some components — assembly follows the included manual or video guide
- Glue pot temperature calibration should match your specific PVC or veneer strip material

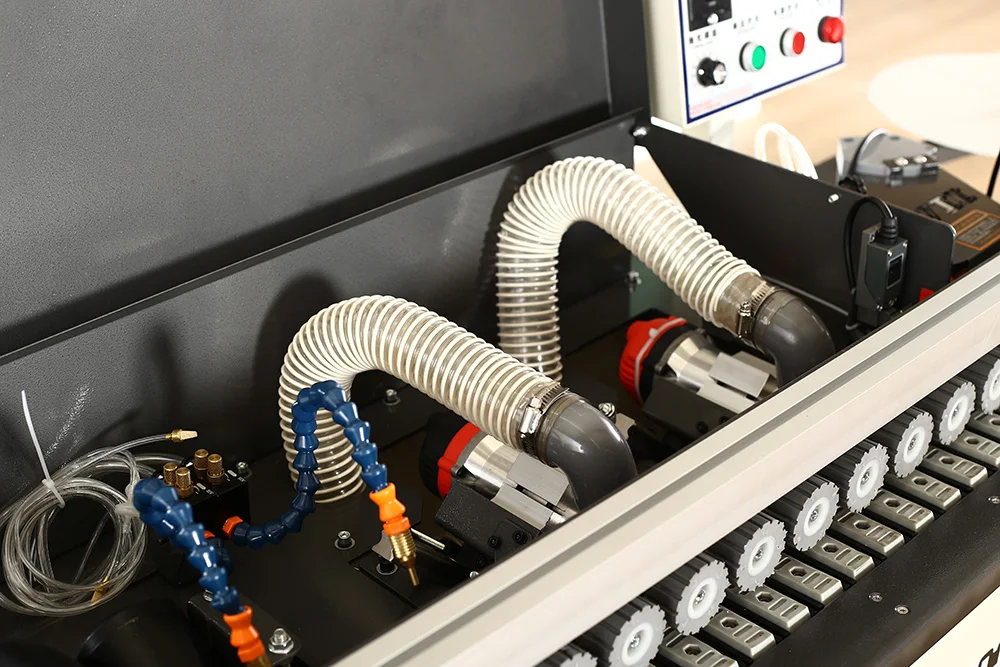

- 1200 W dust collector connects via the large-diameter port; verify ducting runs are clear
- Spare trimming cutters and polishing wheels included in the shipped parts kit
What to Include With Your Inquiry
Tell us your primary board materials and the thickness range you run most often so we can confirm the ZDSF910H covers your daily work. Confirm your local voltage and frequency so the machine matches your supply before it leaves. If you use recycled or non-standard edge banding stock, mention the material and thickness so we can advise on glue temperature settings ahead of dispatch.
Frequently Asked Questions
Q: Can the ZDSF910H be adapted for markets outside 220V/50Hz?
A: The listed stock configuration is 220V/50Hz. If your local supply differs, request a voltage and frequency review before ordering. Adaptations may be possible depending on lead time and component availability, but this must be confirmed in writing prior to dispatch to avoid commissioning problems on arrival.
Q: How is the ZDSF910H packaged, and what does on-site assembly involve?
A: Some components ship in KD packing to reduce transport volume. Assembly follows the included manual or video guide and typically involves mounting the dust collector, connecting pneumatic lines, and securing the feed table. A standard workshop toolkit covers most tasks.
Q: What edge banding strip materials and thicknesses does this machine handle?
A: The ZDSF910H processes PVC and veneer strips from 0.5 to 2.5 mm thick on boards between 10 and 50 mm. If you use recycled or specialty materials, share the specifics at inquiry so glue temperature and feed pressure can be adjusted before shipping.
Q: What is the dispatch lead time for a single-unit order from ready stock?
A: Stocked units can typically be prepared and dispatched within a short window after order confirmation and pre-shipment testing. Exact timing depends on current inventory position and destination logistics, which are confirmed at the quotation stage.
Q: How are spare parts and consumables supplied after delivery?
A: A spare parts list ships with every machine. Replacement trimming cutters, polishing wheels, and wear items can be ordered separately. Specify your preferred language for the manual at order time so your maintenance team has clear reference documentation from day one.
