Description
Immediate Dispatch Readiness — JL-1 CNC Wood Boring Hinge Drilling Machine in stock, configured to your facility’s voltage and shipped within days rather than months.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | JL-1 |

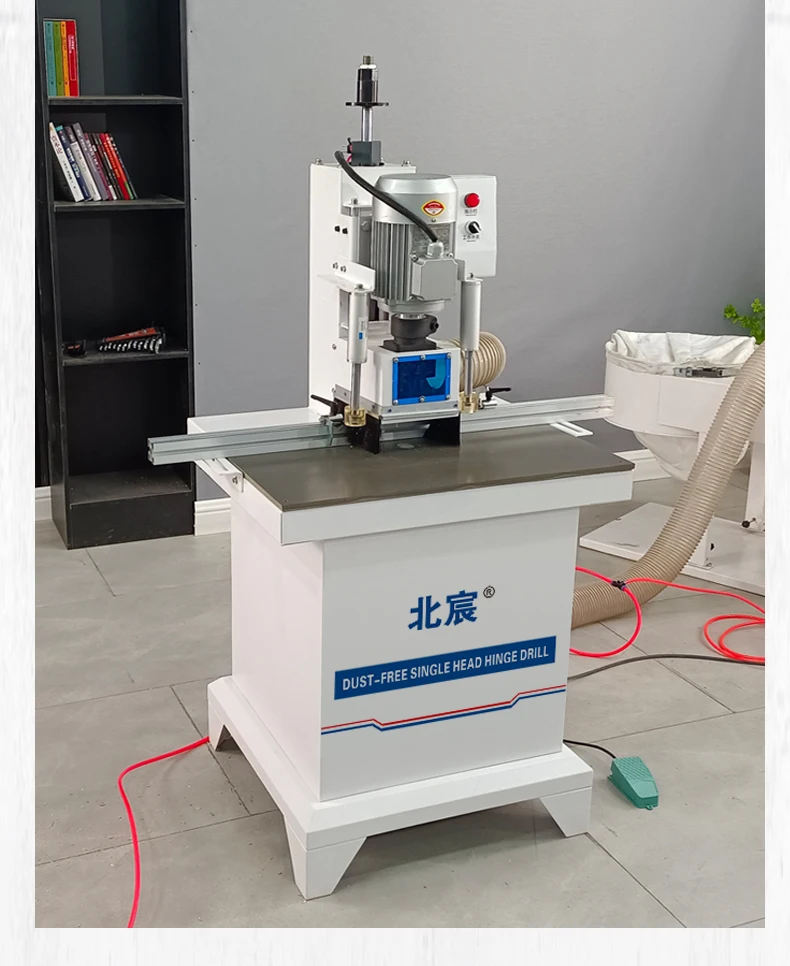

| Product Type | Single Row CNC Wood Boring and Hinge Drilling Machine |
| Rated Power | 1.5 kW |
| Voltage & Frequency | 380V / 415V three-phase four-wire (50Hz or 60Hz configurable) |
| Control System | PLC |
| Large Drill Diameter | 35 mm |
| Small Drill Diameter | 3 mm |
| Operating Mode | Foot switch control |

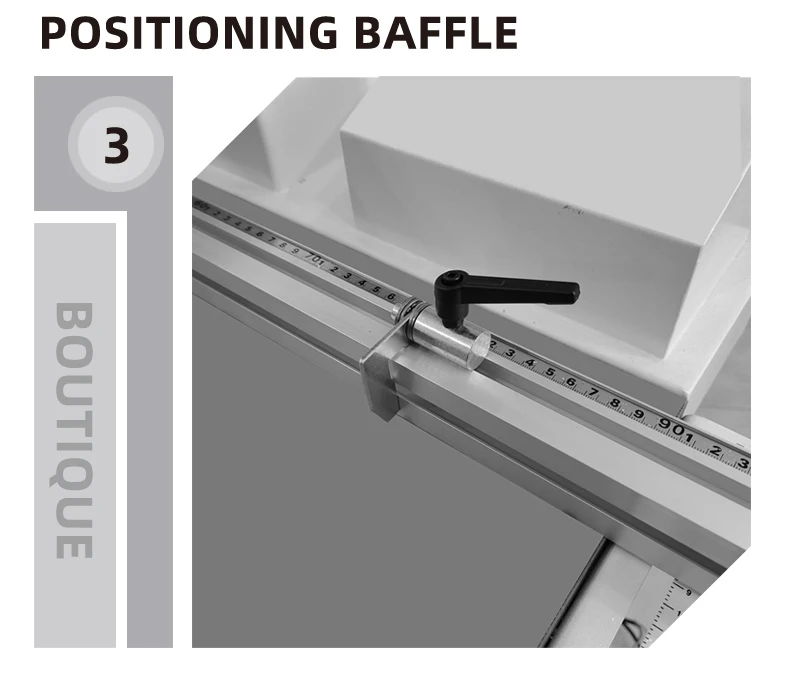

| Guide Mechanism | Precision guide rail with adjustable vertical and horizontal positioning |
| Dust Extraction | External vacuum port |
| Motor | Pure copper winding |

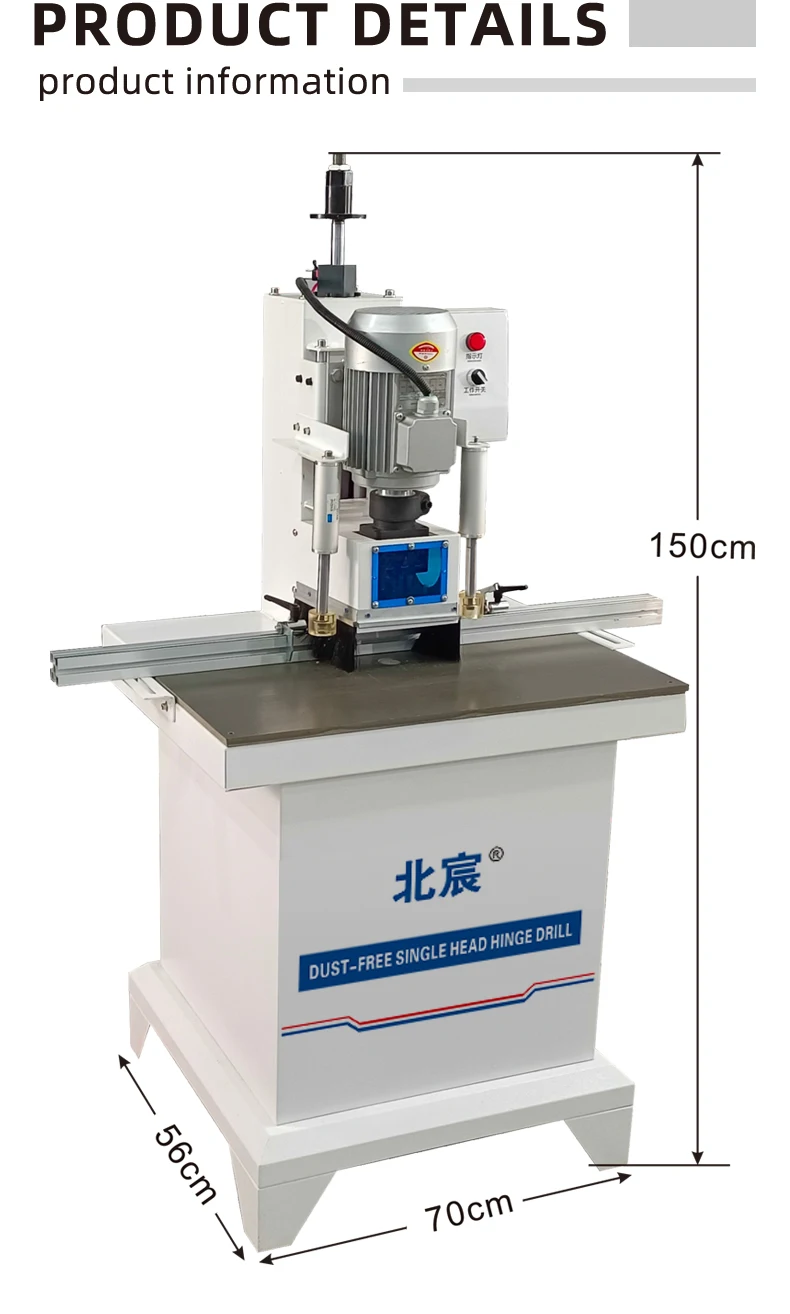

| Overall Dimensions (L×W×H) | 70 × 56 × 145 cm |
| Net Weight | 55 kg |
| Assembly State | Fully assembled |
| Language Options | English, Spanish, or custom language available |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door hinge cup drilling | MDF, plywood, and particleboard panels |
| Wardrobe hinge boring | Laminated board and melamine-faced chipboard |
| Loose leaf hinge pilot holes | Solid wood and veneered door components |
| Small-batch furniture production | Panel thicknesses compatible with 35 mm and 3 mm drill bits |
Why Voltage Verification Must Happen Before You Pay
We confirm your local three-phase supply and plug configuration before the JL-1 leaves the floor, so it runs the moment it is uncrated.
Ordering a CNC Wood Boring Hinge Drilling Machine in stock without matching voltage and frequency is a recurring problem. Machines arrive, the operator plugs them in, and the motor hums without turning or the PLC throws fault codes that no manual explains. We have seen shipments rejected at customs because the electrical plate did not match the destination country standard. The JL-1 is configurable for 380V or 415V at either 50Hz or 60Hz, and we document the confirmed setting on your electrical schematic before crating. [NEED_CITE: voltage and frequency standards by export market]
Stock Availability Means Your Workshop Keeps Moving
Waiting weeks for a boring machine while cabinet orders pile up is a familiar pressure for small-to-medium furniture makers. The JL-1 CNC Wood Boring Hinge Drilling Machine in stock is fully assembled, tested on the factory floor, and prepared for immediate crating. Once your voltage and language requirements are confirmed, dispatch follows within a short window. This matters most when a workshop is adding hinge boring as a dedicated station and cannot afford to leave a gap in the production sequence.
Ordering One Unit Without Complicating the Process
Many machinery suppliers push buyers toward full-line purchases or impose high minimum order quantities. Here, a single JL-1 ships with the same documentation, pre-shipment test record, and packing photographs as a container load. The compact 70 × 56 × 145 cm footprint and 55 kg weight mean it can be freighted economically by LCL or air cargo, and it fits through standard workshop doors without special rigging. [NEED_CITE: typical LCL freight dimensions for single-unit machinery shipments]
Drill Capacity and What It Means for Hinge Work
The dual drill setup — 35 mm for the hinge cup and 3 mm for the pilot hole — covers the standard Euro hinge specification that most cabinet hardware requires. Drilling both in one clamping eliminates the repositioning errors that cause misaligned doors downstream. The precision guide rail allows the operator to set vertical and horizontal drilling positions, then reproduce them across a batch of identical panels. For a cabinet shop processing hundreds of door fronts per run, this repeatability directly affects how smoothly the assembly bench operates.
What Happens When Panel Material Is Not Discussed Upfront
A batch of hinge drilling machines shipped to South America last year illustrates the issue. The buyer ordered based on sample capacity figures, but their production panels were high-density particleboard. Drill bit wear doubled compared to standard MDF, and actual throughput fell to roughly half the expected rate. Now we ask for the specific board type, density, and thickness before confirming any JL-1 order. This ensures the motor load and drill consumable recommendations match reality, not a generic test condition. [NEED_CITE: effect of panel density on drill bit wear rate in furniture manufacturing]
Why Buyers Source From This Floor
Voltage and language customization is handled as a standard step, not an afterthought — your JL-1 arrives with a control panel the operator can actually read. Four-stage quality control runs from incoming material checks through pre-shipment verification, with a factory test record generated on panel material similar to yours. OEM branding and private-label options are available for distributors who want their own identity on the machine. The entire product family, from entry-level hinge borers to multi-row CNC boring centers, means your workshop can scale its drilling capacity later without switching suppliers. Engineer-led configuration ensures you receive a formal quotation addressing your actual production scenario rather than a catalog price list.
Documentation & Verification
- CE declaration of conformity covering the JL-1 drilling machine
- Electrical schematic confirming your voltage, frequency, and plug type
- Factory test record run on panel material matching your specification
- Operation and maintenance manual in your agreed language
- Pre-shipment packing photographs showing crate condition and machine securing
Installation, Commissioning & Support
- Requires a dedicated 380V/415V three-phase circuit with appropriate breaker rating for the 1.5 kW motor
- Arrives fully assembled — place on level floor, connect power and external vacuum hose
- Foot switch positioning adjustable to operator preference for safe panel handling
- External dust extraction port connects to your existing workshop vacuum system
- Spare drill bits and consumables list included with reorder references
- Remote guidance available for first-run parameter setup on your specific panel material
What to Tell Us When You Inquire
To match the right JL-1 CNC Wood Boring Hinge Drilling Machine in stock to your workshop, share your primary panel material and typical board thickness, the hinge hardware specification you drill for, and your facility’s three-phase voltage and frequency. If you operate in a region with a language other than English or Spanish on the shop floor, let us know so the PLC interface and manual are prepared accordingly.
Frequently Asked Questions
Q: Is the JL-1 currently in stock and what is the dispatch lead time?
A: The JL-1 CNC Wood Boring Hinge Drilling Machine in stock is fully assembled and available on the floor. After we confirm your voltage, frequency, plug type, and control panel language, the machine goes through a pre-shipment test and is crated. Dispatch typically follows within days, not weeks, depending on the shipping method you select.
Q: Can you confirm the plug type and voltage for my country before shipping?
A: Yes. Before any JL-1 ships, we verify your facility’s three-phase supply — whether it runs at 380V or 415V, and at 50Hz or 60Hz. We also confirm the correct industrial plug type for your country and document all settings on the electrical schematic included with your machine.
Q: What panel thickness range does this hinge drilling machine handle?
A: The JL-1 handles panel thicknesses compatible with the standard 35 mm hinge cup drill and 3 mm pilot drill. Share your specific board material and thickness with us so we can confirm drilling depth settings and recommend appropriate feed rates for consistent hole quality across your production batches.
Q: How do I connect an external vacuum for dust extraction?
A: The JL-1 has an external vacuum port designed for connection to your workshop’s existing dust extraction system. You supply the hose and connect it to the port before first operation. This keeps the drilling area clean, protects the guide rail from particle buildup, and maintains hole accuracy over long production runs.
Q: What spare parts come with the machine and how do I reorder?
A: The JL-1 ships with a spare parts list referencing drill bits, guide rail components, and other consumables specific to this model. Each item has a reorder code. Contact us with the part number and quantity needed, and we ship replacements directly from the Shandong facility.
