Description
Voltage Confirmed Before Dispatch — Every JL-1 unit ships only after we verify your workshop’s exact phase, voltage, and frequency against the motor nameplate, eliminating the month-long transformer wait that stalls commissioning.

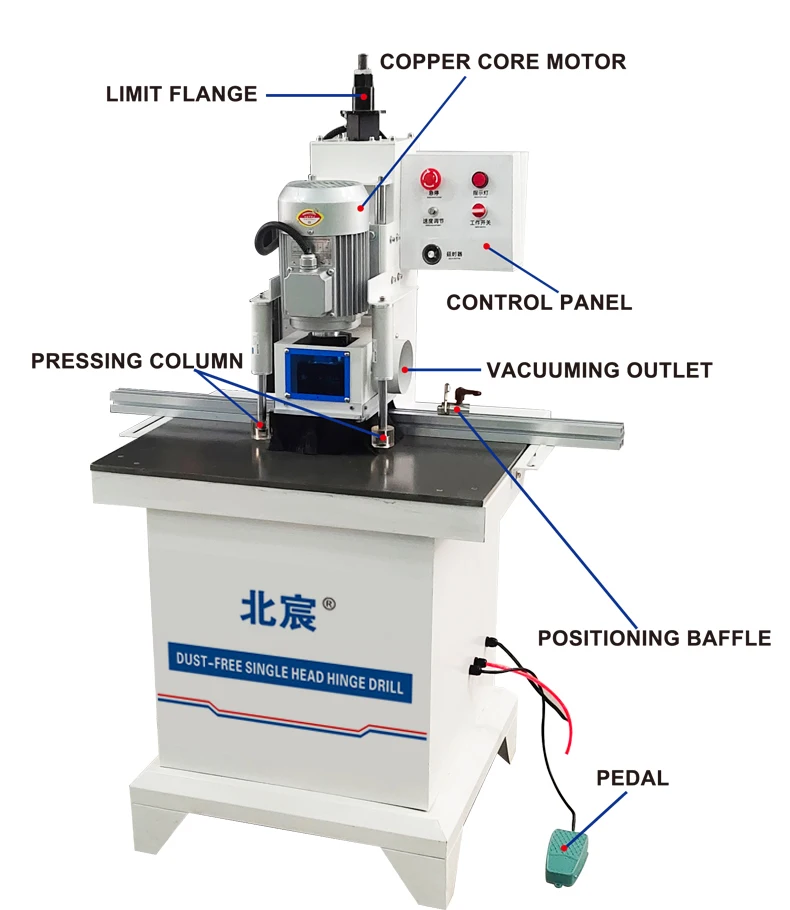

Technical Specifications
| Parameter | Value |
|---|---|
| Model | JL-1 |
| Product Type | Single Head Cabinet Hinge Drilling Machine |
| Total Power | 1.5 kW |
| Voltage & Frequency | 380V/415V three-phase four-wire (50Hz/60Hz to be confirmed per order) |
| Control System | Foot switch control |
| Drill Sizes | 35 mm large drill, 3 mm small drill |

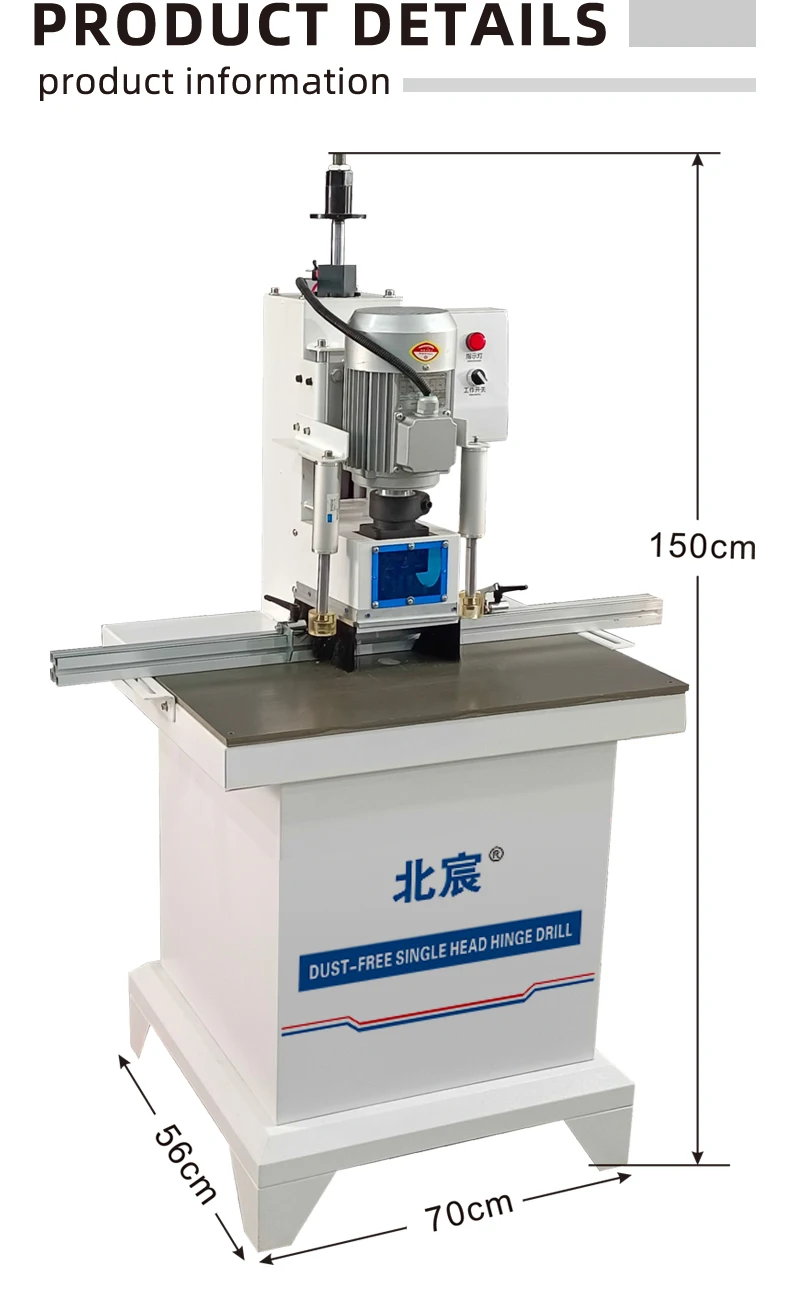

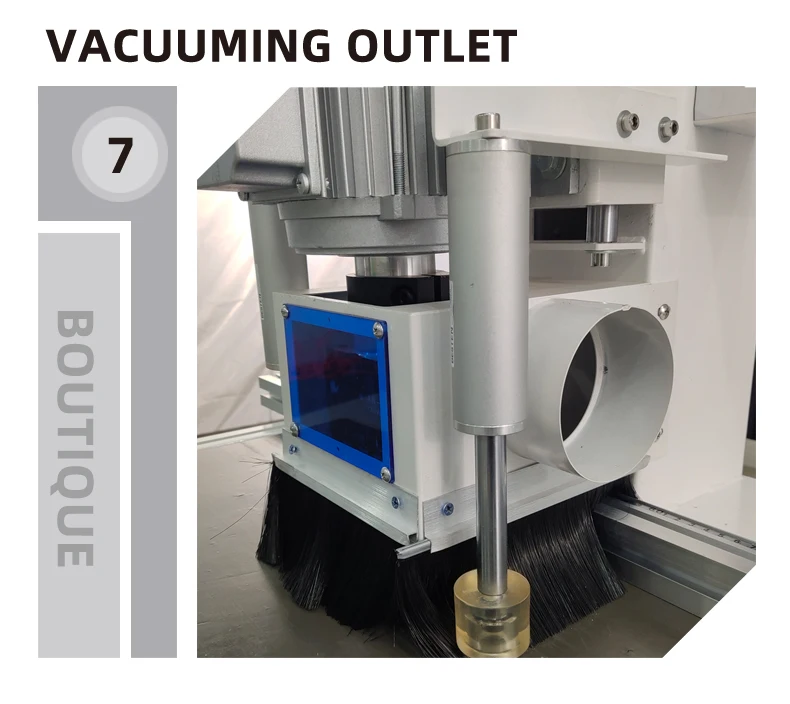

| Overall Dimensions (L×W×H) | 70 × 56 × 145 cm |
| Net Weight | 55 kg |
| Vacuum Power | External vacuum (port diameter to be confirmed) |
| Guide Rail | Precision guide rails |

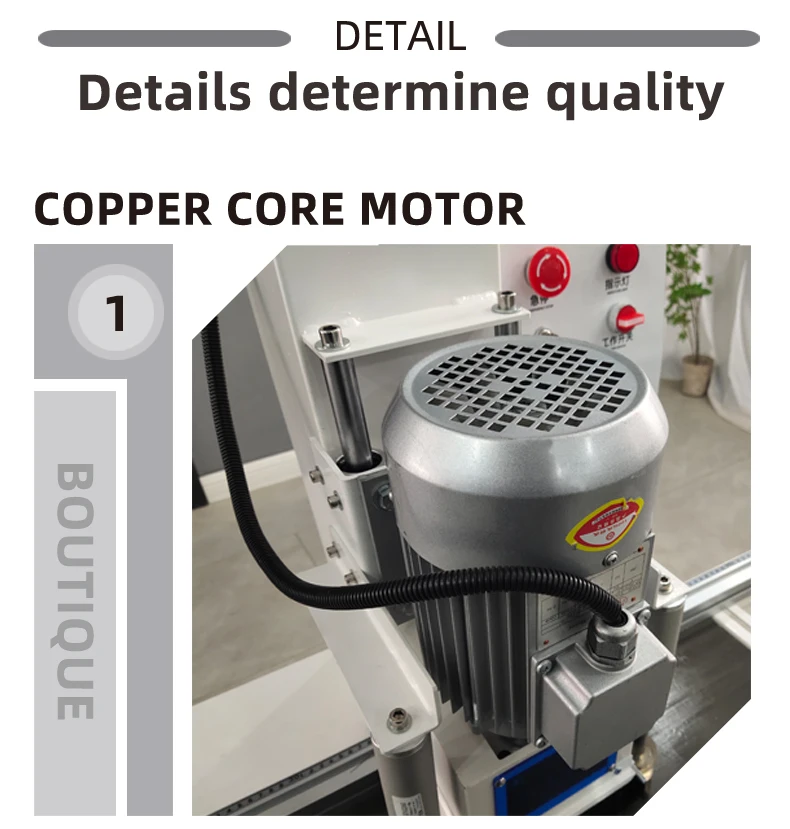

| Motor Type | Pure copper motor |
| Language Options | Chinese, English (customizable to Spanish or other languages) |
| Assembly State | Fully assembled (pre-shipment test scope to be confirmed) |
| Standards | CE, ISO 9001 |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door hinge cup drilling | MDF, particleboard, plywood door panels |
| Wardrobe hinge boring | Melamine-faced chipboard and MDF wardrobe doors |
| Loose leaf hinge pilot holes | Solid wood and engineered board for custom furniture |
| Small-batch door panel processing | Standard 35 mm hinge cup pattern on batch runs |
Why the Voltage Question Must Come Before the Price Tag on a Single Head Hinge Boring Machine in Stock
A machine that does not match your shop’s electrical supply is not a bargain — it is a month of lost production.
I once shipped a hinge drilling unit to a cabinet workshop in Mexico, configured for 220V single-phase. The machine arrived, the operator plugged it in, and nothing happened. The shop ran on three-phase 440V. A step-down transformer took nearly four weeks to source locally, and the machine sat idle on the floor the entire time. That experience is not unique — voltage and frequency mismatches are among the most common reasons imported woodworking machines fail at commissioning [NEED_CITE: voltage and frequency standards by export market]. With the JL-1, the voltage and frequency discussion happens before the order is placed, not after the container is loaded.
Stocked and Ready to Dispatch Without the Guesswork
The JL-1 single head hinge boring machine in stock is built for workshops that need a dedicated hinge borer on the floor quickly. The compact footprint fits into tight production cells alongside existing saws and edge banders, so you do not need to reconfigure your layout. Foot switch operation means the operator keeps both hands on the panel during drilling, reducing misalignment and improving repeatability across a batch of cabinet doors.
Configured for Your Workshop Before It Leaves
Voltage, frequency, and control panel language are confirmed in writing before the JL-1 is released for shipment. This is not a custom-build delay — stocked units are reconfigured at the final stage so that when the machine arrives, the motor matches your supply and the operator reads the panel in a language they understand. Commissioning becomes a matter of connecting power, attaching the vacuum hose, and running a test piece [NEED_CITE: CE machinery directive requirements for industrial equipment].
How the Specs Translate to Daily Cabinet Work
The 35 mm large drill and 3 mm small drill cover the standard European hinge cup pattern and its pilot hole in a single setup, so there is no repositioning between operations. Precision guide rails keep the drill head aligned across hundreds of cycles, which matters when tolerance drift shows up as misaligned doors during assembly. The pure copper motor handles continuous duty in a workshop running multiple shifts without thermal cutouts interrupting the batch. External vacuum keeps bore holes clean of chip debris, preventing splintering on melamine-faced panels that would otherwise reject at the quality check.
The Hidden Cost of Ordering a Hinge Borer Without Checking Compatibility
Buying a hinge borer on price alone often leads to hidden costs that appear weeks after delivery. A machine rated for a voltage your shop does not supply requires an external transformer — an unplanned capital expense plus weeks of floor space occupied by an idle unit. A control panel printed only in a language your operators cannot read slows down every setup change and increases the chance of incorrect depth settings [NEED_CITE: operator safety and comprehension requirements for industrial machinery]. And a single-head borer purchased without confirming drill size range may handle 35 mm hinge cups but lack the 3 mm pilot capability, forcing a second manual operation that defeats the purpose of the machine.
Why Procurement Teams Source the JL-1 From This Channel
In-house manufacturing with a patented cutting mechanism means the drill head tolerances are verifiable, not just claimed on a datasheet. Stocked JL-1 units move through a four-stage QC process — incoming material inspection, in-process checks, finished product testing, and pre-shipment verification — before release. Voltage and language customization is standard procedure, not a special request. Engineer-led configuration recommendations ensure the machine you receive matches your actual panel materials and hinge patterns. Factory visits are welcome for buyers who want to see the assembly line and test their own panels before committing.
Documentation & Verification
- Factory test record drilled on your specified panel thickness and material before dispatch
- Electrical schematic confirming voltage, phase, and frequency matching your workshop supply
- Operation and maintenance manual printed in your agreed language at shipment
- CE declaration of conformity for customs clearance and local compliance
- Spare parts list with drill bit and guide rail component part numbers
Installation, Commissioning & Support
- Requires a dedicated three-phase circuit matching the confirmed 380V/415V or alternate voltage rating
- Compact 70 × 56 cm footprint allows placement beside existing panel saws without floor modification
- Fully assembled on arrival — connect power, attach external vacuum hose, and run test bores
- Foot switch calibration and drill depth setting covered in the supplied language-specific manual
- Replacement 35 mm and 3 mm drill bits available through standard spare parts ordering
What to Share When Requesting a Quote
To move quickly from inquiry to dispatch confirmation, provide your workshop’s exact voltage and phase from the main distribution board, the hinge pattern you run most frequently, and the panel materials you process daily. If your operators speak Spanish or another language beyond English and Chinese, note that so the manual and panel labels are prepared accordingly. Confirming these details upfront keeps the JL-1 single head hinge boring machine in stock on track for fast dispatch.
Frequently Asked Questions
Q: What voltage options are available, and is my local frequency confirmed before shipment?
A: The JL-1 is configured for 380V/415V three-phase as standard, with alternate voltages available on request. Before any unit ships, we require a photo of your workshop’s distribution board nameplate to confirm exact voltage, phase, and whether your supply runs at 50Hz or 60Hz. This verification step prevents the transformer delays and motor damage that occur when electrical specifications are assumed rather than confirmed.
Q: Can the control panel and manual be provided in Spanish or another language?
A: Yes. The JL-1 supports Chinese and English as standard, and can be customized to Spanish or other languages at the time of order. Both the machine control labels and the operation and maintenance manual are produced in your chosen language before dispatch, so your operators can set drill depth and run the machine confidently from the first shift.
Q: What is the dispatch lead time for a stocked JL-1 unit?
A: Stocked JL-1 units are available for rapid dispatch once voltage and language configuration are confirmed. Single-unit orders are supported, so you can add a dedicated hinge borer to your line without committing to a full production line purchase. Shipping options and estimated transit times are quoted upfront based on your destination port.
Q: How is the external vacuum connection configured?
A: The JL-1 uses an external vacuum system rather than a built-in extraction motor. The specific port diameter and recommended hose type are confirmed during the order process so you can prepare your shop’s central dust collection connection in advance. This keeps the machine footprint compact and avoids adding a separate extraction unit.
Q: What spare parts are included, and how do I order replacements?
A: Each JL-1 ships with a documented spare parts list covering drill bits, guide rail components, and wear items. Standard 35 mm hinge cup bits and 3 mm pilot bits can be reordered through the same channel. Including this list at shipment means your maintenance team can identify part numbers and plan replacements before production interruptions occur.
