Description
Compact Dispatch — A 26 kg edge bander stocked for immediate shipment, configured to your panel thickness and voltage before it leaves the warehouse.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF60 |
| Product Type | Mini Edge Banding Machine |
| Function | Straight and curved edge banding with automatic tape breaking |
| Rated Voltage | 220V |
| Rated Air Pressure | 0.4–0.6 MPa |
| Strip Thickness Range | 0.5–2 mm |
| Sheet Thickness Range | 7–60 mm |
| Glue Pot Capacity | 1000 ml |
| Heating Power | 800W (4 heating tubes) |
| Heat-up Time | 5–8 minutes |
| Edge Banding Speed | 0–6 m/min |
| Glue Application | Double-sided, glue-coated rollers |
| Pressure Rollers | Adjustable, rubber material |
| Belt Breaking | Pneumatically controlled with foot switch |
| Straight Edge Auto-Break | Travel switch equipped |
| Overall Dimensions | 54×54×56 cm |
| Machine Weight | 26 kg |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and particleboard with PVC edge banding (0.5–2 mm) |
| Curved panel profiles for furniture | Plywood and shaped MDF with veneer strips |
| Small-batch joinery production | Solid wood panels with melamine or PVC banding |
| On-site installation touch-ups | Pre-cut boards requiring portable straight or curved banding |
| Workshop transition from manual trimming | Semi-automatic banding on boards 7–60 mm thick |
Why Voltage Confirmation Must Come Before Dispatch
The ZDSF60 ships at 220V single-phase — if your workshop runs a different supply, the machine will not start on arrival.
I have watched a portable edge bander sit idle for weeks because the buyer assumed local voltage matched the nameplate. Small workshops in particular often share circuits with lighting and compressors, and a voltage mismatch on a Mini Edge Banding Machine in stock means rewiring the entire bay or running a dedicated transformer. The 800W heating element alone demands stable voltage to maintain glue temperature across consecutive panels [NEED_CITE: voltage and frequency standards by export market]. Confirming your supply before dispatch avoids a dead-on-arrival scenario that delays your production schedule.
Ready Stock Means Configured Stock

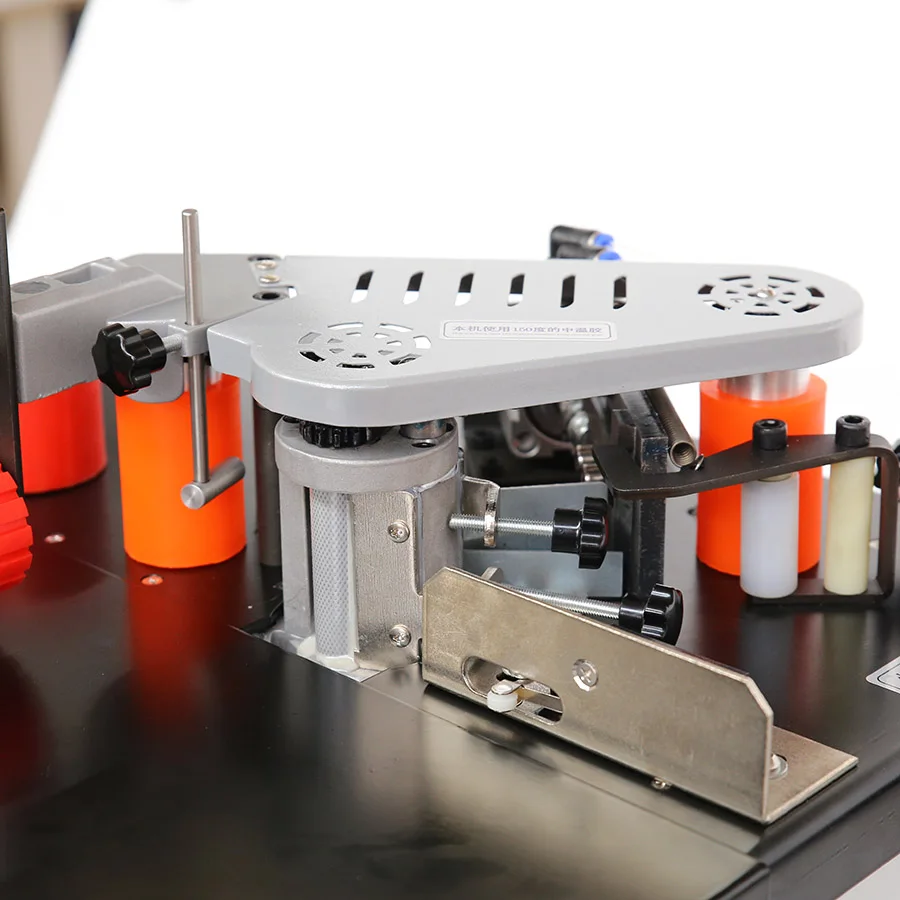

Most suppliers interpret "ready stock" as a box sitting in a corner. Before the ZDSF60 leaves our floor, the pressure rollers are set to your stated board thickness, and the edge strip transport bayonet is adjusted for your banding material. A Portable Edge Bander fast delivery is only useful if the machine actually runs your panels on day one — not after two days of trial and error with unfamiliar settings.
Pneumatic Tape Breaking Without the Guesswork

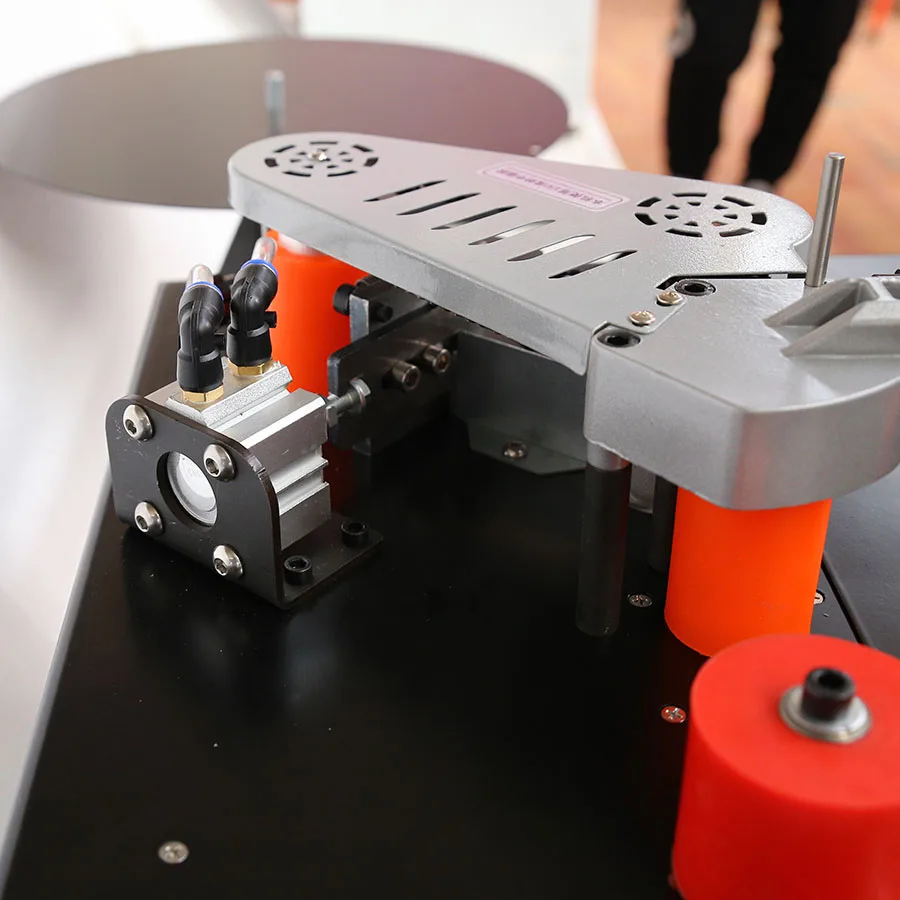

Curved edge banding is where most compact machines lose time. The ZDSF60 uses a pneumatically controlled belt breaker with a foot switch, so your operator’s hands stay on the panel while navigating radii and cutouts. The 0.4–0.6 MPa air pressure requirement is modest — any standard workshop compressor can supply it — but the foot switch coordination takes a short learning curve worth addressing during setup [NEED_CITE: compressed air requirements for woodworking pneumatic tools].
Heat Management on Short Production Runs

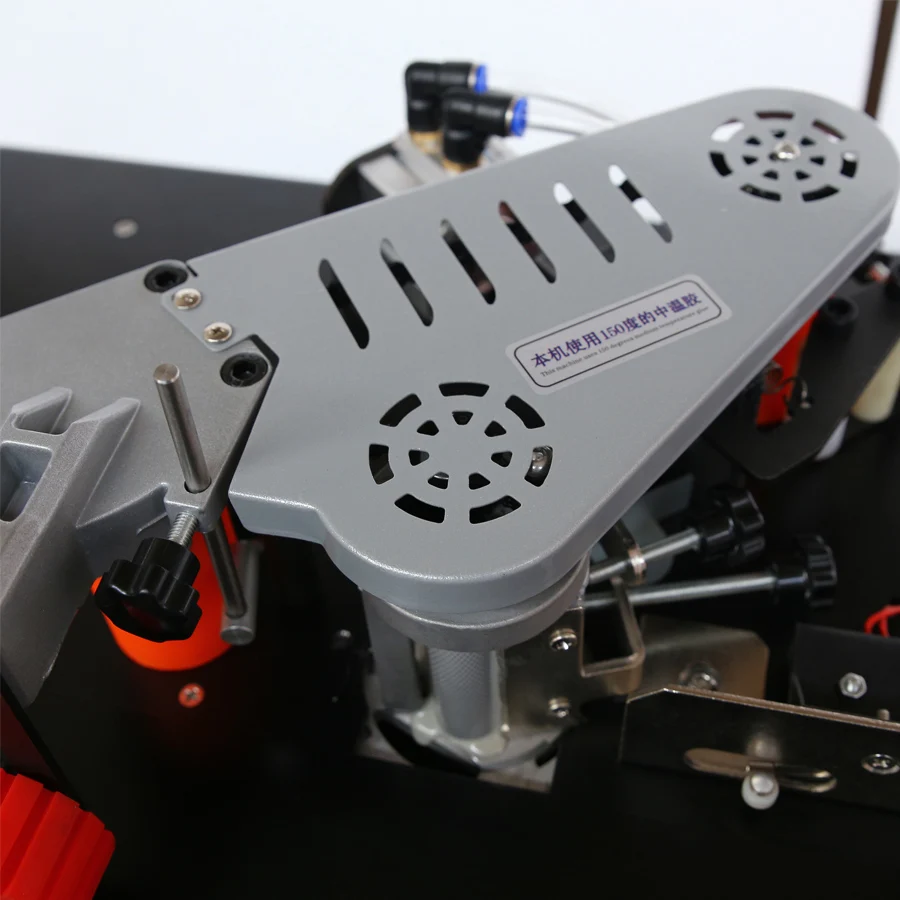

The 1000 ml glue pot with four heating tubes reaches operating temperature in 5–8 minutes, which matters when you are running ten cabinet doors rather than ten thousand. A smaller pot would cool down between panels on a long curved profile; a larger pot would waste energy and degrade adhesive during idle periods. The double-sided glue-coated rollers ensure adhesive transfers to both the panel edge and the back of the strip, which is the difference between a bond that holds through assembly and one that peels at the corner.
The Thickness Range Tells You Where This Machine Fits

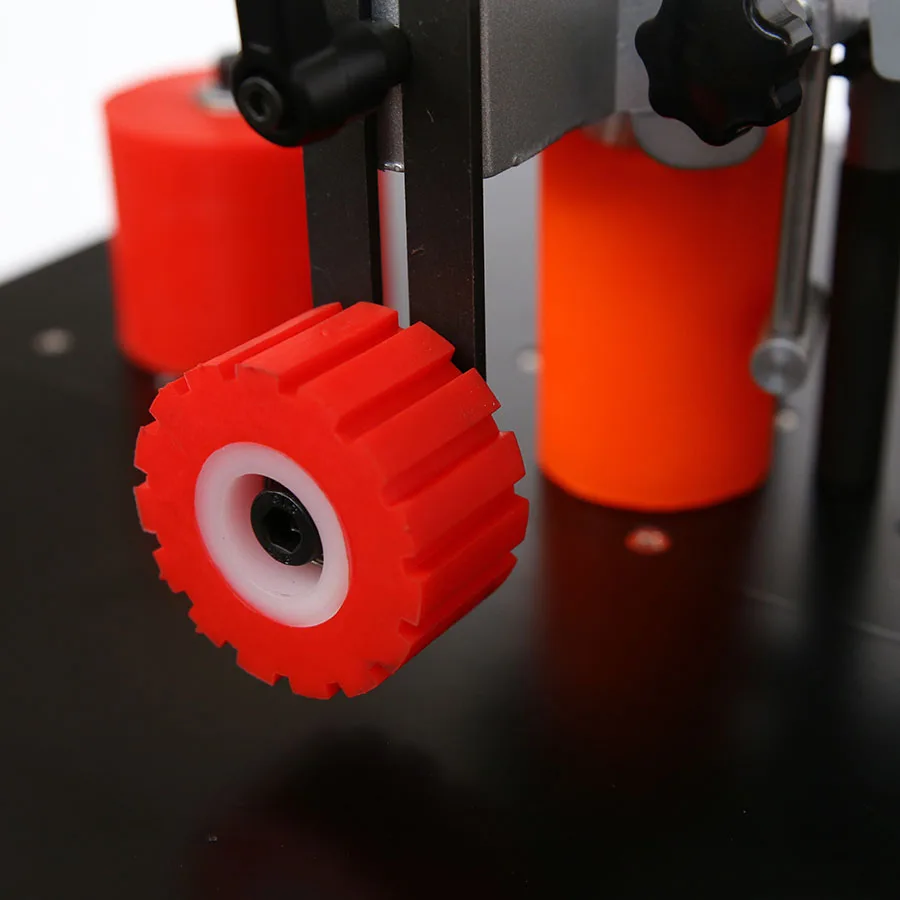

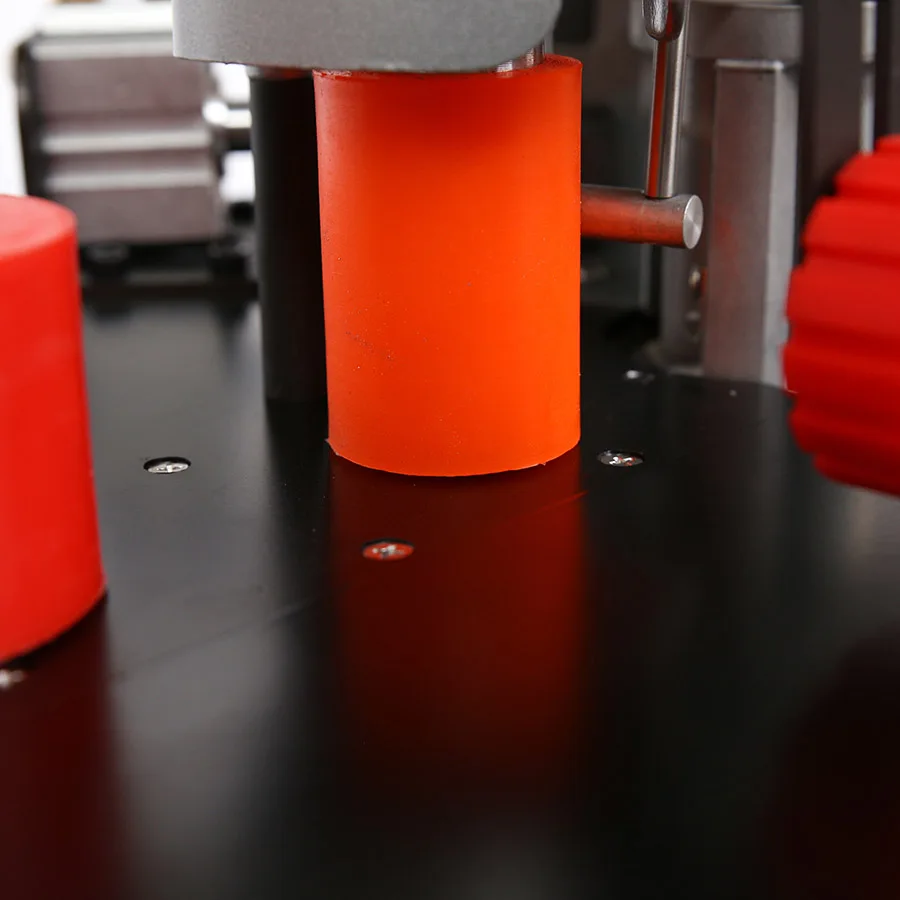

The 7–60 mm sheet thickness range covers standard cabinet panels (typically 16–18 mm MDF) up through thicker shelving and worktop substrates. The 0.5–2 mm strip range handles standard PVC banding as well as thicker veneer strips used on visible furniture faces. Feed speed is adjustable from 0 to 6 m/min, letting the operator slow down on tight curves without losing glue contact. Rubber pressure rollers conform to slight board irregularities that rigid steel rollers would skip over, maintaining consistent adhesion across the full panel length.
What Happens When You Skip the Voltage and Air Checks
A machine quoted without confirming local voltage arrives as dead weight. An undersized compressor fails to trigger the pneumatic belt breaker mid-curve, leaving a ragged overhang that requires manual trimming and re-gluing. Operators struggling with a control panel in an unfamiliar language delay commissioning while searching for translations. These are not hypothetical — they are the most common reasons a compact edge bander gets returned or abandoned in the corner of a workshop [NEED_CITE: common causes of commissioning delays for imported woodworking machinery].
Why Order Through This Channel
Stock availability means your ZDSF60 ships within days, not weeks of production scheduling. Voltage and language customization are confirmed at order time, not discovered at unboxing. Every machine receives a pre-shipment functional test on your specified panel thickness and banding material before crating. The single-unit order model means you do not need to bundle accessories you are not ready for. An engineer reviews your application before dispatch to catch mismatches like melamine paper banding on a glue pot calibrated for PVC.
Documentation & Verification
- CE declaration of conformity matching the ZDSF60 model designation
- Electrical schematic confirming 220V wiring and 800W heating circuit layout
- Factory test record showing glue temperature stability on your banding material
- Operation manual in your confirmed language with setup photographs
- Spare parts list covering heating tubes, pressure rollers, and glue-coated rollers
Installation, Commissioning & Support
- 220V single-phase dedicated circuit rated for the 800W heating load plus compressor draw
- Compressor supply line set to 0.4–0.6 MPa with moisture trap installed before the machine inlet
- Partial assembly required: pressure roller alignment and bayonet height adjustment per your board thickness
- Initial glue pot calibration for your specific banding material — PVC, veneer, or melamine paper each require different temperature settings
- Video-guided setup covering foot switch coordination for curved edge tape breaking
- Replacement heating tubes and rubber pressure rollers available for reorder from stock
What We Need to Confirm Before Shipping
To avoid the mismatches that stall commissioning, tell us your board material and typical thickness range, the banding material you run most often, and whether your workshop voltage is confirmed at 220V 50Hz or if you need a different configuration. If you are running both straight and curved profiles, let us know the minimum radius you typically encounter so we can verify the foot switch setup matches your workflow.
Frequently Asked Questions
Q: What is the dispatch lead time for the ZDSF60 from ready stock?
A: The ZDSF60 ships from available inventory once your voltage, language, and banding material are confirmed. Standard dispatch follows a pre-shipment functional test on your specified panel and strip combination, which typically adds a short verification window before crating. Confirming your requirements at inquiry avoids back-and-forth that delays the ship date.
Q: Can I run this machine on a voltage different from 220V?
A: The ZDSF60 is rated at 220V as standard. If your local supply differs in voltage or frequency, tell us at inquiry stage so we can confirm whether a configuration adjustment is available for your market. Running the 800W heating element on mismatched voltage causes inconsistent glue temperature and premature tube failure.
Q: What air compressor do I need for the pneumatic tape breaking?
A: You need a compressor delivering 0.4–0.6 MPa at the machine inlet. A standard workshop compressor typically meets this requirement, but confirm your line can sustain pressure during continuous curved-edge work where the foot switch cycles frequently. Install a moisture trap upstream to protect the pneumatic valve from condensation damage.
Q: Is the operation manual available in languages other than English?
A: Multilingual manuals are available and should be confirmed before dispatch. The manual covers glue pot temperature settings for different banding materials, pressure roller adjustment procedures, and foot switch operation for curved profiles. Video setup guides supplement the written instructions for first-time commissioning.
Q: What spare parts ship with the machine, and how do I reorder?
A: The ZDSF60 ships with a spare parts list covering wear items including heating tubes, rubber pressure rollers, and glue-coated rollers. Replacements are ordered through the same channel with reference to your original order. Confirming your banding material at order stage ensures the correct roller type is included in the initial spare set.
