Description
Ready-Stock Dispatch — stocked automatic edge banding machines ship within days of voltage confirmation, eliminating the multi-week wait typical of made-to-order builds.

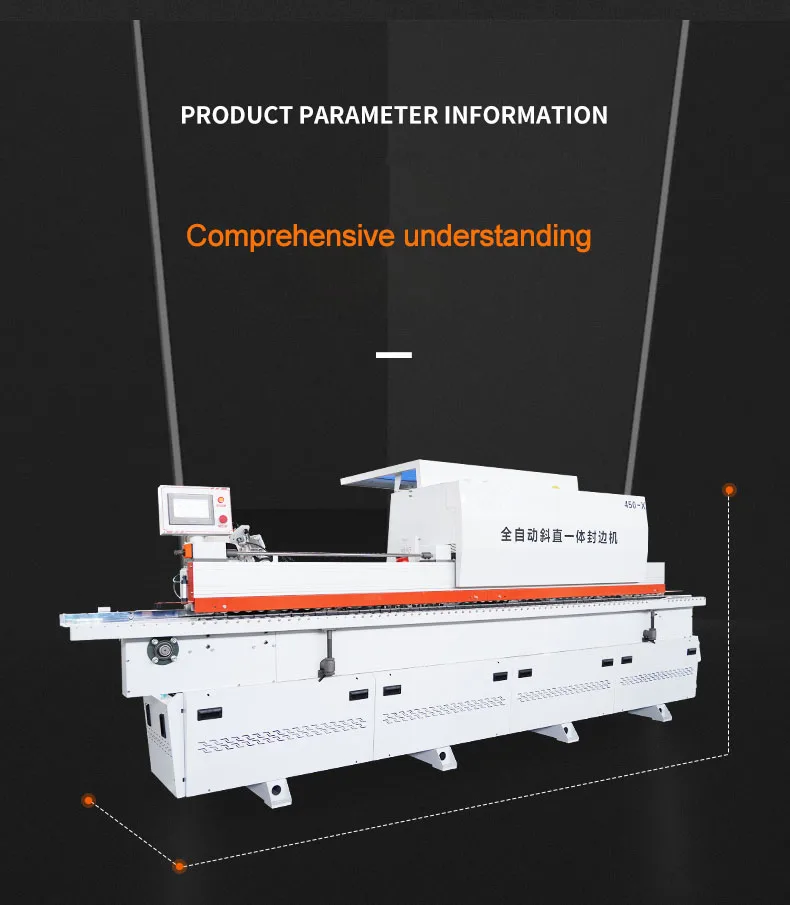

Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Automatic Edge Banding Machine with Pre-Milling |
| Overall Dimensions (L×W×H) | 4350×920×1650 mm |
| Total Installed Power | 17.5 kW |
| Voltage & Frequency | 380V / Three-Phase Five-Wire / 50Hz (configurable) |
| Conveying Motor | 2.2 kW with Frequency Inverter |
| Pre-Milling Motor | 3.5 kW |
| Trimming & End Trimming Motors | 0.75 kW × 2 / 0.37 kW × 2 |
| Control System | Xinjie Industrial Touch Screen with Xinjie Inverter |
| Glue Pot Capacity & Temperature | 2000 mL / 150–170°C |
| Feed Speed | 0–12 m/min (Variable) |
| Edge Banding Thickness | Up to 1.2 mm (PVC) |
| Panel Thickness Range | 18 / 22 / 25 mm |
| Minimum Panel Dimensions | >100 mm (W) × >250 mm (L) |
| Air Supply Pressure | 0.6–0.8 MPa |
| Dust Extraction Port | 100 mm Diameter |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom Furniture Manufacturing | MDF and Particleboard with PVC Edge Banding |
| Cabinet Carcass Production | Plywood Panels up to 25mm Thickness |
| Workshop-Scale Batch Runs | Straight and Curved Edge Profiling |
| Joinery Startup Operations | Transitioning from Manual to Automated Finishing |
Why Voltage Confirmation Must Precede Your Order
Every stocked unit ships only after the electrical schematic is matched to your local grid frequency.
Sourcing machinery from overseas often involves a gap between what is quoted and what actually powers the workshop. I have seen entire production schedules stall because a machine arrived configured for 50Hz while the local facility operated on 60Hz, causing motors to overheat and breakers to trip immediately upon startup. The cost of retrofitting a frequency inverter or replacing a motor on-site often exceeds the initial freight savings. For any Automatic Edge Banding Machine in stock, confirming the voltage and Hz rating is the first step in our dispatch protocol [NEED_CITE: electrical standards for industrial machinery imports].
Availability and Dispatch Timing
The primary advantage of sourcing from this inventory is the elimination of production lead times. These units are assembled, tested, and ready for crating. Once your facility’s electrical parameters—specifically the three-phase voltage and frequency—are verified against the machine’s motor nameplate, the unit can be released for shipment. This avoids the typical multi-week wait associated with custom builds, allowing workshops to resume or expand production schedules almost immediately.
Single-Unit Ordering and Freight
Unlike project-based lines that require bulk purchasing, this platform supports single-unit procurement. This is ideal for workshops replacing a specific bottleneck or adding a curved-edge capability to an existing straight-line setup. Shipping options are quoted upfront, providing clarity on the total landed cost before the invoice is issued. We ensure that an Automatic Edge Banding Machine in stock is secured for your specific destination port once the deposit clears.
Configuration for PVC and Pre-Milling

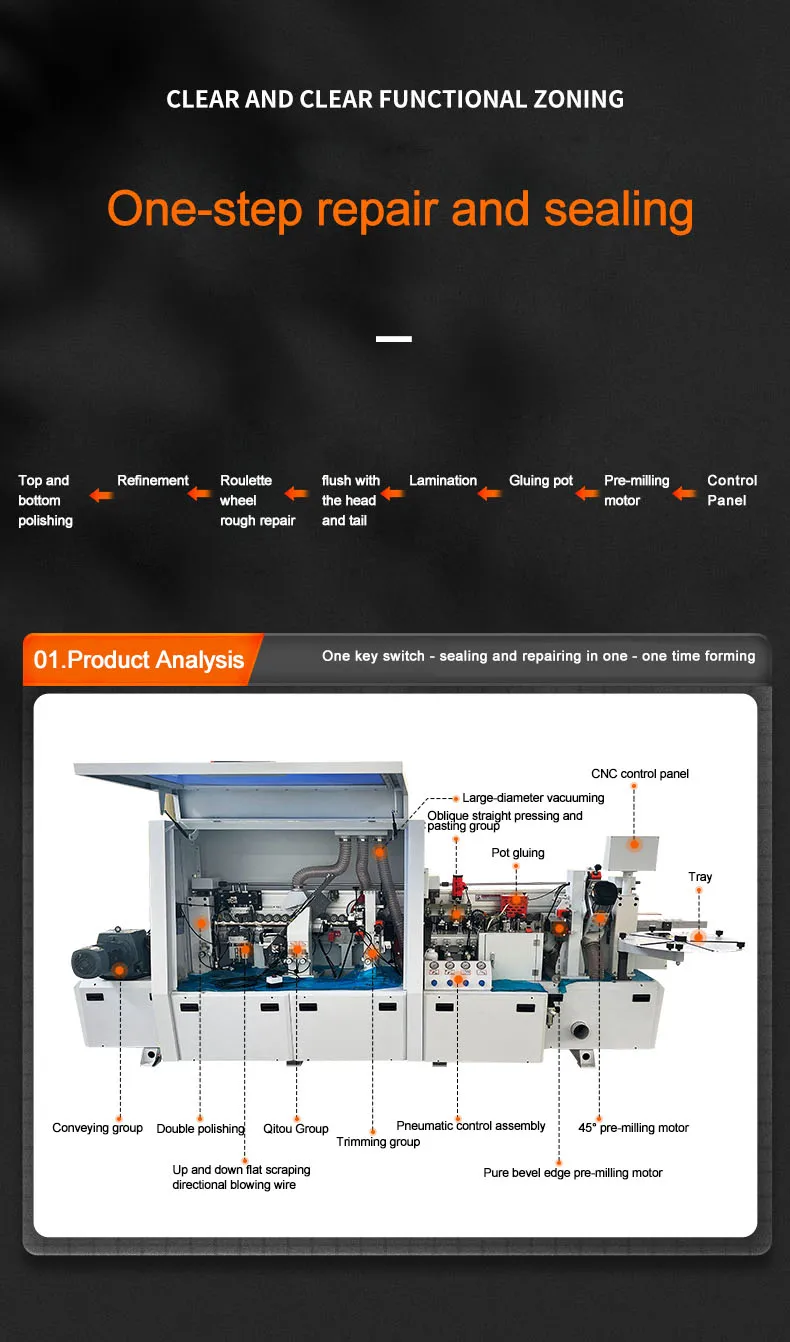

The integrated pre-milling station is a defining feature for workshops processing MDF or lower-grade particleboard. By removing a thin layer of the panel edge before the glue is applied, the machine ensures a tighter bond and a nearly invisible glue line, even on substrates with minor surface irregularities. Combined with the 150–170°C glue pot temperature range, the system maintains consistent adhesion for PVC banding up to 1.2 mm thick.
Power and Motor Logic
The 17.5 kW total power rating reflects the simultaneous operation of multiple high-frequency motors. The 3.5 kW pre-milling motor provides the torque necessary to score and remove material without slowing the feed rate. Meanwhile, the frequency-controlled 2.2 kW conveying motor allows the feed speed to be adjusted between 0 and 12 m/min, giving operators the flexibility to slow down for complex curved profiles or speed up for standard straight carcass panels. This balance ensures that an Automatic Edge Banding Machine in stock can handle diverse workshop demands [NEED_CITE: woodworking machinery power requirements].
The Cost of Ignoring Air Supply Specs
Many buyers focus exclusively on electrical requirements and overlook the pneumatic circuit. This machine requires a stable 0.6–0.8 MPa air supply to actuate the trimming and scraping units. If the workshop compressor is undersized or the 5L internal storage tank is not fed by a clean, dry line, the pneumatic valves will cycle sluggishly. This results in inconsistent end-trimming and edge-scraping quality, leading to panels that require manual rework. Ensuring your air supply meets these parameters is non-negotiable for automated performance.
Sourcing Depth and Quality Control
Our inventory is backed by a manufacturing process that includes four stages of quality inspection, from incoming material verification to pre-shipment testing. When you order an Automatic Edge Banding Machine in stock, you receive a unit that has already passed rigorous run-tests using standard panel materials. This ensures that the mechanical tolerances and glue distribution systems are functioning within the specified parameters before the machine is crated.
Documentation and Verification
- Factory test record using standard 18mm MDF panels before dispatch.
- Electrical schematic confirming voltage and frequency compatibility.
- Operation and maintenance manual in the requested operator language.
- CE declaration of conformity for international customs clearance.
- Spare parts list with part numbers for future reordering.
Installation, Commissioning & Support
- 4350×920mm footprint requires a level concrete floor for stable conveyance.
- 17.5 kW total load requires a dedicated three-phase circuit with appropriate breaker sizing.
- Pneumatic connection to a 0.6–0.8 MPa source with inline moisture filtration.
- Touch screen language setup and parameter calibration during initial power-on.
- Pre-milling cutter height adjustment based on your specific panel substrate.
Next Steps for Procurement
To finalize the specification for your workshop, please provide your local voltage and frequency, the primary language required for the touch screen interface, and the maximum thickness of the panels you intend to process. This information allows us to lock the correct configuration from our current inventory.
Frequently Asked Questions
Q: What is the actual dispatch lead time for in-stock units?
A: While the machine is physically in stock, we require a brief window to verify the electrical configuration against your site power and perform a final pre-shipment test. Typically, units are ready for container loading within a few business days of these confirmations and deposit receipt.
Q: Can the voltage be changed if my workshop is not 380V/50Hz?
A: Yes. Because these are stocked units, we must verify compatibility before shipping. Motors and transformers can be swapped or reconfigured to match local industrial supplies (such as 220V/60Hz or 415V/50Hz) prior to dispatch to prevent on-site electrical failures.
Q: Does the control panel support languages other than English?

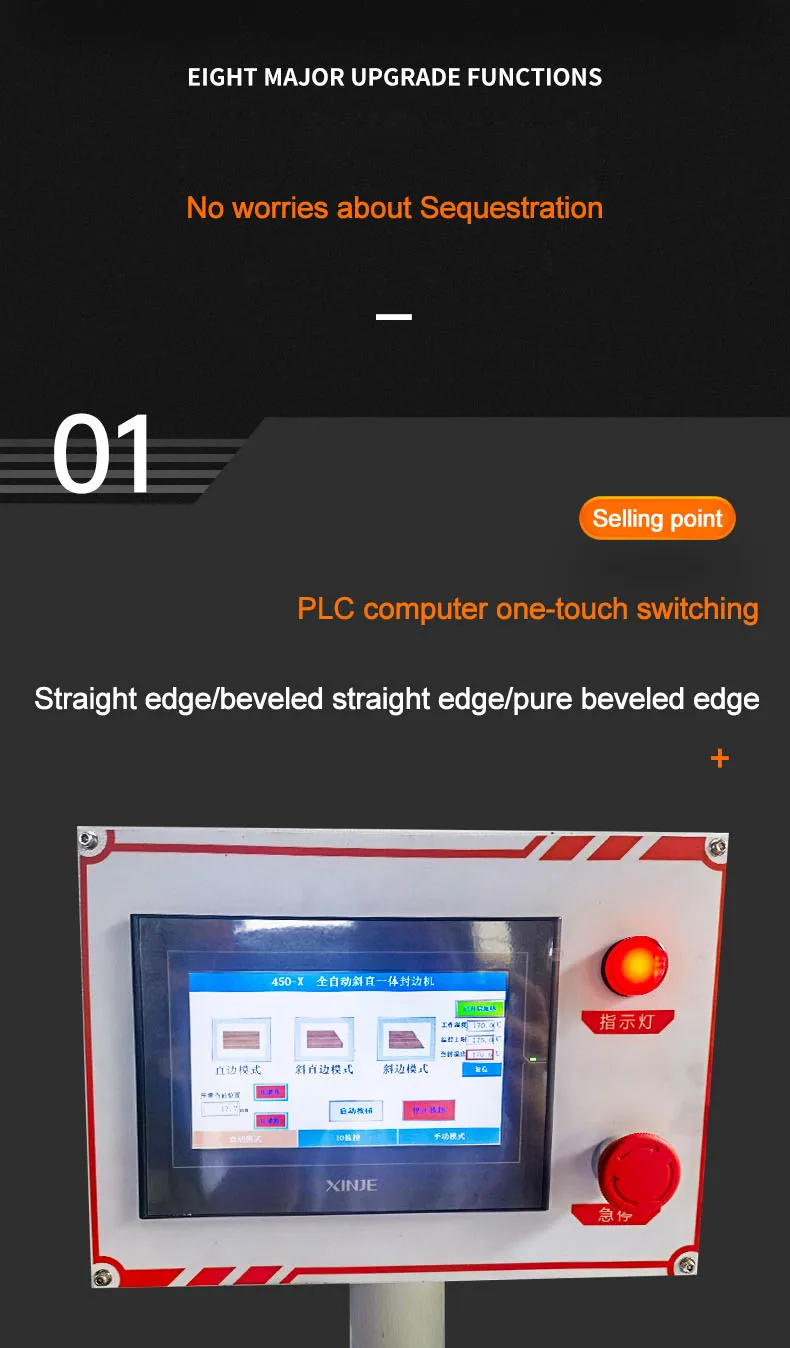

A: The Xinjie industrial touch screen is multi-language capable. We configure the interface to your preferred language (e.g., Spanish, Arabic, Russian) during the pre-shipment setup so your operators are not faced with an unreadable screen upon installation.
Q: What spare parts are included with a stocked machine?
A: Each unit ships with a standard set of wear parts, including trimming knives, scraping blades, and Teflon coating for the glue pot. A detailed spare parts list is provided so you can plan future orders based on your production volume.
