Description

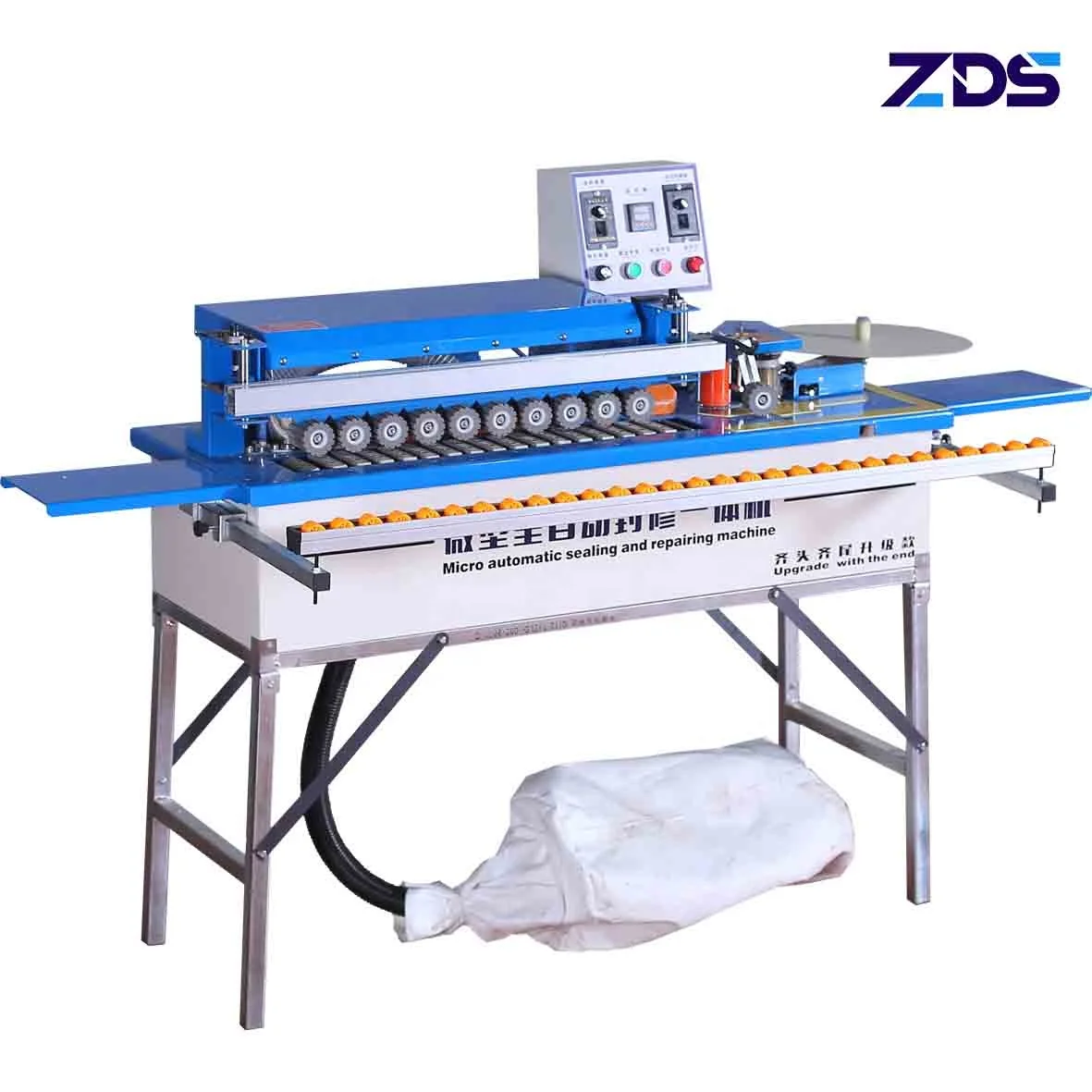

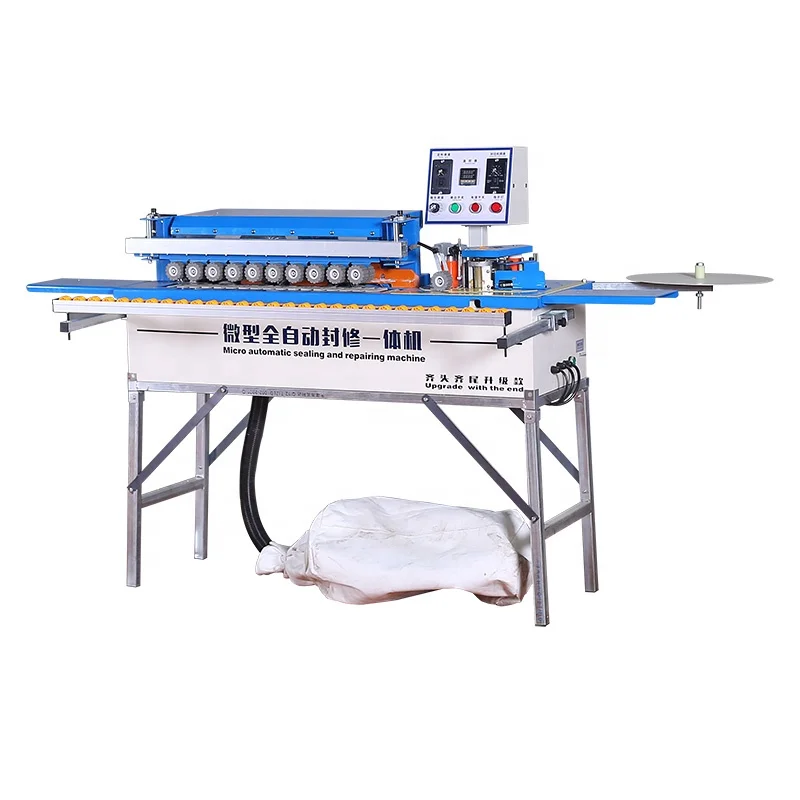

Fast-Dispatch Compact Edge Bander — 220V stock units verified against your local supply before loading, so the machine you unplug works the day it arrives.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Automatic Edge Banding Machine |
| Total Suction Power | 1200 W |
| Belt Drive Power | 25 W |
| Transmission Power | 60 W |
| Polishing Power | 180 W × 2 |
| Trimming Power | 800 W × 2 |
| Conveying Speed | 0–15 m/min |
| Edging Speed | 0–6 m/min |
| Edge Height Range | 10–60 mm |
| Edge Thickness Range | 0.3–3 mm |
| Overall Dimensions (L×W×H) | 120 × 54 × 72 cm |
| Net Weight | 81 kg |
| Gluing Method | Double-sided adhesive |
| Trimming Configuration | Up and down trimming |
| Polishing Configuration | Up and down cross polishing |
| Dust Extraction | Integrated vacuuming device |
| Edge Banding Mode | Curved and straight line dual purpose |
| Gluing Device Rotation | 180° |
| Feed Mechanism | Double-row rubber pressure wheels |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Startup cabinet and custom furniture production | Melamine-faced particleboard and MDF panels |
| Low-volume bespoke joinery orders | Plywood and blockboard with PVC edge banding |
| Curved component finishing | Shaped MDF and plywood with 0.3–3 mm PVC or ABS strip |
| Small workshop panel edging | Chipboard and melamine boards up to 60 mm edge height |
| Repair and rework operations | Replacement of damaged edge banding on existing cabinet components |
Why the Voltage Question Must Come Before the Price Tag
We confirm your workshop voltage and frequency before any automatic edge banding machine in stock leaves our floor.
A small cabinet maker in a humid coastal region once ordered a compact edge bander that matched every technical requirement, only to discover on arrival that the unit was configured for a three-phase supply his workshop did not have. Three weeks of production downtime followed while a transformer was sourced locally [NEED_CITE: voltage and frequency standards by export market]. That single oversight cost more in lost orders than any specification comparison could have saved. An automatic edge banding machine in stock is only useful if it actually runs when you plug it in.
Dispatch Readiness Without Configuration Surprises
When you need a machine quickly, the first concern is whether a stocked unit truly matches your facility. This compact edge bander ships with a double-sided adhesive gluing system, dual trimming motors, and an integrated dust extraction port already assembled on the frame. The 220V configuration suits single-phase workshop supplies common in many regions, and we verify that match before loading. Every ready-stock unit undergoes a functional run on sample panels so you can see edge quality before the crate closes.
Straight and Curved Capability in One Compact Footprint

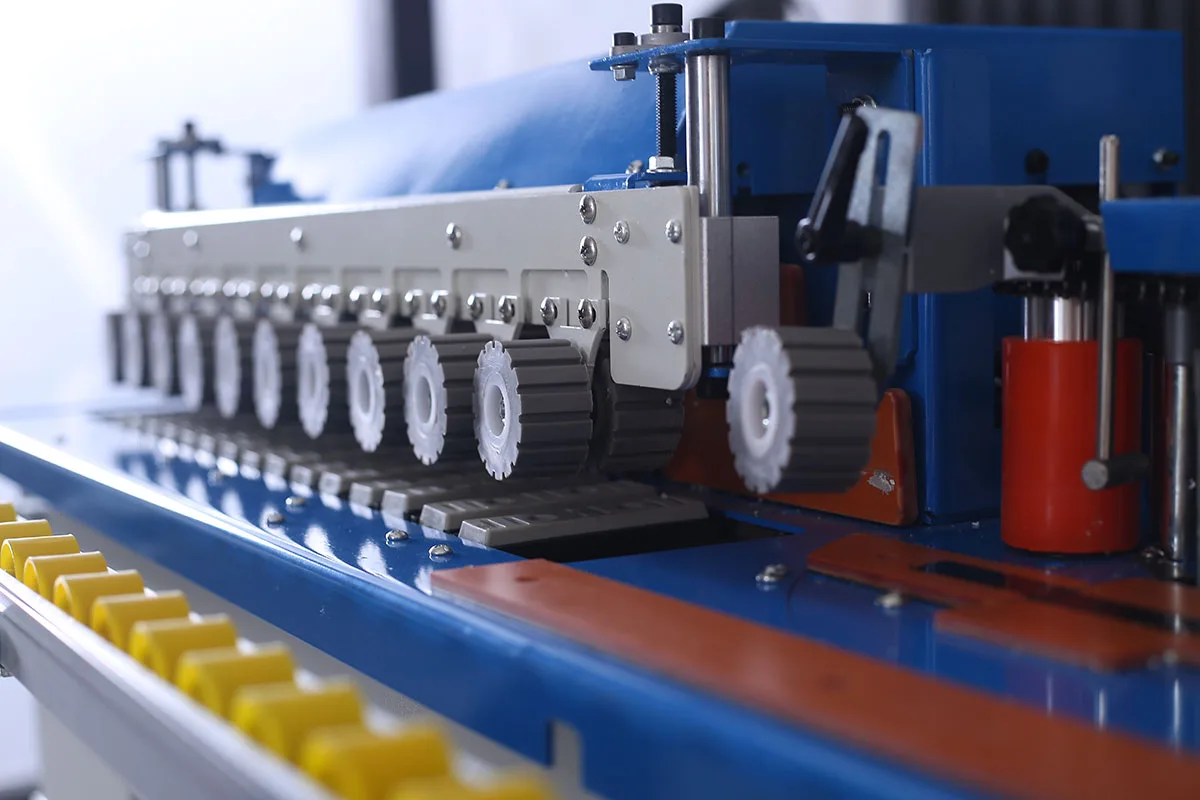

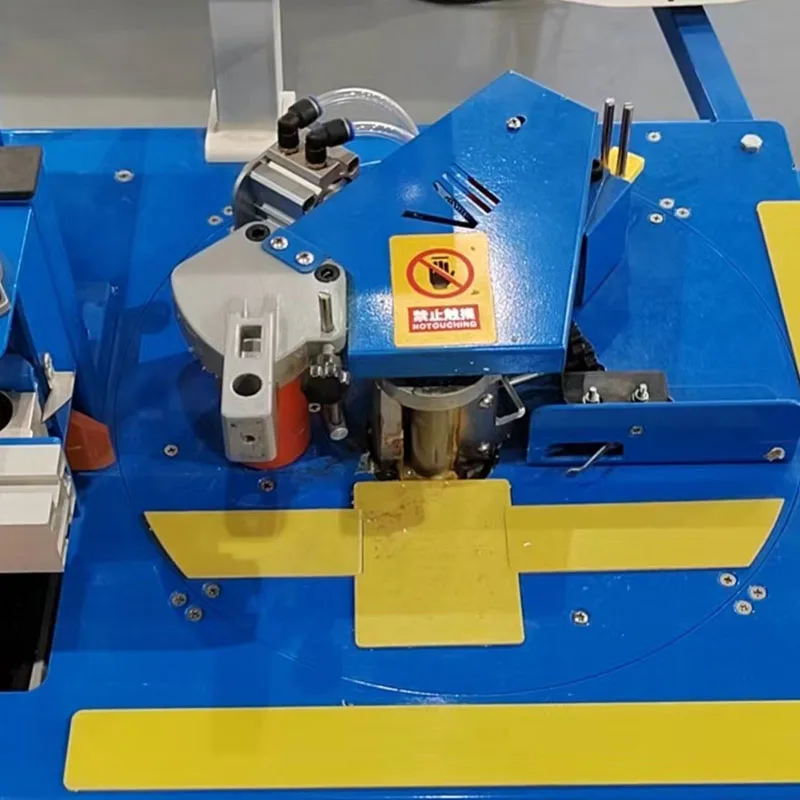

Most small workshops cannot justify separate machines for straight runs and curved components. The 180° rotatable gluing device on this model lets you switch between linear panel edges and shaped profiles without repositioning the workpiece onto a second bench [NEED_CITE: edge banding methods for curved furniture components]. The double-row rubber pressure wheels maintain consistent feed pressure across both geometries, and the up-and-down cross polishing stations finish the edge to a uniform sheen regardless of contour.
Reading the Numbers That Actually Matter in Production
The 0–6 m/min edging speed range gives operators fine control when working thin PVC on melamine-faced chipboard, where pushing feed rate too fast risks incomplete adhesive transfer on the substrate face. Dual 800W trimming motors with up-and-down action cut excess banding cleanly on both the top and bottom edges in a single pass, which matters when you are processing panels that will go straight into assembly without hand-trimming afterward. The 10–60 mm edge height range covers standard 18 mm board stock as well as thicker shelving and worktop substrates. Net weight of 81 kg with a 120 × 54 × 72 cm footprint means the unit fits against a wall in a tight workshop and stays stable during curved-edge feeding without bolting to the floor.
The Hidden Cost of Buying a Machine That Does Not Match Your Workflow
Ordering a single machine based on price alone often leads to secondary purchases down the line — a separate curved-edge unit, an external dust extractor, or a voltage converter that introduces its own failure points. When the trimming station cannot handle the banding thickness you run daily, operators resort to hand-trimming every piece, and the throughput advantage of an automatic edge banding machine in stock disappears entirely [NEED_CITE: hidden costs of mismatched woodworking machinery specifications]. Panels that fail edge adhesion in assembly force rework that consumes both material and delivery time.
Why Source This Compact Edge Bander Here
Our facility in Ningjin manufactures the complete range from entry-level to full-function pre-milling models, so this compact unit sits within a product family you can scale into without changing supplier. Voltage, control panel language, and specification details are confirmed per order rather than assumed, and a four-stage quality check covers incoming material through pre-shipment verification. Patented cutting mechanisms hold verified tolerances on trimming and polishing, and every unit ships with a factory test record on your specified panel material.
Documentation & Verification
- CE declaration of conformity matching this compact edge bander model
- Machine specification sheet confirming voltage, motor ratings, and edging speed range
- Electrical schematic with confirmed voltage and frequency for your facility
- Factory test record on your specified melamine or plywood panel thickness
- Operation and maintenance manual in your agreed language with spare parts list
Installation, Commissioning & Support
- Requires a dedicated 220V single-phase circuit rated for the 1200W suction and dual 800W trimming loads
- Overall footprint of 120 × 54 × 72 cm fits standard workshop aisles with room for panel infeed
- Partial assembly on arrival with KD-packed spare components clearly labeled for installation
- First-run parameter setting covers feed speed calibration for your PVC thickness range
- Double-row rubber pressure wheel alignment checked during commissioning for curved-edge accuracy
- Spare wear parts list included for belt, polishing pads, and trimming cutter replacement planning
Send Us Your Panel Details Before You Order
Tell us the board substrates you run most often, the PVC or ABS banding thickness range you need, and your local voltage and frequency so we can match the stocked unit precisely. Let us know your control panel language preference and whether you need a sample processing test on your own material before dispatch.
Frequently Asked Questions
Q: Is this compact edge bander currently in stock and how quickly can it ship?
A: Stock availability is confirmed at the time of inquiry, and ready units can be prepared for dispatch within a short lead time once voltage and language specifications are verified. We run a pre-shipment test on your panel material and send packing photographs before the crate is sealed, so you can confirm edge quality and machine condition before it leaves our facility.
Q: Can you verify the voltage matches my country’s electrical supply before dispatch?
A: Yes. We confirm your local voltage and frequency with your electrician before the machine is released for shipping. This 220V unit suits many single-phase workshop supplies, and if your facility runs a different standard we discuss available configuration options. No unit ships without documented voltage confirmation matching your installation site.
Q: Does the package include dust extraction or do I need a separate collector?
A: The machine has an integrated vacuuming device with a dust extraction port built into the frame. You connect this port to your workshop’s existing dust collection system or a standalone extractor. The suction power rating of 1200W refers to the integrated vacuuming device, and we can advise on hose diameter and airflow requirements for your setup.
Q: What edge banding materials and thicknesses does this model handle?
A: This edge bander processes PVC and similar edge banding materials in the 0.3–3 mm thickness range on melamine, particleboard, MDF, and plywood substrates. The 180° rotatable gluing device supports both straight and curved edge profiles. Edge height capacity runs from 10 to 60 mm, covering standard cabinet panels through thicker shelving and worktop components.
Q: How much assembly is required when the machine arrives at my workshop?
A: The unit ships partially assembled with some spare parts packed in knocked-down format to protect them during transit. You will need to connect the dust extraction hose, verify the electrical supply matches the confirmed voltage, and calibrate feed speed and trimming depth for your specific banding material. We provide an operation manual in your agreed language and remote commissioning guidance.
