Description

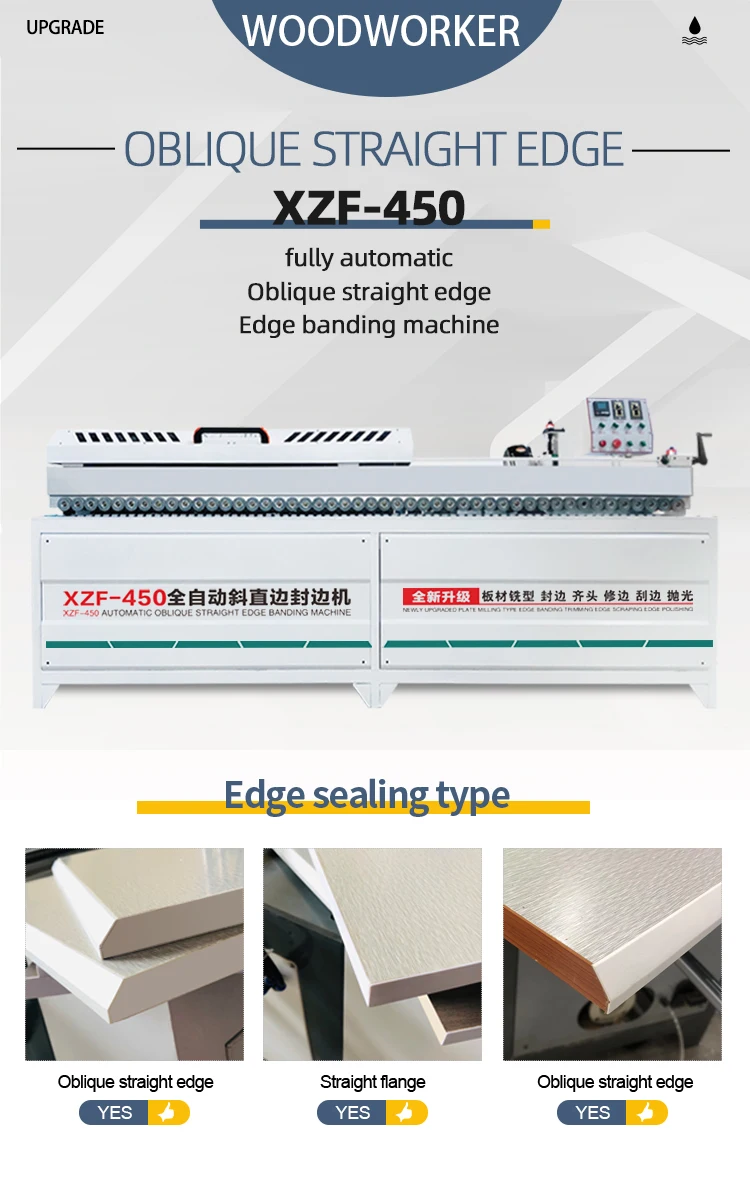

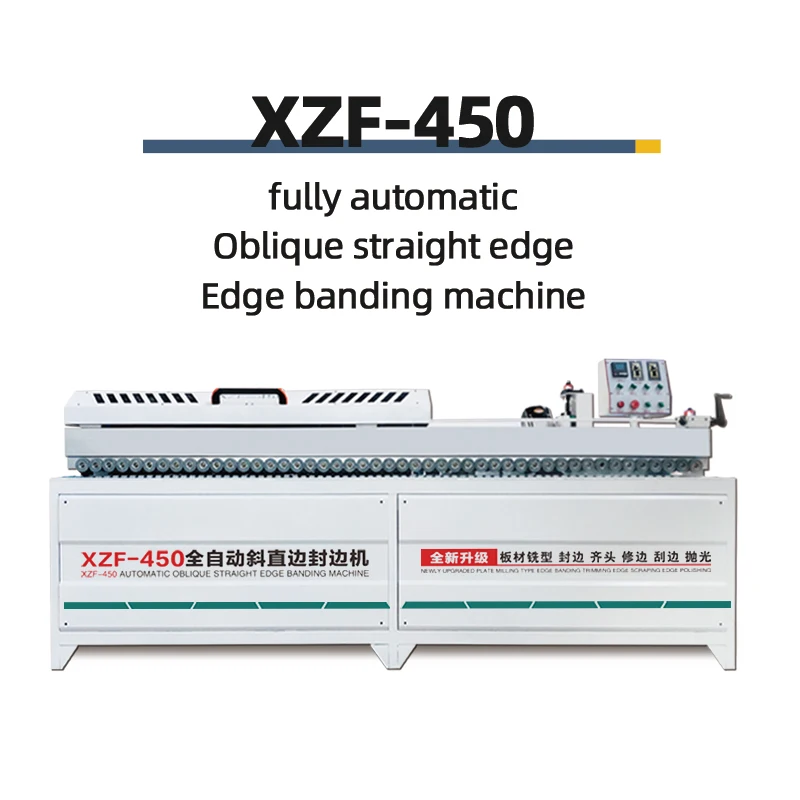

In-Stock Readiness — The XZF-450 45 Degree Full-Automatic Edge Banding Machine ships from our ready inventory with voltage and language locked in writing before crating.

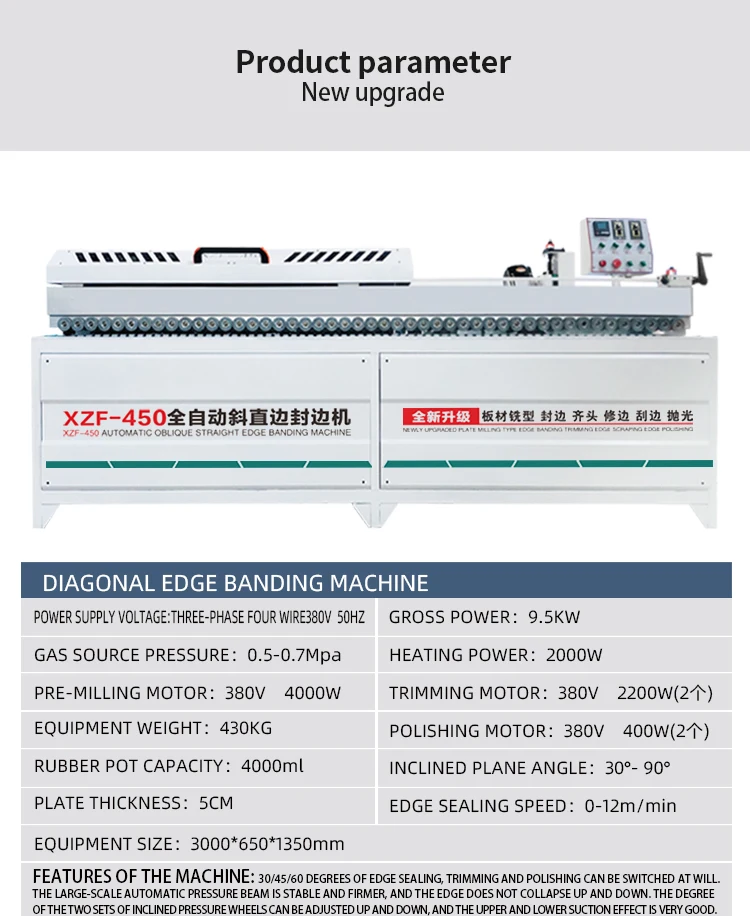

Technical Specifications
| Parameter | Value |
|---|---|
| Model | XZF-450 |
| Product Type | 45 Degree Full-Automatic Edge Banding Machine |
| Total Power | 9.5 kW |
| Voltage | 380V/415V (50Hz/60Hz to be confirmed per destination) |
| Feed Speed | 0-12 m/min |
| Feed Motor Power | 0.16 kW |
| Pre-milling Motor | 4 kW |
| Trimming Power | 2.2 kW × 2 |
| Polishing Power | 0.4 kW × 2 |
| Vacuum Power | 550 W |
| Glue Pot Capacity | 4000 ml |
| Edge Banding Height | 0-50 mm |
| Edge Banding Thickness | 0.3-3 mm |
| Minimum Sheet Length | 30 cm |
| Minimum Sheet Width | 15 cm |
| Air Source Pressure | 0.5-0.7 MPa |
| Net Weight | 430 kg |
| Dimensions (L×W×H) | 300×65×135 cm |
| Key Features | Pre-milling, 30/45/60° bevel banding, end trimming, rough trimming, fine trimming, scraping, polishing, dust extraction |
| Control Panel Language | Chinese, English (other languages available) |
| Plug Options | EU, USA, AU, UK |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door production | MDF and melamine-faced board with PVC or wood veneer edging |
| 45° bevel edge furniture components | Blockboard and plywood with 0.3-3 mm banding strips |
| Straight-edge panel processing | Particleboard and solid wood panels up to 50 mm banding height |
| Polymer door frame finishing | Polymer substrates requiring pre-milled edge preparation |
Why Voltage Confirmation Must Happen Before the Crate Is Nailed
A fast delivery edge bander loses all value if it arrives at a 415V facility wired for 380V, or the other way around. Voltage and frequency must be documented in writing before dispatch, not discovered when the electrician opens the panel.
I have watched a panel shop sit idle for weeks because the glue pot could not reach temperature on a mismatched supply. The PUR adhesive would not cure, edge strips lifted, and the customer waited for a step-down transformer that should never have been necessary. Every edge banding machine in stock we prepare now goes through a written voltage lock-in step tied to the destination facility’s actual three-phase supply [NEED_CITE: voltage and frequency standards by export market]. The XZF-450 is configurable across 380V and 415V, but the right setting only matters if someone confirms the frequency at 50Hz or 60Hz before the machine leaves the floor.
What Ships When You Order Today

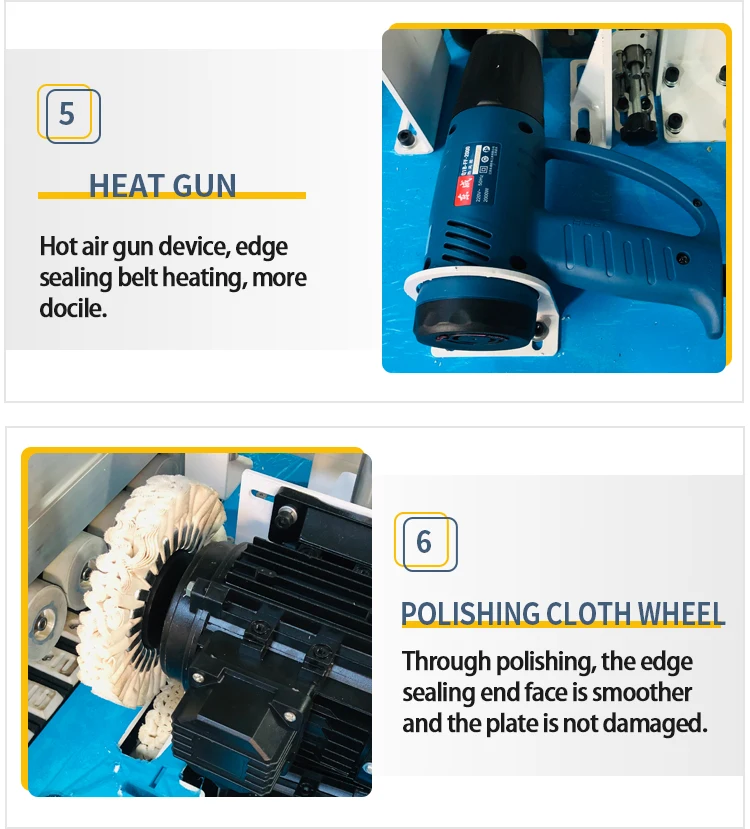

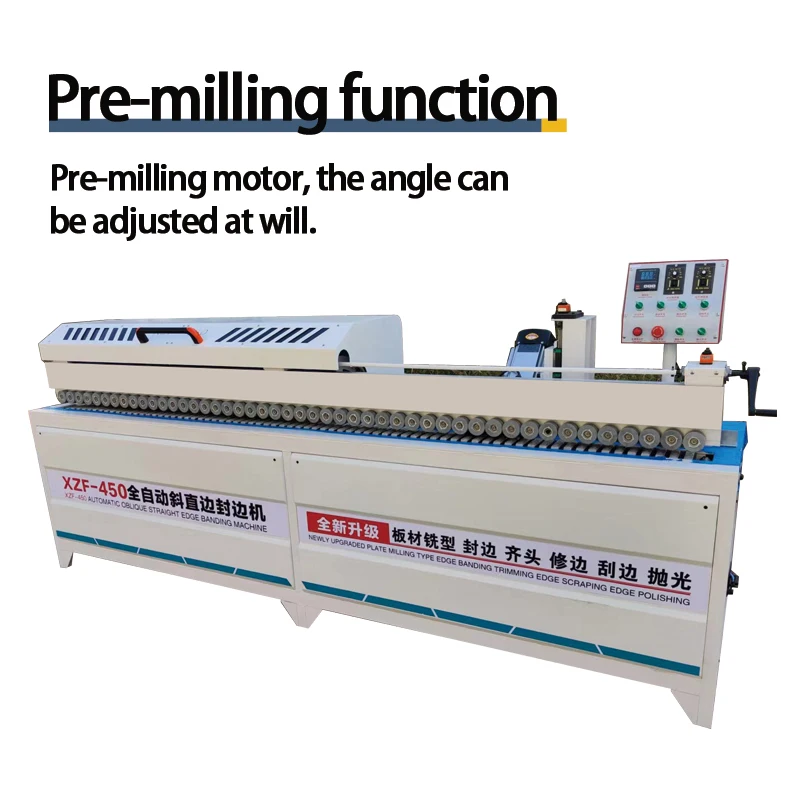

This edge banding machine in stock carries the full seven-function sequence: pre-milling, end trimming, rough and fine trimming, scraping, polishing, and dust extraction. The 4 kW pre-milling motor removes saw marks and surface irregularities before the glue roller applies adhesive, which means the banding sits flush on MDF and particleboard without visible glue lines at the joint. The 30, 45, and 60-degree bevel capability lets a cabinet shop run angled edge profiles on the same machine that handles standard 90-degree work, eliminating a second pass on a separate unit.
How Dispatch Lead Time Stays Short
The advantage of ordering a stocked unit is that production lead time disappears entirely. The XZF-450 moves from our floor to crating once the specification sheet is signed off by both sides. That sign-off covers voltage, plug type, control panel language, and the agreed spare parts package. We run a pre-shipment test on actual board stock matching your material type — MDF, plywood, or particleboard — and share the factory test record before the crate is sealed [NEED_CITE: pre-shipment inspection protocols for woodworking machinery exports]. Packing photographs are sent for your review, so you see exactly what is inside before the container is loaded.
Reading the Numbers That Matter on the Shop Floor
The 0-12 m/min feed speed range lets operators dial in the pace that matches the adhesive open time for different banding materials. Running PVC at higher speed may starve the glue line, while wood veneer at lower speed risks scorching if the glue pot sits hot too long. The 4000 ml glue pot capacity reduces refill interruptions during longer production runs — a practical concern when a cabinet order requires hundreds of linear meters of edging in a single shift. Pre-milling at 4 kW provides enough torque to clean up sawn edges on dense MDF without stalling the feed chain, which keeps panel flow continuous. The trimming station uses two 2.2 kW motors for rough and fine cuts, and that split is what produces the clean, burr-free edge that downstream assembly depends on. Air pressure at 0.5-0.7 MPa connects directly to standard workshop compressor systems without requiring a dedicated line.
What Happens When the Wrong Configuration Ships
Machines quoted without confirming local voltage and frequency arrive unusable, sitting on the dock while the buyer sources transformers or rewire contractors. Control panels in a language the operator cannot read stall commissioning entirely — buttons get pressed in the wrong sequence, parameters get set by guesswork, and the first batch of panels comes off with lifted edges and misaligned trims. I have seen single machines bought piecemeal turn out incompatible in feed height with existing roller conveyors, forcing a workshop to rebuild the infeed station from scratch [NEED_CITE: common commissioning failures in imported woodworking machinery]. These are not engineering defects; they are ordering failures that a proper specification confirmation step eliminates.
Why Sourcing This Machine Through This Channel Works
The XZF-450 sits within a product family that ranges from entry-level to full-function, so a workshop can add capacity later without switching suppliers or retraining operators on a different control interface. Voltage, language, and plug configuration are treated as standard order parameters, not special requests that add weeks to the schedule. The four-stage quality process — incoming material, in-process, finished product, and pre-shipment verification — runs on every unit whether it is a single order or a container load. An engineer reviews your factory layout and panel requirements before issuing the formal quotation, so the machine you receive matches the work it will actually do. Factory test records on your specified board material accompany every shipment, giving you a baseline to measure against once the machine is running on your floor.
Documentation & Verification
- Factory test record run on your specified MDF or particleboard thickness before dispatch
- Electrical schematic reflecting your confirmed 380V or 415V wiring configuration
- Operation and maintenance manual printed in your agreed control panel language
- Spare parts list itemized by wear component for your first year of operation
- Packing photographs of the crated XZF-450 sent before container loading
- CE declaration of conformity covering the complete machine assembly
Installation, Commissioning & Support
- Allow for the 300×65×135 cm footprint plus infeed and outfeed conveyor clearance
- Connect the 9.5 kW total load to a dedicated three-phase circuit matching confirmed voltage
- Supply compressed air at 0.5-0.7 MPa to the designated inlet on the machine frame
- First-run parameter setting for glue temperature, feed speed, and trimming depth included in remote guidance
- Wear parts for the pre-milling cutter and trimming blades identified in the spare parts list
- Polishing and scraping stations require scheduled inspection per the maintenance manual intervals
What We Need to Move Your Order Forward
Share your primary board material — MDF, particleboard, plywood, or solid wood — along with the thickness range and edge banding type you run most often. Confirm your facility’s three-phase voltage and frequency, and let us know which plug standard and control panel language your operators need. If you have upstream panel saws or downstream boring machines already on the floor, tell us their feed height so we can verify conveyor compatibility before the machine ships.
Frequently Asked Questions
Q: Is the XZF-450 currently in stock, and how soon can it ship after ordering?
A: The XZF-450 is held in ready stock and does not require a production build cycle. Once both sides sign off on the voltage, language, and plug configuration, the machine moves to pre-shipment testing and crating. Typical dispatch follows within a short window after specification confirmation, depending on how quickly the buyer returns the signed configuration sheet.
Q: My facility runs on a voltage other than 380V — can the machine be adapted before shipping?
A: The XZF-450 supports 380V and 415V configurations, and the correct setting is confirmed in writing before the crate is sealed. We require your facility’s exact three-phase voltage and frequency so the electrical system is set at the factory. This step prevents the glue pot temperature failures and motor burnout that occur when a machine arrives on the wrong supply.
Q: Can the control panel display in English or another language my operators can read?
A: The standard control panel is available in Chinese and English. Other languages, including Spanish, can be configured based on your request. We confirm the language choice during the specification sign-off so operators can read parameter settings and fault codes from the first day of production.
Q: Do you require a minimum order quantity, or can I buy a single unit?
A: Single-unit orders are accepted without any minimum quantity requirement. The same specification confirmation, pre-shipment testing, and documentation package applies whether you are ordering one machine or filling a container. This approach suits workshops adding one edge banding machine in stock to relieve a production bottleneck.
Q: What support is available once the machine arrives at my facility?
A: Remote installation guidance covers initial setup, parameter calibration, and first-run procedures for the XZF-450. The machine ships with an operation manual in your chosen language, a spare parts list, and a factory test record as your baseline. For troubleshooting after startup, our technical team provides remote support to resolve configuration or operational questions.
