Description

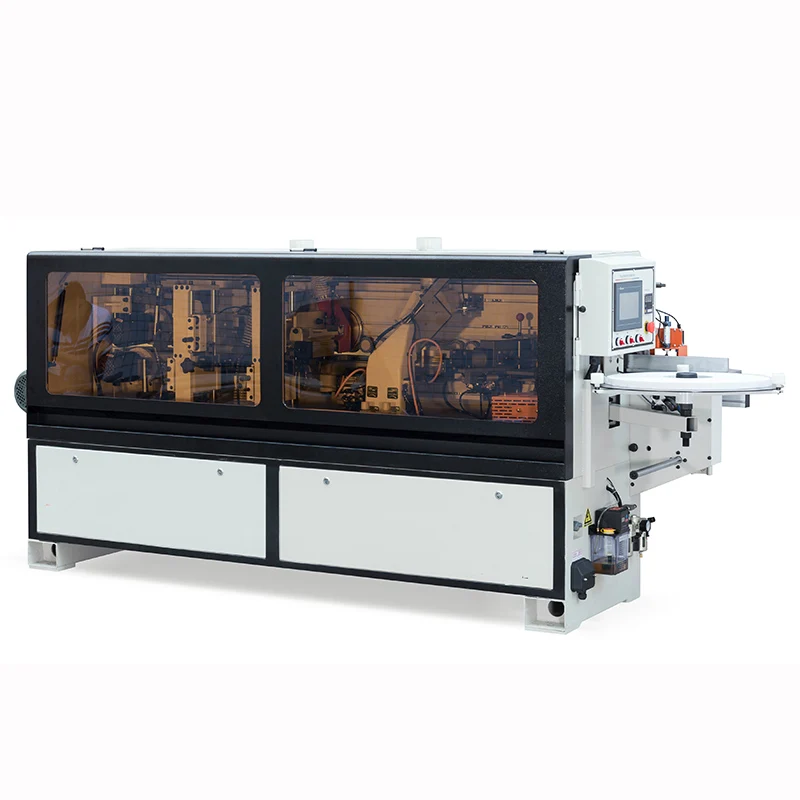

Ready When You Are — the ZDS280 linear edge banding machine is stocked, tested, and configured to your facility voltage before it leaves our floor.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDS280 |
| Product Type | Linear Edge Banding Machine |
| Main Functions | Gluing, End Trimming, Fine Trimming, Scraping, Buffing, Cleaning |
| Working Pressure | 0.65 MPa |
| Voltage | 380V / 3-Phase |
| Conveyor Belt Speed | 9–12 m/min |
| Rated Power | 9 kW |
| Min. Panel Width | 60 mm |
| Min. Panel Length | 120 mm |
| Panel Thickness Range | 10–60 mm |
| Edge Thickness Range | 0.3–3 mm |
| Net Weight | 890 kg |
| Overall Dimensions (L×W×H) | 2950 × 750 × 1250 mm |

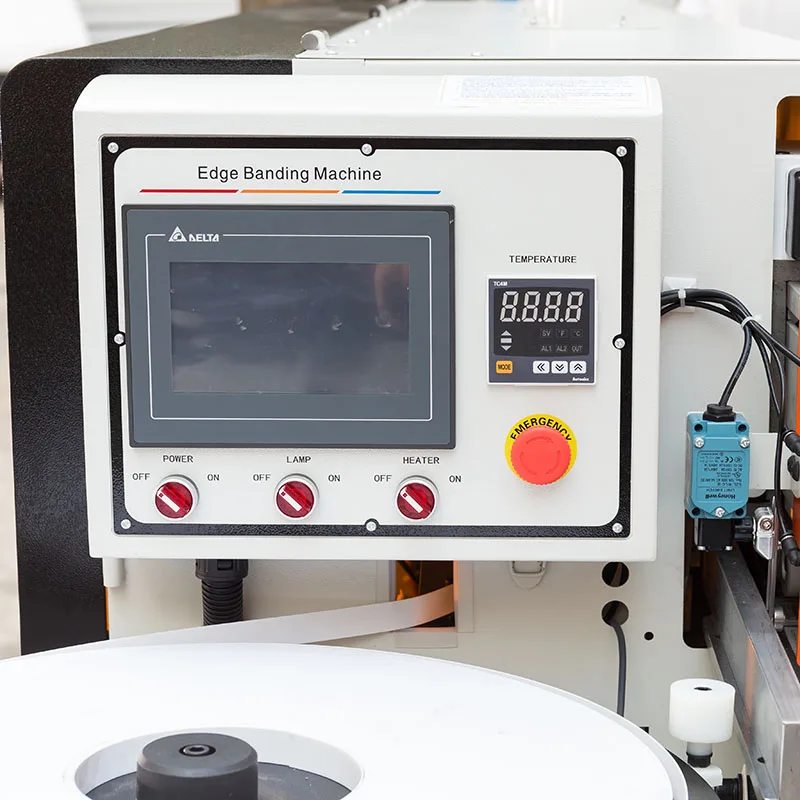

| Control System | Touch screen, frequency converter, Taiwan Delta PLC |
| Contactor Brand | Schneider Electric |
| Motor | UFC high speed motor |
| Glue Pot | Teflon-coated with scientific glue return design |
| Pressing System | Dual air pressure, double-wheel adjustable stroke |
| Buffing Station | 0.37 kW × 2 motors (upper and lower polishing) |
| Assembly State | Fully assembled |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edging | MDF and particleboard with 0.4–2 mm PVC banding |
| Wardrobe side panel finishing | Plywood panels up to 60 mm thick with veneer edge |
| Short-batch furniture runs | Mixed board sizes from 120 mm length upward |
| Joinery workshop upgrade path | Solid wood panels with thin PVC or melamine edges |
| Office furniture panel edging | Standard 16–25 mm chipboard with 0.8 mm ABS or PVC |
Why the Voltage Question Should Come Before the Price
Every linear edge banding machine in stock must be verified against your workshop’s actual power supply before crating. A machine wired for 380V/50Hz landing in a 440V/60Hz facility doesn’t just underperform — the motor protection trips immediately, and the PLC control board can sustain irreversible damage. I have watched entire workshop floors sit idle for weeks while a step-down transformer was sourced locally.
The ZDS280 ships with confirmed voltage compatibility and a signed verification sheet. The Taiwan Delta PLC and Schneider contactors are rated across standard industrial voltage bands, but the internal wiring, motor winding configuration, and frequency converter parameters are all set specifically for your grid before dispatch. This confirmation step is non-negotiable in our pre-shipment checklist [NEED_CITE: voltage and frequency standards by export market].
Dispatch Without the Waiting Game
Most edge banding orders involve a multi-week production slot. The ZDS280 linear edge banding machine in stock bypasses that queue entirely. Once your voltage and control panel language are confirmed, the machine moves straight to pre-shipment testing — a full functional run on your specified panel thickness and edge material — then into the crate. The compact 2950 mm footprint means it fits a standard 20-foot container without partial disassembly, reducing both transit risk and on-site reassembly time.
What "Fully Assembled" Actually Means at the Dock

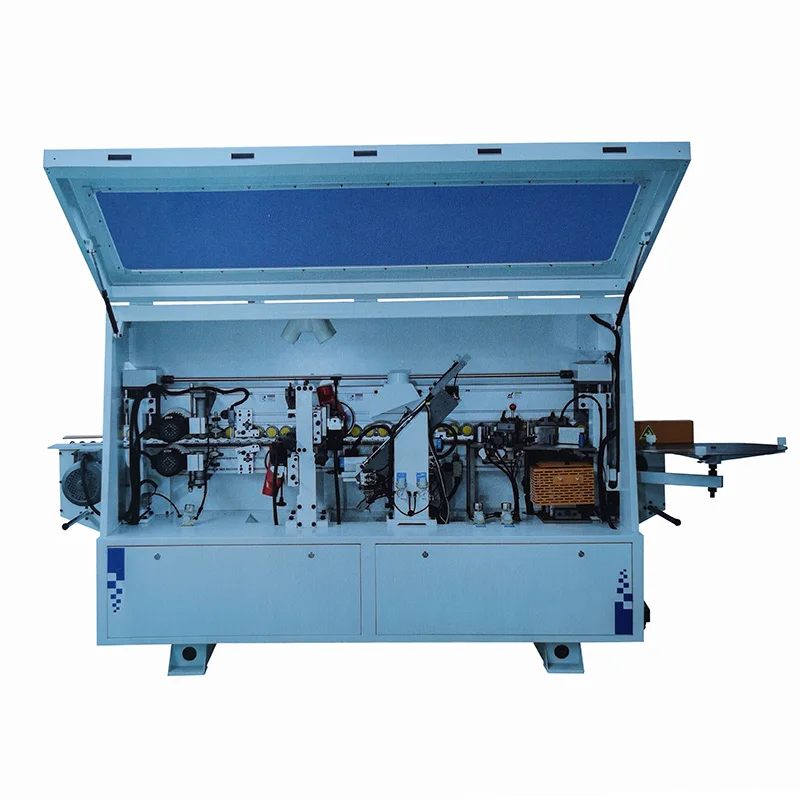

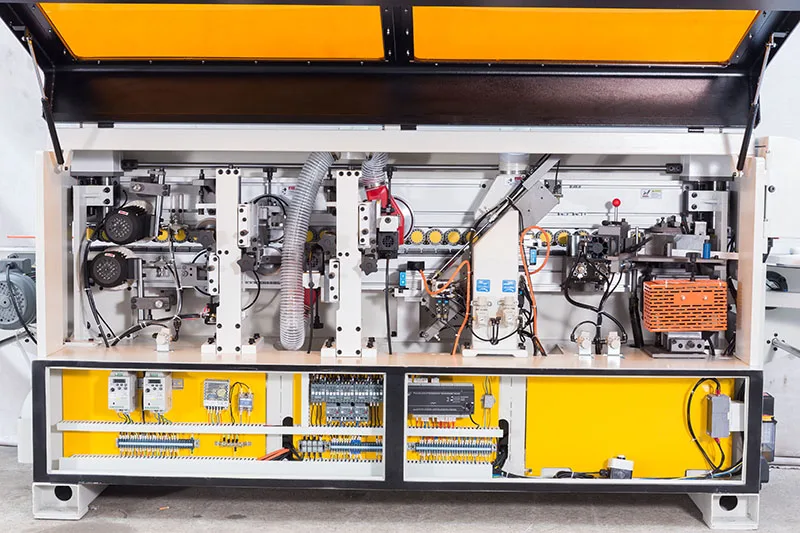

The ZDS280 arrives bolted to its base frame with all six stations — gluing, end trimming, fine trimming, scraping, buffing, and cleaning — already aligned and tensioned. The only site connections are the three-phase power feed and the compressed air line at 0.65 MPa. There is no conveyor belt tracking to adjust, no glue pot plumbing to reconnect, and no trimming cutter calibration required on day one. This matters when your production schedule has no buffer for a three-day commissioning exercise [NEED_CITE: typical commissioning timelines for small-format edge banders].
Reading the Specs That Matter on the Shop Floor
The 10–60 mm panel thickness range is wider than most machines in this footprint class, which typically cap around 45 mm. That upper reach lets you run solid wood shelving and thick cabinet carcasses without sending panels to a secondary operation. The 9–12 m/min conveyor speed is governed by the frequency converter, letting operators dial down for delicate veneer edges or push toward the upper end for high-volume PVC runs. The dual air pressure pressing system with adjustable stroke keeps consistent contact across that full thickness range, which directly affects glue line uniformity. Teflon coating on the glue pot prevents adhesive buildup and reduces the purge time between color changes — a practical advantage when a workshop switches between white PVC and wood-grain melamine edges on the same shift.
The Cost of Skipping Configuration Checks
Buyers who focus only on feed speed and station count often discover problems after installation. A machine without adjustable pressing stroke struggles on panels under 12 mm, leaving visible glue squeeze-out on one edge and starved joints on the other. Control panels shipped in a single language force operators to rely on memory or translation apps during setup, which increases the risk of running trimming cutters at the wrong depth and scoring the panel face. Without a pre-dispatch voltage confirmation, even the most well-built linear edge banding machine in stock becomes dead weight until an electrician reconfigures the entire supply chain [NEED_CITE: CE machinery directive requirements for industrial equipment].
What Backs the Machine After It Arrives
Every ZDS280 undergoes a four-stage quality process — incoming material inspection, in-process checks during assembly, finished product verification, and a final pre-shipment test run on panel stock that matches your order specifications. Voltage, frequency, and control language are documented on the test record before the crate is sealed. The Taiwan Delta PLC is supported globally, so if a parameter needs adjustment six months from now, your local automation supplier can interface with it directly. Single-unit orders receive the same documentation pack and test protocol as full container loads. Our engineers configure each machine based on your actual panel materials and edge types, not a generic default profile.
Documentation & Verification
- Factory test record using your specified panel thickness and edge material
- Electrical schematic confirming voltage and wiring matched to your facility supply
- Operation and maintenance manual in your selected language
- Spare parts list with OEM part numbers for reorder reference
- Packing photographs taken before crate closure
- CE declaration of conformity for the ZDS280 edge banding machine
Installation, Commissioning & Support
- Requires a dedicated 3-phase circuit rated for at least 9 kW with proper grounding
- Compressed air supply must deliver clean, dry air at 0.65 MPa to the machine inlet
- Arrives fully assembled; only power and air connections needed on site
- Conveyor belt speed set via touch screen frequency converter from 9 to 12 m/min
- Taiwan Delta PLC allows parameter backup to USB for future restore or replication
- Glue pot Teflon coating reduces daily cleaning to a quick purge cycle
- Schneider contactors are standard industrial components available through local distributors
What We Need to Ship Your Machine
To move from inquiry to dispatch, share your panel material types and the thickness range you run most often, along with your facility’s exact voltage and frequency. Tell us which language your operators read, and whether you need door-to-door freight or FOB port delivery. If you are replacing a manual edge banding setup, describe your current daily panel volume so we can confirm the 9–12 m/min feed speed aligns with your throughput requirement.
Frequently Asked Questions
Q: What is the dispatch lead time for the ZDS280 from order to shipment?
A: Since the ZDS280 is held as ready stock, the lead time covers pre-shipment configuration and testing rather than manufacturing. Once voltage and language are confirmed, the machine typically ships within a short window. The exact timeline is quoted at order confirmation based on current stock position and your specific configuration requirements.
Q: Can you arrange door-to-door shipping and customs clearance to my country?
A: Yes, we can quote door-to-door freight including customs clearance for most destinations. Alternatively, we can ship FOB from our nearest port if you prefer to use your own freight forwarder. Shipping options and transit estimates are provided upfront with your order confirmation.
Q: How do I confirm the machine voltage matches my local power supply before ordering?
A: We require your facility’s voltage, phase configuration, and frequency before finalizing any order. A voltage confirmation document is signed and included in your shipment paperwork. The ZDS280 supports standard industrial voltage ranges, and all internal wiring is configured and tested against your exact specification before dispatch.
Q: Do you accept single-unit orders, or is there a minimum quantity?
A: Single-unit orders are standard for the ZDS280. There is no minimum quantity requirement. Every machine receives the same pre-shipment testing, documentation, and packing protocol regardless of order size. This makes it straightforward for a workshop adding its first automated edge bander.
Q: What spare parts come with the machine and how do I order replacements?
A: The ZDS280 ships with a spare parts list identifying wear components and their OEM part numbers. The list covers items like trimming cutters, buffing wheels, and pressing rollers. Replacement parts can be ordered directly from us or sourced locally using the specifications provided, since components like Schneider contactors and Delta PLC modules are globally distributed.
