Description
Fast Dispatch from Stock — ZDS290 units are warehoused and ready for same-week dispatch once voltage and frequency are confirmed against your workshop supply.
Technical Specifications
| Parameter | Value |
|---|---|

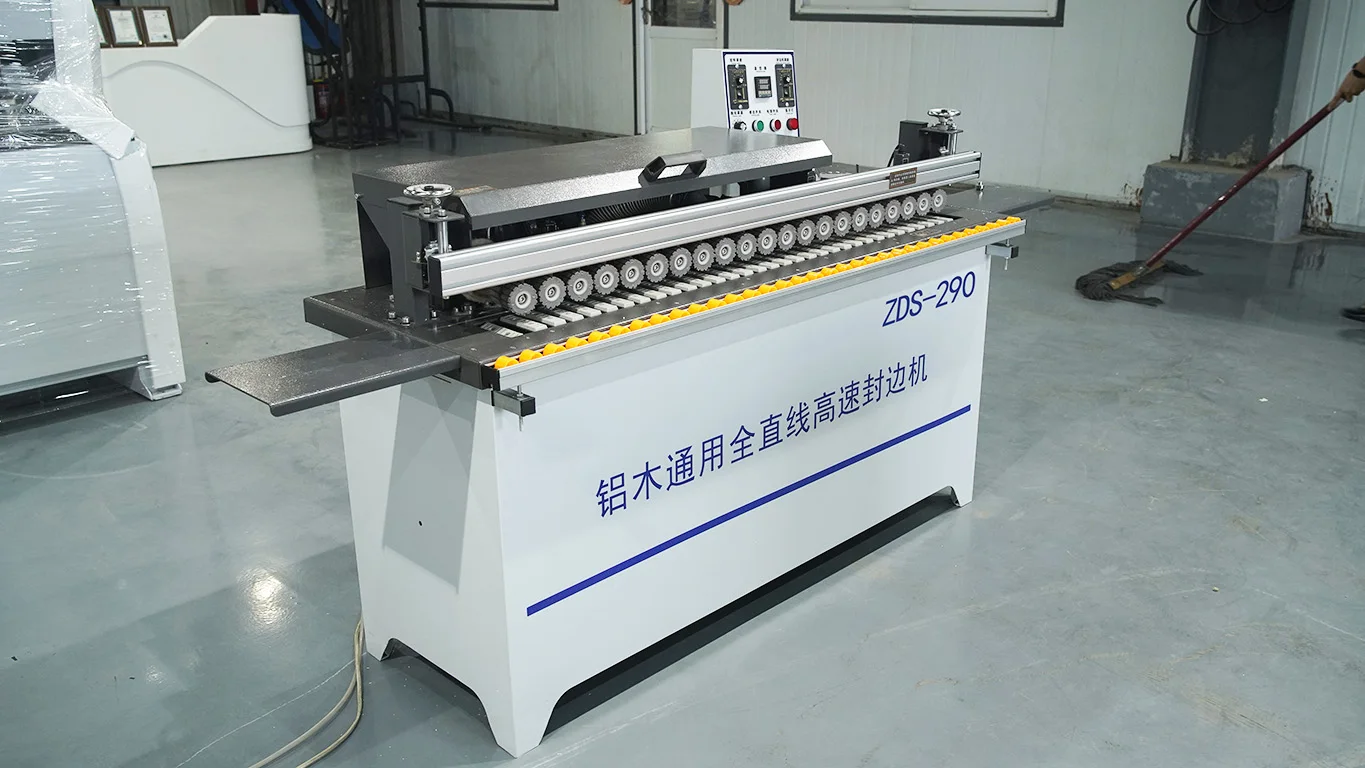

| Model | ZDS290 |
| Product Type | Universal Full Linear High-Speed Edge Banding Machine |
| Function Stations | Gluing, End Cutting, Trimming, Vacuuming, Scraping, Cleaning, Buffing |
| Rated Voltage | 220V (basis not stated in source — confirm frequency 50/60Hz and target market compatibility) |
| Rated Power | 4.2kW |
| Strip Thickness Range | 0.5–2.5mm |
| Sheet Thickness Range | 10–50mm |
| Rated Air Pressure | 0.6–0.8MPa |
| Working Speed | 0–6m/min |
| Conveyer Belt Speed | 0–14m/min |
| Glue Capacity | 1000ml |
| Overall Dimensions (L×W×H) | 190×60×130cm |
| Machine Weight | 150kg |
| Panel Material Compatibility | Honeycomb panels, ordinary wood panels |
| Edge Banding Material Compatibility | PVC, Wood, Aluminum |
| Assembly State | KD packing with user manual and video teaching |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and plywood with PVC or wood veneer banding |
| Honeycomb panel edge sealing | Honeycomb core panels with aluminum or PVC edge strips |
| Small-batch furniture production | Particleboard and solid wood panels with mixed edging materials |
| Joinery workshop mechanization | Transitioning from hand-applied edging to machine-assisted banding |
| Startup furniture maker operations | Short runs across wood, PVC, and aluminum edging on varied substrates |
Why the Voltage Question Must Come Before You Hit Checkout
A machine that cannot match your local grid is dead weight on the workshop floor.
Every month I see edge banders arrive at job sites across the Middle East only to sit idle because the motor was wound for the wrong frequency. A 50Hz motor running on a 60Hz supply spins faster than designed, throwing off the feed rate and causing the edge banding to drift or tear mid-cycle. The reverse is just as costly — slower rotation means incomplete trimming and uneven glue application. When an edge banding machine in stock ships without this single confirmation, the buyer faces weeks of downtime while a replacement motor is sourced internationally. The ZDS290 is rated at 220V, but frequency compatibility with your local grid must be verified before dispatch [NEED_CITE: voltage and frequency standards by export market]. Skipping this step turns a fast-order advantage into a costly delay.
Stock Availability and Dispatch Readiness
The ZDS290 is held as an edge banding machine in stock for workshops that cannot afford multi-week production lead times. Once your voltage and frequency requirements are confirmed, the unit moves through pre-shipment testing and into dispatch logistics without waiting for a build cycle. KD packing keeps the shipping footprint manageable for smaller freight consolidations, and the included user manual and video teaching materials allow your team to begin familiarization before the crate arrives.
Ordering Simplicity for Small-Volume Buyers
Workshops running short daily batches do not need complex procurement cycles. This unit covers gluing, end cutting, trimming, vacuuming, scraping, cleaning, and buffing in a single pass, eliminating the need to source multiple standalone machines. The 1000ml glue pot suits intermittent production where large reservoirs would lead to glue degradation between runs. Buyers ordering an edge banding machine in stock from this range get a full-function setup without negotiating a custom line configuration [NEED_CITE: typical edge banding workstation requirements for small furniture shops].
How Panel Thickness and Feed Speed Shape Your Output

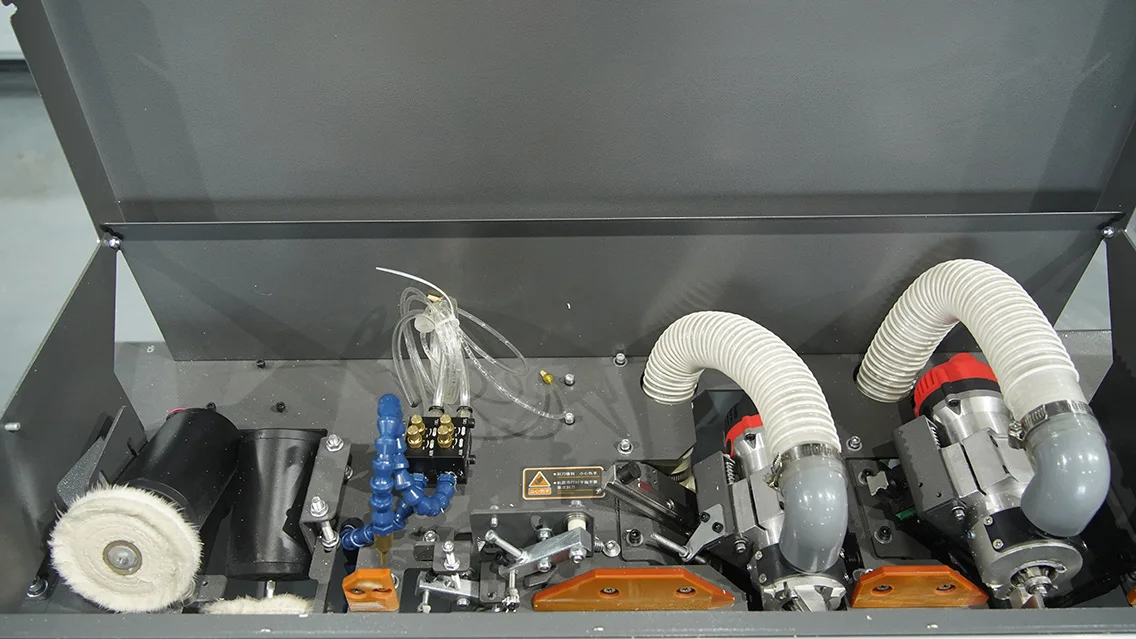

The 10–50mm sheet thickness range means this machine handles everything from thin shelving stock to thick countertop panels without fixture changes. Working speed adjusts from 0 to 6m/min, letting the operator dial back for aluminum edging on honeycomb panels where feed pressure must stay controlled, then open up for standard PVC runs on particleboard. The seven-station sequence — ending with scraping, cleaning, and buffing — removes the visible glue line that typically requires hand finishing on entry-level machines. Glue pot temperature must be matched to the banding material in use; PVC demands a different thermal window than wood veneer, and running the wrong setting causes either poor adhesion or surface scorching.
The Hidden Cost of Skipping Configuration Checks
Ordering a machine without matching it to your actual panel mix leads to problems that only appear once production starts. Panels outside the 10–50mm range will either fail to feed or crush under the pressure roller. Edge banding thicker than 2.5mm will not seat properly through the trimming station, leaving proud edges that require manual rework. When the air supply cannot maintain 0.6–0.8MPa consistently, the pneumatic actuators in the end-cutting and scraping stations stutter, producing uneven cuts and visible chatter marks. These are not warranty issues — they are configuration mismatches that could have been caught before the machine left the warehouse [NEED_CITE: common edge banding defects from pneumatic supply instability].
Why Buyers Source This Machine Here
In-house manufacturing with patented cutting mechanisms ensures the trimming station delivers consistent edge quality across material types. The full product family — from entry-level to full-function — means a workshop can add capacity later without changing suppliers or retraining operators on a different control philosophy. Voltage and specification customization is treated as standard procedure, not an exception requiring special approval. Four-stage quality control with pre-shipment verification catches frequency mismatches and component faults before the machine enters transit. Engineer-led configuration review happens within 24 hours of inquiry, so the edge banding machine in stock you order is the one your production actually needs.
Documentation & Verification
- Factory test record run on your specified panel thickness and edge material before dispatch
- Electrical schematic confirming voltage and frequency match for your local electrician
- Operation and maintenance manual provided in your operator’s language at point of order
- CE declaration of conformity for import clearance in regulated markets
- Spare parts list with part numbers for consumable station components
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated above the 4.2kW draw to prevent voltage drop during startup
- KD-packed unit fits through standard workshop doors; allow floor space of at least 250×120cm for operation clearance
- Compressed air line must sustain 0.6–0.8MPa at the machine inlet for reliable pneumatic station actuation
- First-run calibration includes conveyor belt speed adjustment and glue temperature setting for your specific banding material
- Video-guided assembly covers mechanical reconnection of trimmed stations after transit
What to Share When You Request a Quote
Provide your local voltage and frequency so we can confirm motor compatibility before reserving stock. Tell us which edge banding materials you run most often — PVC, wood veneer, or aluminum — and the typical panel thickness range in your daily output. If your operators require a specific control panel language, note that at inquiry so the manual and interface are prepared before dispatch.
Frequently Asked Questions
Q: Is this model currently in stock and what is the dispatch lead time?
The ZDS290 is held in stock for fast dispatch. Once your voltage and frequency are confirmed and pre-shipment testing is completed, the machine moves into shipping logistics. Exact dispatch timing depends on current warehouse availability and your destination port, so confirm at the point of order for the most accurate schedule.
Q: Will 220V work in my country — how do I confirm compatibility?
The ZDS290 is rated at 220V, but frequency matters just as much as voltage. A 50Hz motor on a 60Hz supply causes feed speed deviation and edge banding misalignment. Share your local grid specifications at inquiry, and the electrical schematic will be verified against your supply before the machine ships.
Q: What edge banding materials can the ZDS290 handle out of the box?
The machine is configured to process PVC, wood veneer, and aluminum edge banding from 0.5mm to 2.5mm thick. Glue temperature and feed speed must be adjusted for each material type. Aluminum on honeycomb panels typically requires slower feed rates to maintain trimming accuracy.
Q: How is the machine shipped and what setup is required?
The ZDS290 ships in KD packing with a user manual and video teaching materials. On arrival, reassembly involves reconnecting station modules and pneumatic lines. A dedicated 220V circuit and a stable compressed air supply at 0.6–0.8MPa are required before first startup.
Q: What spare parts and consumables should I order with the machine?
Ordering replacement trimming blades, scraping inserts, and buffing wheels with the initial shipment avoids downtime later. The spare parts list included with the machine identifies all consumable components by part number. Confirm your preferred language for the parts manual when placing your order.
