Description
In-Stock Fast Dispatch — The ZDSF190 automatic curved and straight edge banding machine is ready for single-unit orders with confirmed 220V/50Hz configuration, dispatched from inventory to reach your workshop without multi-week build delays.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF190 |
| Product Type | Automatic Curved and Straight Edge Banding Machine |
| Function | Automatic plate feeding, automatic belt breaking, double-sided gluing, upper/lower trimming and polishing, curved and straight edge banding, large diameter surrounding vacuum |
| Edge Type | Both curved and straight lines |
| Voltage & Frequency | 220V 50Hz |
| Rated Power | 4 kW |
| Rated Air Pressure | 0.4–0.6 MPa |
| Suction Power | 1200 W |
| Belt Power | 25 W |
| Transmission Power | 120 W |
| Heating Power | 800 W |
| Polishing Power | 180 W × 2 |
| Trimming Power | 800 W × 2 |
| Conveyor Belt Speed | 0–14 m/min |
| Feed Speed | 0–14 m/min |
| Sheet Thickness Range | 10–50 mm |
| Strip Thickness Range | 0.5–2.5 mm |
| Glue Capacity | 1000 ml |

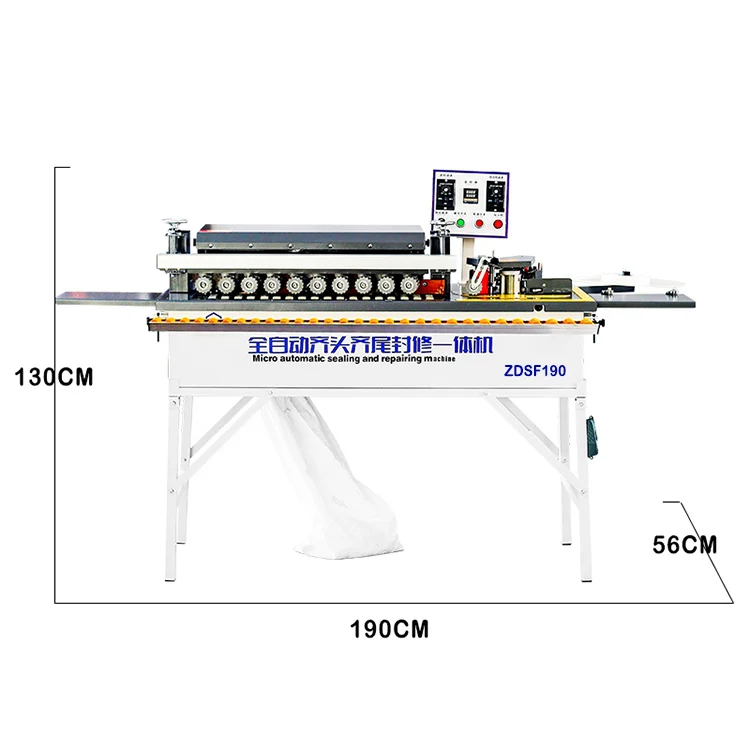

| Overall Dimensions (L×W×H) | 1900 × 560 × 1300 mm |
| Net Weight | 105 kg |

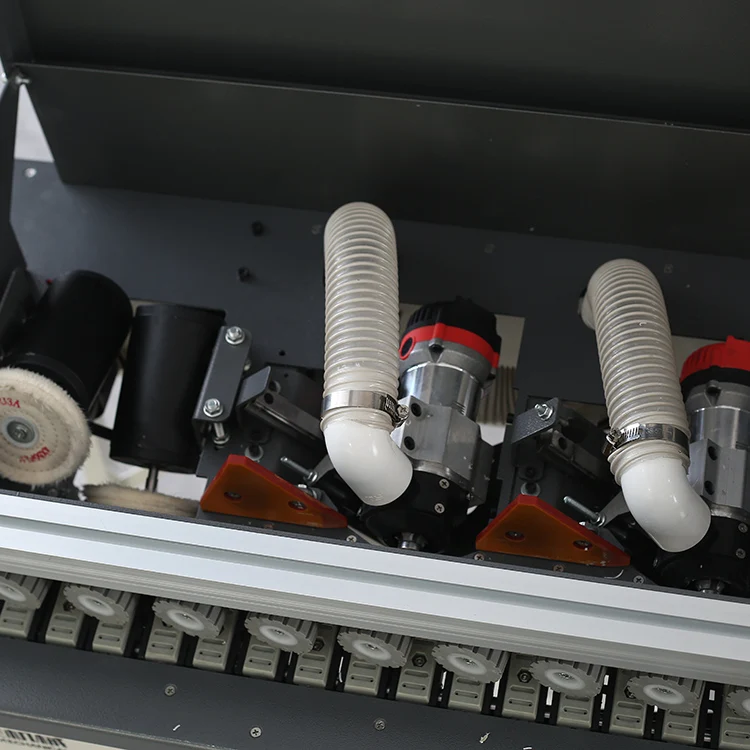

| Trimming Mechanism | Square slide rail with imported 4-blade alloy arc knife |
| Dust Collection | Dual large-diameter dust collectors (collection effect up to 99%, basis not stated in source) |
| Transmission | Crawler transmission with steel rod slide rails |
| Pressure Beam | Adjustable aluminum alloy pressure beam |

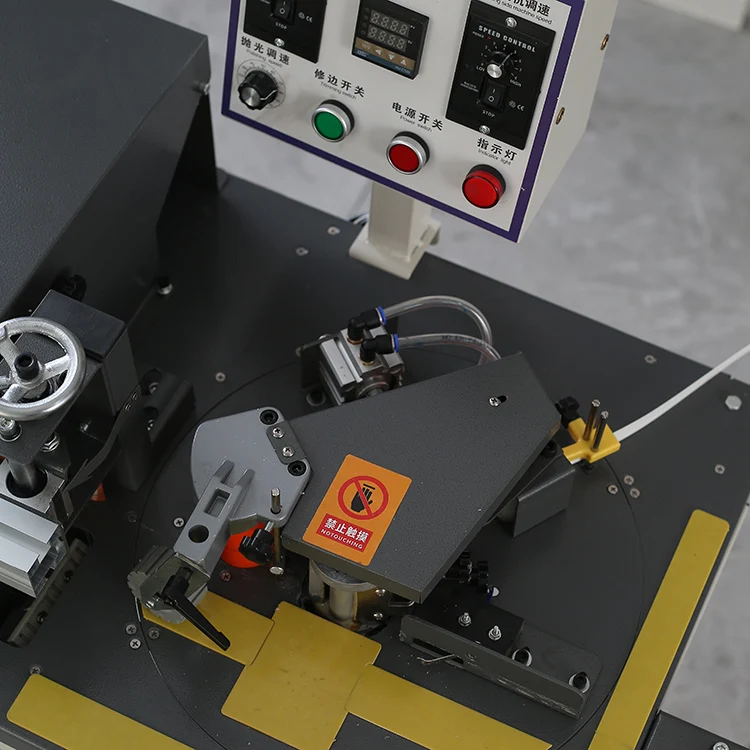

| Edge Strip Cutting | Pneumatically controlled |

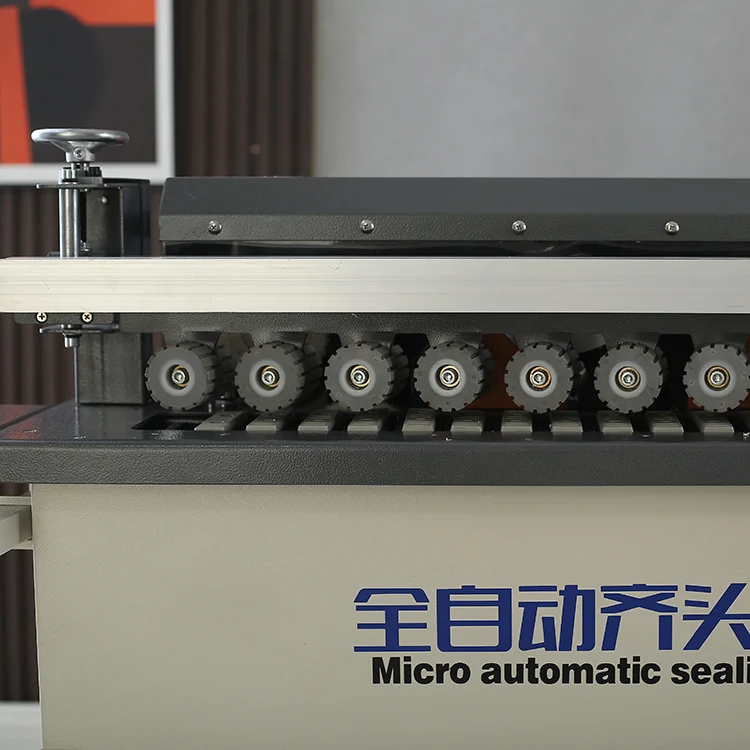

| Feed Plate | Extended feed plate with double-row rubber pressure wheels |

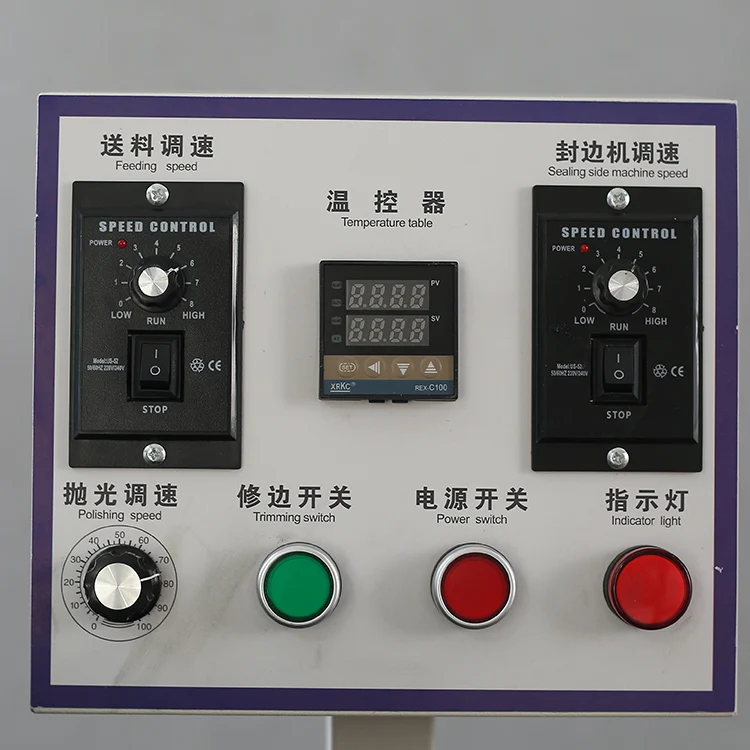

| Control Panel | Multi-function button operation |
| Limit Switch | Push-type limit switch |
| Certification | CE |
Application Suitability
| Application | Material or Output |
|---|---|
| Shaped cabinet door edge banding | MDF and plywood panels with PVC edge strips |
| Flat shelving and carcass panel edging | Particleboard with 0.5–2.5 mm veneer or PVC strips |
| Custom furniture workshop production | Solid wood panels and composite boards up to 50 mm thick |
| Low-to-medium volume joinery operations | Both curved profiles and straight edge runs on a single machine |
| Transition from manual edge trimming | MDF, plywood, and particleboard requiring repeatable automated finishes |
Why Voltage Confirmation Must Happen Before You Click "Order"
A stocked automatic curved and straight edge banding machine in stock is only useful if it matches your workshop’s power supply.
I once shipped a 380V edge bander to a North American cabinet shop running 480V/60Hz. The variable frequency drive burned out on the first day, and their entire production line sat idle for three weeks waiting for a step-down transformer. That single oversight cost more in lost production than the machine itself. [NEED_CITE: voltage and frequency standards by export market]. Every workshop has its own electrical infrastructure, and assuming the default configuration will work is the fastest way to stall a commissioning schedule.
Dual-Mode Flexibility Without a Second Machine Purchase
Workshops handling both shaped cabinet doors and flat shelving panels typically face a choice between dedicated curved and straight edge banders. The ZDSF190 eliminates that split by handling both profiles in one unit — rotate the working position to switch between curved and straight edge banding modes. For small furniture shops running varied orders, this means one machine covers the full edge finishing scope without requiring a second capital outlay or additional floor space.
Stock Availability and Single-Unit Ordering
When a customer needs an edge bander, they usually need it now — not in eight weeks. The ZDSF190 automatic curved and straight edge banding machine in stock ships from ready inventory, and there is no minimum order quantity requirement. A joinery startup buying their first machine gets the same dispatch priority as a distributor stocking a container. Shipping options are quoted upfront so buyers can compare transit times and logistics costs before confirming an order. [NEED_CITE: typical lead times for in-stock woodworking machinery exports]
Reading the Specs That Actually Matter for Edge Quality
The 10–50 mm sheet thickness range paired with the 0–14 m/min variable feed speed means operators can dial in the right pace for different panel densities — slower for thick solid wood panels where the trimming knives need more engagement time, faster for standard 18 mm particleboard shelving. The 4-blade alloy arc knife on a square slide rail delivers a consistent trimming pass on both curved and straight profiles, which directly affects whether panels fit cleanly into dowel or confirmat assemblies downstream. The 800 W × 2 trimming motors provide adequate torque for PVC and veneer strip removal without bogging down at higher feed rates. Meanwhile, the adjustable aluminum alloy pressure beam with double-row rubber feed wheels keeps panels stable through the glue pot and trimming stations, preventing the lateral drift that causes visible glue lines on lighter substrates.
The Hidden Cost of Skipping Pre-Shipment Verification
Machines dispatched without a factory test on the buyer’s actual panel material and edge strip thickness tend to reveal problems only after installation — uneven glue application, trimming chatter on curved profiles, or feed wheel marks on veneer surfaces. Resolving these issues remotely adds days of back-and-forth troubleshooting, and flying out a technician for commissioning correction is an expense neither party planned for. [NEED_CITE: common commissioning failures in exported woodworking machinery]. A pre-shipment test record and video specific to the buyer’s material eliminates most of these surprises before the crate leaves the factory.
Why Buyers Source This Machine Here
Every ZDSF190 ships with confirmed voltage and frequency documentation, so the electrical specification matches the buyer’s local supply rather than a generic default. The four-stage quality control process includes pre-shipment verification with a factory test record, giving buyers documented evidence of machine performance before dispatch. Configuration recommendations come from engineers rather than sales scripts, with formal quotations provided within 24 hours. The product family ranges from entry-level to full-function models, so a workshop can scale production capacity over time without switching suppliers. CE documentation supports customs clearance in regulated import markets. [NEED_CITE: CE machinery directive requirements for industrial equipment]
Documentation & Verification
- CE declaration of conformity for the ZDSF190 edge banding machine
- Machine specification sheet confirming 220V/50Hz and 4 kW rated power
- Electrical schematic with voltage confirmation matching buyer’s supply
- Factory test record on buyer’s specified panel thickness and strip material
- Operation and maintenance manual in the agreed language
- Spare parts list with part numbers for trimming knives and feed wheels
Installation, Commissioning & Support
- Requires a dedicated 220V/50Hz circuit rated for the 4 kW total power draw
- Allocate floor space for the 1900 × 560 mm footprint plus operator access on feed and exit sides
- Connect compressed air supply at 0.4–0.6 MPa for pneumatically controlled edge strip cutting
- Set up dual 1200 W dust collection connections before first trimming run
- Verify adjustable aluminum alloy pressure beam alignment on your thickest panel stock
- Calibrate feed speed from 0–14 m/min based on your specific edge strip material
What to Prepare Before Requesting a Quote
To match the right configuration, share your primary panel materials and their typical thickness range, the edge strip types you run most often, and your workshop’s exact voltage and frequency. If you are replacing an existing machine, let us know the current feed speed and output volume so we can confirm whether the ZDSF190 fits your throughput requirement. We can arrange a sample processing test on your material before shipment if needed.
Frequently Asked Questions
Q: Is the ZDSF190 currently in stock and what is the dispatch lead time?
A: Yes, the ZDSF190 is available from ready stock. Dispatch lead times are typically measured in days rather than weeks once payment is confirmed and voltage specifications are verified. We provide shipping options and transit estimates upfront so you can plan your workshop schedule accordingly.
Q: Can I order a single unit, or is there a minimum order quantity?
A: There is no minimum order quantity. Whether you need one machine for a small joinery workshop or multiple units for a distribution inventory, each order receives the same pre-shipment testing and documentation. Single-unit orders are dispatched through the same stock fulfillment process.
Q: Does the ZDSF190 support my local voltage and frequency?
A: The standard stock configuration is 220V/50Hz. If your workshop operates on a different voltage or frequency, confirm this before placing your order so we can verify availability of the correct configuration or arrange a custom build. Shipping a machine with the wrong voltage is a costly mistake we help every buyer avoid.
Q: What shipping options are available and can door-to-door delivery be arranged?
A: We quote shipping options upfront, including port-to-port and door-to-door arrangements depending on your location. Packing dimensions and weight are confirmed before dispatch so you can verify receiving facility capacity and arrange any necessary handling equipment on your end.
Q: What is covered under the warranty and how are spare parts supplied after delivery?
A: Warranty terms and spare parts availability are documented at the time of purchase. The spare parts list included with your shipment identifies consumable components such as trimming knives and feed wheels, and replacement parts can be ordered directly for ongoing maintenance throughout the machine’s service life.
