Description
Stocked and Ready — The FX-20 Multifunctional Edge Banding Machine ships from our warehouse with your local voltage and plug confirmed before the crate is closed, eliminating the arrival-day surprises that stall small workshops.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FX-20 |
| Product Type | Multifunctional Edge Banding Machine |
| Total Power | 2500W |
| Voltage & Frequency | 220V / 380V / customization (frequency to be confirmed: 50Hz/60Hz) |
| Standard Features | Curved and straight edge banding, trimming, polishing, manual push plate |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 10 cm |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Edge Power | 20W |
| Trimming Power | 650W × 2 |
| Polishing Power | 180W × 2 |
| Air Source Pressure | 0.5–0.8 MPa |
| Glue Pot Capacity | 1000 ml |
| Product Size | 100 × 46 × 41 cm |
| Net Weight | 44 kg |
| Language Options | Chinese and English standard; Spanish or other languages customizable |
| Plug Options | EU, USA, AU, UK |
| Feed Speed | (basis not stated in source) |
| Control System | (basis not stated in source) |
| Certifications | (basis not stated in source — confirm CE / ISO availability for this model) |
Application Suitability
| Application | Material or Output |
|---|---|
| Home decoration cabinet production | MDF and particleboard panels with PVC or veneer edge banding |
| Small joinery workshop upgrades | Solid wood boards and ecological boards requiring curved and straight banding |
| Custom furniture fabrication | Plywood panels for low-to-medium volume batch runs |
| Backup banding for secondary operations | Narrow stock and small off-cuts from primary cutting stations |
Why Voltage Confirmation Must Happen Before Dispatch
A machine wired for 380V arriving at a 415V site sits idle until a transformer shows up.
I have watched containers clear customs only for the buyer to report that the local three-phase supply does not match the motor nameplate. The FX-20 Multifunctional Edge Banding Machine in stock is available across 220V single-phase and 380V three-phase configurations, with custom voltage on request. Frequency matters just as much; a 60Hz motor running on a 50Hz grid loses torque and overheats within hours. Confirming these details at the order stage, not the delivery stage, prevents weeks of downtime [NEED_CITE: voltage and frequency standards by export market].
Single-Unit Orders Without the Wait
Workshops that need one edge bander today should not have to wait for a container-load commitment. The FX-20 Multifunctional Edge Banding Machine is held in stock so that a single-piece order moves from confirmation to crate in a short lead time. This matters for joinery shops filling a seasonal rush or cabinet makers adding a curved-edge capability that their existing line cannot handle.
Dispatch Logistics That Account for the Last Mile
A 44 kg machine with a 100 × 46 × 41 cm footprint is small enough to ship by LTL freight or air cargo, but weight distribution inside the crate still needs to be right. We photograph the packed unit before the lid goes on so you see exactly how it is secured. Plug type — EU, USA, AU, or UK — is matched to your destination market at the point of order, not guessed at the loading dock [NEED_CITE: plug type standards by region].
How Trimming Power and Glue Pot Capacity Shape Daily Output

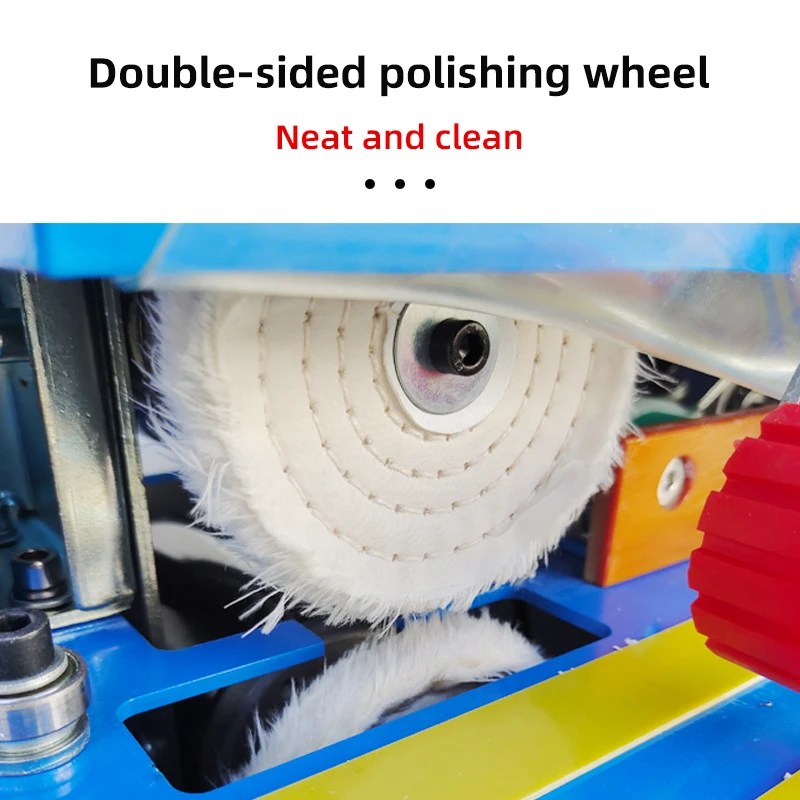

The dual 650W trimming motors handle PVC and veneer banding up to 3 mm thick, producing a clean flush cut on both straight and curved edges without requiring a secondary pass. The 1000 ml glue pot capacity supports continuous runs through a standard batch of panels before a refill is needed, which keeps a small workshop moving through a morning’s work without interruption. Polishing stations at 180W × 2 remove residual adhesive and leave a finished edge ready for assembly. Edge banding height from 0 to 50 mm covers the full range of standard board thicknesses used in cabinetry and shelving. The minimum sheet dimensions of 25 cm length and 10 cm width mean small off-cuts from panel saws can still be banded rather than discarded.
The Cost of Skipping Configuration Checks
When a machine arrives with the wrong plug or an unreadable control panel, the installer stands in the workshop with nowhere to go. Operators cannot read commissioning instructions in a foreign language, so settings are guessed at and edge quality suffers before the first week ends. A bander rated for a voltage range it never receives will run hot and wear prematurely, showing up as inconsistent glue adhesion that only gets noticed when assembled panels start delaminating at the customer’s site [NEED_CITE: CE machinery directive requirements for industrial equipment].
Procurement Without the Usual Friction
Stock availability means the FX-20 does not wait for a production slot to open before your order enters the queue. Voltage and plug confirmation is a mandatory checkpoint on every dispatch, drawn from the same procedure that prevented a 415V site mismatch on a Middle East shipment years ago. Operation manuals ship in the language you specify — English as standard, with Spanish and other options on request. Wooden case packing with pre-dispatch photographs gives you a visual record before the machine leaves the floor. Single-unit orders carry no minimum quantity requirement, so a first-time buyer can test one machine before committing to a full line.
Documentation & Verification
- Factory test record run on your specified panel thickness range before the FX-20 leaves the warehouse
- Electrical schematic confirming your ordered voltage and frequency configuration
- Operation and maintenance manual printed in your agreed language
- Packing photographs showing crate interior and securing method before lid closure
- Customs documentation support matching your destination country import requirements
Installation, Commissioning & Support
- 2500W total draw requires a dedicated circuit matched to your confirmed 220V or 380V supply
- Compact 100 × 46 × 41 cm footprint fits against a workshop wall without blocking aisle traffic
- Manual push plate operation means no PLC configuration is needed on first power-up
- 0.5–0.8 MPa air source connects to a standard small compressor already in most joinery shops
- Glue pot refill procedure and trimming blade replacement covered in the supplied language-specific manual
- Spare wear parts list included so you can reorder consumables by part number directly
What to Share When You Request a Quote
Tell us your local voltage and frequency so the FX-20 leaves the warehouse wired correctly. Confirm the edge banding materials you run most often — PVC thickness, veneer type, board substrate — so we can verify the 0.3–3 mm range covers your work. Let us know if you need the control interface and manual in a language beyond Chinese or English.
Frequently Asked Questions
Q: Is the FX-20 in stock, and what is the dispatch lead time for a single unit?
A: The FX-20 Multifunctional Edge Banding Machine is held as ready stock, and single-unit orders are accepted without minimum quantity barriers. Once your voltage, plug type, and language preferences are confirmed, the machine is packed and dispatched within a short lead time. Dispatch timing depends on the configuration steps required before crating.
Q: How do I confirm voltage, frequency, and plug type before ordering?
A: At the order stage, we ask for your local supply voltage, frequency, and the plug standard used in your workshop. The FX-20 supports 220V and 380V with custom options, and plug choices include EU, USA, AU, and UK types. This confirmation is a mandatory checkpoint before the machine is packed.
Q: Can I get the operation panel and manual in English or another language?
A: Chinese and English are standard language options for both the control interface and the operation manual. Spanish and other languages are available on request. Confirming the language at order ensures the manual and any panel labels match your operator’s needs when the machine arrives.
Q: What spare parts ship with the machine, and how do I reorder consumables?
A: A spare parts list ships with every FX-20, identifying wear items and consumables by part number. Trimming blades, polishing wheels, and glue pot components are the typical reorder items. You can request replacements directly using the part numbers in the documentation provided.
Q: Do you provide installation guidance or video support once the machine arrives?
A: The FX-20 ships fully documented with a language-specific operation and maintenance manual covering first power-up, glue pot loading, and trimming adjustment. The compact 44 kg unit can be positioned by two people without heavy lifting equipment. Additional guidance is available if questions arise during commissioning.
