Description
Voltage-Confirmed Stock Dispatch — every portable edge banding machine leaves our Ningjin facility only after its electrical schematic is cross-checked against your local grid standard, eliminating the three-week transformer wait that stalls entire production lines.
Technical Specifications
| Parameter | Value |
|---|---|

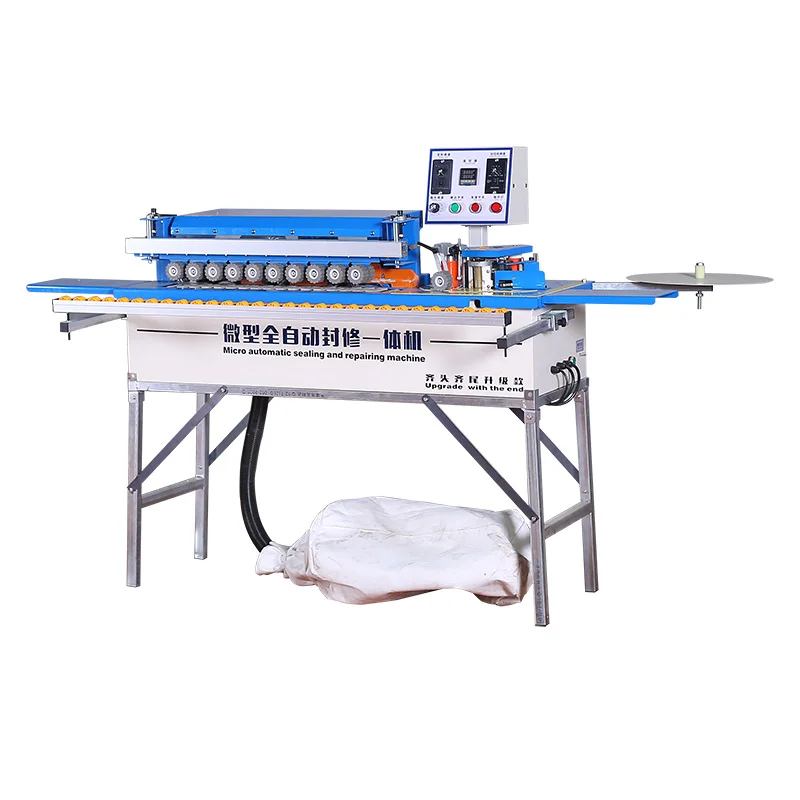

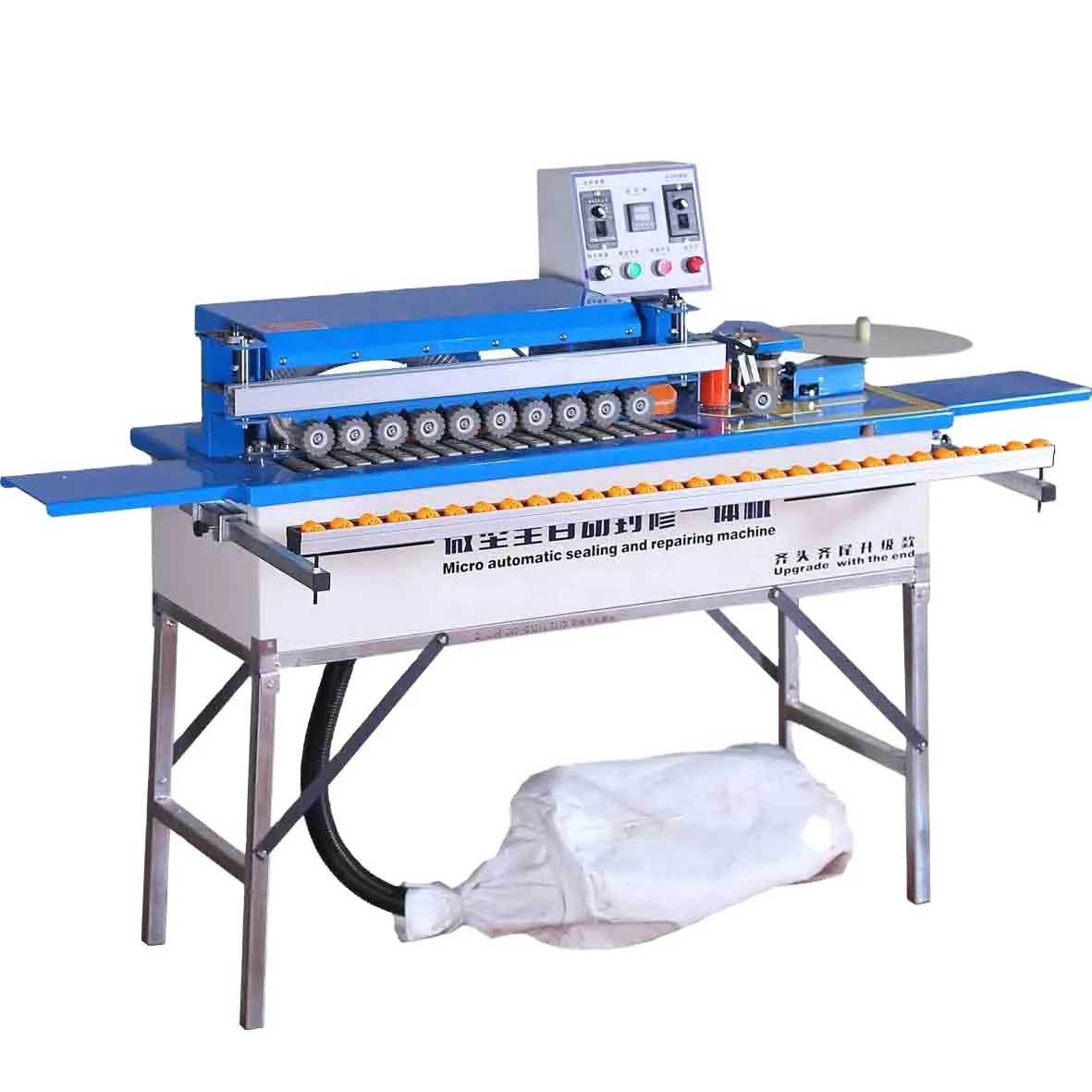

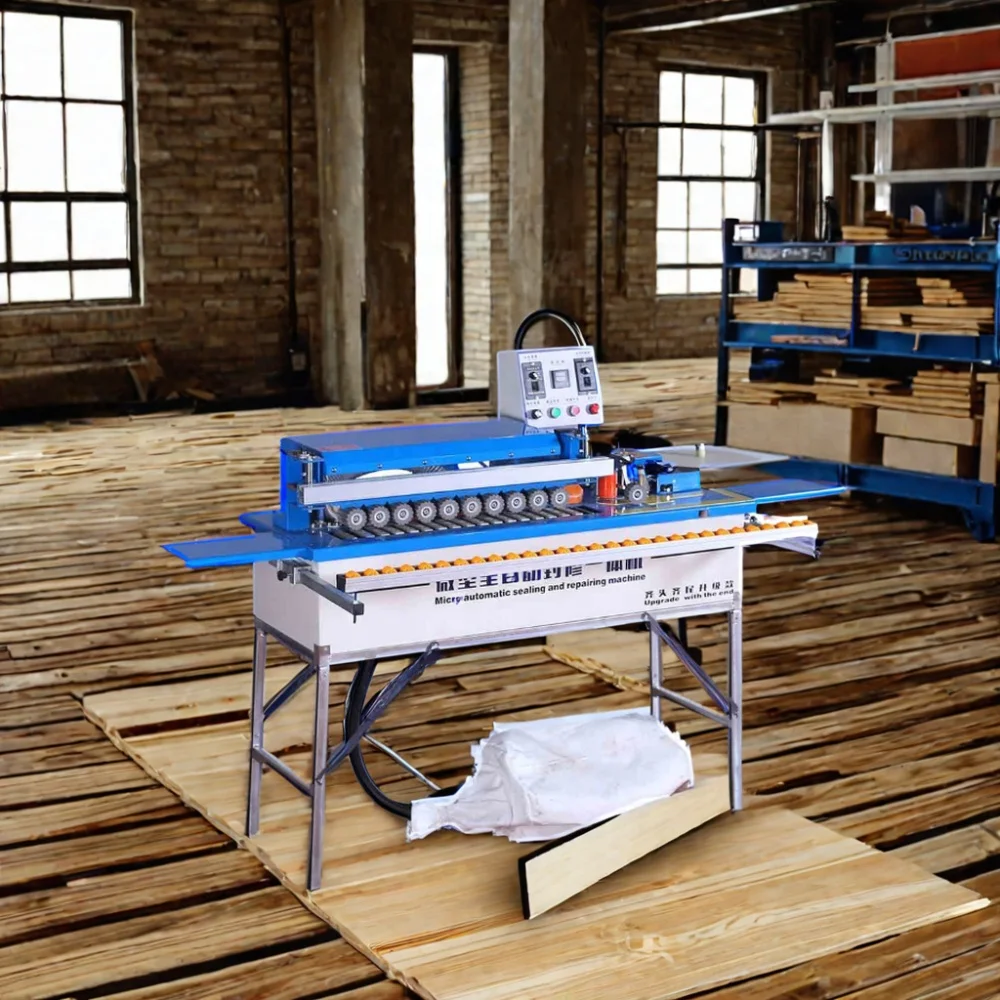

| Product Type | Portable Edge Banding Machine |
| Voltage | 220V |
| Suction Power | 1200W |
| Belt Power | 25W |
| Transmission Power | 60W |
| Polishing Power | 180W × 2 |
| Trimming Power | 800W × 2 |
| Conveying Speed | 0–15 m/min |
| Edging Speed | 0–6 m/min |
| Edge Height Range | 10–60 mm |
| Edge Thickness Range | 0.3–3 mm |
| Gluing Method | Double-sided adhesive |
| Gluing Device Rotation | 180° for curved edge banding |
| Trimming Stations | Up and down trimming |
| Polishing Stations | Up and down cross polishing |
| Dust Extraction | Integrated suction device (1200W) |
| Feed Mechanism | Double-row rubber pressure wheels |
| Control Panel | Individual function controls |
| Overall Dimensions (L×W×H) | 120×54×72 cm |
| Assembly State | KD packing, requires on-site assembly |
Application Suitability
| Application | Material or Output |
|---|---|
| Small workshop straight edge banding | MDF, particleboard, plywood panels with PVC or veneer tape |
| Curved panel edge finishing | Shaped furniture components, radius cabinet doors, rounded shelf edges |
| On-site furniture repair and touch-up | Damaged edge banding replacement on installed cabinetry and shelving |
| Custom cabinet small-batch production | Limited-volume runs where a full automatic line is not justified |
Why the Voltage Question Must Come Before You Hit "Order"
A stocked portable edge banding machine in stock fast delivery is only fast if it actually runs when it arrives.
I learned this the hard way after shipping a PVC edge bander to a Southeast Asian client without double-checking their local grid. The machine was wired for 380V, but their workshop ran on 415V. The unit sat idle for three weeks while they sourced and installed a step-down transformer, and every other station on their line waited on that single machine. Since that job, I verify electrical drawings against the destination country’s voltage and frequency standard before any unit leaves the floor [NEED_CITE: voltage and frequency standards by export market]. When you are ordering a portable edge banding machine in stock fast delivery, confirming the 220V configuration matches your supply is the single step that separates a quick start from a costly stall.
Dispatch Timing That Matches Small-Workshop Urgency
Small workshops and on-site installers rarely have the luxury of a multi-week production lead. This portable edge banding machine ships from ready stock, meaning the unit you see in the specification sheet is the unit that gets crated. The advantage is straightforward: once your voltage and language requirements are confirmed, the machine can be dispatched within days rather than entering a build queue. For a joinery shop replacing a failed edge bander or a cabinet maker adding curved-edge capability for the first time, that difference in waiting time directly affects project deadlines.
Curved and Straight Capability in a Single Footprint

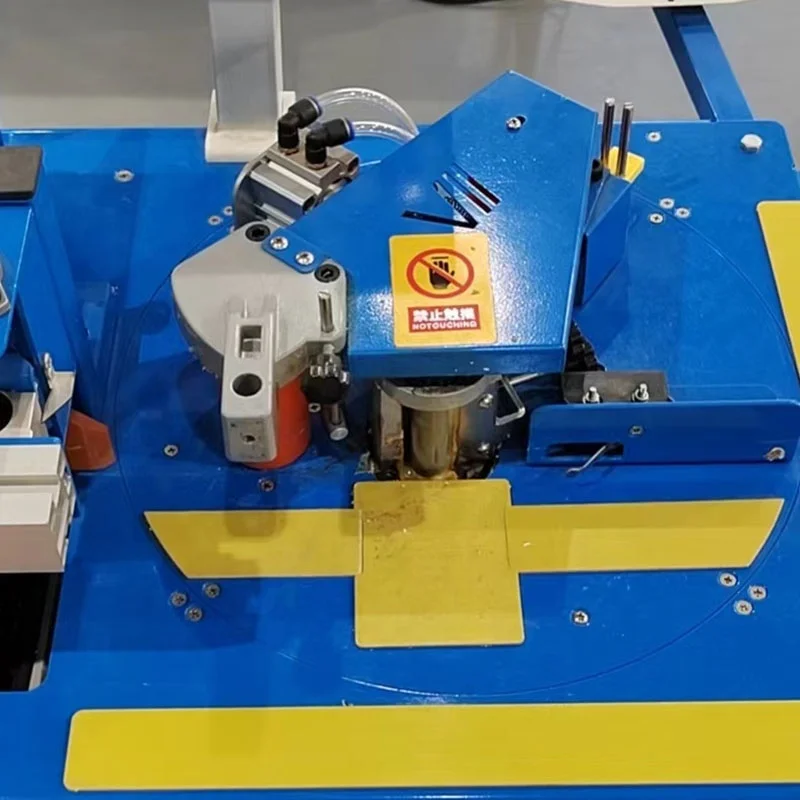

Most compact edge banders force you to choose between straight panels and curved work. The 180° rotatable gluing device on this unit lets you switch between flat stock and radius components without moving the panel to a second station. For a small custom furniture maker handling both cabinet carcases and shaped door fronts, this means one machine covers the full edge-finishing scope of a typical order. The double-sided adhesive system bonds PVC and veneer tape in the 0.3–3 mm thickness range, which accounts for the majority of banding materials used in workshop-scale production [NEED_CITE: common PVC and veneer edge banding thickness specifications].
What the Speed and Power Figures Mean at the Bench
The conveying speed range of 0–15 m/min and edging speed of 0–6 m/min position this machine for batch work rather than continuous line throughput — exactly the rhythm of a small shop processing tens of panels per day. The 800W × 2 trimming motors handle the excess tape removal on both top and bottom edges in a single pass, while the 180W × 2 cross-polishing stations smooth the trimmed edge to a finish ready for assembly or packaging. The integrated 1200W dust extraction keeps trimming debris off the panel surface and out of the workshop air, which matters when you are working in a confined space without a centralized dust collection system. Edge height coverage from 10 to 60 mm accommodates everything from thin shelving to thick worktop panels, so you are not constantly adjusting fixtures between jobs.
The Hidden Cost of Skipping the Pre-Shipment Checklist
Ordering a compact edge bander without verifying language settings on the control panel is a surprisingly common oversight. The machine arrives, the operator powers it up, and every label and menu prompt is in a language they cannot read. Commissioning stalls while someone tries to translate function controls, and the first test run produces wasted tape and chipped edges. Similarly, skipping the pre-shipment test record means you have no evidence that the unit trimmed and polished correctly on your specified panel thickness before it was crated. These are not catastrophic failures — they are delays, and in a small workshop with a tight delivery schedule, delays compound quickly [NEED_CITE: common commissioning delays in imported woodworking machinery].
Why Sourcing This Unit Through Our Ready-Stock Channel Makes Sense
Every stocked unit undergoes the same four-stage quality check — incoming material inspection, in-process assembly verification, finished-product functional test, and pre-shipment run — before it is cleared for dispatch. Voltage confirmation is handled at the quotation stage so the 220V configuration is validated against your local supply before crating. The KD packing format means the machine ships in a compact footprint, reducing freight volume, and the assembly process is documented step by step in the operation manual. Our engineer-led configuration approach means you receive a written recommendation matched to your panel types and daily volume, not a generic catalog link. Factory test records on your specified edge thickness and material are included in the shipping documentation.
Documentation & Verification
- CE declaration of conformity covering the portable edge banding machine electrical and mechanical safety requirements
- Factory test record documenting trimming and polishing results on your specified panel thickness and edge material
- Electrical schematic with confirmed 220V wiring diagram matching your local supply standard
- Operation and maintenance manual provided in your agreed language before dispatch
- Pre-shipment packing photographs showing the specific unit crated for your order
Installation, Commissioning & Support
- KD-packed unit requires on-site assembly; allow adequate floor space around the 120×54×72 cm footprint for operator access
- Confirm a dedicated 220V circuit with sufficient amperage for the combined 1200W suction, 800W×2 trimming, and 180W×2 polishing loads
- Assembly state means the gluing device, feed wheels, and trimming stations must be aligned and calibrated after arrival
- First-run parameter setting should cover feed speed, adhesive temperature, and trimming depth for your specific PVC or veneer tape thickness
- Individual function controls allow each station to be tested independently before running a full panel pass
- Spare parts list included in documentation; replacement trimming cutters and polishing pads available for reorder
Before You Place the Order — What We Need From You
To match the right stocked unit to your workshop, share your primary panel materials and thickness range, the edge banding type and thickness you run most often, and your local voltage and frequency standard. If your operators require the control panel and manual in a specific language, note that at inquiry stage so the documentation is prepared before dispatch. Let us know whether you need door-to-door shipping or port delivery, and we will quote freight options alongside the machine.
Frequently Asked Questions
Q: Is this portable edge banding machine currently in stock and what is the dispatch lead time?
A: Yes, this model is held in ready stock at our Ningjin facility. Once your voltage requirement and language preference are confirmed, the unit can typically be crated and handed to the freight forwarder within a matter of days rather than weeks. Exact dispatch timing depends on current stock levels at the point of order, and we confirm availability at the quotation stage.
Q: Can I order a single unit or is there a minimum order quantity?
A: Single-unit orders are standard for this stocked model. There is no minimum order quantity requirement, which suits small workshops and on-site installers who need one machine to fill a specific capability gap. If you are planning to equip multiple workstations or ordering for a distribution territory, we can discuss volume configuration at the inquiry stage.
Q: What shipping options are available and can door-to-door delivery be arranged?
A: We support both port-to-port and door-to-door shipping arrangements depending on your destination and preference. The KD packing format keeps the crate dimensions compact, which helps control freight costs. Shipping options and estimated transit times are quoted alongside the machine so you have the full landed picture before confirming the order.
Q: Does the machine arrive fully assembled or is assembly required?
A: The machine ships in KD packing, which means on-site assembly is required after delivery. The operation manual includes step-by-step assembly instructions, and the process covers mounting the gluing device, aligning the feed wheels, and connecting the integrated dust extraction. Our technical team provides guidance during this stage if needed.
Q: What spare parts are included and how can replacements be ordered?
A: The machine ships with a spare parts list detailing consumable and wear items such as trimming cutters, polishing pads, and feed wheel components. Initial spare parts are included in the shipment based on the packing list. Replacement parts can be reordered directly through our sales channel, and we match parts to your specific unit using the serial number recorded at dispatch.
