Description
Verified Voltage Before Dispatch — Every ZDS-3600 Bevel-Straight Edge Banding Machine ships only after its electrical configuration is matched to your facility’s supply and recorded in the packing file.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDS-3600 |
| Product Type | Bevel-Straight Edge Banding Machine |
| Edge Speed | 0–12 m/min |
| Panel Thickness Range | 18–45 mm |
| Bevel Angle | 30°–90° |
| Rated Power | 8.9 kW |
| Voltage | 380 V (configurable from 110 V to 440 V) |
| Working Pressure | 0.5–0.7 MPa |
| Glue Pot Capacity | 4000 ml |
| Glue Pot Heating | 2 kW |
| Oven Lamp Heating | 2 kW × 2 |
| Edge Motor | 0.12 kW |
| Slotting Motor | 65 W |
| Trimming Motor | 2.2 kW × 2 |
| Milling Motor | 2.2 kW |
| Polishing Motor | 0.37 kW × 2 |
| Overall Dimensions (L×W×H) | 3320 × 650 × 1180 mm |
| Net Weight | 450 kg |

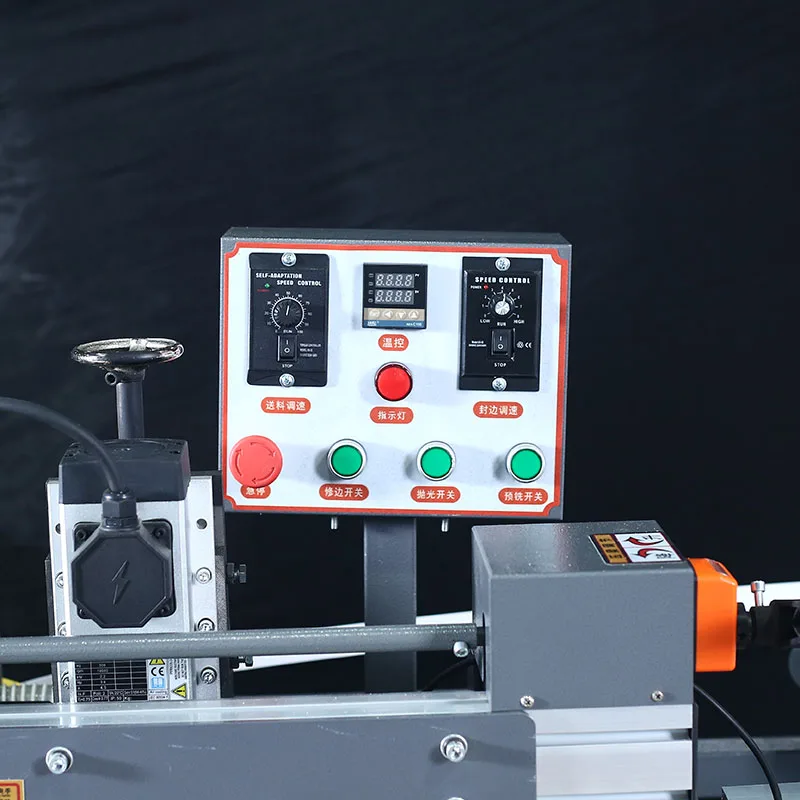

| Control System | PLC control with panel operation |

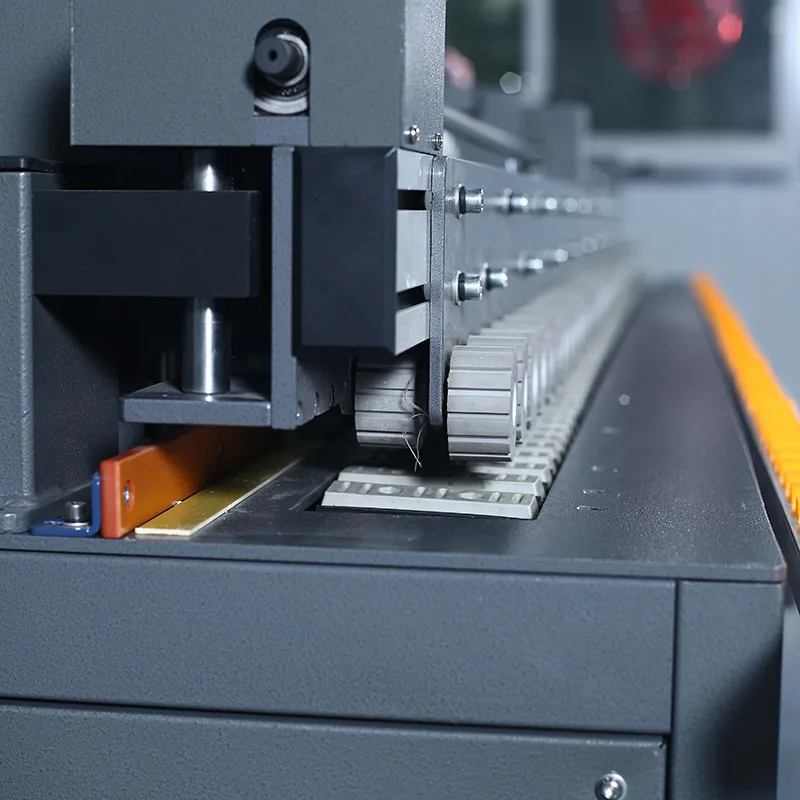

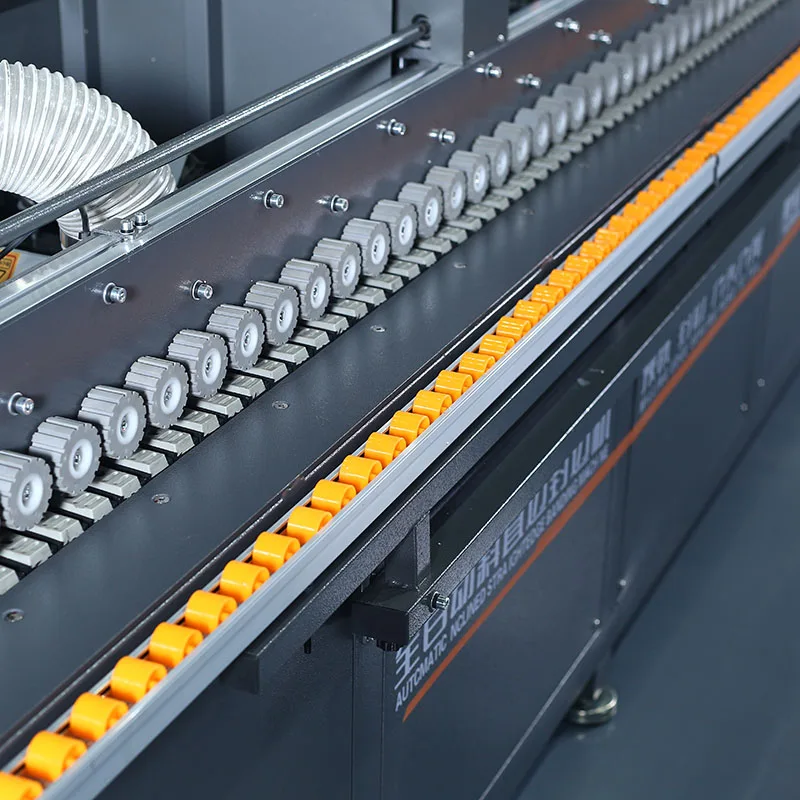

| Pressure Beam | One-piece aluminum alloy lift with digital display height adjustment |
| Glue Application | Chrome-plated pressure roller, adjustable for different angles |
| Trimming | Two high-speed motors with 4-edged alloy cutter heads |
| Glue Removal | Spray glue removal device |
| Polishing | Dual motors for up and down polishing |
| Function Stations | Pre-milling, preheating, pressing-gluing, head/tail cutting, fine trimming, edge scraping, clear glue, polishing |

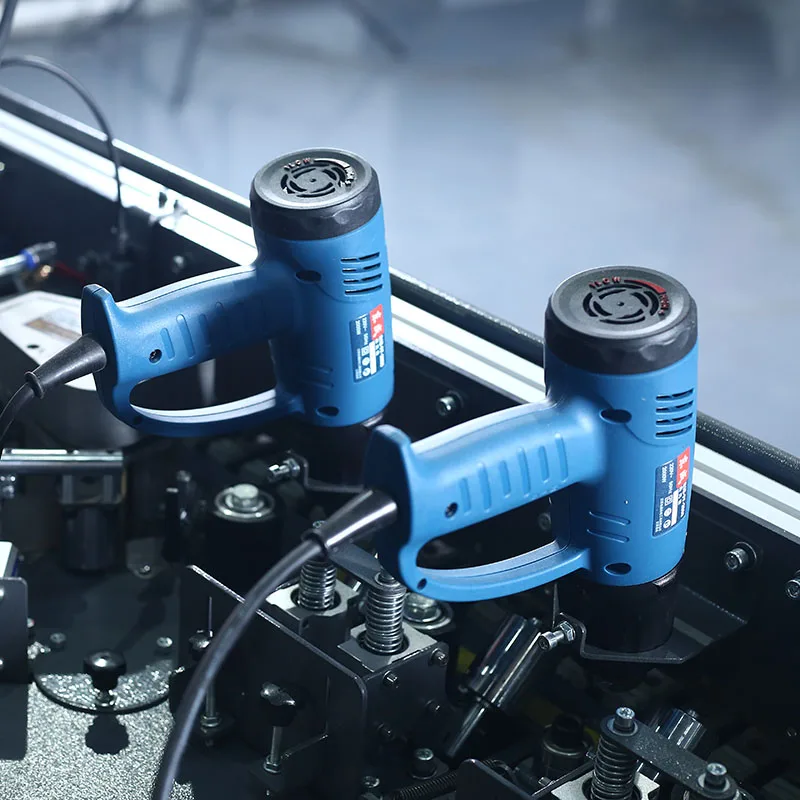

| Hot Air Assisted | Secondary heating |
| Assembly State | Requires on-site assembly (manual and video provided) |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door production | MDF and particleboard with PVC or melamine edge banding at straight and beveled profiles |
| Small-batch furniture panel finishing | Plywood and blockboard with veneer or PVC edging up to 45 mm panel thickness |
| Joinery workshop upgrading from manual banding | Solid wood panels requiring bevel angles between 30° and 90° in a single pass |
| Contract millwork for commercial interiors | Laminated boards needing clean arc-edge trimming and polished finish |
Why the Voltage Question Must Come Before the Price
Confirming your site voltage and frequency in writing before the crate is sealed prevents the most common commissioning failure we see with export edge banders.
An Edge Banding Machine in stock fast delivery is only useful if the motor actually starts when you plug it in. I once watched a full production line sit idle in a Southeast Asian factory because the three-phase supply at the site was one step off from what the machine left the floor with. The transformer had to be shipped separately, costing the buyer weeks of downtime. Since then, I photograph the voltage nameplate and the measured reading together before any unit is crated [NEED_CITE: voltage and frequency standards by export market]. Every ZDS-3600 leaving stock has its electrical tag verified against your declared supply before dispatch.
Stock Availability and Dispatch Timing
Keeping the ZDS-3600 on the floor means a buyer can lock in a machine and have it moving toward the port within days, not months. The Edge Banding Machine in stock fast delivery model suits workshops that have a production deadline closing in and cannot absorb a long build cycle. Units are held in a state where the pre-shipment electrical check and function test can be run immediately once your voltage and language requirements are confirmed.
Ordering Simplicity for Single-Unit Buyers
Many small joinery shops buy one machine at a time rather than a full line. This site is built around that reality — you select the stocked ZDS-3600, confirm your voltage and control-panel language, and receive a shipping quote without needing to negotiate a production run. The Edge Banding Machine in stock fast delivery approach removes the back-and-forth that typically stretches a single-machine order into a multi-week email thread [NEED_CITE: CE machinery directive requirements for industrial equipment].
How the Station Layout Affects Your Edge Quality
The ZDS-3600 runs a nine-station sequence: pre-milling, preheating, pressing-gluing, head-and-tail cutting, fine trimming, edge scraping, glue clearing, and dual-motor polishing. Pre-milling removes saw marks from the panel edge before the glue meets the surface, which is critical when working with particleboard that tends to chip at the cut line. The hot-air secondary heating keeps the adhesive at working temperature across the full 30°–90° bevel range, improving bond consistency on angled profiles where a cold glue line would otherwise fail the pull test. Dual high-speed trimming motors with four-edged alloy cutter heads produce a clean arc finish that reduces the scraping workload downstream. At a rated edge speed of 0–12 m/min, feed rate must be matched to the banding material — slower for thick PVC on beveled edges, faster for thin melamine on straight runs — to avoid chatter marks on the trimmed surface.
What Happens When the Configuration Is Wrong
Ordering a machine without matching it to your actual panel thickness range and daily volume leads to problems that surface only after installation. A pressure beam set for thicker stock will crush thin MDF, leaving visible compression marks along the edge. Running an entry-level glue pot at production volumes means frequent refill stops that break the thermal stability of the adhesive [NEED_CITE: thermal stability requirements for hot-melt adhesives in edge banding]. And a control panel delivered in a language the operator cannot read delays commissioning until someone can translate the PLC menus, which is a problem that should have been caught at the quotation stage.
Why Buyers Choose This Source for Stocked Edge Banders
The ZDS-3600 is backed by a four-stage quality check that runs from incoming material inspection through to a pre-shipment function test, and the results are documented in your file. Voltage and frequency are confirmed in writing and photographed on the nameplate before the machine is crated, eliminating the transformer-surprise scenario. The patented cutting mechanism in the trimming stations holds tolerance tight enough that your panels go straight to assembly without rework. Customization of control-panel language, voltage, and logo is treated as standard, not as a special request that adds lead time. An engineer-led configuration recommendation is provided within one working day of your inquiry, so you know the machine matches your workshop before you commit.
Documentation & Verification
- CE declaration of conformity covering the ZDS-3600 bevel-straight edge banding configuration
- Factory test record on your specified panel thickness and bevel angle before dispatch
- Voltage and frequency confirmation sheet with nameplate photograph included in packing file
- Operation and maintenance manual supplied in your agreed language
- Spare parts list and packing photographs for customs and receiving inspection
Installation, Commissioning & Support
- Requires on-site assembly; manual and video guide provided for the 3320 × 650 mm footprint
- Dedicated 380 V circuit with minimum 8.9 kW capacity needed; confirm local frequency before energizing
- Working pressure supply of 0.5–0.7 MPa must be stable; install a regulator upstream of the machine
- Digital pressure-beam display simplifies first-run height calibration across your panel thickness range
- 4000 ml glue pot should be loaded with adhesive matched to your banding material and ambient temperature
- Spare cutter heads and polishing pads included; replacement sourcing path confirmed at order stage
Preparing Your Inquiry
To get an accurate configuration and shipping quote for the ZDS-3600, share your panel material types and thickness range, the edge banding materials you run most often, and your local three-phase voltage and frequency. Let us know if you need the PLC control panel in a specific language, and whether your workshop has existing dust extraction and compressed-air infrastructure that the machine will connect to.
Frequently Asked Questions
Q: What voltage options are available and how is compatibility confirmed before shipping?
A: The ZDS-3600 is configurable from 110 V to 440 V. Before dispatch, we confirm your site voltage and frequency in writing, then photograph the machine nameplate showing the matched setting alongside a measured reading. This record is included in your shipping documents so there is no guesswork at commissioning.
Q: How quickly can the ZDS-3600 be dispatched from stock after order confirmation?
A: Because units are held in ready-to-configure stock, dispatch follows shortly after the voltage verification, language confirmation, and pre-shipment test are completed. The exact timeline depends on the configuration checks required for your market and the shipping schedule to your destination port.
Q: What assembly is required on arrival and what support is provided for commissioning?
A: The machine ships partially disassembled to fit standard freight dimensions. An operation manual and step-by-step video guide cover reassembly of the 3320 × 650 × 1180 mm frame. Remote guidance is available during first startup to verify pressure-beam calibration and feed-speed settings.
Q: Which edge banding materials does this machine handle at bevel angles?
A: The ZDS-3600 processes PVC, melamine, and veneer edge banding across its 30°–90° bevel range. The chrome-plated pressure roller adjusts to maintain contact on angled profiles, and the hot-air secondary heating supports consistent glue adhesion on beveled surfaces where bond area is reduced.
Q: What spare parts are included and how are replacements sourced after delivery?
A: Each shipment includes a starter set of spare alloy cutter heads, polishing pads, and wear items matched to the ZDS-3600 configuration. A detailed spare parts list is provided with part numbers, and replacement orders can be placed directly with the factory for ongoing supply.
