Description
Quick Dispatch Assurance — voltage and control language verified in writing before this bevel-straight edge bander leaves the factory floor.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF-2000H |
| Product Type | Automatic Slanted Straight Edge Banding Machine |
| Overall Dimensions | 2100×600×1100 mm |
| Net Weight | 149 kg |
| Panel Thickness Range | 18-25 mm |
| Edge Strip Thickness | Up to 1.2 mm |
| Rated Voltage | 220V (frequency to be confirmed) |
| Rated Power | 6.17 kW |
| Rated Air Pressure | 0.4-0.6 MPa |
| Feed Speed | 0-14 m/min |

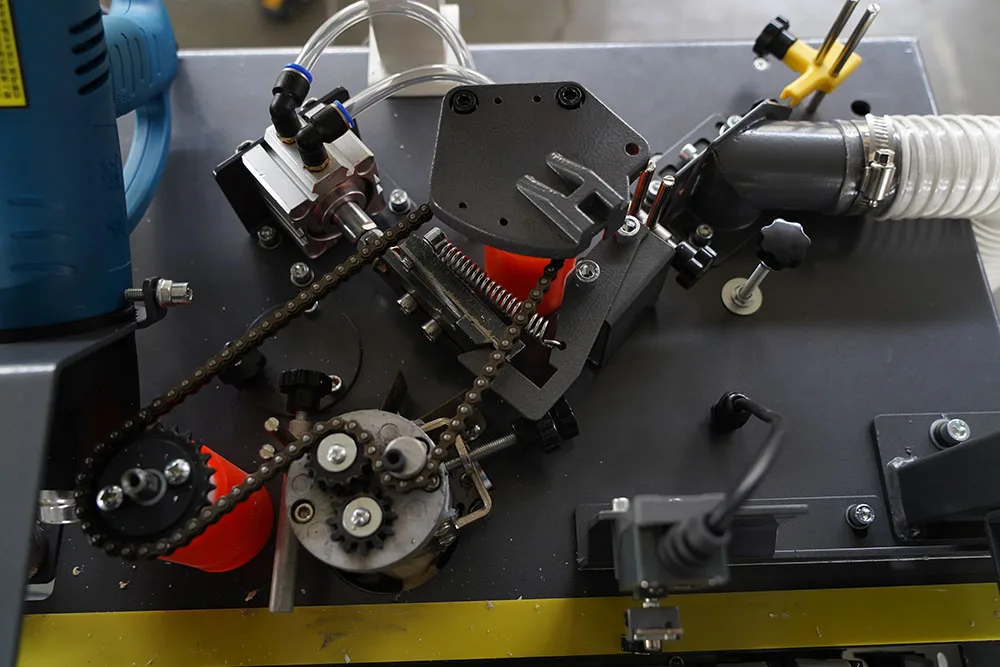

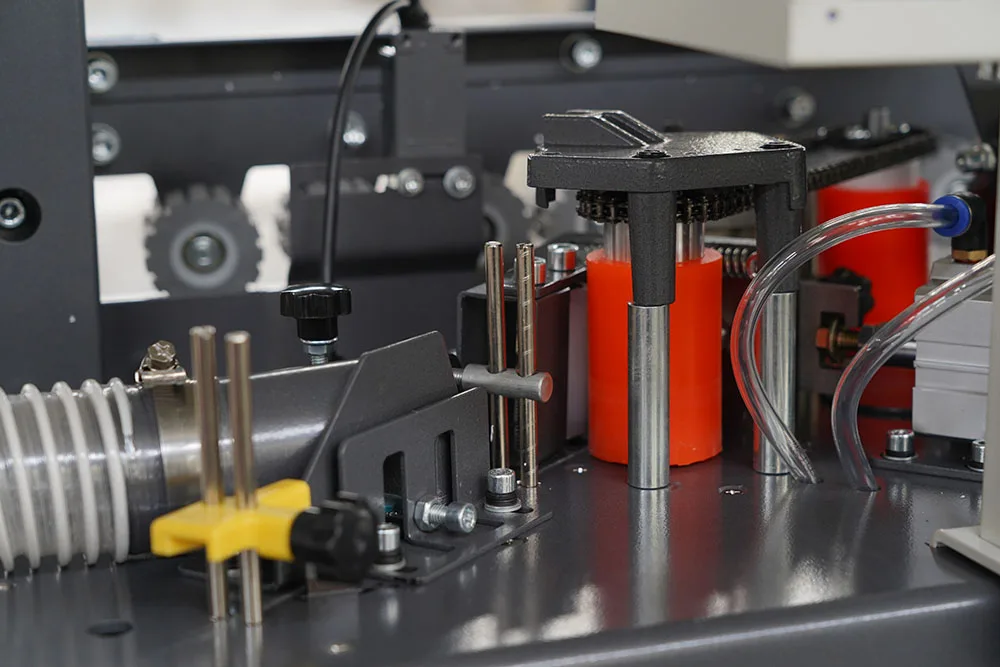

| Pressing Rollers | 8 |

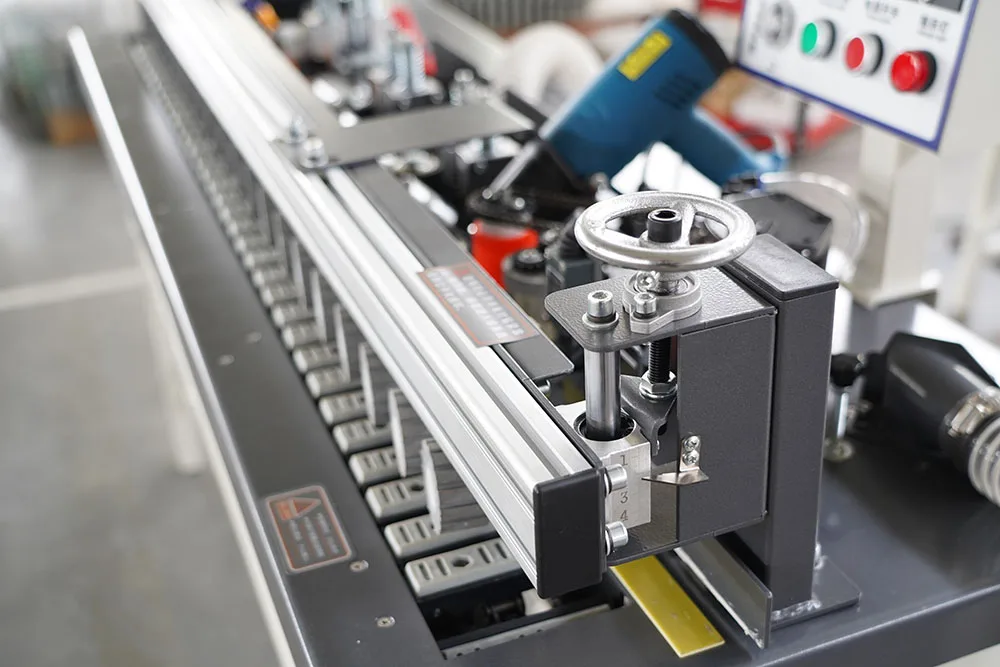

| Pressure Beam | Aluminum alloy, manually adjustable |
| Gluing Device | Hot air heating system |
| Trimming Stations | Elastic profiling trimming + polishing |
| Dust Extraction | Self-contained vacuum device |
| Key Features | Automatic plate feeding, slotting, elastic profiling trimming, automatic belt breaking |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet panel edging | MDF and particleboard with PVC strip |
| Bevel-edge furniture components | Plywood panels with veneer banding up to 1.2 mm |
| Small-batch joinery production | Solid wood panels requiring slanted and straight profiles |
| Workshop edge finishing | Laminated board substrates for shelving and carcass work |
Why the Voltage Question Must Come Before You Click "Order"
Every Automatic Edge Banding Machine in stock at this facility ships only after voltage and frequency are confirmed for your workshop’s supply.
I once watched a brand-new edge bander sit idle in a Ho Chi Minh City factory for three days because the supplier assumed 380V three-phase while the workshop ran single-phase 220V. The electrician rewired the panel, but the glue heater element was already damaged by the mismatch. That delay cost the owner an entire production run on a cabinet contract. When you order an Automatic Edge Banding Machine in stock for fast delivery, the first confirmation you receive should be a written voltage match — not just a catalog spec sheet [NEED_CITE: voltage and frequency standards by export market]. A compact 6.17 kW unit like the ZDSF-2000H draws meaningful current, and plugging it into the wrong supply can destroy the hot air heating system before the first panel is edged.
Stock Availability and Dispatch Timing
The ZDSF-2000H is positioned as a stocked configuration, meaning core assemblies are pre-built and final calibration happens after your voltage and control-language requirements are locked in. This is how an Automatic Edge Banding Machine in stock moves from warehouse to container within a typical multi-week lead time rather than a full production cycle. The 149 kg net weight keeps shipping costs within a manageable range for single-unit orders, whether by LCL sea freight or air cargo for urgent workshop replacements.
Ordering Simplicity for Single-Unit Buyers
Many joinery workshops need exactly one edge bander to replace manual trimming, not a full production line. The ZDSF-2000H fills that gap: a 220V single-phase footprint that plugs into existing workshop power without a dedicated transformer. You specify panel thickness, preferred control-panel language, and shipping destination, then receive a formal quotation with confirmed lead time. No minimum order pressure, no bundled upsells [NEED_CITE: CE machinery directive requirements for industrial equipment].
Reading the Spec Sheet Against Real Workshop Conditions
The 18-25 mm panel thickness range covers the most common MDF and particleboard dimensions used in cabinet carcass and shelving production. Feed speed up to 14 m/min suits workshop volumes where a single operator loads panels — faster feed rates on longer production runs require upstream automation that this class of machine is not designed for. The eight pressing rollers and hot air gluing system create consistent bonding pressure across PVC and veneer strips up to 1.2 mm, which is the practical ceiling for edge banding on 25 mm substrates. Elastic profiling trimming follows the panel contour without gouging the substrate surface, a detail that separates clean edges from visible tear-out on melamine-faced boards. The self-contained vacuum device means you do not need a central dust extraction system operational before the machine arrives — a significant advantage for workshops still building out their infrastructure.
What Happens When You Skip the Language Confirmation
I spent two full days in a Vietnamese workshop translating parameter menus line by line because the control panel shipped in default English and the operator read only Vietnamese. Production stopped, the installer had already flown out, and the owner was paying idle workers. When the operation manual and control interface do not match the operator’s language, even a straightforward machine like this edge bander becomes unusable until someone bridges the gap [NEED_CITE: operator safety and comprehension requirements under machinery directives]. That downtime erases any advantage gained from fast delivery.
Why Sourcing Here Reduces Pre-Delivery Surprises
Every ZDSF-2000H order triggers a written voltage and frequency confirmation before production finalization, so there is no guesswork at the container door. Pre-shipment testing runs actual panels through the full glue-trim-polish cycle, and photographs document the result alongside packing condition. The four-stage quality check covers incoming material inspection through to pre-shipment verification, giving buyers a documented chain rather than a verbal assurance. Engineers recommend configuration based on your stated panel materials and daily volume, not on clearing warehouse stock. Custom control-panel language is specified at order, not discovered at commissioning.
Documentation & Verification
- CE declaration of conformity covering the ZDSF-2000H electrical and mechanical safety scope
- Factory test record showing glue bond and trim quality on your specified panel thickness
- Electrical schematic confirming 220V wiring and component ratings before dispatch
- Operation and maintenance manual written in your agreed control-panel language
- Spare parts list with part numbers for pressing rollers, trimming blades, and heating elements
Installation, Commissioning & Support
- 2100×600 mm footprint fits standard workshop aisles; verify floor levelness within the aluminum pressure beam adjustment range
- Dedicated 220V circuit rated for 6.17 kW continuous draw with appropriate breaker sizing

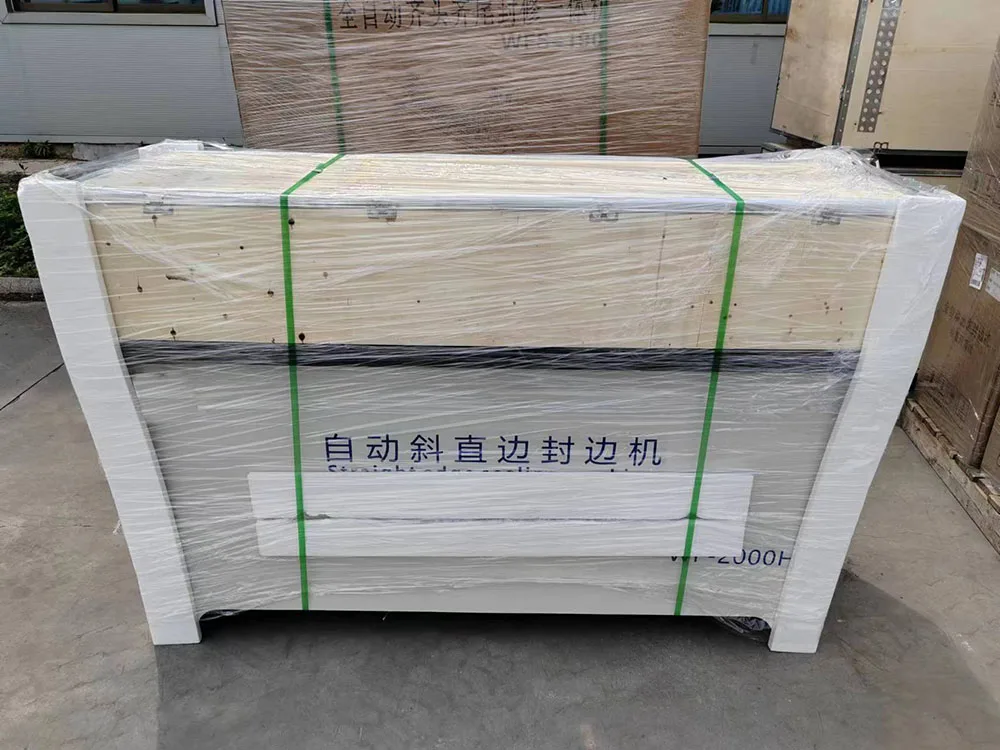

- KD packing on selected sub-assemblies; on-site reassembly guidance provided with the manual

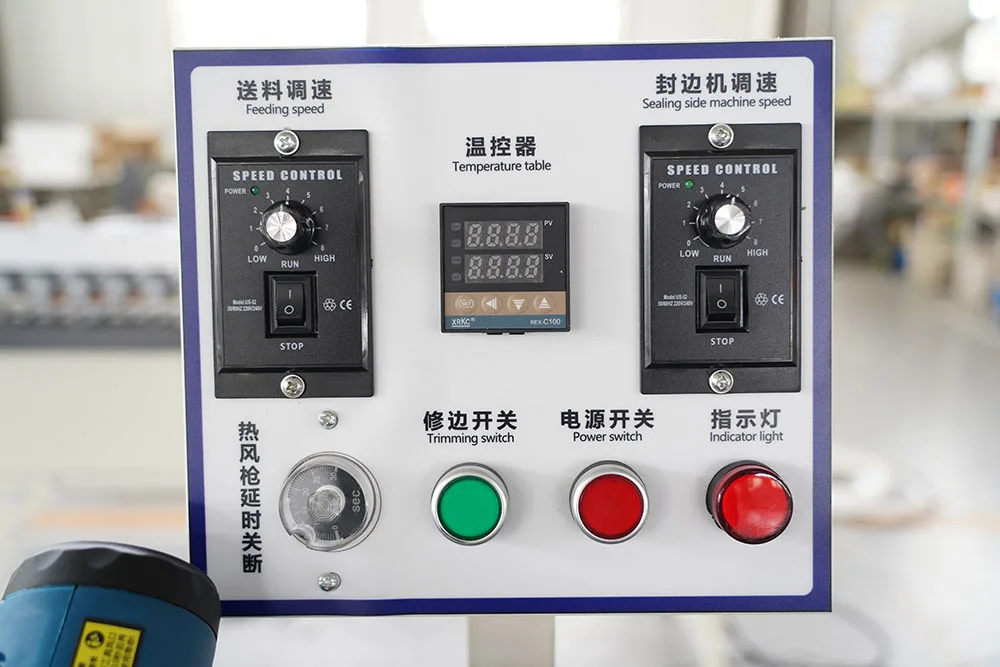

- First-run parameter setting for glue temperature, feed speed, and trimming depth on your panel stock
- Consumable planning from the included spare parts list covering initial six-month operation
- Self-contained vacuum device connection verified before full-speed feed testing begins
Tell Us What Your Workshop Runs
To match the ZDSF-2000H to your production, share the panel substrates and edge strip materials you use most, the local voltage and frequency at your facility, and the language your operators need on the control panel. If you are replacing manual edging, mention your current daily panel count so the feed-speed setting can be recommended. For workshops adding bevel capability alongside existing straight-edge machines, note your upstream saw model so feed-height compatibility is checked before shipment.
Frequently Asked Questions
Q: What is the current dispatch lead time for this model?
A: The ZDSF-2000H is held as a stocked configuration. After you confirm voltage, frequency, and control-panel language, final calibration and pre-shipment testing typically require a multi-week window before the unit is container-ready. Exact timing depends on current order volume and your shipping destination.
Q: Is 220V the only voltage available, or can I order a different supply?
A: The standard listed configuration is 220V, but the manufacturer offers voltage customization across a range suitable for international workshops. Specify your local supply voltage and frequency at inquiry so the correct motor, heater element, and transformer are fitted before dispatch.
Q: Does the machine arrive fully assembled or require on-site assembly?
A: Certain sub-assemblies are KD-packed for shipping protection and must be reassembled on arrival. The operation manual includes reassembly steps, and the self-contained vacuum device and pressure beam require alignment verification during commissioning.
Q: What consumables and spare parts ship with the machine?
A: Each unit ships with a spare parts list covering pressing rollers, trimming blades, and heating elements. Consumable quantities are calculated based on the edge strip materials and panel volumes you specify during the quotation stage.
Q: Can I order a single unit, and what shipping options are available?
A: Single-unit orders are standard for this model. Shipping options include LCL sea freight for cost efficiency or air cargo for urgent replacements, depending on your timeline and destination port.
