Description

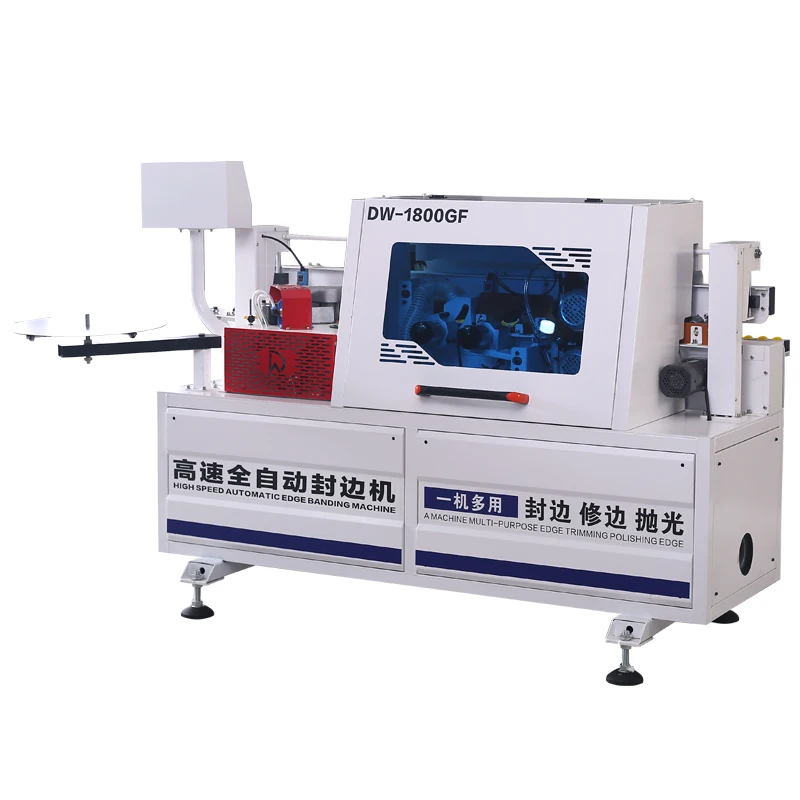

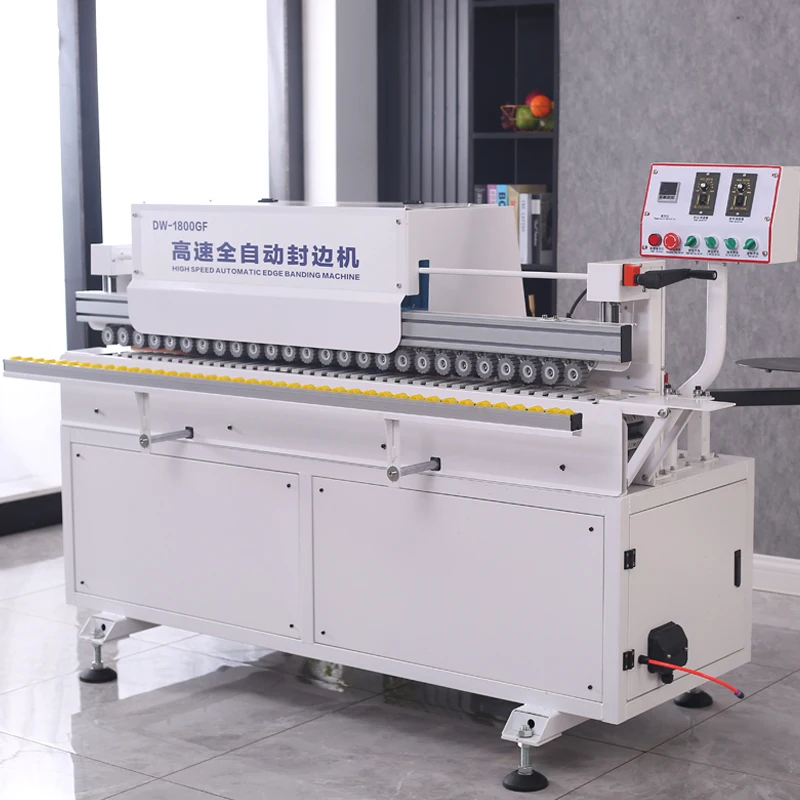

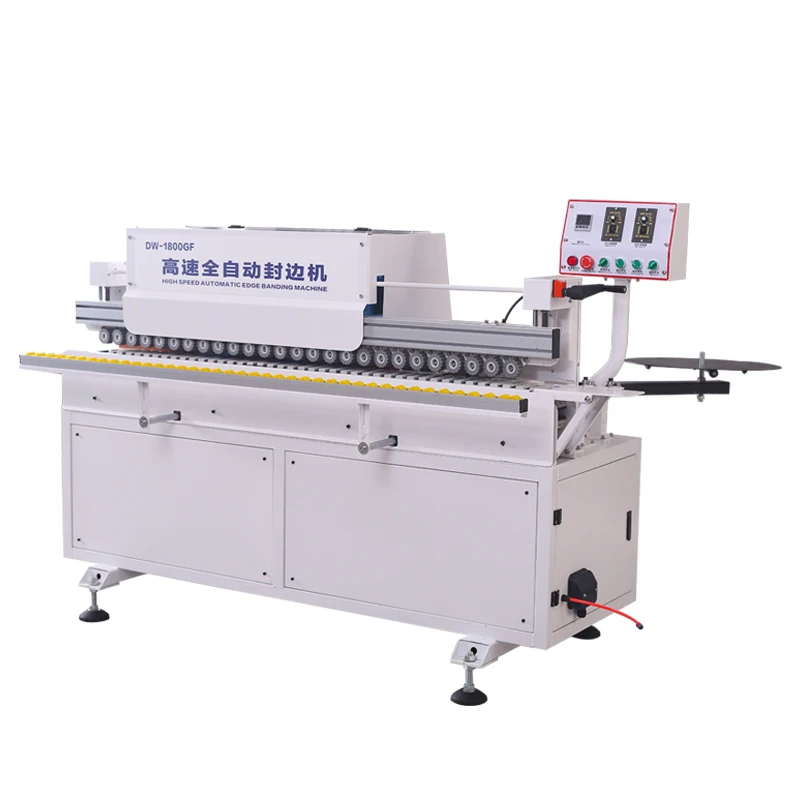

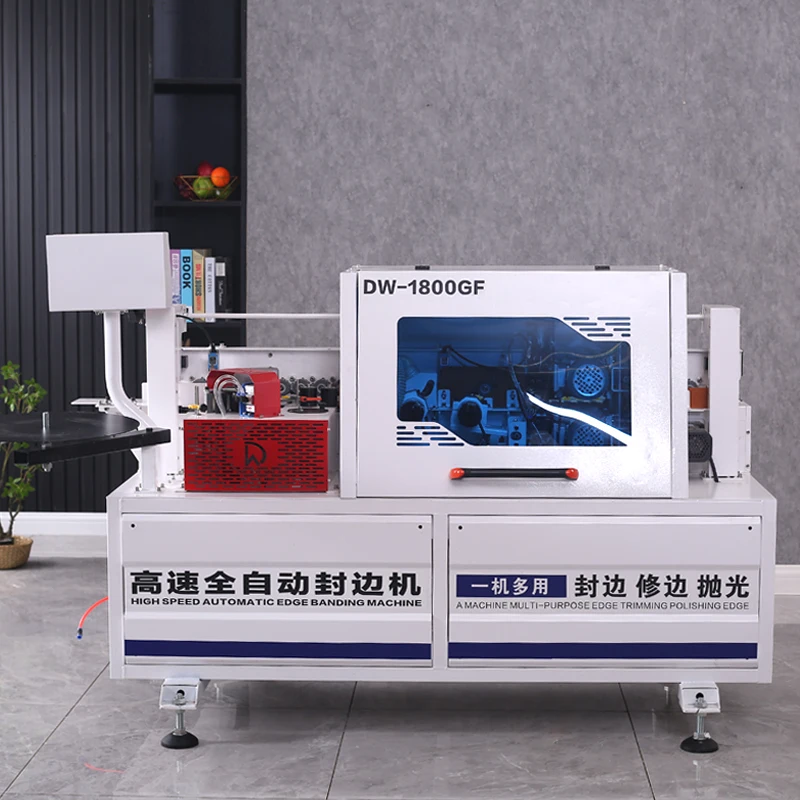

Voltage-Locked Dispatch — every DW1800 automatic edge banding machine ships only after your local supply voltage, frequency, and plug type are confirmed on paper, eliminating dead-on-arrival surprises.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW1800 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4.9 kW |
| Voltage Options | 380V / 220V / 415V |
| Feed Speed | 0–14 m/min |
| Minimum Sheet Length | 200 mm |
| Minimum Sheet Width | 100 mm |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Air Source Pressure | 0.4–0.6 MPa |
| Glue Pot Capacity | 4000 ml |
| Trimming Motor Power | 800 W × 2 |
| Trimming Speed | 24,000 r/min |
| Polishing Motor Power | 380 W × 2 |
| Vacuum Power | 550 W |
| Overall Dimensions | 220 × 65 × 125 cm |
| Net Weight | 320 kg |
| Control System | PLC |
| Guide Rail Structure | Roll-ball differential, extruded aluminum alloy |
| Standard Functions | Double-sided gluing, front/rear alignment, top & bottom trimming, flexible edge scraping, polishing, dust extraction |
| Language Options | Chinese & English standard; Spanish and other languages customizable |
| Plug Options | EU, USA, AU, UK |
| Assembly State | Fully assembled, wooden box packed |
| Certification | CE, ISO 9001 |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edging | MDF and melamine-faced particleboard with PVC or ABS banding |
| Wardrobe and shelving panel finishing | Plywood panels with wood veneer edge strips |
| Small-batch furniture production | Solid wood panels requiring flexible edge scraping and polishing |
| Panel sizing and edge prep | ABB boards and organic glass plates within thickness range |
| Joinery workshop output | Mixed substrate batches with frequent material changeovers |
Why the Voltage Question Must Come Before the Order
An automatic edge banding machine in stock means nothing if it cannot power on at your facility. I learned this the hard way coordinating a shipment to a Middle East client years ago. A machine left the warehouse without the site electrician confirming the local three-phase supply. The unit sat idle for three weeks while a step-down transformer was sourced locally, stalling the entire workshop schedule. Since then, every unit I schedule for dispatch goes through an electrical verification step before the crate is sealed. [NEED_CITE: voltage and frequency standards by export market]
The DW1800 supports 220V, 380V, and 415V configurations, and each order triggers a confirmation document matching your facility’s actual supply. Getting this right up front costs a few minutes of communication and prevents weeks of downtime on the receiving end.
Fast Dispatch Without Cutting Verification Corners
Stock availability is the reason buyers come to this store, and the DW1800 automatic edge banding machine is positioned for quick turnaround. Fully assembled and packed in a wooden crate, it leaves the warehouse ready to run — not as a kit requiring days of on-site assembly. Lead time focuses on confirmed orders with voltage and plug type already locked in, so dispatch is a matter of logistics rather than rework.
Order Simplicity From Single Units Up
Whether you need one machine to test edge quality on your panels or several units to equip a growing workshop, the ordering process stays the same. Shipping options are quoted up front, and the wooden box packaging keeps the unit protected through container or LCL transit. No need to negotiate complex terms for a single-unit order. [NEED_CITE: standard export packaging requirements for woodworking machinery]
Reading the Numbers That Matter
The 0–14 m/min feed speed range positions this machine for small-batch to moderate-volume work. At lower speeds, operators maintain tighter control over glue application on difficult substrates like veneer. The 24,000 r/min trimming motors cut cleanly through PVC and ABS banding up to 3 mm thick, which matters when visible glue lines are unacceptable on finished cabinet doors. The 4000 ml glue pot capacity supports sustained runs without frequent refills, reducing operator intervention during a batch. The roll-ball differential guide rail with extruded aluminum alloy workstations provides stable panel transport, and oxidation treatment on the rail surface resists wear from constant friction against board edges.
What Happens When Specifications Get Skipped
Machines ordered on price alone often arrive with a control panel the operator cannot read, or a plug that does not fit the workshop socket. I have seen units sit uncommissioned because the language on the HMI was never specified during ordering. The panel sits there, the operator guesses at settings, and edge quality suffers before anyone realizes the machine was never configured for its actual working environment. [NEED_CITE: common commissioning delays in imported woodworking equipment]
Buyers who skip voltage confirmation discover the problem only when the machine is uncrated and the site electrician shakes his head. The cost is not just the transformer — it is the lost production days and the rushed installation that follows.
Why Sourcing Here Reduces Dispatch Risk
The DW1800 ships from a facility that builds edge banders across a full range, so spare parts availability is not an afterthought. Voltage customization is treated as a standard step, not a special request, meaning your 415V unit is wound correctly before it reaches the packing station. Pre-shipment testing runs actual panels through every station — gluing, trimming, scraping, polishing — and the test record ships with the machine. Engineer-led configuration means someone reviews your panel dimensions and edge material before quoting, catching mismatches before they become costly returns.
Documentation & Verification
- CE declaration of conformity covering the DW1800 edge banding machine
- ISO 9001 certificate for the manufacturing facility
- Electrical schematic matching your confirmed voltage and plug type
- Factory test record showing edge quality on your specified panel material
- Operation manual translated into your agreed language
- Spare parts list with reorder codes included in the crate
Installation, Commissioning & Support
- 220 × 65 × 125 cm footprint requires a level concrete floor with clearance for panel infeed
- Dedicated 4.9 kW circuit with correct breaker rating for your confirmed 220V, 380V, or 415V supply
- Arrives fully assembled — position, connect compressed air at 0.4–0.6 MPa, and power on
- PLC interface set to your chosen language before first production run
- Trimming and polishing motors checked for alignment on your actual board thickness range
- Glue pot and scraper stations calibrated during initial commissioning with your edge banding material
What We Need to Move Your Order Forward
To get a DW1800 dispatched quickly, share your panel material types, typical board dimensions, and the edge banding thickness you run most often. Confirm your workshop voltage, phase, and plug type so the electrical configuration is correct before packing. Let us know your preferred control panel language and whether you want a sample processing test on your own material before the machine ships.
Frequently Asked Questions
Q: How fast can the DW1800 ship after order confirmation?
A: As a stocked model, the DW1800 is available for prompt dispatch once voltage, plug type, and language are confirmed. The unit ships fully assembled in a wooden crate, so there is no extended build cycle. Final timing depends on the verification steps and your chosen shipping method, but the machine itself does not add lead time to the process.
Q: What happens if my country uses a voltage not listed — can it be customized before dispatch?
A: The standard options cover 220V, 380V, and 415V. If your facility runs a different supply, the electrical configuration can be adjusted during the pre-shipment preparation stage. We confirm the exact voltage and frequency with your site electrician before the machine is wired, ensuring it powers on correctly upon arrival.
Q: Can the interface be set to English-only or another language for my operators?
A: Chinese and English are standard on the PLC control panel. Spanish and other languages are available as customization options, confirmed during the ordering process. The interface language is set before dispatch so operators can begin commissioning immediately without translation guesswork on the workshop floor.
Q: What are the minimum panel dimensions and maximum edge banding thickness this machine handles?
A: The DW1800 accepts sheets as small as 200 mm in length and 100 mm in width, with edge banding thickness from 0.3 mm to 3 mm. Edge banding height covers 0–50 mm. These ranges suit typical cabinet and furniture panel sizes, and the trimming stations adjust to match your specific material combination.
Q: Can I order one unit as a sample to verify edge quality before committing to a larger line?
A: Single-unit orders are standard practice here. Many buyers start with one DW1800 to test edge quality, glue adhesion, and trimming finish on their actual panels. If the results meet expectations, additional units can follow using the same configuration and spare parts supply, keeping consistency across your workshop.
