Description
Ready for Dispatch — ZDSF802 Automatic Edge Banding Machine in stock with voltage and manual language verified against your site before the crate is sealed.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Automatic Edge Banding Machine |

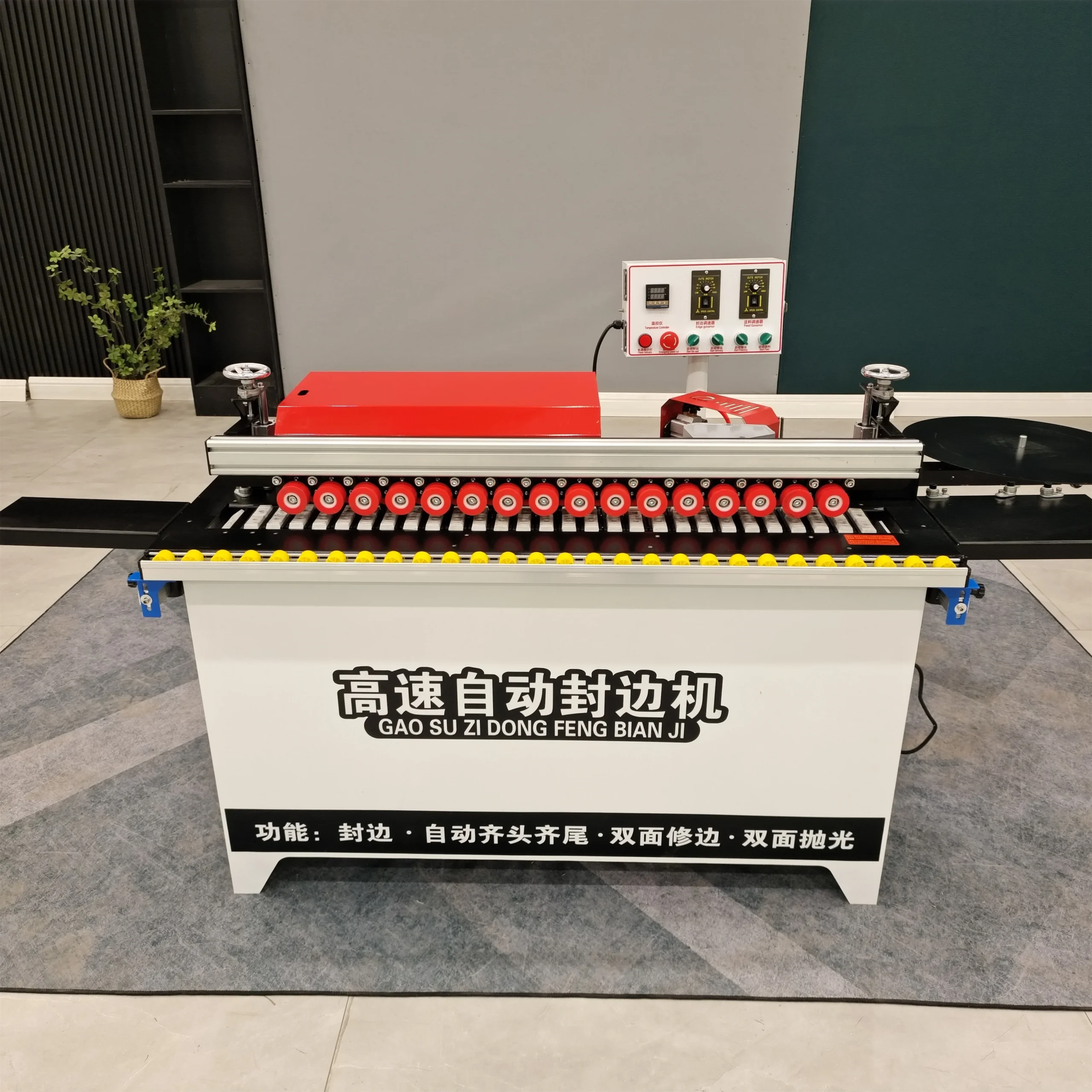

| Model | ZDSF802 Full-line Auto Edge Banding Machine |
| Function Sequence | Gluing, End cutting, Trimming, Vacuuming, Buffing |
| Rated Voltage | 220V (configurable from 110V to 440V) |
| Rated Power | 4 kW |
| Strip Thickness | 0.5–2.5 mm |
| Sheet Thickness | 10–50 mm |
| Rated Air Pressure | 0.6–0.8 MPa |
| Working Speed | 0–7 m/min |
| Conveyor Belt Speed | 0–14 m/min |

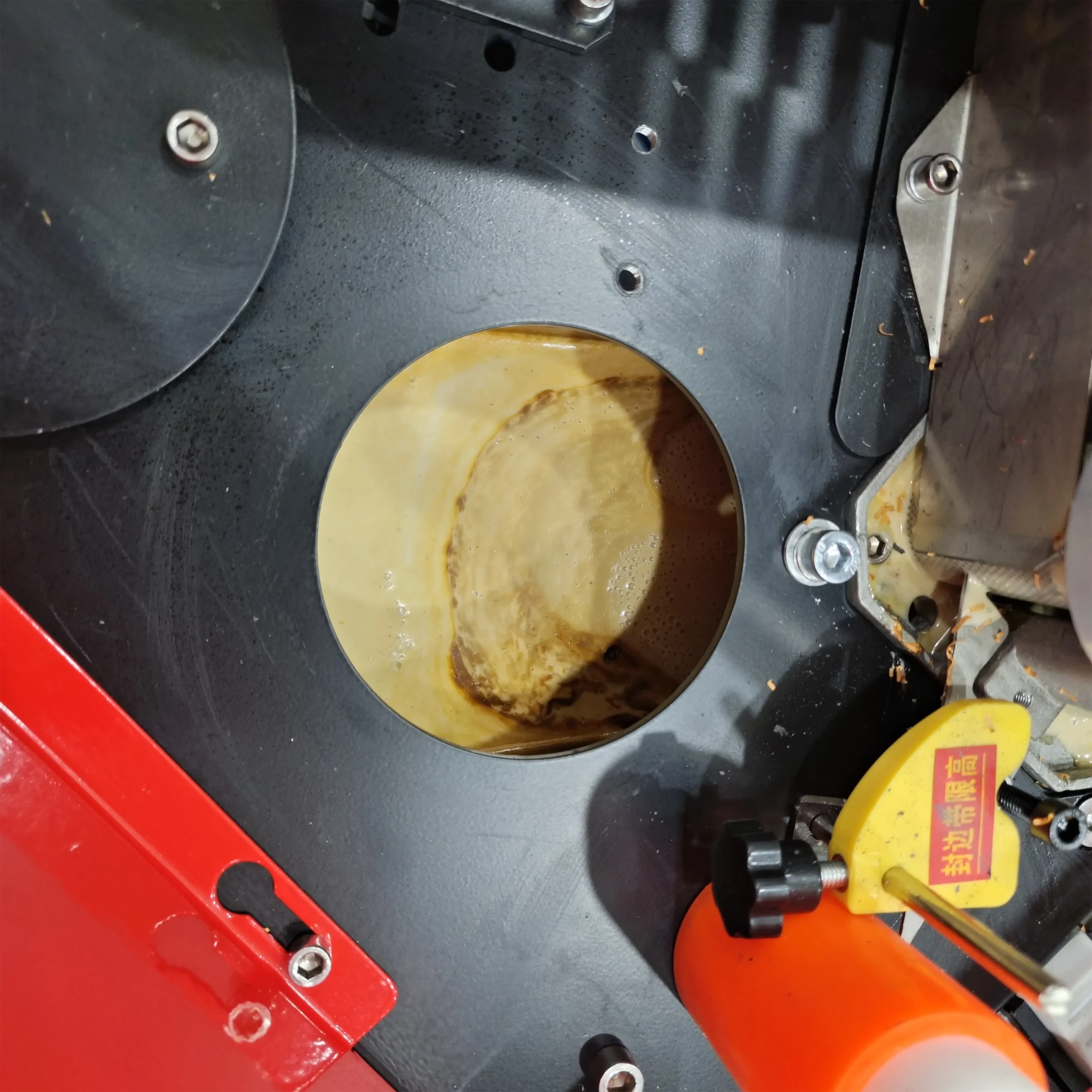

| Glue Pot Capacity | 4000 ml |
| Overall Dimensions | 190 × 60 × 130 cm |
| Machine Weight | 150 kg |
| Control Panel | Digital display of glue pot temperature, independent switch |

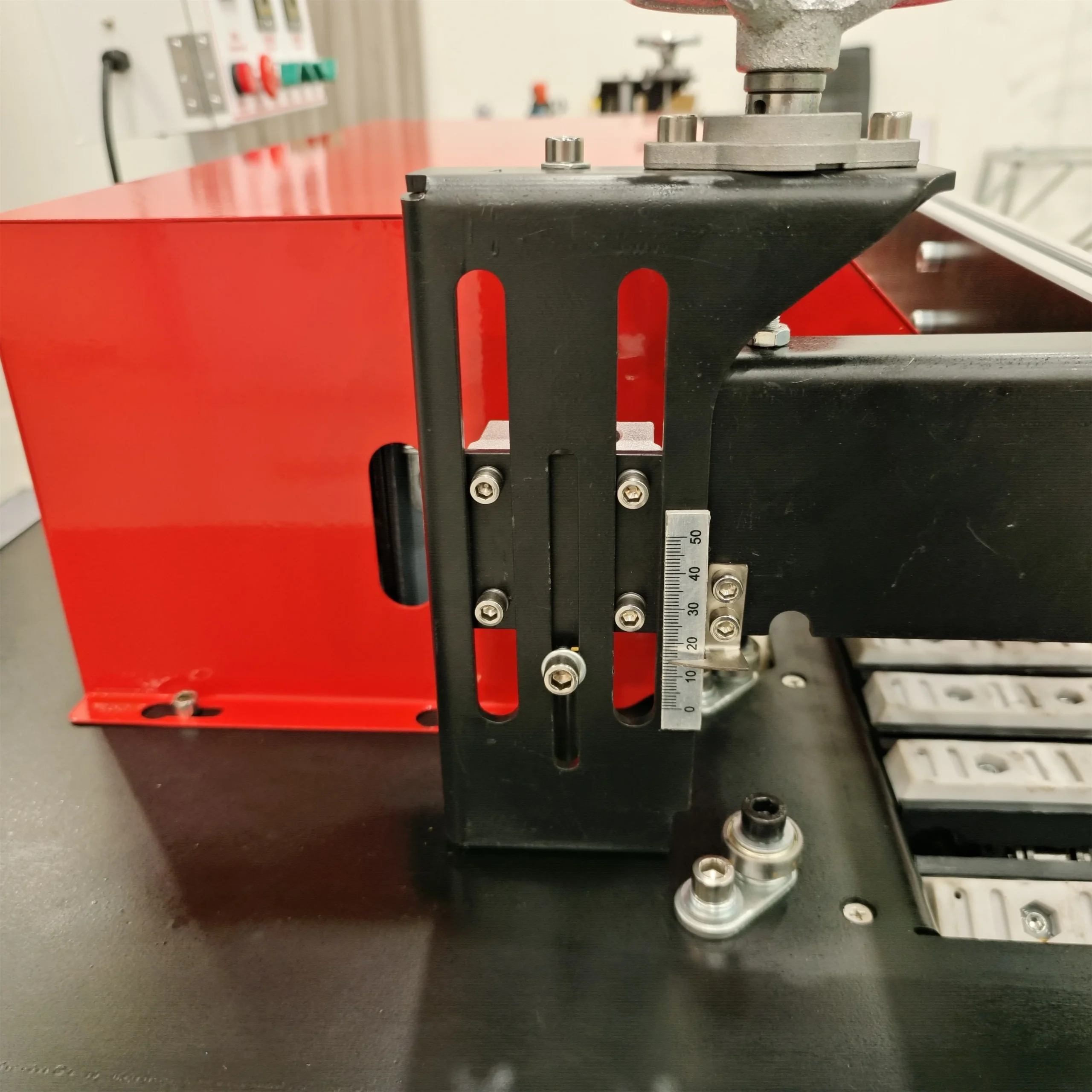

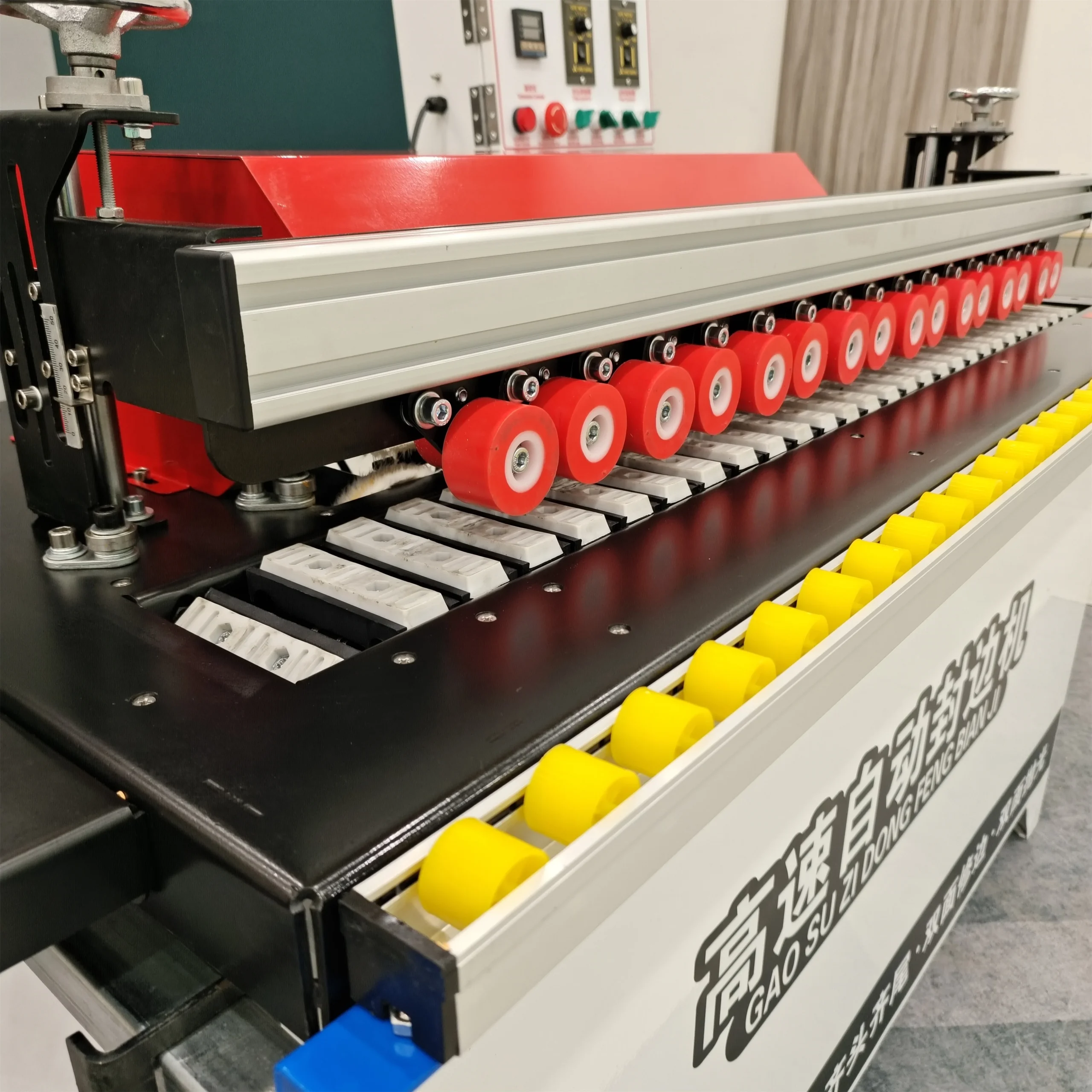

| Pressure Beam | Integrated pressure beam, double rows of pressure wheels |
| Conveyor Belt Material | Silicone |
| Trimming | Double high-speed trimming motors, trimming up and down |
| Polishing | Up and down two polishing motors |

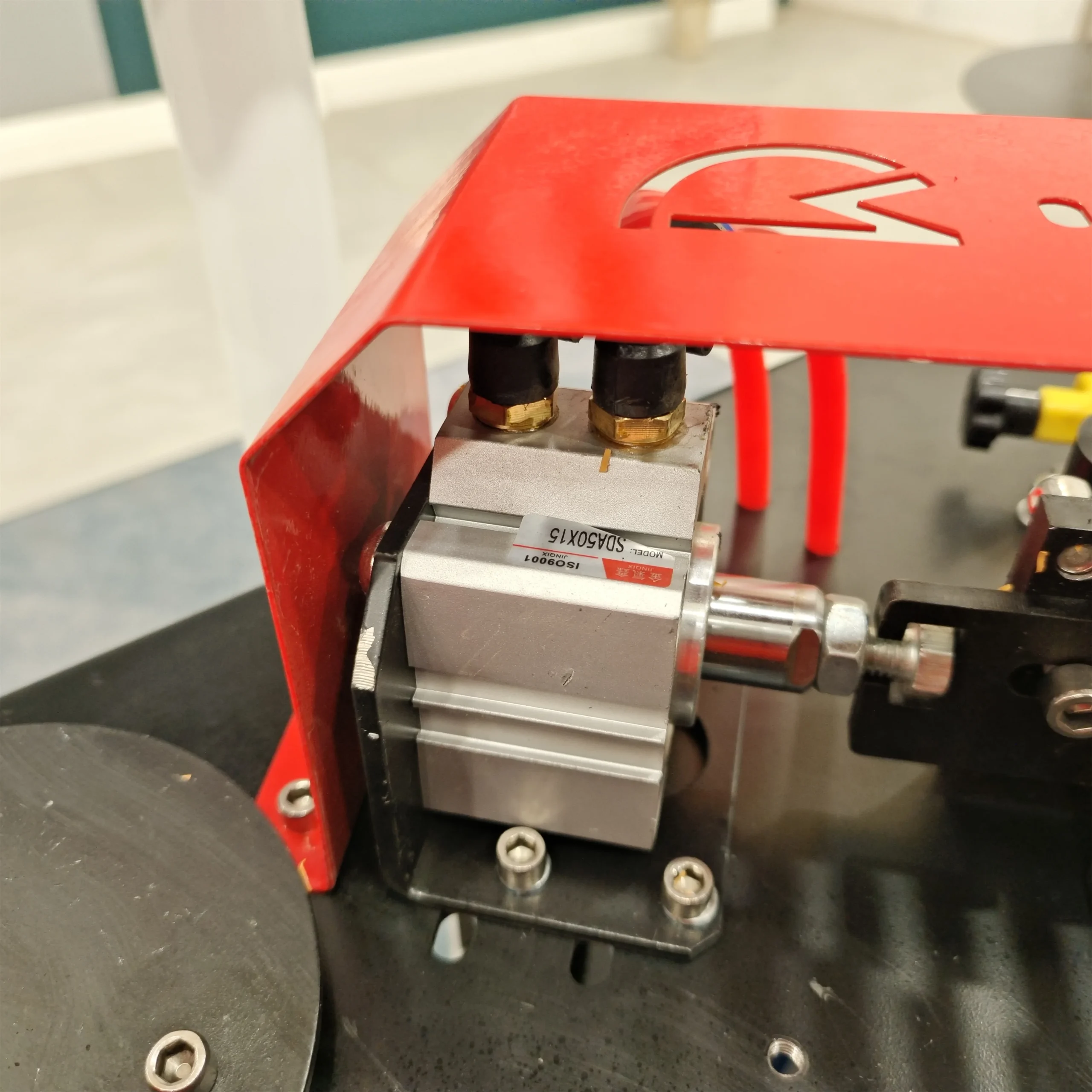

| Edge Banding Strip Breaking | Pneumatically controlled |
| Auxiliary Support | Extendable fluent strips for large plates |
| Certification | CE |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door and carcass edge banding | Particle board with PVC edge banding |
| Custom furniture panel finishing | MDF with 0.5–2.5 mm PVC or veneer strips |
| Small-batch workshop production | Plywood panels for shelving and storage units |
| Joinery shop upgrade from manual banding | Pre-cut panels requiring consistent edge quality |
Why the Voltage Question Should Come Before the Price
An Automatic Edge Banding Machine in stock means nothing if it cannot run when it arrives at your workshop.
I once shipped a fully automatic edge bander to a Middle East customer without reconfirming the local supply. The machine was wired for 380V; the site ran 415V. The customer spent three weeks sourcing a step-down transformer while the entire panel line sat idle. That experience stays with me every time a crate is about to leave our Ningjin warehouse. Voltage mismatch is one of the most common — and most preventable — reasons an otherwise good machine fails at commissioning [NEED_CITE: voltage and frequency standards by export market]. Confirming your local supply standard is the first line we fill in on the electrical schematic, not an afterthought.
Dispatch Speed Without Configuration Guesswork
Stock availability only matters when the machine you receive matches the power and language your operators expect. Every ZDSF802 Automatic Edge Banding Machine in stock is held with a baseline 220V configuration, and we rewire to your confirmed voltage before dispatch. Control panel overlays and the operation manual are prepared in your agreed language so commissioning does not stall on unreadable menus.
Single-Unit Orders, Full Documentation
Whether you need one edge bander to fill a gap on the line or several units to expand capacity, the ordering process stays the same. We issue a formal quotation that locks in your voltage, frequency, plug standard, and manual language. Pre-shipment test records and packing photographs are shared before the crate closes, so you see exactly what is inside before it reaches the port.
How the 4000 ml Glue Pot and Dual Trimming Affect Daily Output
The ZDSF802 carries a 4000 ml glue pot, which reduces refill interruptions during a continuous run — particularly useful when a single shift processes a batch of cabinet carcasses back to back. Working speed ranges from 0 to 7 m/min while the silicone conveyor belt itself can advance up to 14 m/min, giving you headroom to synchronize upstream panel feeding without bottlenecking at the infeed. Double high-speed trimming motors cut the strip flush on both top and bottom in one pass, so the operator does not need to flip or re-feed the panel. Pneumatically controlled strip breaking delivers a clean end cut without manual snipping, and the extendable fluent strips support oversized boards that would otherwise sag and pull the banding away from the substrate edge [NEED_CITE: CE machinery directive requirements for industrial equipment].
The Real Cost of Skipping Specification Checks
A workshop that orders an entry-level edge bander without confirming the sheet thickness range often discovers mid-production that 50 mm panels are outside the machine’s capacity. Panels jam at the pressure beam, glue lines open on the trailing edge, and the operator resorts to hand-trimming to meet a delivery deadline. Similarly, a machine specified for 220V/60Hz sent to a 50Hz market runs the trimming motors at a lower RPM than designed, producing a visible chatter mark on the PVC surface. These issues do not appear on the quotation — they appear on the shop floor, under deadline pressure, when the customer is already waiting.
Why Procurement Teams Source This Model Here
In-house manufacturing with a patented cutting mechanism means tolerance claims on the ZDSF802 are verified at the factory, not assumed from a brochure. A four-stage quality check — incoming material, in-process, finished product, pre-shipment — catches wiring and pneumatic faults before packing. Voltage customization from 110V to 440V and multilingual control panels are treated as standard configuration steps, not special requests. An engineer-led proposal is typically issued within one working day, and factory visits are open to buyers who want to see the machine run their own panel stock before committing.
Documentation & Verification
- CE declaration of conformity covering the ZDSF802 full function sequence
- Factory test record run on your specified panel thickness and PVC strip width
- Electrical schematic with your confirmed voltage, frequency, and plug type annotated
- Operation and maintenance manual printed in the language your operators read
- Spare parts list with part numbers for trimming motors, silicone belt segments, and glue pot elements
Installation, Commissioning & Support
- The 4 kW rated power requires a dedicated circuit; confirm breaker rating before energizing the ZDSF802
- Overall footprint of 190 × 60 × 130 cm needs clear infeed and outfeed space plus extendable fluent strips
- Rated air pressure of 0.6–0.8 MPa must be supplied from a clean, filtered line to protect pneumatic strip breaking
- Digital glue pot temperature display should be set to match your PVC brand before the first panel enters
- Silicone conveyor belt tension and double-row pressure wheel alignment are checked during initial commissioning guidance
What We Need to Match the Right Configuration
Share the panel materials you process most often — particle board, MDF, or plywood — along with the PVC strip thickness you run. Tell us your site voltage and frequency so the ZDSF802 leaves the factory wired correctly. If your workshop has existing upstream saws or downstream boring stations, include their feed height and throughput so we can confirm the edge bander will integrate without a gap in the line.
Frequently Asked Questions
Q: Is the ZDSF802 in stock and how fast can it ship?
A: The ZDSF802 Automatic Edge Banding Machine is held in ready stock at our Ningjin facility. Dispatch lead time depends on the voltage rewire and manual language preparation required for your market. Once your electrical and language specifications are confirmed, the machine is tested, photographed, and crated for the earliest available shipment.
Q: Can you verify voltage and frequency for my country before shipping?
A: Yes. Before any ZDSF802 leaves the warehouse, we cross-reference your local supply standard against the machine wiring and motor ratings. The electrical schematic is updated with your confirmed voltage and frequency, and a copy is included in the shipping documentation so your electrician can verify on arrival.
Q: Is there a minimum order quantity or can I buy a single unit?
A: Single-unit orders are accepted. The ZDSF802 is configured, tested, and documented individually whether you order one machine or a full line. Shipping options are quoted upfront, and packing is arranged for safe ocean or overland transport of a single crate.
Q: What after-sales support is available once the machine arrives?
A: Installation guidance covers power connection, air supply setup, and initial parameter tuning for the digital glue pot temperature and trimming motors. The operation manual in your agreed language walks through daily maintenance, and the included spare parts list lets you reorder consumables directly without waiting for a service visit.
