Description

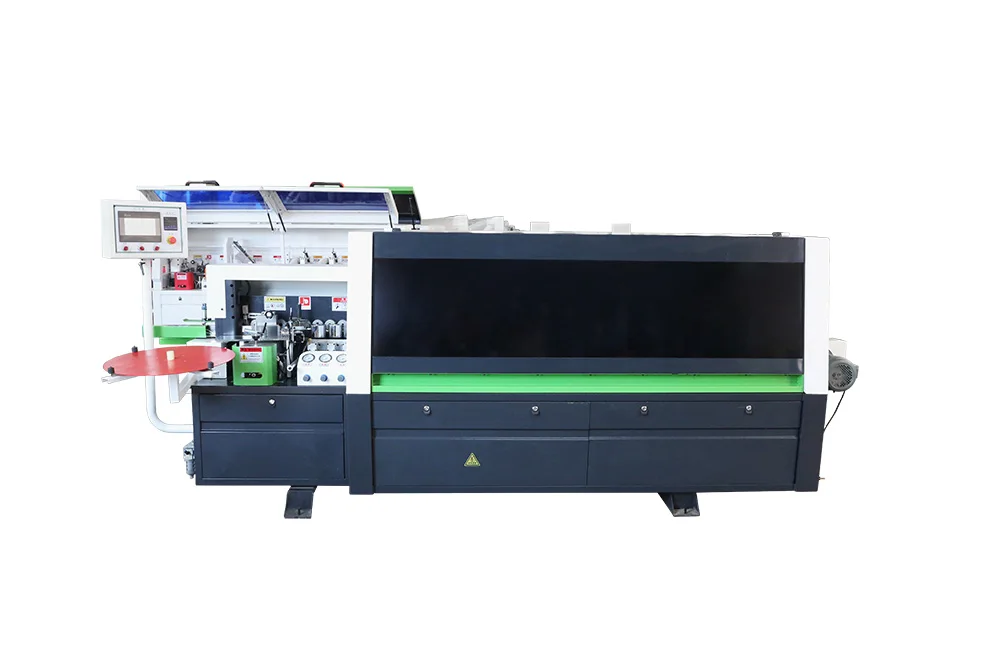

Ready Stock Edge Bander — ZDS368A sits in our dispatch-ready inventory with voltage confirmed per your local grid before crating, eliminating the typical multi-week production wait.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDS368A |
| Product Type | Automatic Edge Banding Machine |

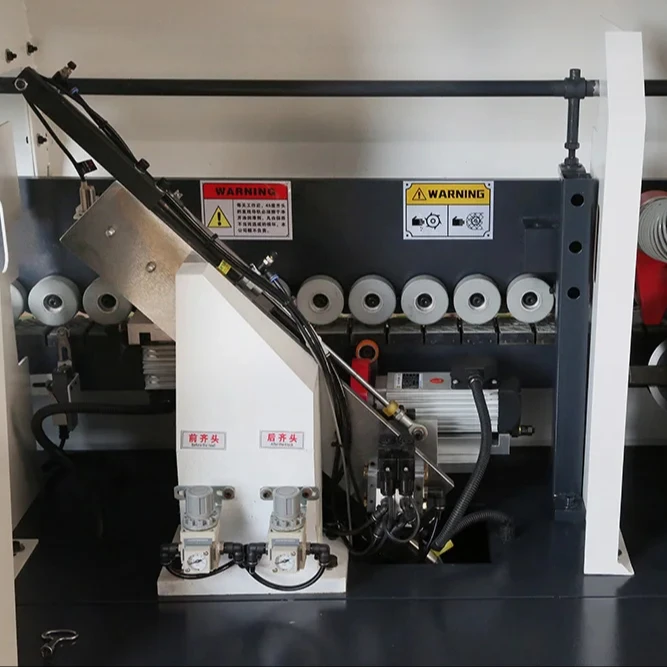

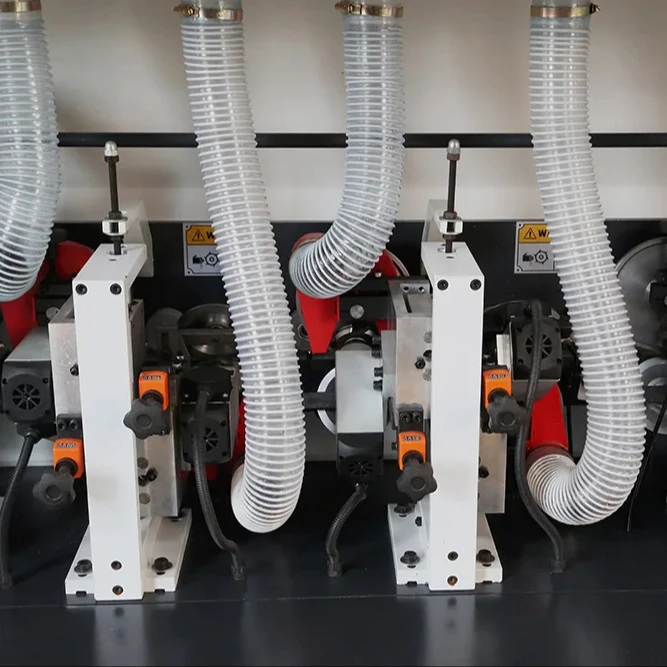

| Main Functions | Gluing, End Trimming, Rough Trimming, Fine Trimming, Scraping, Buffing |
| Working Pressure | 0.6–0.8 MPa |
| Panel Thickness Range | 10–55 mm |
| Edge Thickness Range | 0.3–3.5 mm |
| Conveyor Belt Speed | 18 m/min |
| Min. Panel Width | 40 mm |
| Min. Panel Length | 60 mm |
| Voltage | 380V–3HP (configurable from 110V to 440V) |
| Rated Power | 8.5 kW |
| Net Weight | 1500 kg |
| Overall Dimensions (L×W×H) | 4200×1000×1500 mm |
| Fuselage Material | 14 mm national standard high-strength steel plate, frame-type structure, high-temperature quenching treatment |
| Conveyor Guide Rail Material | HT260 |
| Conveying Motor | Customized Taiwan brand with thermal protection system |
| Head Guide Rail | Taiwan brand |
| Pneumatic System | German Festo or Taiwan AirTAC cylinder and safety valve, AirTAC magnetic switch |

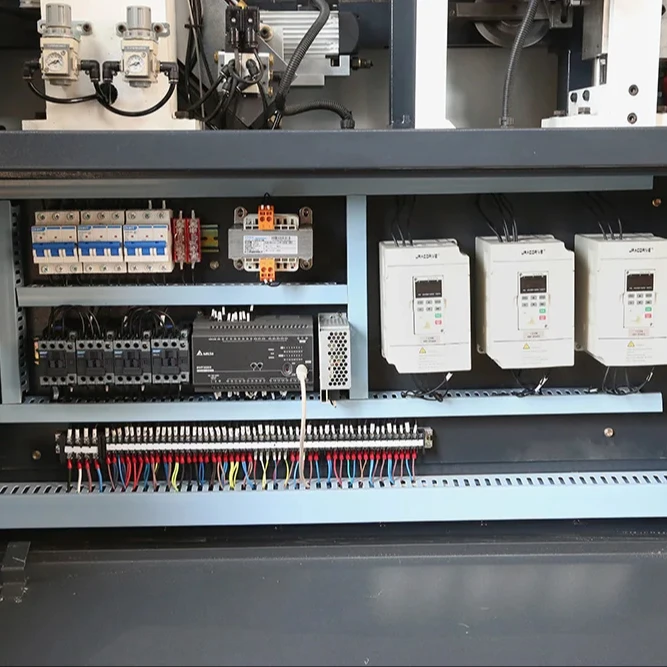

| Electrical Components | Delixi/Chint air switches and contactors, Japanese Omron travel switches |
| Assembly State | Requires assembly (user manual and video teaching provided) |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge finishing | MDF and particleboard with PVC or ABS banding |
| Cabinet door and carcass production | Plywood panels with melamine or veneer edge strips |
| Small-batch panel processing plants | Mixed substrate runs requiring fast changeover |
| Workshop transitioning from manual banding | Standard wood-based panels up to 55 mm thickness |
Why the Voltage Question Must Come Before You Hit "Order"
Confirm your factory’s supply voltage and frequency before any Automatic Edge Banding Machine in stock leaves the warehouse — a mismatch can stall your entire line.
I spent years sourcing equipment for furniture plants across Southeast Asia before moving to the supply side. One Vietnamese cabinet maker received a pre-milling edge bander rated for 380V/50Hz while their facility ran on 440V/60Hz. The transformer retrofit took three weeks and idled every downstream station. That single oversight cost the buyer more in lost throughput than the machine itself [NEED_CITE: voltage and frequency standards by export market]. When you order an Automatic Edge Banding Machine in stock from a ready-inventory catalogue, the unit is already built — so voltage verification has to happen during the sales conversation, not after the crate arrives.
Dispatch Speed Without the Guesswork

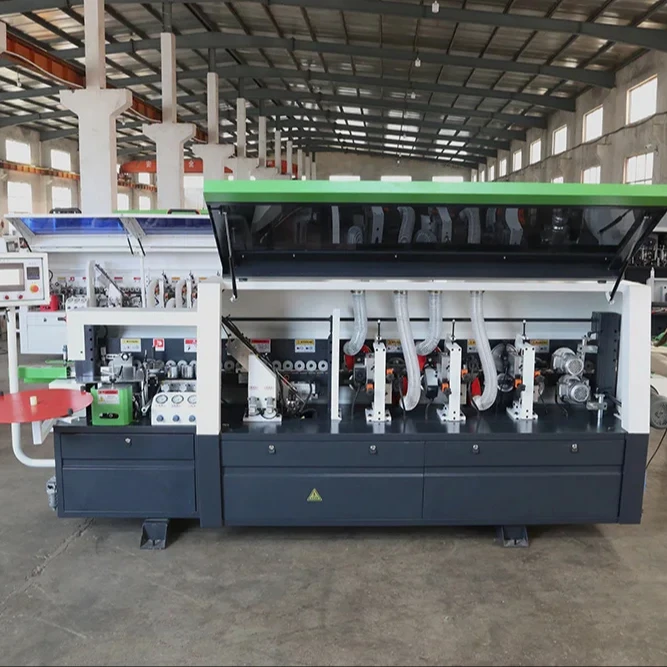

Buyers who need an Automatic Edge Banding Machine in stock usually face a project deadline or are replacing a unit that failed mid-run. The ZDS368A is warehoused fully assembled at the main stations — gluing, end trimming, rough trimming, fine trimming, scraping, and buffing — so dispatch follows voltage confirmation and a pre-shipment test rather than a production queue. Lead time shrinks from a typical multi-week build cycle to the days needed for crating and export documentation.
What "Ready to Ship" Actually Means for Your Line
A machine described as ready stock still needs to match your workshop’s electrical infrastructure and operator language. Before crating, we run the ZDS368A on your confirmed voltage and frequency, record a factory test on your specified panel thickness range, and set the control panel to the agreed language. The crate ships with operation manuals in that same language, a spare parts list sized for the first year, and packing photographs so you can verify condition on arrival [NEED_CITE: CE machinery directive requirements for industrial equipment].
Reading the Specs That Matter Most
The 10–55 mm panel thickness range covers everything from thin cabinet backs to thick shelving stock, but the practical limit depends on edge material. PVC and ABS banding in the 0.3–3.5 mm range feed reliably through all six stations at the rated 18 m/min conveyor speed. Thicker veneer strips may require a slower feed to allow the glue pot sufficient open time, a variable your operator sets on the control panel. The HT260 conveyor guide rail and Taiwan-brand head guide rail maintain lateral stability across that thickness span, which directly affects the consistency of the fine-trimming and scraping passes. A 14 mm high-strength steel fuselage with high-temperature quenching treatment resists the vibration that lighter frames transmit into the trimming heads, keeping edge profiles uniform over long production runs. Pneumatic actuation via German Festo or Taiwan AirTAC cylinders ensures each trimming station engages with repeatable force, reducing the scrap rate on the first panels of every batch.
The Hidden Cost of Skipping Configuration Checks
Ordering a stock machine without verifying local power supply, control language, or conveyor feed height relative to your existing roller tables creates downstream friction that no amount of on-site adjustment fully resolves. Operators who cannot read the control panel stall commissioning while waiting for translated documentation. A feed height mismatch with upstream panel sizing saws forces manual lifting at every infeed cycle, negating the throughput advantage of automation entirely [NEED_CITE: common commissioning delays in woodworking machinery installation]. These are not warranty issues — they are configuration oversights that fall outside standard support.
Why Source This Unit Through Our Ready-Stock Channel
Every ZDS368A dispatched from inventory passes a four-stage quality check covering incoming material verification, in-process assembly inspection, finished-product functional testing, and pre-shipment validation under your confirmed voltage. Our proprietary cutting mechanisms hold a tolerance of ±0.02 mm, which you can verify on the factory test record included with your shipment. Voltage customization from 110V to 440V and multilingual control panels are treated as standard configuration steps, not special-order requests. Engineer-led configuration recommendations arrive as a formal quotation within 24 hours of your inquiry, and factory visits for pre-shipment witness testing are welcomed at our Ningjin facility.
Documentation & Verification
- CE declaration of conformity matching the ZDS368A model and rated power
- ISO 9001 certificate covering the manufacturing and quality management process
- Factory test record on your specified panel thickness and edge material before dispatch
- Electrical schematic confirming your voltage and frequency configuration
- Operation and maintenance manual in the language your operators read
Installation, Commissioning & Support
- Allocate a level concrete pad accommodating the 4200×1000 mm footprint with clearance for panel infeed and outfeed
- Provide a dedicated 380V three-phase circuit rated for the 8.5 kW load plus starting surge
- Machine ships partially disassembled; reassembly guided by supplied manual and video instruction
- First-run parameter setting covers glue temperature, feed speed, and trimming head offsets for your panel stock
- Spare parts list included for first-year maintenance of blades, scraping tools, and buffing wheels
- Pneumatic system requires a clean, dry air supply at 0.6–0.8 MPa with a dedicated filter-regulator unit
What We Need Before We Crate Your Machine
To match the ZDS368A to your workshop, share your local supply voltage and frequency, the primary panel materials and edge banding types you run, and the language your operators need on the control panel. If the edge bander will connect to an existing roller conveyor or panel sizing saw, include the feed height of that equipment so we can confirm alignment before dispatch.
Frequently Asked Questions
Q: Is the ZDS368A currently in stock and how fast can it ship?
A: The ZDS368A Automatic Edge Banding Machine in stock is held in our warehouse with all six stations assembled. Once you confirm voltage, frequency, and control language, we run a pre-shipment test and prepare export crating. Dispatch typically follows within days rather than weeks, depending on your port and documentation requirements.
Q: How do I confirm the correct voltage and frequency before ordering?
A: Share your factory’s supply specification — voltage, phase, and frequency — during the inquiry. We configure the ZDS368A motor and electrical panel accordingly, from 110V to 440V, and document the confirmed setting on the electrical schematic that ships with the machine.
Q: What edge banding materials and panel thicknesses does this model handle?
A: The ZDS368A processes PVC, ABS, and veneer edge strips from 0.3 to 3.5 mm thick on panels ranging from 10 to 55 mm. For veneer banding at the upper thickness limit, your operator may reduce conveyor speed to maintain glue adhesion quality.
Q: Can the control panel language be set before shipping?
A: Yes. Multilingual control panels are a standard configuration option. Specify the required language during the order stage and the ZDS368A Automatic Edge Banding Machine in stock will ship with labels, display text, and the operation manual all in your chosen language.
Q: What spare parts come with the machine and how do I order more?
A: Each shipment includes a spare parts list covering blades, scraping tools, buffing wheels, and pneumatic wear items for the first year. Replacement parts are available through our after-sales channel with the same component specifications as the original installation.
