Description
Fast Dispatch Assurance — every ZDSF190 in stock is voltage-verified against your workshop’s power supply before it leaves the loading dock, preventing the dead-on-arrival scenarios that strand machinery at foreign ports.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF190 |
| Product Type | Automatic Curved and Straight Edge Banding Machine |
| Function | Automatic plate feeding, automatic belt breaking, double-sided gluing, upper and lower trimming and polishing, curved and straight edge banding, large diameter surrounding vacuum |
| Edge Type | Both curved and straight lines |
| Voltage & Frequency | 220V 50Hz |
| Rated Power | 4kW |
| Suction Power | 1200W |
| Belt Power | 25W |
| Transmission Power | 120W |
| Heating Power | 800W |
| Polishing Power | 180W×2 |
| Trimming Power | 800W×2 |
| Rated Air Pressure | 0.4-0.6MPa |
| Conveyer Belt Speed | 0-14m/min |
| Feed Speed | 0-14m/min |
| Panel Thickness Range | 10-50mm |
| Strip Thickness Range | 0.5-2.5mm |
| Glue Pot Capacity | 1000ml |
| Overall Dimensions (L×W×H) | 1900×560×1300mm |
| Weight | 120kg |

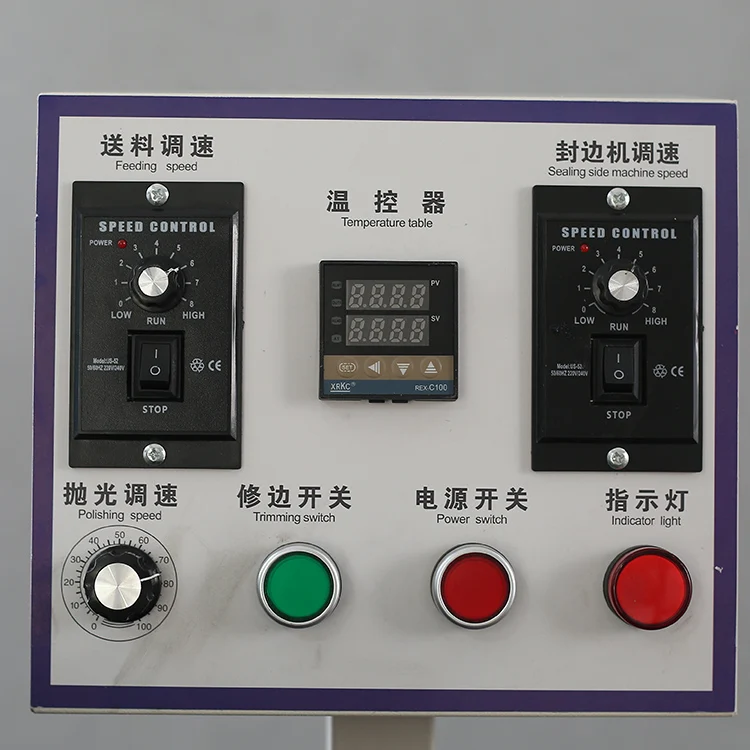

| Control System | Multi-function button operation panel |
| Transmission Mechanism | Steel rod slide rails with crawler transmission |
| Trimming Cutter | 4-blade alloy arc knife |
| Pressure Beam | Adjustable aluminum alloy |
| Feed Mechanism | Double-row rubber pressure wheels |
| Key Features | Curved and straight dual-purpose, dustless operation, large diameter vacuum dust collection |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture and cabinet manufacturing | MDF, particleboard, plywood, and solid wood panels requiring both straight and curved edge profiles |
| Small to medium woodworking workshops | PVC and veneer edge banding strips at 0.5-2.5mm thickness |
| Joinery operations transitioning from manual to semi-automated production | Rectangular cabinet panels and curved furniture components in the same production run |
| Compact workshop environments | Edge banding on panels 10-50mm thick with limited floor space |
Why the Voltage Question Should Come Before the Price
An Automatic Edge Banding Machine in stock means nothing if it cannot power on when it reaches your workshop.
I have seen machines arrive at job sites in West Africa and South Asia only to sit idle for weeks while the factory scrambles to source a step-down transformer. The problem is rarely the machine itself — it is the assumption that a standard configuration will work everywhere. When an Automatic Edge Banding Machine in stock ships without written voltage confirmation, the buyer absorbs all the downtime and the cost of electrical adapters. [NEED_CITE: voltage and frequency standards by export market]
Immediate Availability Without the Wait
This ZDSF190 unit is held in ready stock for fast dispatch, cutting the typical multi-week lead times that hold up workshop timelines. Small furniture makers and cabinet shops that need to fill a production gap can have this Automatic Edge Banding Machine in stock and on a shipping schedule within days rather than waiting for a build cycle. The machine arrives configured to 220V/50Hz with electrical specifications confirmed in writing before it leaves the warehouse.
A Compact Footprint That Fits Where You Need It

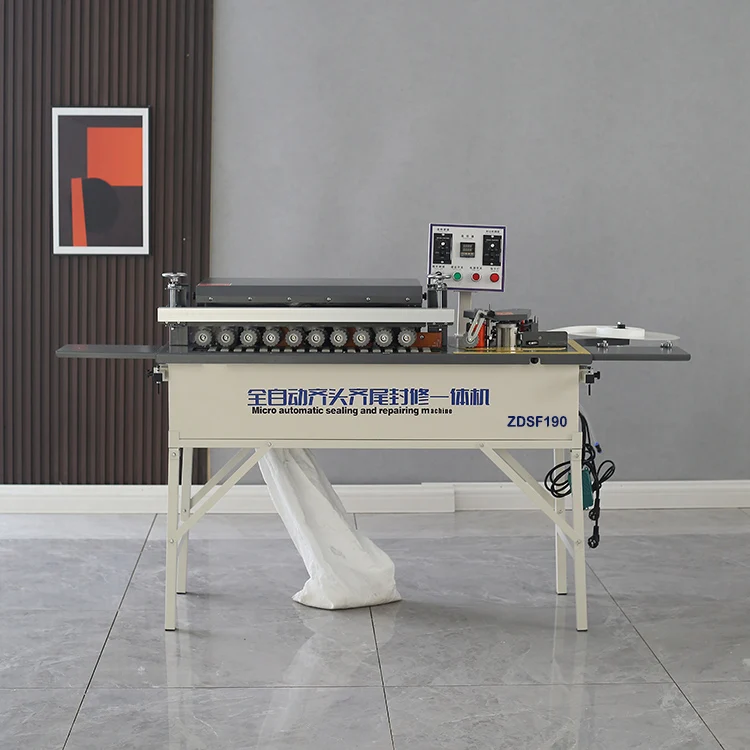

At 1900×560×1300mm and 120kg, this edge bander occupies a fraction of the floor space required by full-production-line models. Workshops operating in tight spaces can position it alongside existing saws and boring machines without rearranging the entire layout. The compact design does not sacrifice function — the machine still handles both curved and straight profiles through its 180° rotation capability, so you do not need to allocate space for two separate units. [NEED_CITE: CE machinery directive requirements for industrial equipment]
How the Specifications Shape Your Daily Output
The 0-14 m/min variable feed speed lets operators match the pace to the material and their own skill level. A less experienced operator can run at lower speeds while learning the trimming and polishing sequence, then increase the rate as confidence builds. The 10-50mm panel thickness range covers the majority of MDF, particleboard, and plywood stock used in cabinet and furniture production, meaning fewer workpieces get rejected at the feed stage.

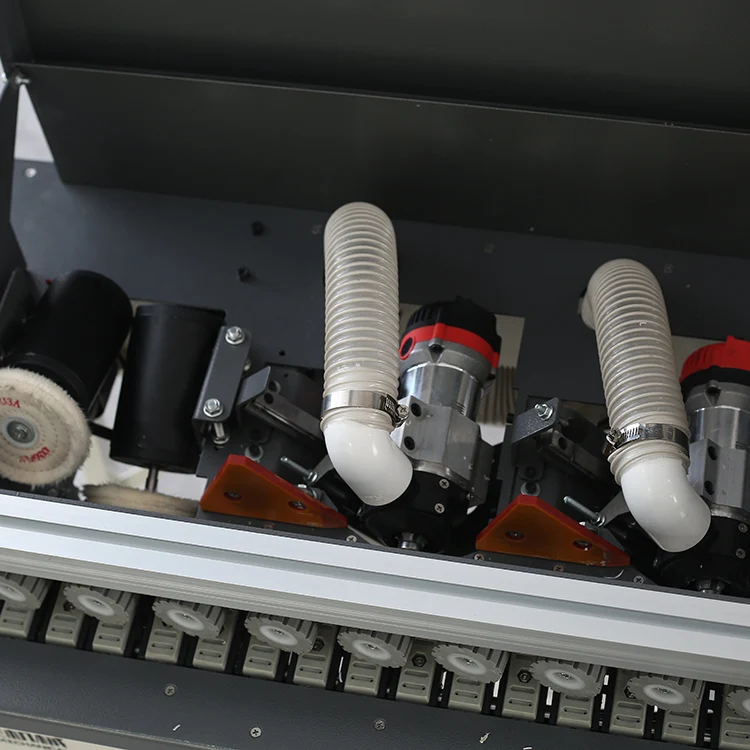

The 4-blade alloy arc trimming cutter produces clean profiles on both curved and straight edges in a single pass. This matters because inconsistent trimming forces downstream assembly problems — gaps at joints, misaligned hinge bores, and panels that refuse to seat flush. The adjustable aluminum alloy pressure beam paired with double-row rubber pressure wheels keeps panels stable through the trimming zone, reducing the chatter marks that lead to rework.

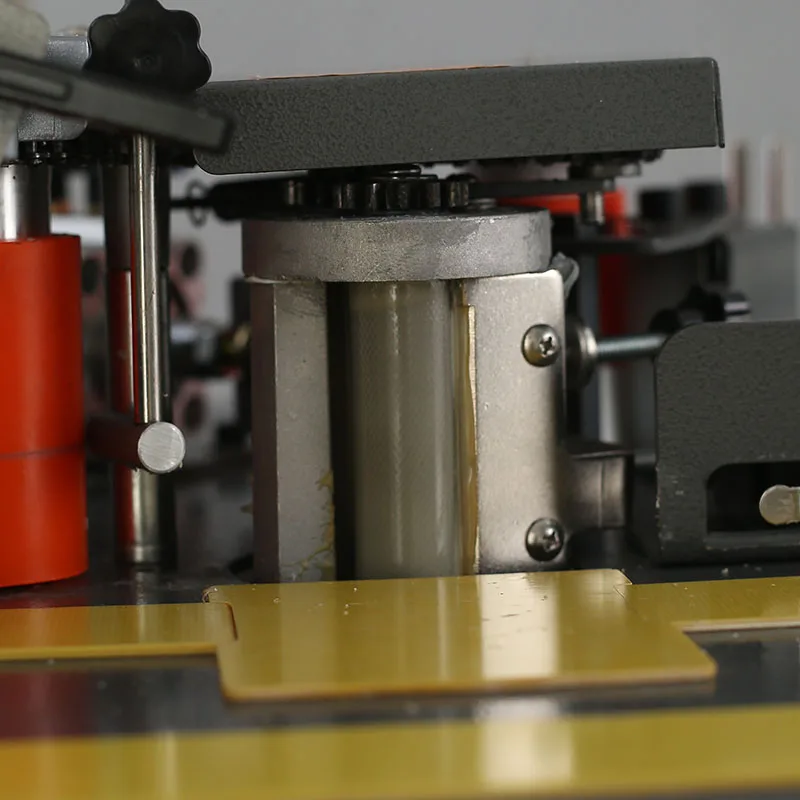

The 1000ml glue pot capacity handles a typical small-workshop production run without requiring constant refills. Combined with the double-sided gluing function, the machine applies adhesive evenly across the strip contact surface, which directly affects bond strength and the visibility of glue lines on finished pieces.
The Real Cost of Skipping Pre-Shipment Verification
A machine that arrives with the wrong voltage configuration does not just cost you the price of a transformer. Every day the machine sits unpowered is a day your workshop runs on manual methods or outsources edge banding to a third party. I have watched small cabinet shops lose entire production schedules because a single piece of equipment could not be commissioned on arrival. That lost time compounds into missed delivery dates and strained client relationships. [NEED_CITE: industrial equipment commissioning failures due to electrical mismatch]
Why Source This Unit Through This Channel
Every stocked unit undergoes voltage and frequency confirmation matched to your destination country before dispatch, so the machine powers on when it arrives rather than waiting for electrical work.
A pre-shipment test record is included that documents trimming quality on your specified panel material and edge band strip thickness, giving you a baseline before the crate is opened.
The machine is backed by four-stage quality control covering incoming material inspection, in-process checks, finished product verification, and pre-shipment testing before any unit is cleared for dispatch.
Operation and maintenance manuals are provided in your agreed language with clear assembly instructions, so your team can commission the machine without waiting for a translated document.
Engineer-led configuration recommendations are available within 24 hours if your production requirements suggest a different model in the range would serve you better.
Documentation & Verification
- CE declaration of conformity covering the ZDSF190 edge banding machine
- Factory test record documenting trimming quality on your panel thickness range
- Electrical schematic with confirmed 220V/50Hz voltage and frequency specifications
- Operation and maintenance manual in your agreed language with assembly guidance
- Spare parts list matched to the ZDSF190 for ongoing maintenance planning
- Packing photographs taken before crate closure for transit condition reference
Installation, Commissioning & Support
- Requires a dedicated 220V/50Hz circuit capable of supporting 4kW rated power draw
- Confirm workshop compressed air supply meets 0.4-0.6MPa rated air pressure before first run
- Assemble the unit on a level floor using the included instructions and steel rod slide rail alignment
- Calibrate the adjustable aluminum alloy pressure beam to your most common panel thickness during commissioning
- Verify the 1200W suction system connects to your dust extraction ducting or operates via onboard collectors
- Stock replacement 4-blade alloy arc knives from the spare parts list for ongoing trimming maintenance
What We Need to Confirm Your Order
To move this ZDSF190 from stock to your shipping schedule, provide your local voltage and frequency so we can confirm electrical compatibility in writing. Share the panel materials and edge band strip types you run most often — MDF, particleboard, plywood, PVC, or veneer — so we can include a relevant pre-shipment test record. Let us know your preferred language for the operation manual and any specific shipping documentation requirements for your port of entry.
Frequently Asked Questions
Q: What stock models are available for immediate dispatch versus made-to-order?
A: The ZDSF190 is held in ready stock for fast dispatch. Other models in the range are built to order with configuration options including voltage, control panel language, and specific trimming station setups. If your production volume or panel range exceeds what this unit covers, an engineer can recommend a higher-tier model with a quoted lead time.
Q: How do I confirm the machine voltage matches my workshop’s power supply before ordering?
A: Provide your local voltage and frequency when you submit an inquiry. We confirm the electrical specification in writing before dispatch and include an electrical schematic with the documentation. This prevents the situation where a machine arrives configured for a voltage standard that does not match your facility.
Q: What is the typical delivery lead time from order to port of shipment?
A: Stocked units like the ZDSF190 can be prepared for dispatch within days once voltage confirmation and documentation requirements are finalized. Made-to-order models follow a longer production cycle. Shipping time from port to your destination depends on the route and carrier schedule.
Q: Can this machine handle both PVC and wood veneer edge banding strips?
A: Yes. The ZDSF190 processes edge banding strips from 0.5-2.5mm thick, which covers standard PVC and wood veneer materials. The double-sided gluing function and adjustable pressure beam accommodate the different bonding characteristics of each material type. Specify your primary strip material so we can test accordingly before shipment.
Q: What assembly and commissioning support is provided upon delivery?
A: The machine requires assembly upon arrival, and an operation manual in your agreed language provides step-by-step instructions. The manual covers pressure beam calibration, feed speed adjustment, and trimming cutter setup. Installation guidance is available to walk your team through the commissioning process and initial parameter configuration.
