Description
Ready-Stock Dispatch — ZDSF50 Mini Edge Banding Machine ships from inventory with pre-confirmed 220V configuration, cutting commissioning delays for workshops that cannot afford weeks of lead time.
Technical Specifications
| Parameter | Value |
|---|---|

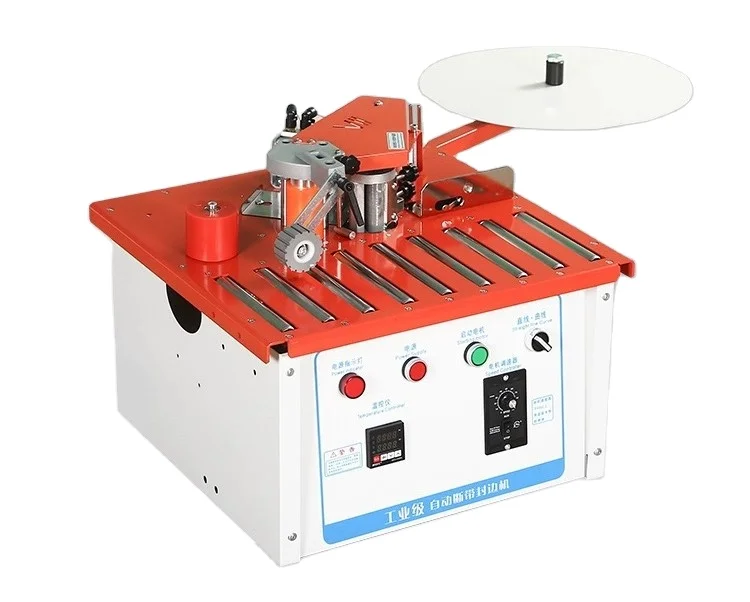

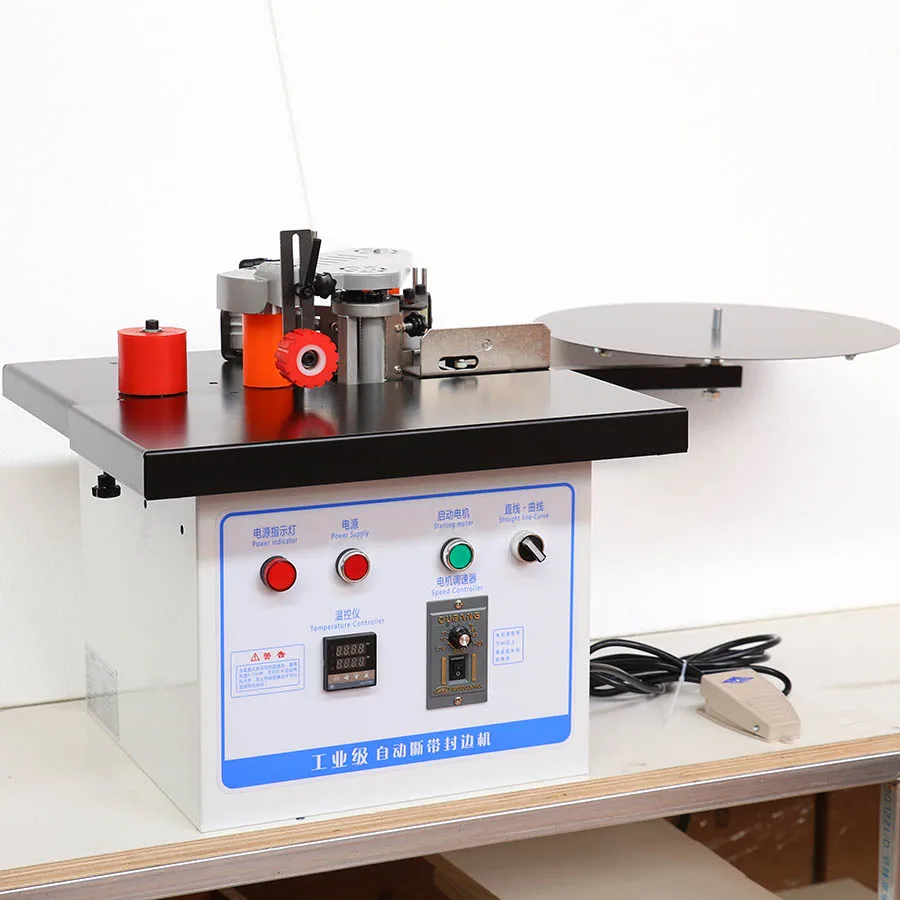

| Model | ZDSF50 Mini Edge Banding Machine |
| Product Type | Mini Edge Banding Machine |
| Rated Voltage | 220V |
| Rated Power | 1.2kW |
| Function | Double side gluing for Straight & Curved & Shaped Edge |
| Rated Air Pressure | 0.4-0.6 MPa |
| Strip Thickness | 0.5-1.5mm |
| Sheet Thickness | 10-60mm |
| Glue Pot Capacity | 1000ml |
| Heating Time | 5-10 min |
| Feed Speed | 0-6 m/min |
| Overall Dimensions | 54×54×56 cm |
| Net Weight | 26 kg |
| Glue Application | Glue-coated rollers, double-sided gluing |

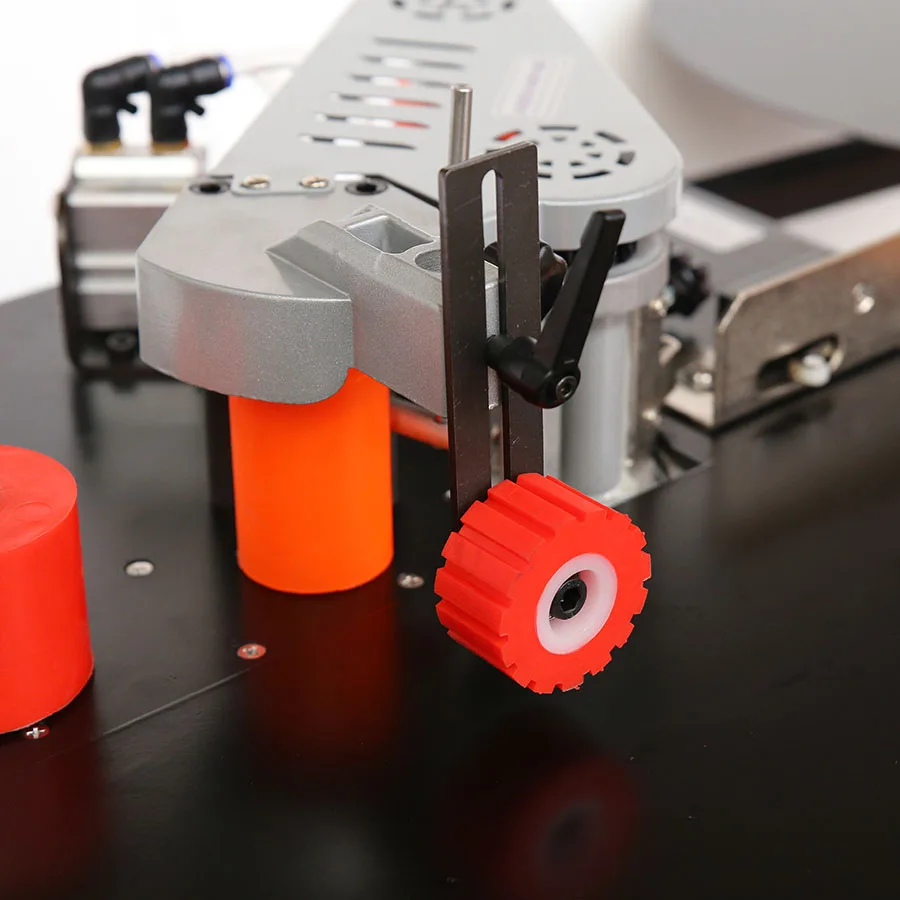

| Pressure Rollers | Adjustable according to board thickness |
| Strip Breaking | Pneumatic with foot switch (curved) and travel switch (straight) |
| Pressing Roller Material | Rubber |
| Heating System | 4 heating tubes |
Application Suitability
| Application | Material or Output |
|---|---|
| Small joinery workshop edge banding | MDF, particleboard, plywood panels with PVC edge strips |
| Custom cabinet curved edge finishing | Shaped furniture components with veneer banding 0.5–1.5mm |
| On-site fitting and mobile installation | Solid wood panels requiring portable edge treatment |
| Low-volume production complement | Board thickness 10–60mm, straight and profiled edges |
Why Voltage Confirmation Matters Before the Container Ships
A machine that arrives with the wrong voltage is not a delay — it is a stopped production line.
When a workshop orders a mini edge banding machine in stock and receives it with mismatched electrical specifications, the consequences extend beyond a simple return. The unit sits idle while transformers are sourced, customs clearance holds up auxiliary equipment, and cabinet orders pile up unfinished. I have coordinated emergency shipments of voltage converters to ports where the original machine was already cleared through customs, and the downtime cost the buyer more in lost contracts than the machine itself was worth [NEED_CITE: voltage and frequency standards by export market]. The ZDSF50 is stocked at 220V, and confirming this matches your facility supply before dispatch eliminates the most common commissioning failure I see in small woodworking equipment.
What Ready Inventory Actually Means for Your Schedule
Procurement cycles for specialized woodworking equipment often stretch into weeks, particularly when factories request custom voltage or language configurations. This Mini Edge Banding Machine in stock configuration bypasses that queue. The unit is assembled, tested, and crated — meaning the gap between order confirmation and dispatch shrinks to the logistics window alone. For a joinery shop that just landed a contract requiring curved-edge cabinet doors, that difference determines whether the first delivery meets the deadline.
Single-Unit Orders Without the Minimum-Order Friction
Large production lines require container-load planning, but most small workshops need exactly one machine to fill a capability gap. The ZDSF50 ships as a single-unit order with full documentation, spare parts, and operation manual included [NEED_CITE: CE machinery directive requirements for industrial equipment]. There is no requirement to bundle additional equipment or commit to a production run. This matters when a custom furniture maker needs curved-edge banding capacity now, not after a full line expansion is approved and funded.
Reading the Specs Against Your Actual Panel Inventory
The 10–60mm sheet thickness range covers standard MDF and particleboard used in cabinet carcasses, but it also reaches into thicker solid wood panels common in furniture legs and frame components. The adjustable pressure rollers and bayonet strip transport mean changeover between 16mm shelving stock and 45mm table aprons does not require tooling swaps — only manual adjustment. The 1000ml glue pot with four heating tubes reaches operating temperature within minutes, so short production runs do not waste adhesive or energy on prolonged heat-up cycles. The 0–6 m/min feed speed allows operators to slow down for curved profiles where precision matters more than throughput.
The Cost of Buying Beyond Your Actual Production Volume
Purchasing a full-automatic edge bander for a workshop that processes twenty panels a day creates a different problem than under-capacity: the machine demands maintenance cycles, calibration checks, and adhesive consumption that the workload cannot justify. I have seen small cabinet makers invest in six-station automatic lines that sat idle three days a week because their order profile consisted of custom one-off pieces requiring frequent setup changes [NEED_CITE: workshop equipment utilization patterns in small-scale furniture manufacturing]. A compact, manually-fed unit like this one matches that production rhythm without the overhead of automated systems designed for continuous-shift operation.
What This Stock Channel Provides Beyond the Machine Itself
Every ZDSF50 that ships from inventory carries the same documentation package as a custom-order unit: pre-shipment test records run on actual panel stock, electrical schematics confirming the 220V configuration, and an operation manual produced in the language specified at order. The four-stage quality verification covers incoming material inspection through final crate photography, so you receive images of your specific unit before it leaves the facility. Engineer-led configuration support remains available even on stock units — if your local supply is 220V but at an unusual frequency, that conversation happens before dispatch, not after arrival.
Documentation & Verification
- Factory test record on your specified panel thickness and edge strip material before crating
- Electrical schematic confirming 220V single-phase wiring and plug configuration
- Operation and maintenance manual in the operator language confirmed at order placement
- Spare parts list with part numbers matching the unit serial number shipped
- Pre-shipment photograph set showing your machine packed and labeled for destination
Installation, Commissioning & Support
- Requires standard 220V single-phase circuit with dedicated breaker rated above 1.2kW draw
- Arrives fully assembled at 54×54×56 cm footprint — place on stable bench and connect air supply
- Pneumatic strip-breaking needs 0.4–0.6 MPa clean dry air from existing workshop compressor
- First heat-up cycle runs 5–10 minutes to condition the 1000ml glue pot before production begins
- Rubber pressing rollers inspected for surface condition and replaced if storage marks are visible
- Foot switch and travel switch tested on straight and curved sample pieces during commissioning
Before You Request a Quote
Confirm the voltage and frequency at your facility — this stock unit is configured for 220V, and mismatches here cause the most commissioning failures I handle. Identify the thickest panel and the tightest curve radius in your current order book so we can verify the 10–60mm range and feed speed suit your work. Specify the operator language for the manual and any control markings, since this is set at dispatch and difficult to change after arrival.
Frequently Asked Questions
Q: Is this ZDSF50 unit in stock and how fast can it be dispatched?
A: This configuration ships from ready inventory. Once voltage and language are confirmed, dispatch typically follows within the logistics scheduling window. There is no production queue — the machine is assembled, tested, and available for immediate crating. Transit time depends on destination and shipping method selected at order.
Q: What voltage does the ZDSF50 run on and can it match my local supply?
A: The stocked configuration runs on 220V single-phase power. If your facility operates on a different voltage or frequency, this must be confirmed before dispatch so the correct unit is allocated or adapted. Shipping a mismatched machine results in non-functional equipment on arrival and costly transformer procurement at destination.
Q: How do I switch between curved edges and straight edges on this machine?
A: Curved edges use the foot switch for manual pneumatic strip-breaking, giving the operator control over break timing around profiles. Straight-line operation engages the travel switch for automatic breaking at panel end. Switching between modes takes seconds and requires no tool changes — only selecting the appropriate control input.
Q: What edge banding materials and thicknesses does the ZDSF50 accept?
A: The machine handles PVC and veneer edge strips from 0.5mm to 1.5mm thickness. The adjustable bayonet transport accommodates varying strip heights, and the double-sided glue application works across both material types. Board thickness capacity runs from 10mm to 60mm, covering standard panel stock and thicker solid wood components.
Q: What assembly or setup is needed when the machine arrives?
A: The ZDSF50 ships fully assembled. Setup involves positioning on a stable workbench at the 54×54×56 cm footprint, connecting to a 220V circuit and a compressed air supply at 0.4–0.6 MPa. The first heat-up cycle conditions the glue pot. The included manual walks through initial calibration of pressure rollers for your specific board thickness range.
