Description
Voltage-Verified Stock Dispatch — Every ZDSF802 unit ships only after confirming your local voltage and frequency, so the machine powers up and runs from the first day in your workshop.
Technical Specifications
| Parameter | Value |
|---|---|

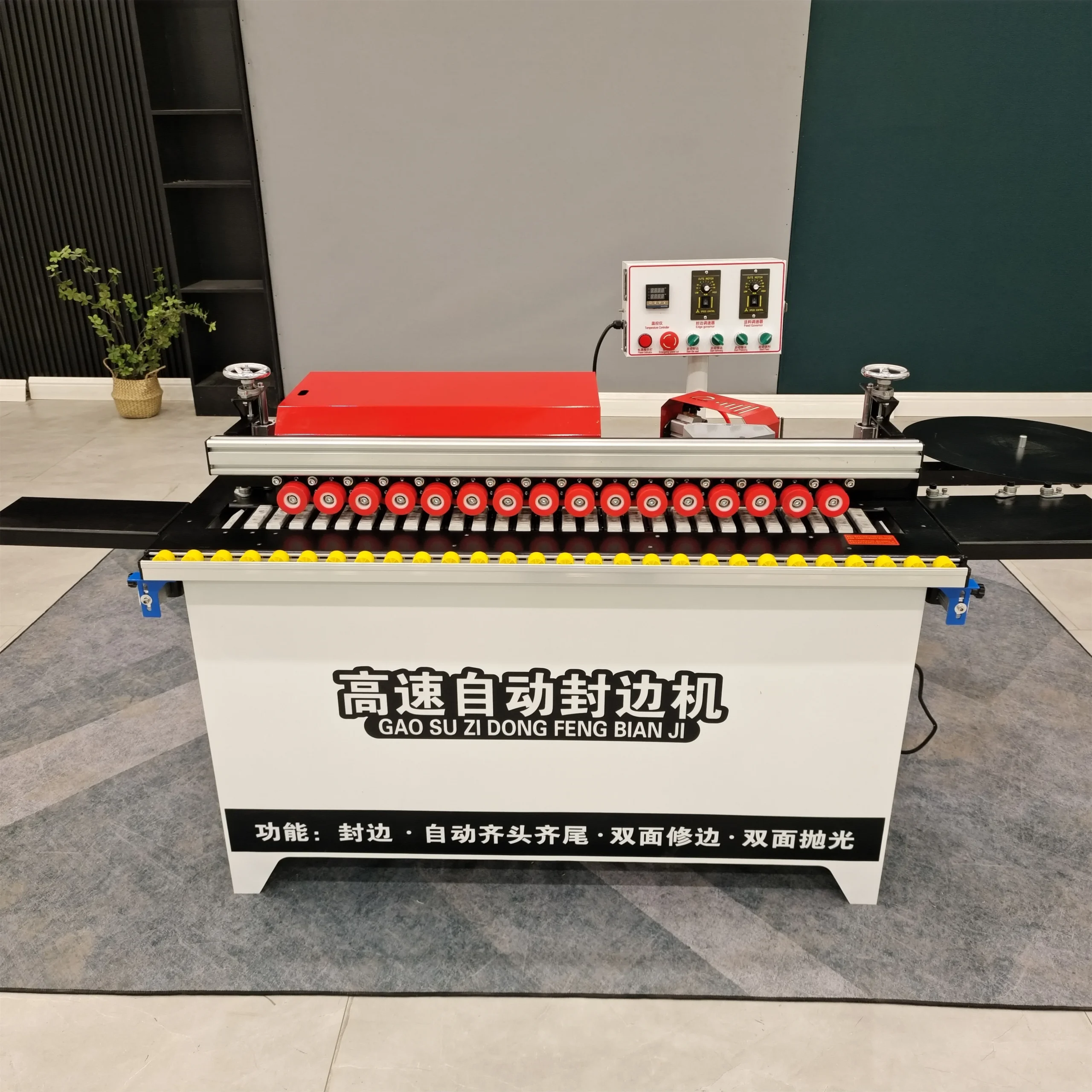

| Model | ZDSF802 Full-line Auto Edge Banding Machine |
| Product Type | Automatic Edge Banding Machine |
| Function | Gluing, End cutting, Trimming, Vacuuming, Buffing |
| Rated Voltage | 220V (source value — verify frequency and phase for target market) |
| Rated Power | 4 KW |
| Strip Thickness | 0.5–2.5 mm |
| Sheet Thickness | 10–50 mm |
| Rated Air Pressure | 0.6–0.8 MPa |
| Working Speed | 0–7 m/min |
| Conveyor Belt Speed | 0–14 m/min |
| Glue Capacity | 4000 ml |
| Overall Dimensions | 190 × 60 × 130 cm |
| Net Weight | 150 kg |
| Control Panel | Digital display of glue pot temperature, independent switch |

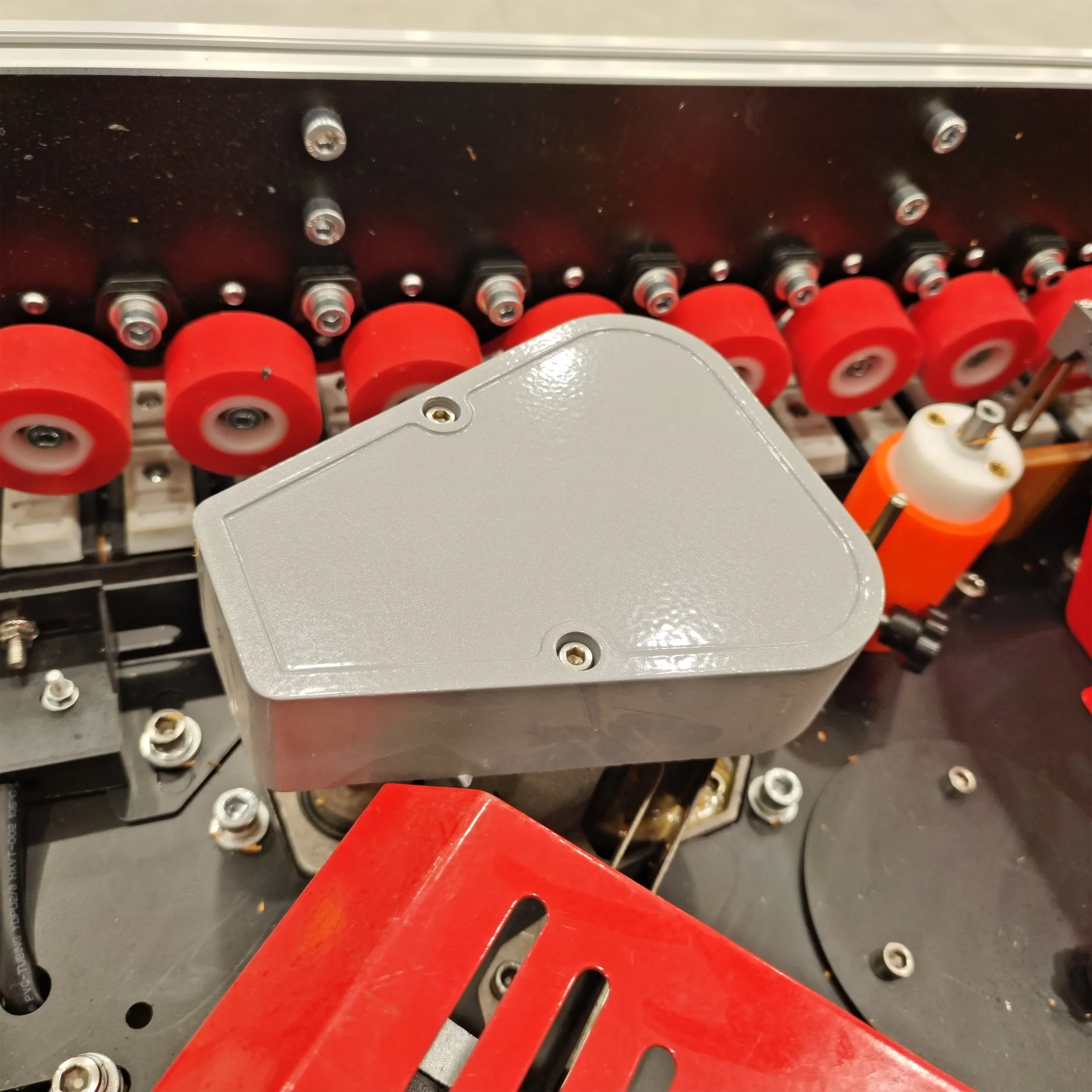

| Pressure Beam | Integrated pressure beam, double rows of pressure wheels |
| Conveyor Belt Material | Silicone |
| Belt Breaking Method | Pneumatically controlled |
| Trimming | Double high-speed trimming motors, up and down trimming |
| Buffing/Polishing | Up and down two polishing motors |
| Support Table | Extendable fluent strips for large plates |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge banding | MDF board with PVC or melamine edge strips |
| Cabinet door and carcass production | Melamine-faced particleboard with 0.5–2.5 mm banding |
| Small-batch joinery components | Plywood panels with veneer or PVC edge banding |
| Workshop upgrade from manual banding | Mixed panel materials in batch runs |
Why the Voltage Question Must Come Before Dispatch
A machine that cannot power on is not a machine — it is a 150 kg obstacle sitting on your workshop floor.
I worked in QC on edge banding machines before moving into sales, and one shipment still haunts me. A full-auto edge bander went to a cabinet shop in Southeast Asia without anyone confirming the local supply. It sat in their workshop for three weeks while they sourced a transformer. That delay cost them lost production, strained trust, and a bill nobody wanted to pay. When we stock the ZDSF802 Automatic Edge Banding Machine in stock for fast dispatch, the first question we now ask is always about your voltage and frequency — not the price, not the lead time [NEED_CITE: voltage and frequency standards by export market]. A quick confirmation before the crate leaves our warehouse prevents weeks of downtime on your end.
Stock Availability Without the Guesswork
Workshops scaling from manual edge banding to automated production rarely have the luxury of waiting through a long production cycle. The ZDSF802 Automatic Edge Banding Machine in stock is held ready so that a single-unit order can be dispatched within a short lead time, covering gluing, end cutting, trimming, vacuuming, and buffing in one continuous pass. For a small custom furniture shop or a cabinet maker adding edge banding capability, that means the machine arrives and goes to work rather than sitting on a purchase order for weeks.
What Fast Dispatch Actually Requires Behind the Scenes
Holding stock is only half the equation. Each unit must undergo a pre-shipment test that verifies the glue pot reaches temperature, the trimming motors run true, and the pneumatic belt breaker cycles correctly under the rated air pressure range. Without that verification step, a stocked machine is no different from a catalog listing. Our process includes running a test panel through the full function sequence before crating, and the test record ships with the documentation package so you have a baseline for comparison when the machine arrives [NEED_CITE: pre-shipment inspection standards for woodworking machinery exports].
How Glue Capacity and Feed Speed Shape Your Daily Output
The 4000 ml glue pot on the ZDSF802 is sized to sustain continuous edge banding runs without frequent refill interruptions. In a cabinet shop running melamine-faced boards with PVC edge strips, a smaller pot would force the operator to pause mid-batch, letting the remaining glue cool and risking inconsistent adhesion on the next panel. The working speed of 0–7 m/min pairs with the conveyor belt speed of up to 14 m/min, giving the operator control over feed rate depending on panel thickness and strip material. Thicker strips at the upper end of the 0.5–2.5 mm range generally require a slower feed to allow full glue penetration and clean trimming, while thinner PVC strips can run at higher speeds without sacrificing edge quality. The double high-speed trimming motors handle up-and-down trimming in a single pass, which directly affects how clean the edge sits against the panel face — a detail that becomes visible the moment the panel goes into assembly.
The Hidden Cost of Skipping Pre-Dispatch Voltage Verification
Buying a ready-stock edge bander feels straightforward until the machine arrives and the motor hums at the wrong frequency. Panels feed unevenly, the glue pot struggles to maintain temperature, and the trimming motors burn out under sustained load at an incompatible voltage. These are not warranty claims — they are installation failures that fall on the buyer. Workshops in regions with 50 Hz and 60 Hz supply variations are particularly exposed, and a unit configured for one standard will underperform or fail prematurely on the other [NEED_CITE: effects of frequency mismatch on AC induction motors in industrial equipment]. Confirming these details before dispatch takes minutes; resolving them on-site takes weeks.
Why Procurement Through a Stock-Focused Channel Matters
The ZDSF802 sits within a full product family that ranges from entry-level to full-function pre-milling models, so a workshop can start here and scale to higher-spec units from the same supplier without relearning controls or re-sourcing spare parts. Every stocked unit ships with voltage and specification customization confirmed before dispatch — not as an afterthought, but as a standard step. The four-stage QC process covers incoming material inspection, in-process assembly checks, finished product testing, and pre-shipment verification, which means the unit you receive has been tested under operating conditions rather than merely assembled and crated. Engineer-led configuration recommendations are available within 24 hours if your panel mix or production volume suggests a different model within the range would serve you better. Factory visits are welcomed for buyers who want to see the line before committing.
Documentation & Verification
- CE declaration of conformity covering the ZDSF802 edge banding machine
- Factory test record on your specified panel thickness and strip material before dispatch
- Electrical schematic with confirmed voltage and frequency for your local supply
- Operation and maintenance manual provided in the language your operators read
- Spare parts list identifying wear items for quick reorder
- Packing photographs taken at crating for condition verification on arrival
Installation, Commissioning & Support
- Requires a dedicated 220V circuit matched to confirmed frequency and phase for the 4 KW rated power
- Overall footprint of 190 × 60 × 130 cm needs clearance on both infeed and outfeed sides for panel handling
- Pneumatic connection to a 0.6–0.8 MPa air supply must be established before first run
- Extendable fluent strips require assembly and alignment to support large-format panels during processing
- Digital glue pot temperature display calibrated during commissioning for your specific edge banding material
- Silicone conveyor belt inspected and tensioned at installation to prevent feed slippage
What We Need to Move Your Order Forward
Tell us your local voltage, frequency, and phase so we can confirm compatibility before the ZDSF802 leaves our warehouse. Share the panel materials and edge strip types you run most often — MDF with PVC, melamine with veneer, or a mix — so we can set the glue pot and trimming parameters during the pre-shipment test. If your operators need the control panel and manual in a specific language, let us know at the inquiry stage and we will have it ready at dispatch.
Frequently Asked Questions
Q: Is the ZDSF802 in stock and how quickly can it ship?
A: The ZDSF802 Automatic Edge Banding Machine in stock is held for single-unit orders with dispatch available on a short lead time. Before crating, we run a pre-shipment test on your specified panel material and confirm voltage compatibility. Dispatch timing depends on the verification step and your confirmation, not on a production queue.
Q: Can the 220V supply be confirmed or adapted for my local power?
A: The listed voltage is 220V, but frequency and phase must match your local grid for the 4 KW motor and glue pot heater to function correctly. We verify these details against your supply before dispatch. If adaptation is needed, we address it at the warehouse stage rather than leaving it for you to solve on-site after delivery.
Q: What panel and strip thickness does this edge bander handle?
A: The ZDSF802 processes sheet thickness from 10 to 50 mm and accepts edge strips between 0.5 and 2.5 mm. This covers most MDF, melamine, and PVC banding applications in custom furniture and cabinet production. The double high-speed trimming motors adjust to strip thickness within that range for a clean edge finish.
Q: Is the control panel available in my operator’s language?
A: Multilingual control panels and operation manuals are part of our standard customization. Specify the language at the inquiry stage and the ZDSF802 Automatic Edge Banding Machine in stock will ship with the display labels, manual, and maintenance guide in the language your team reads, avoiding commissioning delays from translation gaps.
Q: What spare parts ship with the machine and how do I reorder?
A: A spare parts list identifying wear items — trimming blades, polishing wheels, conveyor belt sections — ships with the machine documentation. Reorders are placed through the same channel with part numbers from the list, and the silicone conveyor belt and pneumatic components are standard industrial items available in most markets for faster local sourcing when needed.
