Description
Fast Dispatch Guarantee — stocked 220V automatic edge banding machines ship within days, not weeks, with pre-verified voltage documentation so your workshop commissions the equipment the moment it arrives on the floor.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Automatic Edge Banding Machine |
| Voltage | 220V |
| Total Suction Power | 1200W |
| Transmission Power | 60W |
| Trimming Power | 800W × 2 (up and down) |
| Polishing Power | 180W × 2 (up and down cross polishing) |
| Belt Power | 25W |
| Conveying Speed | 0–15 m/min |
| Edging Speed | 0–6 m/min |
| Edge Height Range | 10–60 mm |
| Edge Thickness Range | 0.3–3 mm |
| Overall Dimensions | 120 × 54 × 72 cm |
| Net Weight | 81 kg (source value — verify against manufacturer catalog) |
| Control System | Individual function control panel |
| Gluing Method | Double-sided adhesive application |
| Edge Banding Type | Straight and curved dual purpose |
| Board Feeding | Automatic feeding with double-row rubber pressure wheels |
| Gluing Device Rotation | 180 degrees for curved edge banding |
| Dust Extraction | Integrated suction device |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door production | MDF and particleboard panels with PVC edge banding |
| Curved furniture component edging | Plywood and shaped solid wood panels with veneer or PVC |
| Small joinery workshop output | Mixed panel substrates transitioning from hand trimming to machine-fed consistency |
| Short-batch bespoke furniture runs | Variable panel thicknesses requiring frequent edge height and thickness changeovers |
Why Voltage Verification Matters Before You Hit "Order"
Confirming your workshop supply against the machine rating eliminates the single most common commissioning delay in cross-border equipment purchases.
I once shipped a PVC edge bander to a cabinet shop and missed a zero on the voltage confirmation sheet. The machine tripped the breaker on first power-up, and the customer lost three weeks of production time while we reworked the electrical supply on site. That failure was entirely avoidable with a single document check before dispatch. When you source an Automatic Edge Banding Machine in stock for fast delivery, the speed advantage disappears if the machine arrives mismatched to your local grid [NEED_CITE: voltage and frequency standards by export market]. A 220V single-phase unit like this one suits many small workshop environments, but verifying frequency — 50 Hz versus 60 Hz — is equally critical, as motor speeds and heating profiles shift with frequency differences.
Stocked Configuration Means Predictable Lead Times
Ordering from ready inventory removes the typical multi-week production queue that custom-built woodworking equipment demands. This automatic edge banding machine in stock configuration ships as a complete unit with trimming, polishing, and dust extraction already integrated. For a joinery startup or a small cabinet maker adding edge banding capability alongside an existing sliding table saw, that compressed timeline means panels move through finishing within days of the purchase decision rather than sitting raw while the workshop waits on machinery.
Dual-Purpose Straight and Curved Operation Without Machine Changeover

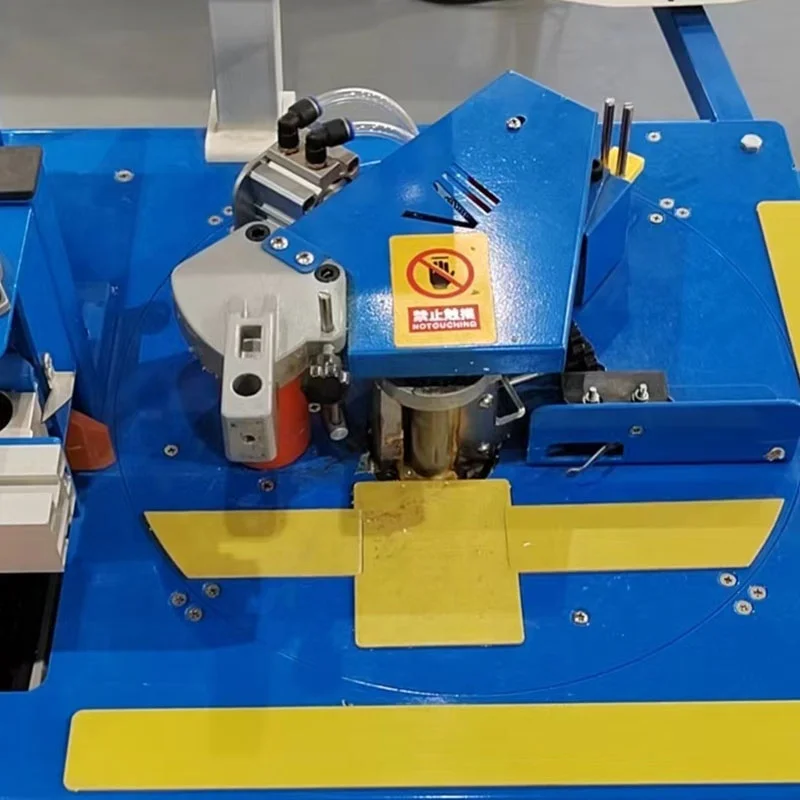

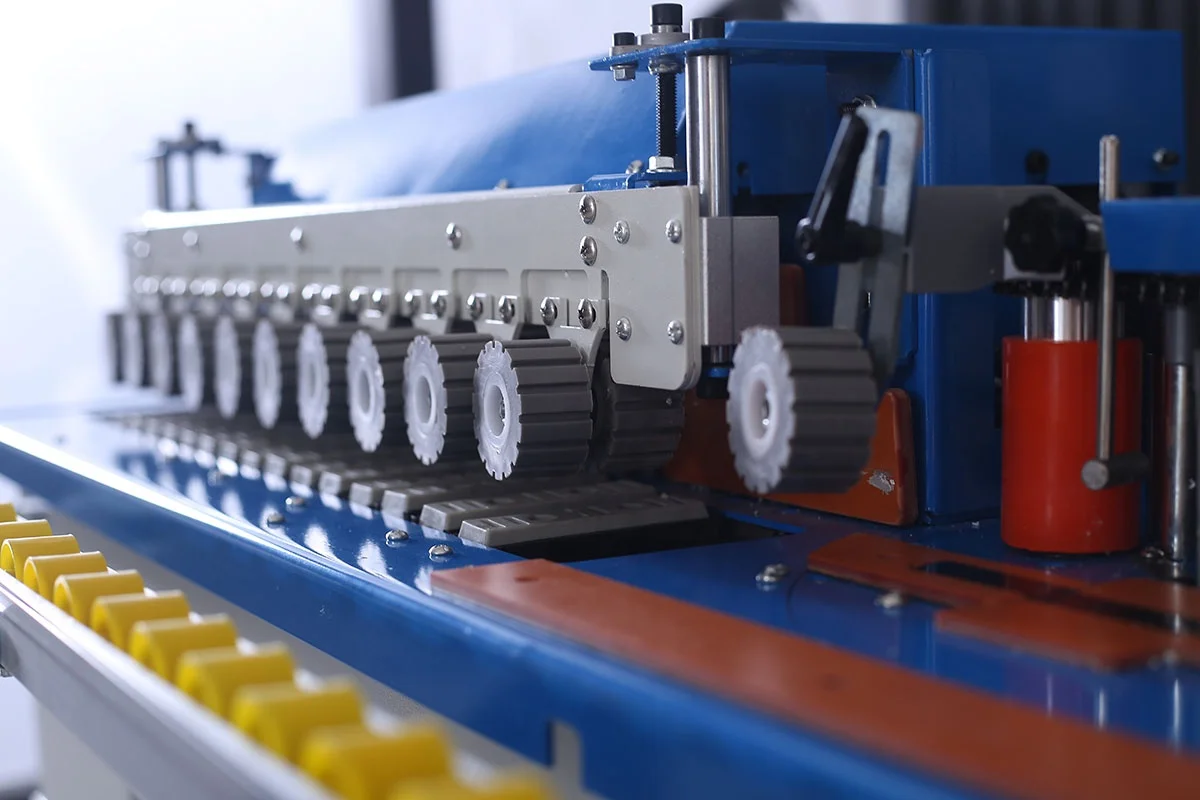

The 180-degree rotatable gluing device lets a single operator switch between straight panel edges and curved profiles without moving the workpiece to a second station. The double-row rubber pressure wheels maintain consistent feed pressure across both geometries, which matters when you are running short batches of shaped cabinet doors or radius-front furniture components. Small workshops that previously handled curved edges by hand gain repeatable edge adhesion and trimming quality from one machine footprint.
What the Spec Sheet Tells You About Edge Finish Quality

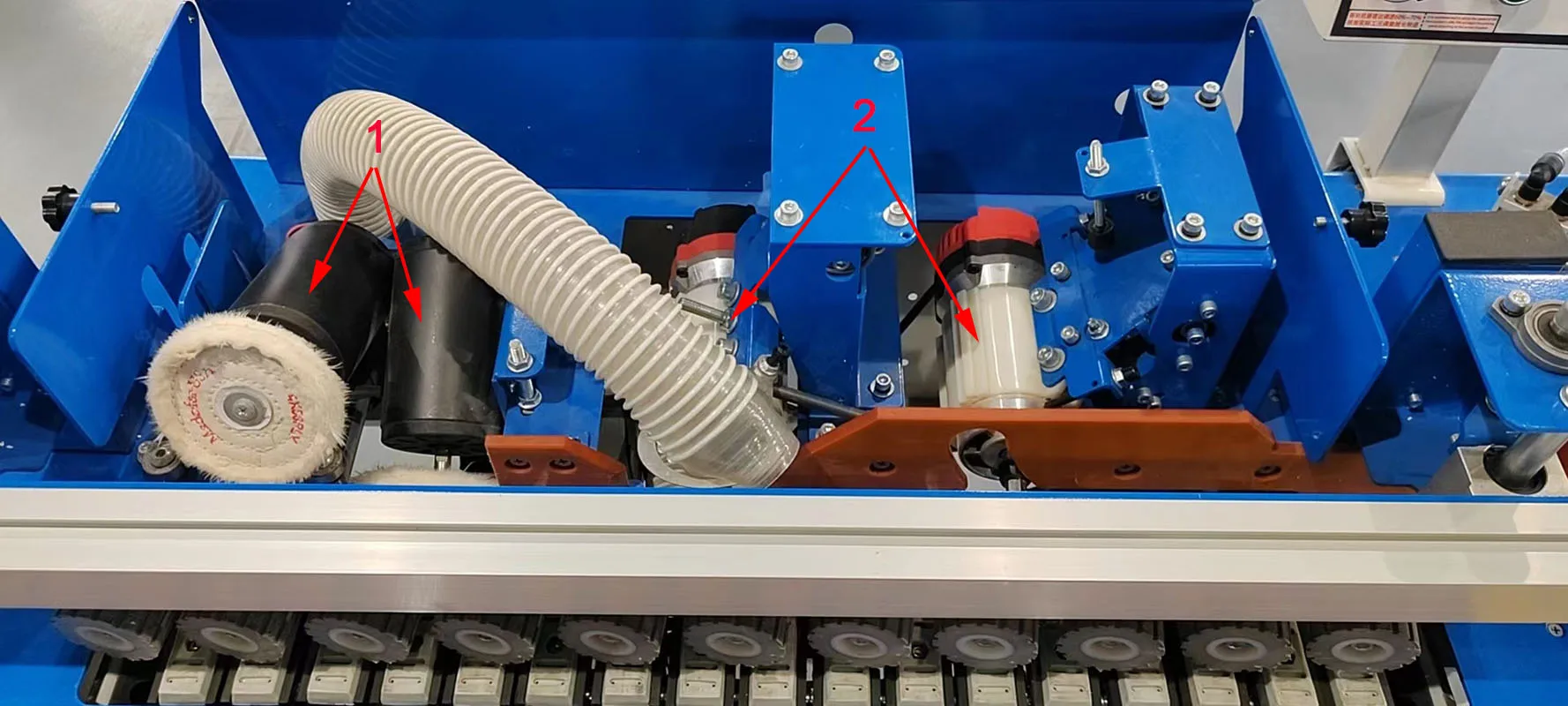

The 800W × 2 trimming motors handle both top and bottom edge overhang in a single pass, removing excess PVC or veneer material flush to the panel surface. Downstream, the 180W × 2 cross polishing stations smooth the trimmed edge to a uniform finish that accepts no further handwork before assembly. The 0.3–3 mm edge thickness range covers thin PVC through thicker veneer and ABS materials, while the 10–60 mm edge height range accommodates standard 18 mm panels up to thicker stock used in shelving and worktop applications. Conveying speed reaches 15 m/min for straight runs, and the edging speed tops out at 6 m/min for curved profiles where slower feed maintains glue contact and trimming accuracy [NEED_CITE: edge banding speed and adhesive bond strength correlation].
The Cost of Skipping Pre-Shipment Verification
Machines that leave the factory without a documented test run on your actual panel material can arrive with glue temperature profiles unsuited to your PVC brand or trimming cutters set to a thickness you never specified. I have seen edge banders of this class produce visible glue lines on particleboard because the adhesive application was never validated against that specific substrate before packing. When the fault surfaces at your workshop, you are troubleshooting remotely with a supplier in a different time zone instead of running production [NEED_CITE: pre-shipment inspection impact on cross-border machinery disputes].
Why This Channel Suits Small-Workshop Buyers
Stocked inventory means your order does not wait behind large production-line builds in the manufacturing queue. Voltage confirmation documentation is generated before dispatch, not after the machine arrives and fails to power on. Each unit ships with a factory test record covering your specified panel thickness range and edge material. The individual function control panel keeps operation straightforward for workshops that do not employ dedicated CNC programmers. Single-unit orders are standard, and shipping options are quoted at the point of purchase so there are no freight surprises after payment.
Documentation & Verification
- CE declaration of conformity covering the complete edge banding assembly
- Factory test record on your panel thickness range and edge material before dispatch
- Electrical schematic confirming 220V wiring and motor circuit layout
- Operation and maintenance manual in your operator’s working language
- Spare parts list with cross-reference numbers for trimming cutters and polishing pads
- Packing photographs showing machine condition and crate securing before release
Installation, Commissioning & Support
- Requires a dedicated 220V single-phase circuit rated for the combined motor and suction load
- Compact 120 × 54 × 72 cm footprint fits standard workshop bays without floor modification
- Integrated dust extraction connects to existing workshop collection or standalone extractor
- Individual function control panel allows station-by-station commissioning and parameter tuning
- Trimming and polishing stations calibrated to your edge thickness during pre-shipment test
- Consumable spare parts list provided for reordering polishing pads and trimming inserts
Before You Request a Quote
Provide your standard panel material and thickness range so the pre-shipment test mirrors your actual production. Confirm your workshop voltage and frequency supply — a 220V 50 Hz machine behaves differently on a 60 Hz grid. Let us know whether your output is predominantly straight-edge panels, curved components, or a mix of both so the configuration matches your workflow.
Frequently Asked Questions
Q: Is this machine currently in stock and what is the dispatch lead time?
A: This automatic edge banding machine in stock configuration is held as completed inventory, not built to order. After payment confirmation and voltage document verification, dispatch typically occurs within several business days. Shipping transit time depends on destination and freight method selected at checkout.
Q: Will the 220V specification work with my local power supply?
A: The 220V single-phase rating suits many workshop grids, but frequency — 50 Hz or 60 Hz — must also match. We confirm both voltage and frequency before dispatch and provide a formal electrical compatibility document. If your supply differs, voltage customization from 110V to 440V is available as a build option on request.
Q: How do I switch between straight and curved edge banding?
A: The gluing device rotates 180 degrees to accommodate curved panel profiles while maintaining consistent adhesive contact. Straight edge banding uses the standard feed orientation. Changeover is manual and takes only a few minutes between workpieces, with no tools required for the rotation adjustment.
Q: What spare parts ship with the machine and how do I reorder?
A: Each unit ships with a spare parts list identifying trimming cutters, polishing pads, and wear components specific to this configuration. Consumables are reorderable through the same sales channel using the listed part numbers. We recommend ordering an initial consumable set alongside the machine to cover your first months of production.
Q: Can I order a single unit and is door-to-door delivery available?
A: Single-unit orders are the standard purchasing model on this platform. Shipping options including door-to-door delivery are quoted at the time of purchase based on your destination address. Packing photographs are provided before release so you can verify crating and securing prior to freight handover.
