Description
Dispatch-Ready Inventory — ZDSF802 automatic edge banding machines are pre-tested at 220V and held in stock so your workshop can receive a working unit within days, not weeks.
Technical Specifications
| Parameter | Value |
|---|---|

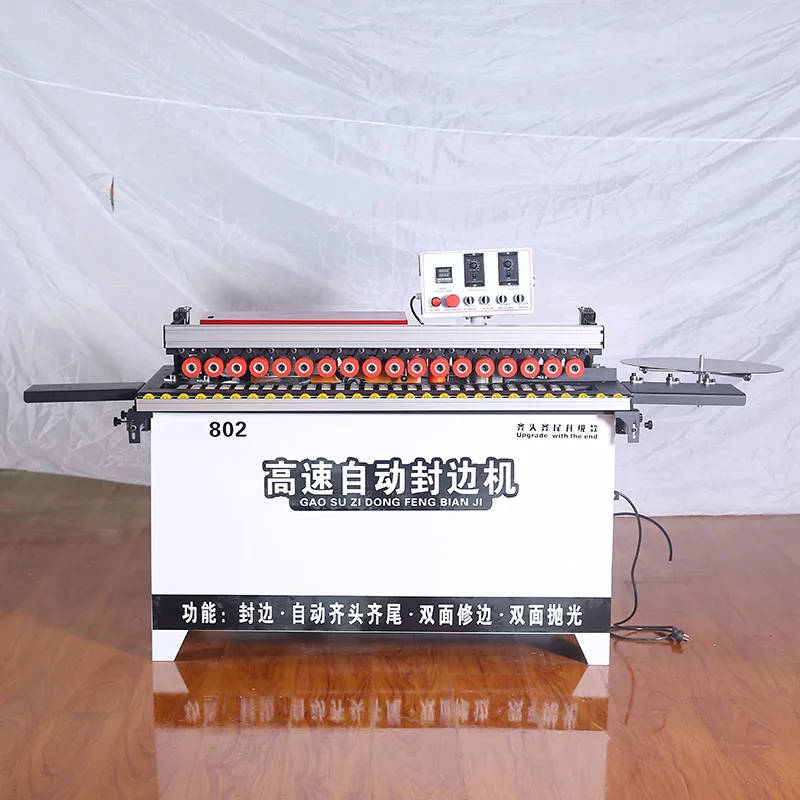

| Model | ZDSF802 |
| Product Type | Automatic Edge Banding Machine |
| Rated Voltage | 220V Single-Phase |
| Rated Power | 4 kW |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Suction Power | 1200W |
| Heating Power | 1000W |
| Feed Speed | 0–10 m/min |
| Strip Thickness Range | 0.5–2.5 mm |
| Sheet Thickness Range | 10–50 mm |
| Glue Pot Capacity | 4000 ml |
| Rated Air Pressure | 0.4–0.6 MPa |
| Overall Dimensions (L×W×H) | 130 × 65 × 75 cm |
| Machine Weight | 150 kg |
| Conveyor Belt Material | Silicone |
| Pressure Beam | Integrated, double-row pressure rollers |
| Band Breaking Method | Pneumatically controlled |
| Edge Type | Straight line |
| Key Features | Automatic plate feeding, end cutting, upper and lower polishing, head and tail trimming, integrated dust collector, digital temperature display, extendable support strips |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and particleboard with 0.5–2.5 mm PVC strip |
| Small-batch furniture panel processing | Plywood panels 10–50 mm thick |
| Workshop transition from manual banding | Straight-line PVC edge banding on board substrates |
| Intermittent production runs | MDF shelving and carcass panels with PVC edging |
Why Voltage Confirmation Must Happen Before You Pay
A machine that cannot power on is not a machine — it is 150 kg of dead iron sitting on your workshop floor.
I learned this the hard way early in my career. A batch of automatic edge banders was shipped to a Middle East client without verifying the local frequency. The voltage matched on paper, but the 50 Hz versus 60 Hz mismatch caused the motors to overheat within the first hour. The client’s production line stood idle for three weeks while replacement components were air-freighted. That experience reshaped how I handle every single dispatch. [NEED_CITE: voltage and frequency standards by export market]

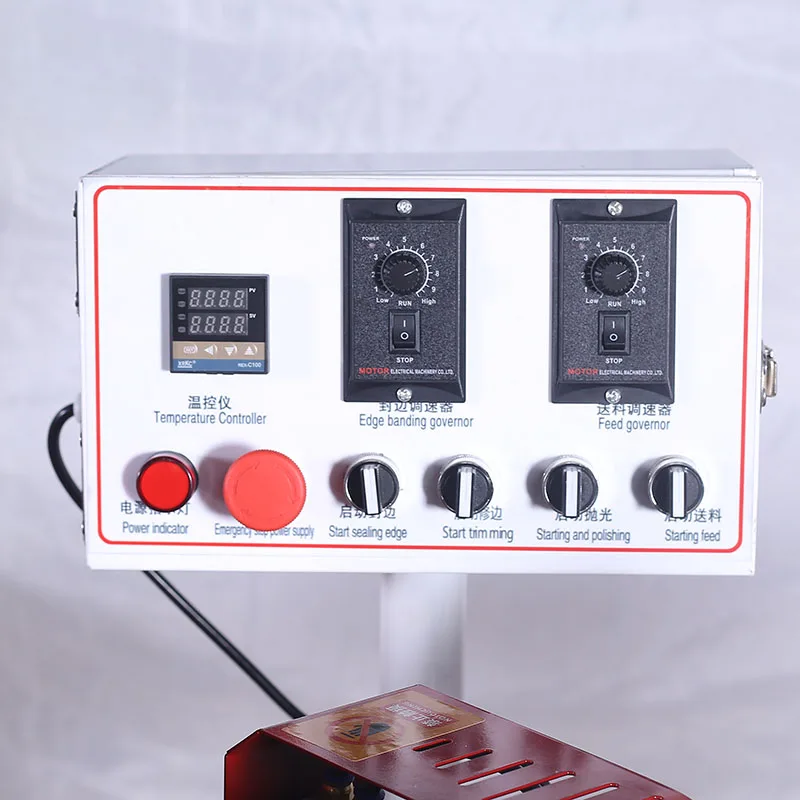

When you are sourcing an Automatic Edge Banding Machine in stock for fast delivery, the excitement of quick availability can push electrical verification to the back of the queue. The ZDSF802 ships at 220V single-phase, which covers a wide range of markets, but local frequency and plug configuration still need confirming before the crate leaves the warehouse. This unit includes a digital display for glue pot temperature and independent control switches, all calibrated to the confirmed supply specification.
Stock Availability and Dispatch Timeline
The ZDSF802 Automatic Edge Banding Machine in stock means the unit has already passed the four-stage quality check, including incoming material inspection, in-process verification, finished product testing, and pre-shipment validation. Rather than waiting for a production slot, your order moves directly to the shipping stage once voltage and language requirements are confirmed.

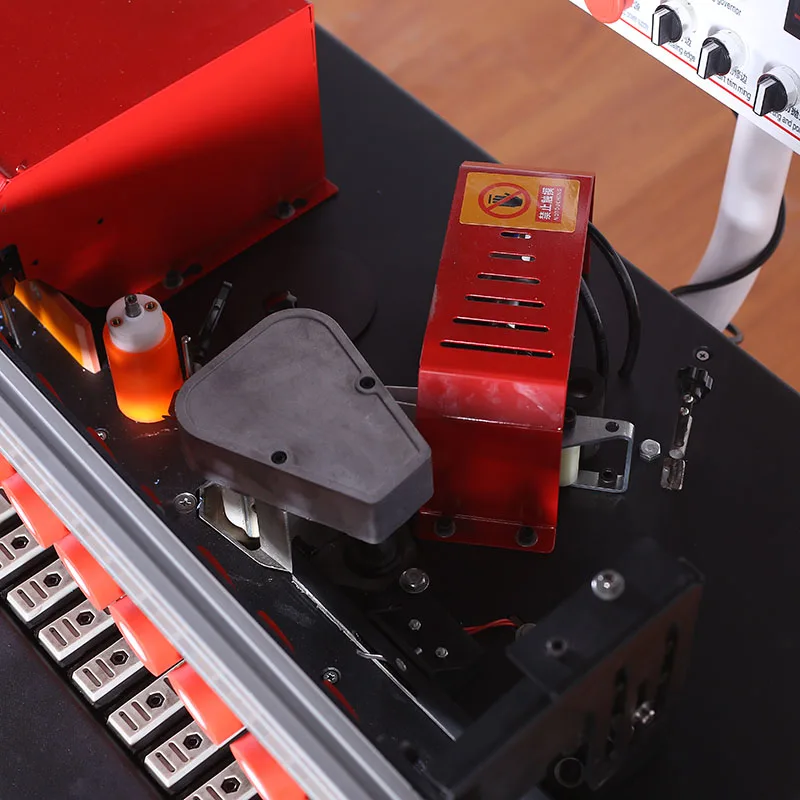

This matters most for workshops that have just landed a contract and need edge banding capacity immediately. The machine arrives with the integrated dust collector already fitted, the silicone conveyor belt tensioned, and the 4000 ml glue pot tested for consistent heating across its 5–10 minute warm-up cycle.
Compact Footprint for Space-Constrained Workshops
At 130 × 65 × 75 cm and 150 kg, this edge bander fits into workshops where floor space is already committed to sliding table saws and panel sizing equipment. The extendable support strips fold away when not in use, keeping the footprint tight during storage or repositioning. [NEED_CITE: CE machinery directive requirements for workshop equipment placement]

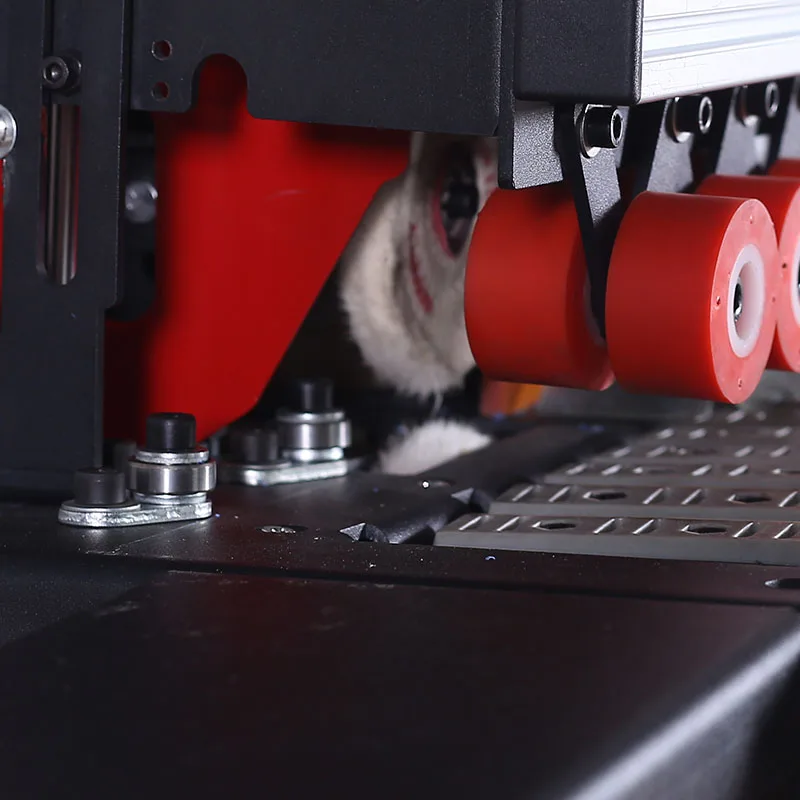

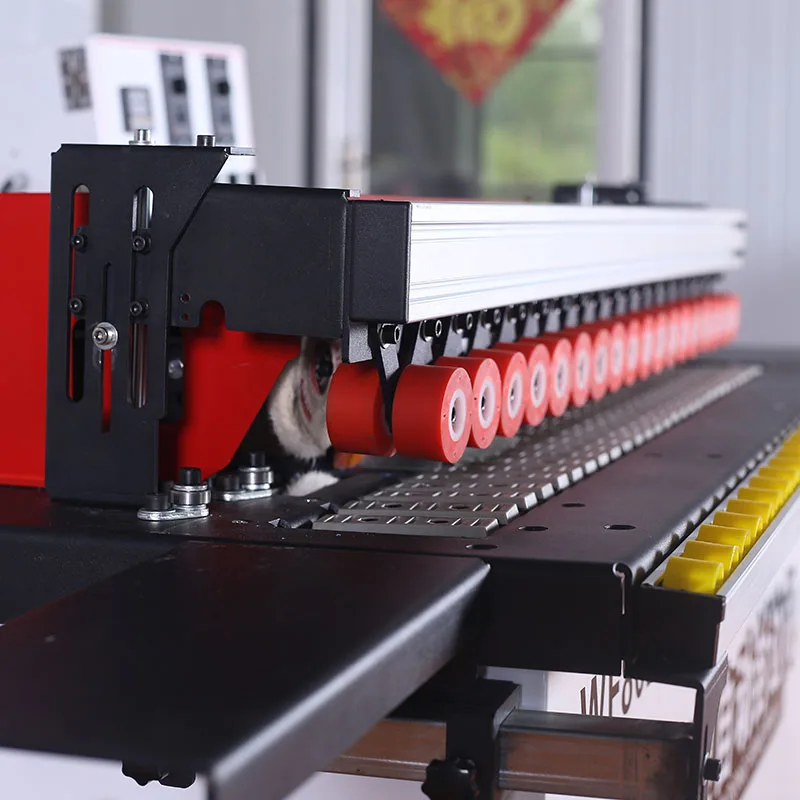

The integrated pressure beam with double-row pressure rollers eliminates the need for separate feeding jigs or external hold-down fixtures. For a small furniture operation scaling from hand-applied edging to semi-automatic processing, this means one operator can manage the feed without additional bench space or helper stations.
Understanding the Numbers That Matter
The 10–50 mm sheet thickness range covers the majority of panel substrates used in custom cabinet and furniture work. When you run 18 mm particleboard — the most common carcass material — the machine sits comfortably in the middle of its capacity, which means the pressure rollers maintain even contact without excessive deflection at the upper or lower limits.
Feed speed at 0–10 m/min gives operators room to adjust based on edge complexity. Thicker PVC strips at the 2.5 mm upper limit benefit from slower feed rates to allow the trimming cutters to engage fully, while 0.5 mm veneer strips can run closer to maximum speed without risking edge lift. The 800W × 2 trimming motors provide adequate torque for clean cuts across this range.
The 4000 ml glue pot capacity is substantial for a machine in this class. A smaller pot would require refilling every few hundred linear meters, interrupting production and introducing temperature inconsistency as fresh glue meets residual heat. With 4 liters, a full shift of intermittent panel runs can proceed without a mid-batch refill.
The 1200W integrated dust collector captures trimmings and polishing residue at the source, reducing airborne particulate in the immediate work area and keeping the conveyor belt clear of debris that could mark subsequent panels.
What Happens When Specifications Are Assumed Rather Than Confirmed
Buying from ready stock carries one specific risk: the assumption that a stocked configuration will match your local conditions. If your workshop runs on a 60 Hz supply and the machine was configured for 50 Hz, the trimming motors will spin faster than designed, accelerating cutter wear and producing rougher edge finishes. The operator may not notice the degradation immediately, but downstream assembly will reveal gaps at joints where edge thickness drifted outside tolerance. [NEED_CITE: electrical frequency impact on motor speed in woodworking machinery]
Similarly, if the control panel arrives in a language your operator cannot read, the glue pot temperature settings become guesswork. Too cool and the PVC strip lifts at the ends; too hot and the adhesive degrades, leaving visible glue lines on lighter substrates. These are not warranty claims — they are commissioning failures that could have been prevented with a ten-minute verification call before dispatch.
Why This Stock Channel Exists
Every ZDSF802 unit held in inventory has undergone the same four-stage quality control process applied to custom-built orders: incoming material inspection on castings and motors, in-process checks during assembly, finished product testing with actual panel runs, and pre-shipment verification against the destination market’s electrical standards.
The patented cutting mechanisms are fitted and calibrated before the machine enters stock, not after an order is placed. This means the ±0.02 mm tolerance specification is verified on a test panel before the unit is crated.
Voltage customization from 110V to 440V is available even on stocked units — the rewiring is completed and re-tested before dispatch, adding only a short delay to the shipping timeline.
An operation and maintenance manual in your operator’s language ships with every unit, covering glue pot maintenance, trimming blade replacement intervals, and conveyor belt tensioning procedures specific to the ZDSF802.
Factory visits are welcomed for buyers who want to see the machine run their specific panel material and edge strip combination before confirming an order.
Documentation & Verification
- CE declaration of conformity covering the ZDSF802 electrical and mechanical safety requirements
- Factory test record showing edge banding results on your specified panel thickness and PVC strip width
- Electrical schematic with confirmed voltage, frequency, and plug type for your local supply
- Operation manual in your operator’s language covering glue pot, trimming, and polishing functions
- Spare parts list identifying trimming blades, polishing wheels, and silicone belt replacement specifications
- Pre-shipment photographs documenting machine condition and packing state before dispatch
Installation, Commissioning & Support
- Requires a dedicated 220V single-phase circuit rated for at least 4 kW continuous draw with proper grounding
- Positioned on a level floor with 130 cm clearance plus operator access on the feed and exit sides
- Pneumatic connection needed at 0.4–0.6 MPa for the band breaking mechanism and pressure roller actuation
- Glue pot first heat-up takes 5–10 minutes; initial temperature calibration should use your actual PVC strip material
- Extendable support strips must be leveled to the conveyor belt height before processing full-size panels
- Trimming blades and polishing wheels included; replacement intervals depend on daily linear meter throughput
What to Share When You Request a Quote
To confirm this Automatic Edge Banding Machine in stock is the right fit for your workshop, provide your local voltage and frequency, the panel substrates you work with most often, and the PVC strip thicknesses you run. If you have a daily linear meter target or a specific panel dimension that represents the majority of your work, that helps determine whether the 0–10 m/min feed range and 130 cm bed length are sufficient. Let us know your operator’s language so the manual and control panel labeling match from day one.
Frequently Asked Questions
Q: Is the ZDSF802 currently in stock and what is the dispatch lead time?
A: Yes, ZDSF802 units are held in ready stock. Once your voltage, frequency, and manual language are confirmed, the machine moves to pre-shipment testing and crating. Dispatch typically follows within a short window after confirmation, significantly faster than a custom-build production slot.
Q: Does the 220V rating match my local power supply, or is voltage customization available?
A: The stocked configuration is 220V single-phase. If your local supply differs, voltage can be reconfigured anywhere from 110V to 440V before dispatch. Always confirm both voltage and frequency — a mismatch on either will prevent proper operation.
Q: What panel thickness and strip thickness range does this machine handle?
A: The ZDSF802 handles sheet thickness from 10 to 50 mm and PVC edge strip thickness from 0.5 to 2.5 mm on straight-line applications. This covers standard MDF, particleboard, and plywood panels used in cabinet and furniture production.
Q: How do I verify the edge banding quality before shipment?
A: Request a pre-shipment sample processing test using your specified panel material and strip thickness. The factory will run the machine with your parameters and share the test record, allowing you to evaluate edge adhesion, trimming quality, and polishing finish before the machine is crated.
Q: What spare parts and consumables ship with the machine?
A: Each ZDSF802 ships with a spare parts list identifying trimming blades, polishing wheels, and consumables. The initial set is included in the crate. Replacement sourcing and availability should be confirmed at the time of order to ensure continuity for your production schedule.
