Description

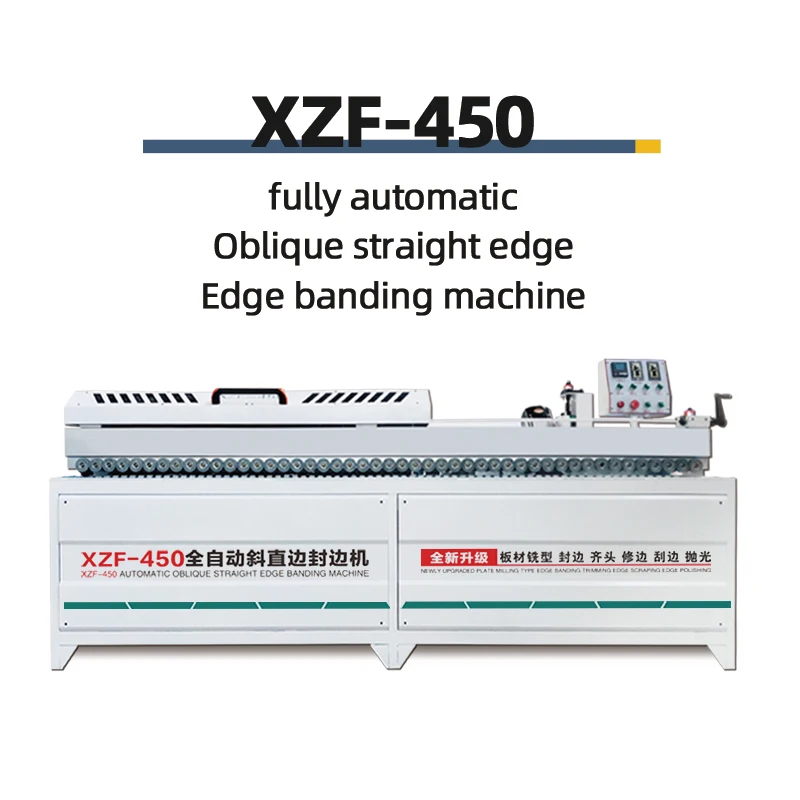

Fast Dispatch from Stock — The XZF-450 automatic edge banding machine in stock is configured, tested, and ready to ship within a short lead time, eliminating the typical multi-week build wait for workshops that need to start producing immediately.

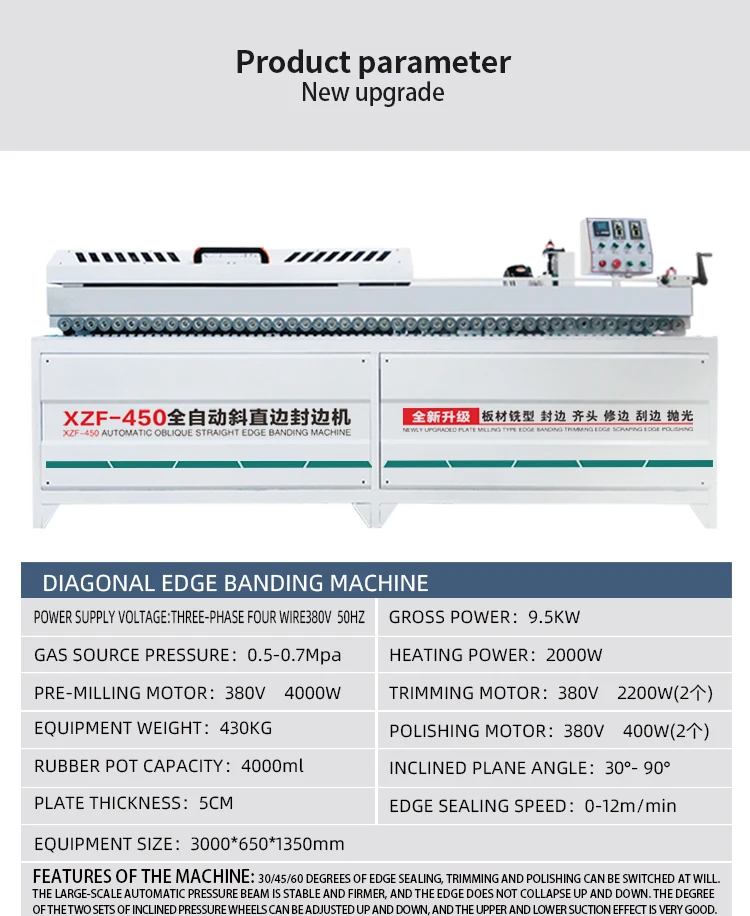

Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Automatic Edge Banding Machine |
| Model | XZF-450 |
| Total Power | 9.5 kW |
| Voltage | 380V/415V (frequency to be confirmed per destination market) |
| Pre-milling Motor | 4 kW |
| Edge Power / Speed | 0.16 kW / 0–12 m/min |
| Transmission Power / Speed | 180 W / 0–12 m/min |
| Trimming Power | 2.2 kW × 2 |

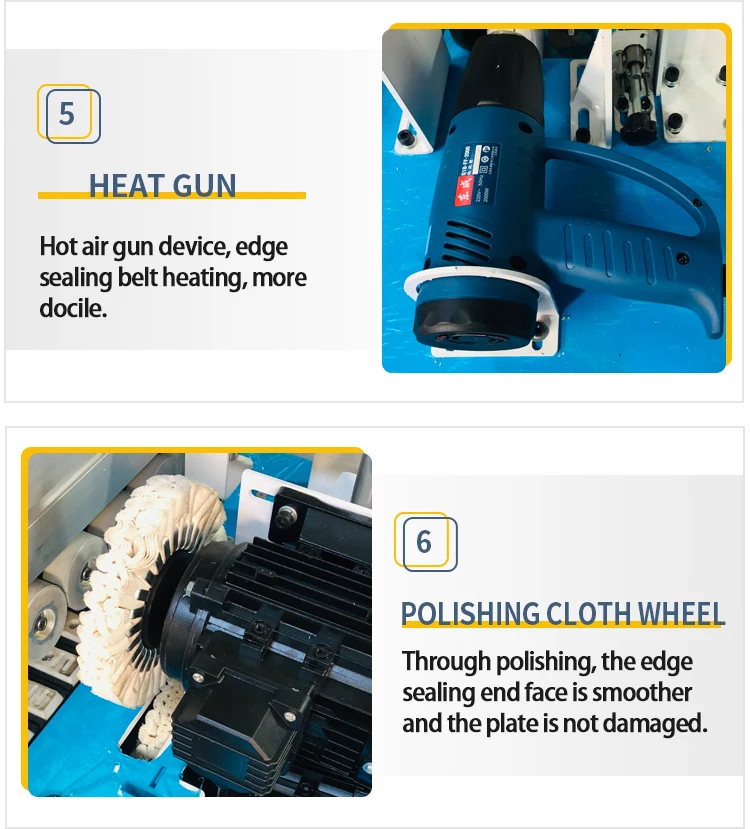

| Polishing Power | 0.4 kW × 2 |
| Vacuum Power | 550 W |
| Glue Pot Capacity | 4000 ml |
| Air Source Pressure | 0.5–0.7 MPa |
| Minimum Sheet Length | 300 mm |
| Minimum Sheet Width | 150 mm |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Key Features | Plate milling, 30/45/60° bevel edge banding, trimming, scraping, polishing, high-power vacuuming |
| Product Size | 3000 × 650 × 1350 mm |
| Product Weight | 430 kg |
| Plug Options | EU, USA, AU, UK |
| Language Options | Chinese, English (customizable to Spanish or other languages) |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door and drawer front production | MDF, melamine board, plywood with PVC or veneer banding |
| Angled furniture component edging | Particleboard, blockboard with 30/45/60° bevel banding |
| Panel processing for custom furniture workshops | Solid wood board, polymer door panels up to 50 mm edge height |
| Medium-volume wardrobe and shelving edging | Plywood and MDF panels with 0.3–3 mm melamine or PVC band |
Why Voltage Confirmation Matters Before You Hit "Buy"
A machine wired for the wrong frequency will not simply underperform — it may never run at all.
I have seen workshops receive an edge bander only to find the motor hums, overheats, and trips the breaker within minutes of startup. The problem is almost always a voltage and frequency mismatch between the factory’s output and the buyer’s local grid. With the XZF-450 automatic edge banding machine in stock, the electrical configuration must be confirmed to match your facility’s supply before the crate is sealed. Skipping that five-minute conversation can stall commissioning for weeks while replacement transformers or motors are sourced locally. [NEED_CITE: voltage and frequency standards by export market]
Ready Stock Means Your Schedule Does Not Slip
When a cabinet order lands on your desk with a tight delivery window, waiting for a machine to be built from scratch is not an option. The XZF-450 is warehoused with standard functions fully assembled — pre-milling, straight and bevel edge banding, trimming, scraping, and polishing are all integrated and tested before dispatch. This automatic edge banding machine in stock ships with plug and language options already configured, so the gap between payment confirmation and first panel through the feed is measured in transit days rather than production weeks.

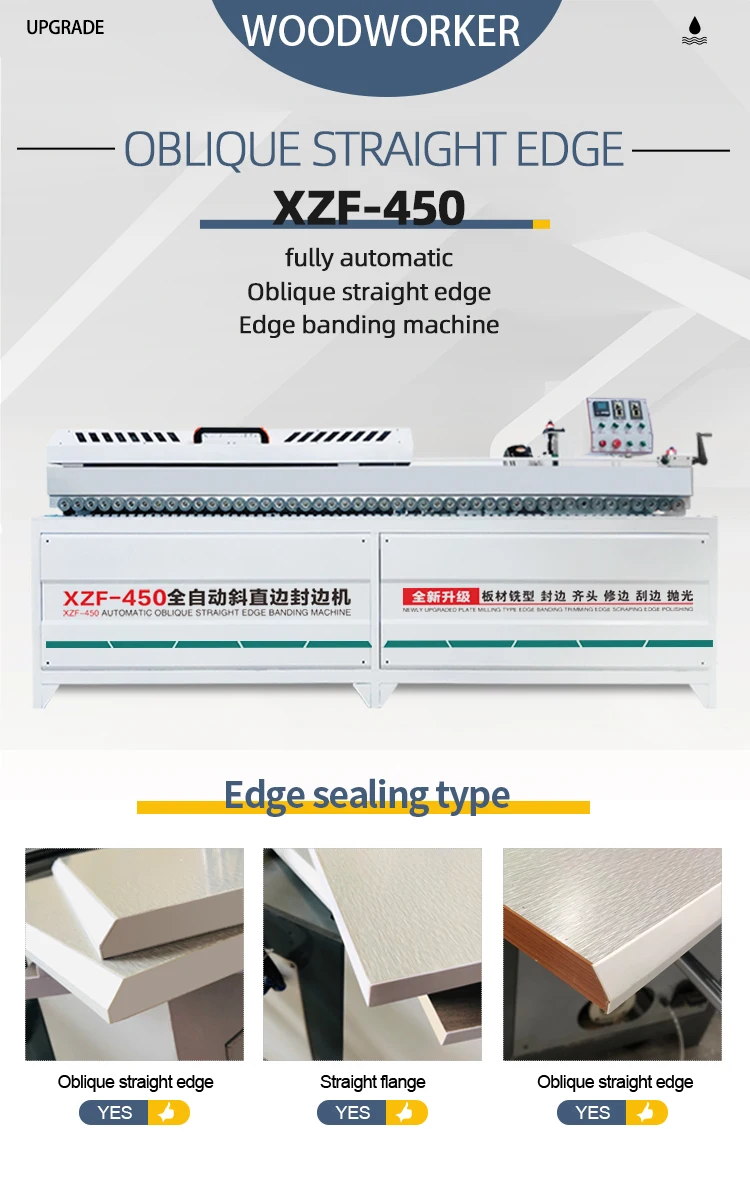

Multi-Angle Edging Without a Second Machine

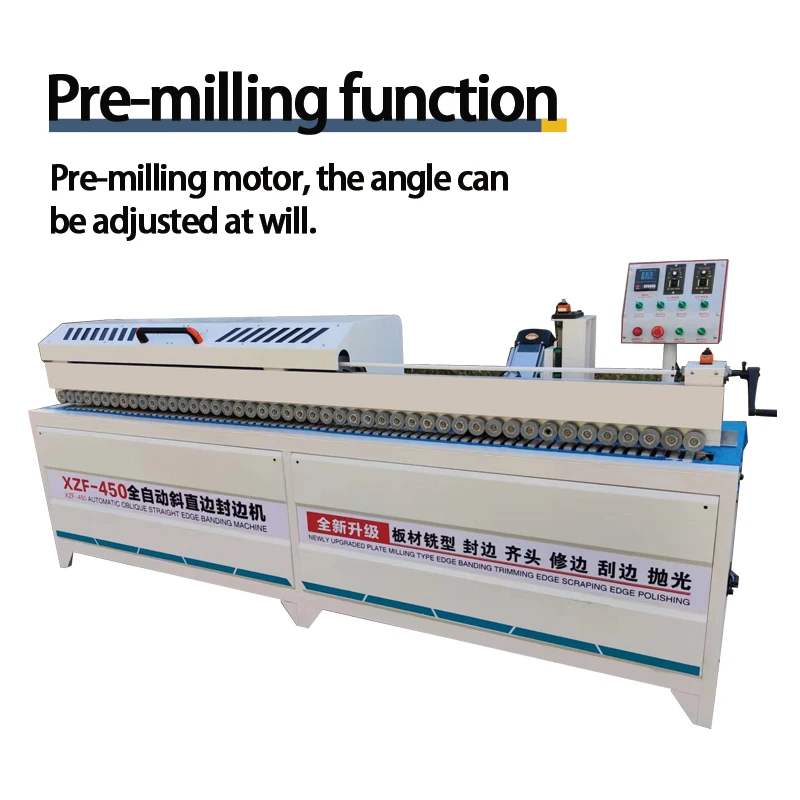

Most small and medium workshops run 90° straight edge exclusively, then outsource any bevel work or turn it down altogether. The XZF-450 handles 30°, 45°, and 60° edge banding alongside standard straight edge on the same feed line, which means angled door fronts and decorative drawer panels stay in-house. The 4 kW pre-milling motor cleans the substrate edge before glue application, addressing one of the most common complaints I hear from operators working with lower-density particleboard — visible glue lines and poor adhesion on the first contact surface. [NEED_CITE: common adhesion failures on low-density particleboard substrates]
What the Feed Speed and Glue Pot Mean for Your Daily Output
The 0–12 m/min adjustable feed speed lets operators match throughput to the panel material and edge banding thickness in use. Running 3 mm PVC on a dense MDF panel requires a slower feed and higher glue temperature than a 0.5 mm melamine strip on plywood, and the XZF-450’s transmission control allows that adjustment without stopping the line. The 4000 ml glue pot capacity supports sustained production runs without frequent refills, reducing the number of thermal recovery pauses where the glue temperature drops below bonding threshold. Edge banding height coverage from 0 to 50 mm and thickness from 0.3 to 3 mm means a single setup handles the full range of materials a typical cabinet shop encounters — from thin veneer on drawer sides to thick PVC on countertop edges.
The Hidden Cost of Skipping Pre-Milling
Buying an edge bander without a pre-milling station to save on initial cost often shows up downstream as rework. Panels cut on a sliding table saw leave micro-chipping along the edge, especially on melamine-faced chipboard, and that roughness transfers directly into the glued joint. Without pre-milling, operators compensate by increasing glue volume, which squeezes out and requires additional scraping — or worse, the bond looks acceptable at inspection but fails after a few thermal cycles in a kitchen environment. [NEED_CITE: edge chipping effects on melamine-faced board bonding integrity]
Why Source This Machine Here
The XZF-450 leaves the facility only after a pre-shipment test on actual panel stock, with a documented test record and packing photographs shared before the crate closes. Voltage, plug type, and control language are configured to the destination market as part of the standard order process, not as an afterthought. The four-stage quality control process covers incoming material inspection through final verification, and the in-house engineering team handles configuration recommendations within one working day of inquiry. OEM branding and private-label capability are available for distributors who want to build their own market identity around this platform.
Documentation & Verification
- CE declaration of conformity covering the XZF-450 and its integrated safety systems
- ISO 9001 certificate for the manufacturing quality management system
- Factory test record run on your specified panel thickness and edge material before dispatch
- Electrical schematic with confirmed voltage and plug configuration for your market
- Operation and maintenance manual supplied in your agreed language
- Packing photographs and customs documentation support included with every shipment
Installation, Commissioning & Support
- Requires a dedicated 380V/415V circuit rated for at least 9.5 kW with correct frequency
- Air supply must deliver 0.5–0.7 MPa clean dry air to the machine’s pneumatic inlet
- Machine footprint of 3000 × 650 mm needs clear infeed and outfeed space for full-length panels
- First-run commissioning includes glue temperature calibration for your specific banding material
- Glue pot and roller assembly require weekly cleaning to maintain bond quality
- Spare parts list provided at shipment for immediate consumable planning
Before You Request a Quote
To configure the XZF-450 correctly for your workshop, let us know the primary panel materials you work with — MDF, particleboard, plywood, or solid wood — and the edge banding types and thicknesses you use most often. Confirm your facility’s voltage and frequency so the electrical system is built to match. If your operators prefer a control language other than Chinese or English, specify that at inquiry so the panel and manual are prepared before dispatch.
Frequently Asked Questions
Q: Is this model actually in stock, and what is the dispatch lead time after payment?
A: The XZF-450 is held in ready stock, meaning it has been assembled, tested, and is awaiting configuration for dispatch. Once you confirm voltage, plug type, and language preferences, the machine is prepared for crating and shipping. Transit time depends on your destination port, but the production wait that applies to custom-built machines is eliminated here.
Q: What voltage and plug options are available before shipping?
A: The XZF-450 supports 380V/415V configurations and ships with EU, USA, AU, or UK plugs matched to your local supply standard. We confirm the exact voltage and frequency at your facility before the electrical system is finalized, ensuring the machine runs correctly from the first day of installation.
Q: Can the control panel language be customized for my operators?
A: The standard configuration includes Chinese and English interfaces. Spanish and other languages are available by custom order. We set the control language before dispatch so your operators can read all menus, error messages, and parameter settings immediately upon commissioning.
Q: What documents and parts arrive with the machine?
A: Every shipment includes the operation and maintenance manual in your agreed language, an electrical schematic, a spare parts list, a factory test record, packing photographs, and customs documentation support. These materials allow your team to install, operate, and maintain the machine without additional back-and-forth.
Q: How does the 45° bevel edge banding function work on different panel thicknesses?
A: The XZF-450 supports 30°, 45°, and 60° bevel edge banding on panels within the 0–50 mm edge height range. The pre-milling station prepares the angled substrate edge before glue application, ensuring consistent bonding on MDF, plywood, and particleboard regardless of the bevel angle selected.
