Description
Ready-Stock Dispatch — Every XZF-450 unit ships with pre-confirmed voltage, plug type, and control language, eliminating the dead-on-arrival problem that stalls workshop commissioning.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | XZF-450 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 9.5 kW |

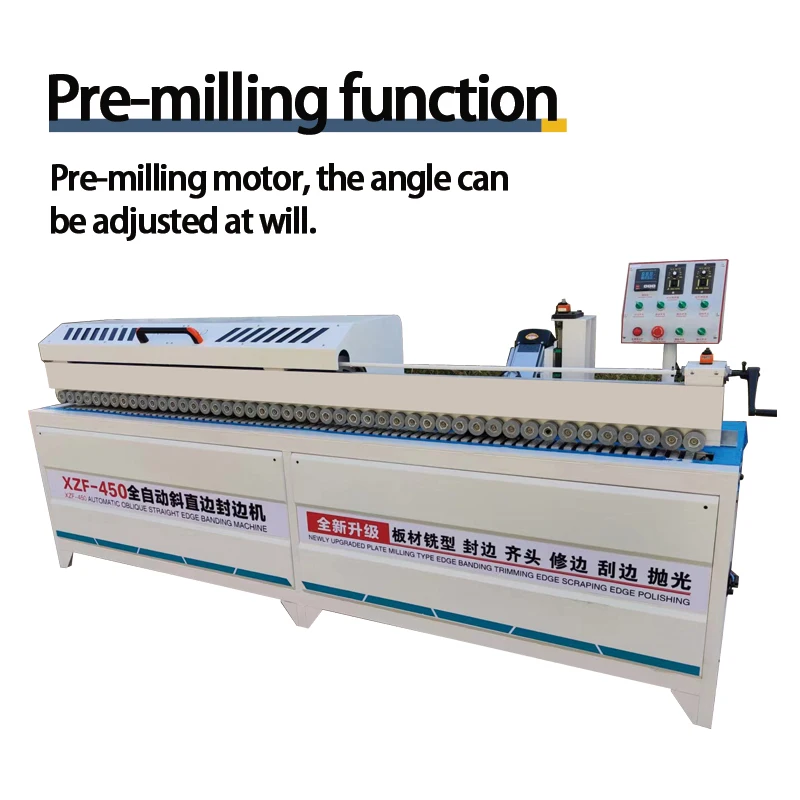

| Pre-milled Motor | 4 kW |
| Trimming Power | 2.2 kW × 2 |
| Polishing Power | 0.4 kW × 2 |
| Edge Power | 0.16 kW |
| Transmission Power | 180 W |
| Vacuum Power | 550 W |
| Voltage | 380V/415V (frequency and phase basis to be confirmed) |
| Feed Speed | 0–12 m/min |
| Edge Banding Thickness | 0.3–3 mm |
| Edge Banding Height | 0–50 mm |
| Minimum Sheet Length | 300 mm |
| Minimum Sheet Width | 150 mm |
| Glue Pot Capacity | 4000 ml |
| Air Source Pressure | 0.5–0.7 MPa |
| Product Size | 3000 × 650 × 1350 mm |
| Product Weight | 430 kg |
| Language Options | Chinese, English (customizable to Spanish or other languages) |
| Plug Options | EU, USA, AU, UK |

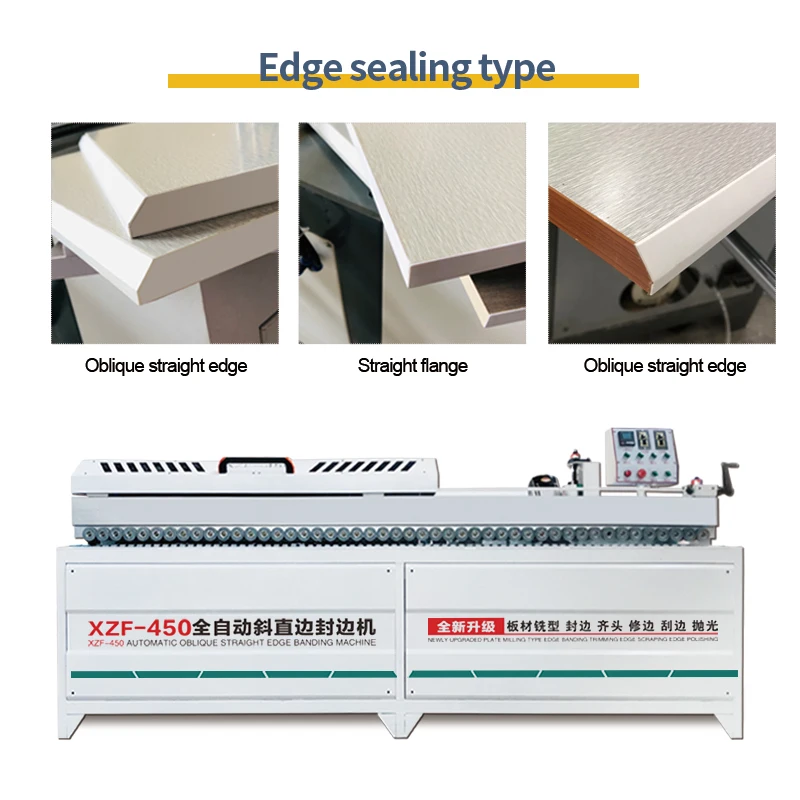

| Standard Functions | Pre-milling, 30/45/60° edge banding, end trimming, rough trimming, scraping, polishing, high-power vacuuming |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door production | MDF, melamine board, particleboard with PVC or ABS edge strips |
| Plywood case goods finishing | Plywood and blockboard with veneer or melamine banding |
| Polymer door edge processing | Polymer composite panels requiring 45-degree bevel edge profiling |
| Solid wood furniture components | Solid wood boards with 0.3–3 mm thickness banding material |
| Medium-volume batch runs | Panel processing at feed speeds matching cabinet factory throughput |
Why Voltage Confirmation Must Happen Before the Invoice Clears
An automatic edge banding machine in stock is only useful if it actually runs when it reaches your workshop floor.
I have watched freight clear customs and arrive at a cabinet factory, only for the electrician to discover the motor was wired for 50 Hz while the local grid runs 60 Hz. The control board fried on first startup, and the factory owner waited weeks for a replacement panel shipped overseas. That machine sat idle while production deadlines slipped past [NEED_CITE: voltage and frequency standards by export market]. With the XZF-450, we lock in your local voltage, phase, and plug format in writing before the unit leaves the warehouse. It is a small step that prevents a very expensive mistake.
Stocked Units Configured for Your Grid and Language
Every XZF-450 destined for export gets a voltage and frequency check against the destination country standard before packing. The control panel language is set to your operator’s working language — English as default, with Spanish and other options available on request. When a unit is described as an automatic edge banding machine in stock, it means the core mechanical assembly is complete and ready; the electrical and interface configuration is finalized once your specifications are confirmed.
Dispatch Speed Without Sacrificing Pre-Delivery Verification
Warehousing a finished machine does not mean skipping the pre-shipment test. Each stocked XZF-450 runs through a full functional cycle on actual panel material before crating. The glue pot is brought to operating temperature, the pre-milling cutters engage on a test board, and the trimming and polishing stations are verified under load. This process catches alignment drift and pneumatic leaks that only show up under running conditions [NEED_CITE: pre-shipment inspection standards for woodworking machinery].
How Feed Speed and Glue Pot Capacity Shape Your Daily Output
The 0–12 m/min feed speed range on the XZF-450 lets operators dial in the pace that matches their upstream cutting station. Running at the upper end of the range suits long straight runs of identical cabinet sides, while slowing down gives the glue more open time on porous substrates like particleboard. The 4000 ml glue pot capacity means operators can complete extended production runs without stopping to refill, which matters when you are batching an entire kitchen order in a single shift. Edge banding thickness coverage from 0.3 to 3 mm handles everything from thin PVC on melamine to thicker ABS on solid wood, so one machine covers multiple product lines.
What Happens When You Skip the Voltage and Air Pressure Check
A cabinet maker in a humid coastal region once received a machine without confirming his workshop’s air compressor could sustain 0.5 MPa continuously. The pneumatic cylinders on the trimming and scraping stations stuttered mid-cycle, leaving visible chatter marks on every third panel. He spent days chasing what he thought was a mechanical defect before realizing his compressor was undersized. Machines in this class need clean, dry air at stable pressure — and confirming that before shipment saves everyone a round of troubleshooting [NEED_CITE: pneumatic system requirements for edge banding machinery].
Why Buyers Source This Model From Our Stock
The XZF-450 sits in a product family that ranges from entry-level to full-function, so a workshop can start here and add capacity from the same supplier later. Every unit carries a four-stage quality record covering incoming material, in-process assembly, finished product, and pre-shipment verification. Voltage, plug type, and language customization are handled as standard line items, not special requests. An engineer reviews your panel types and production volume before confirming the configuration, with a formal quotation typically issued within one working day. Factory visits are open if you want to see the test run in person.
Documentation & Verification
- CE declaration of conformity covering the XZF-450 edge banding machine
- ISO 9001 certificate for the manufacturing quality management system
- Electrical schematic with your confirmed voltage and plug type annotated
- Factory test record on your specified panel thickness and edge material
- Operation and maintenance manual in your agreed control panel language
- Spare parts list with part numbers matching the as-shipped configuration
Installation, Commissioning & Support
- Requires a level concrete floor supporting the 430 kg machine weight across the 3000 mm footprint
- Dedicated 380V/415V circuit with appropriate breaker rating for the 9.5 kW total draw
- Arrives assembled; connect power, air supply at 0.5–0.7 MPa, and dust extraction ducting
- First-run parameter setting for glue temperature, feed speed, and trimming depth included in guidance
- Wear parts kit covering trimming blades and scraping tools shipped with the unit
- Daily maintenance checklist focused on glue pot cleaning and pneumatic filter drainage
What We Need to Move Your Order Forward
Tell us the panel materials you run most often — MDF, particleboard, plywood, or solid wood — along with the edge banding strip type and thickness you use. Confirm your workshop voltage, frequency, and phase so we can wire the XZF-450 correctly before dispatch. If you have existing upstream saws or downstream boring machines, share their feed height and throughput so we can flag any integration points worth reviewing before the machine ships.
Frequently Asked Questions
Q: Is this model currently in stock and what is the dispatch lead time?
A: The XZF-450 is held as a stocked model, meaning the core machine is built and warehoused. Once your voltage, plug type, and language preferences are confirmed, final configuration and pre-shipment testing take a short period before crating. Exact dispatch timing depends on the customization scope and current warehouse workload, which we confirm at quotation.
Q: Can you confirm voltage, frequency, and plug type for my country before I order?
A: Yes. We request your local voltage, frequency, and phase in writing during the quotation stage and configure the electrical system accordingly. The XZF-450 supports 380V/415V as standard with plug options for EU, USA, AU, and UK markets. An electrical schematic reflecting your confirmed specification is included in the shipping documentation.
Q: What edge banding materials and thicknesses does the XZF-450 handle?
A: The machine processes PVC, ABS, melamine, and veneer edge strips in thicknesses from 0.3 to 3 mm and heights up to 50 mm. It supports 30, 45, and 60-degree edge profiling in addition to standard 90-degree straight edge work, covering the range most cabinet and furniture workshops require.
Q: Can I order a single unit, or is there a minimum order quantity?
A: Single-unit orders are accepted. The XZF-450 is available as an individual machine with full documentation, spare parts, and pre-shipment testing — the same process applied to larger orders. There is no minimum quantity requirement for stocked models.
Q: What shipping options are available and how is the machine packed for transit?
A: The 430 kg unit is crated for ocean freight or land transport with protective packing around the pre-milling head, trimming stations, and control panel. We provide packing photographs before dispatch and support customs documentation. Shipping method and routing are confirmed based on your destination port or delivery address.
