Description
Ready to dispatch — ST-50 portable edge bander ships from stock with your confirmed voltage and plug type, avoiding the three-week transformer wait that stalls workshop commissioning.
Technical Specifications
| Parameter | Value |
|---|---|

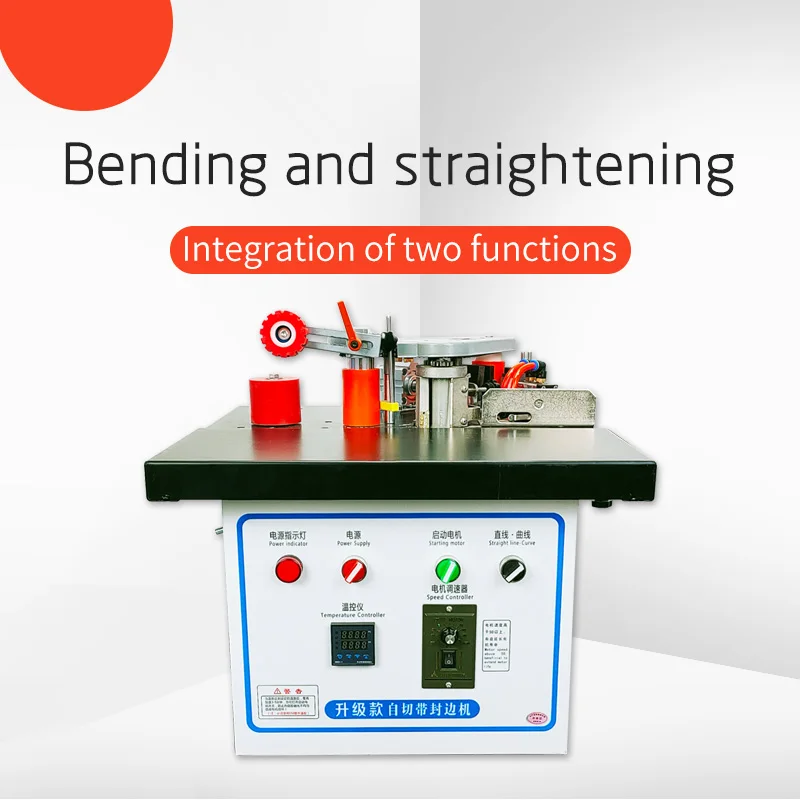

| Model | ST-50 |
| Product Type | Portable Manual Edge Banding Machine |
| Total Power | 1000W |
| Voltage Options | 220V / 380V / customization available |
| Plug Options | EU, USA, AU, UK |
| Edge Banding Height | 0–50mm |
| Edge Banding Thickness | 0.3–3mm |
| Minimum Sheet Length | 25cm |
| Minimum Sheet Width | 3cm |
| Glue Pot Capacity | 1000ml |
| Air Source Pressure | 0.5–0.8 MPa |
| Product Size | 50 × 50 × 47cm |
| Product Weight | 22kg |
| Edge Banding Type | Curved and straight |
| Control Language | Chinese, English, Spanish, or other languages customizable |
| Standards | CE, ISO 9001 |
Application Suitability
| Application | Material or Output |
|---|---|

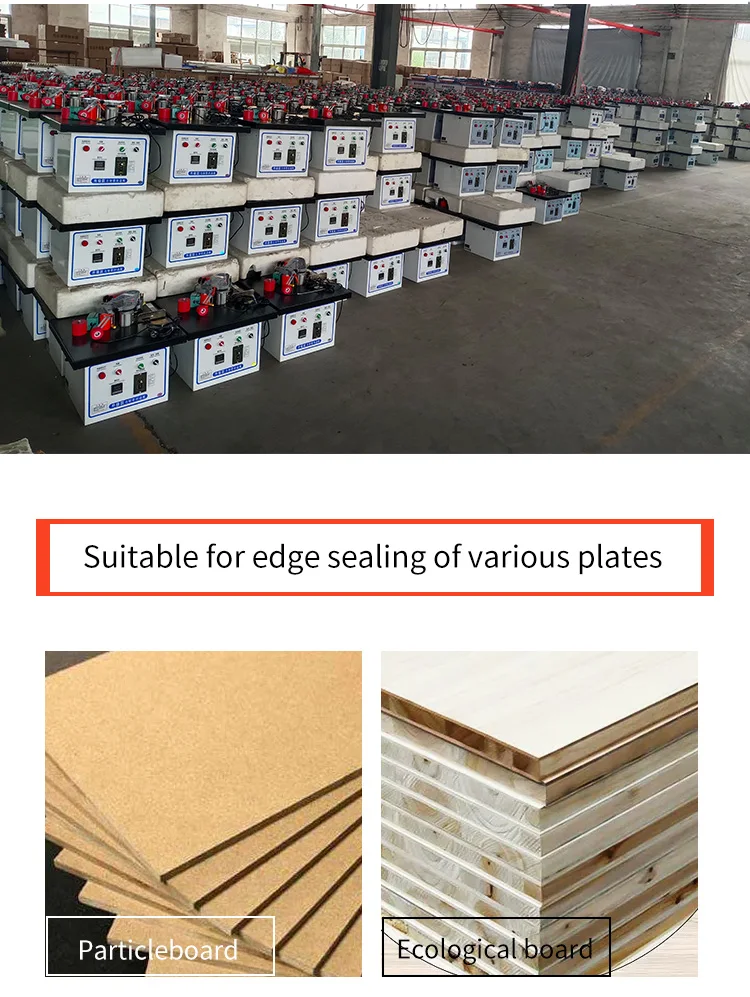

| Small workshop furniture repair | MDF, particleboard, plywood edge sealing |
| Home decoration on-site cabinetry | Solid wood board and ecological board profiles |
| Custom shelving edge finishing | PVC and veneer strips on curved and straight edges |
| Joinery startup production | Melamine-faced board up to 3mm banding thickness |
Why the Voltage Question Must Come Before Dispatch
Confirming your workshop voltage and plug type before shipping prevents the machine from sitting idle on arrival.
I have watched a custom cabinet shop receive a 440V three-phase unit into a 220V single-phase bay. The crew stood around for nearly three weeks waiting on a step-down transformer while deadlines slipped [NEED_CITE: voltage mismatch consequences in small workshop installations]. When a Portable Edge Banding Machine in stock ships without that electrical check, the buyer inherits a problem that should have been caught at the quotation stage. The ST-50 is available in 220V and 380V configurations, with EU, USA, AU, and UK plug options confirmed before the unit leaves the warehouse. That single verification step eliminates the most common commissioning delay I encounter in small-scale equipment orders.
Single-Unit Ordering Without Production Delays
Most edge banding equipment is built to order, which means even a single machine can take weeks before it enters the shipping queue. The ST-50 is maintained in ready-stock inventory, so a single Portable Edge Banding Machine in stock can be dispatched once your voltage and language preferences are confirmed. This matters for a joinery workshop that just lost its only edge bander and cannot afford a multi-week production gap while a new unit is manufactured.
Compact Footprint for On-Site and Benchtop Use
At 50 × 50 × 47cm and 22kg, the ST-50 sits on a standard workbench or travels to a job site in the back of a van. Home decoration contractors who need curved and straight edge sealing on installed cabinetry do not have the floor space for a full-size automatic bander. The benchtop format lets you bring the machine to the panel rather than moving large sheet goods through a stationary line [NEED_CITE: on-site edge banding workflow in residential fit-out projects].
Glue Pot and Banding Thickness Coverage
The 1000ml glue pot sustains continuous operation without frequent refills, which matters when you are running through a batch of cabinet carcasses in a single session. The 0.3–3mm thickness range covers PVC, veneer, and melamine strips — the three materials a small workshop encounters most often. Banding height from 0 to 50mm accommodates standard panel thicknesses from thin shelving stock up to heavy worktop substrates.
What Happens When You Skip the Electrical Schematic Review
I started on the assembly floor fitting edge banders, and the units that came back with warranty claims often traced to power supply issues rather than mechanical faults. A workshop running 50Hz equipment on a 60Hz supply sees the glue pot heater and feed motor behave outside their design envelope. Over time the glue degrades unevenly, and the banding adhesion fails during assembly. Confirming the electrical schematic before dispatch costs nothing and prevents these slow-burn failures [NEED_CITE: frequency mismatch effects on motor and heater performance].
Why Buyers Source This Machine Through Our Stock Channel
Ready inventory means the ST-50 ships after voltage confirmation rather than after a production slot opens. Each unit undergoes a pre-shipment test on actual panel material, so you receive photographs of the edge finish quality before the crate is sealed. Voltage and plug customization is standard practice here, not an afterthought added during packing. Operation manuals ship in your agreed language — English, Spanish, or other options confirmed at order — so your operator can commission the machine without guessing at control labels. Single-unit orders are accepted without minimum quantity requirements, which suits a workshop adding one edge bander to fill a specific gap in capability.
Documentation & Verification
- Factory test record on your specified panel thickness and edge material before dispatch
- Electrical schematic confirming your local voltage and frequency matched to the ST-50 wiring
- Operation and maintenance manual in your chosen language covering glue pot servicing and banding feed adjustment
- Pre-shipment packing photographs showing the unit secured for transit with accessories inventoried
- CE declaration of conformity covering portable edge banding equipment safety requirements
Installation, Commissioning & Support
- Benchtop placement on a stable surface rated for 22kg plus operating vibration load
- Dedicated circuit matching your confirmed 220V or 380V supply with appropriate breaker rating for 1000W draw
- Air compressor connection at 0.5–0.8 MPa for consistent banding pressure across curved and straight profiles
- First-run glue temperature calibration using your actual PVC or veneer strip material to set adhesion baseline
- Spare glue pot seals and feed rollers included for initial maintenance intervals
Before You Request a Quote
Share your workshop voltage and frequency so the ST-50 ships wired correctly from day one. Let me know which edge banding materials you run most often — PVC, veneer, or melamine — so the glue pot setup matches your stock. If you operate in a language other than English, specify your preference early so the manual and any control labels align before dispatch.
Frequently Asked Questions
Q: Is the ST-50 currently in stock, and how quickly can a single unit ship?
A: Yes, the ST-50 is held in ready-stock inventory for single-unit orders. Once your voltage, plug type, and language preferences are confirmed, the unit enters the pre-shipment test queue and dispatches without waiting on a production run. Lead time from confirmation to carrier handover is typically measured in days rather than weeks.
Q: Can I verify my local voltage and plug type before the machine leaves the warehouse?
A: Absolutely. Every ST-50 order includes an electrical schematic review where your local voltage, frequency, and plug standard are confirmed against the machine wiring. The unit is then configured for 220V or 380V with your chosen plug type — EU, USA, AU, or UK — before packing.
Q: What panel materials and edge banding strips does the ST-50 handle?
A: The ST-50 processes MDF, particleboard, solid wood board, ecological board, and plywood. It accepts PVC, veneer, and melamine edge banding from 0.3mm to 3mm thick on both curved and straight profiles, covering the range most small workshops and on-site contractors encounter.
Q: Will the operation manual and any labels match my operator’s language?
A: Yes. The ST-50 ships with an operation and maintenance manual in your agreed language — Chinese, English, Spanish, or other options confirmed at the order stage. This ensures your operator can handle glue pot servicing, banding feed adjustment, and basic troubleshooting without translation delays.
Q: What spare parts should I order alongside the machine for the first year?
A: We recommend ordering replacement glue pot seals, feed rollers, and trimming blades matched to your primary banding material. These consumables cover routine maintenance intervals and arrive in the same shipment, so you are not waiting on parts when the first service window comes due.
