Description
Fast Dispatch, Verified Electricals — The ZDS290 automatic edge banding machine in stock ships with pre-confirmed voltage and language-matched documentation, eliminating the weeks-long delays that typically follow a mismatched delivery.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDS290 |
| Product Type | Automatic Edge Banding Machine |
| Rated Voltage | 220V |
| Rated Power | 4165W |
| Edge Banding Speed | 6m/min |
| Conveying Motor | 180W |
| Strip Thickness Range | 0.5-2.5mm |
| Sheet Thickness Range | 10-50mm |
| Glue Pot Capacity | 1000ml |
| Glue Pot Heating Power | 800W (5-10min heat-up) |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Vacuuming Power | 1200W |
| Rated Air Pressure | 0.6-0.8MPa |
| Machine Size | 150×57×96cm |
| Pressure Beam | Integrated thickened aluminum alloy |
| Pressure Wheel | Double-row inclined |
| Board Thickness Display | Digital display |
| Pressure Beam Adjustment | Hand-crank wheel |
| Glue Wheel | Concave-convex design |
| Secondary Scraping and Cleaning | Included |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet panel edging | MDF and particleboard with PVC strips |
| Small workshop furniture production | Plywood panels with veneer or PVC edge banding |
| Straight-edge board finishing | Solid wood panels up to 50mm thickness |
| Joinery startup batch runs | Pre-cut shelving and door blanks in MDF |
Why Voltage Confirmation Must Happen Before You Click "Order"
An automatic edge banding machine in stock is only useful if it actually powers on when it arrives.
I once watched a workshop sit idle for three weeks because a compact edge bander showed up configured for 380V/50Hz while the facility ran 440V/60Hz. The entire assembly line waited on an electrician and a new transformer. That is not a rare event — export machinery arrives with incorrect voltage more often than buyers expect [NEED_CITE: voltage and frequency standards by export market]. With this unit, the 220V configuration is verified before dispatch so the machine matches your local supply from day one.
Stock Availability and Realistic Dispatch Timing
When a small workshop needs an edge bander, waiting six to eight weeks for a built-to-order unit is rarely an option. The ZDS290 automatic edge banding machine in stock is held in the warehouse and prepared for dispatch on a compressed timeline. This matters most for furniture makers who have just landed a custom cabinet contract and need to move from manual edge banding to a consistent, machine-applied finish quickly. The unit arrives crated and secured, with a full pre-shipment test record documenting operational checks across all stations.
Compact Footprint Without Sacrificing Core Functions

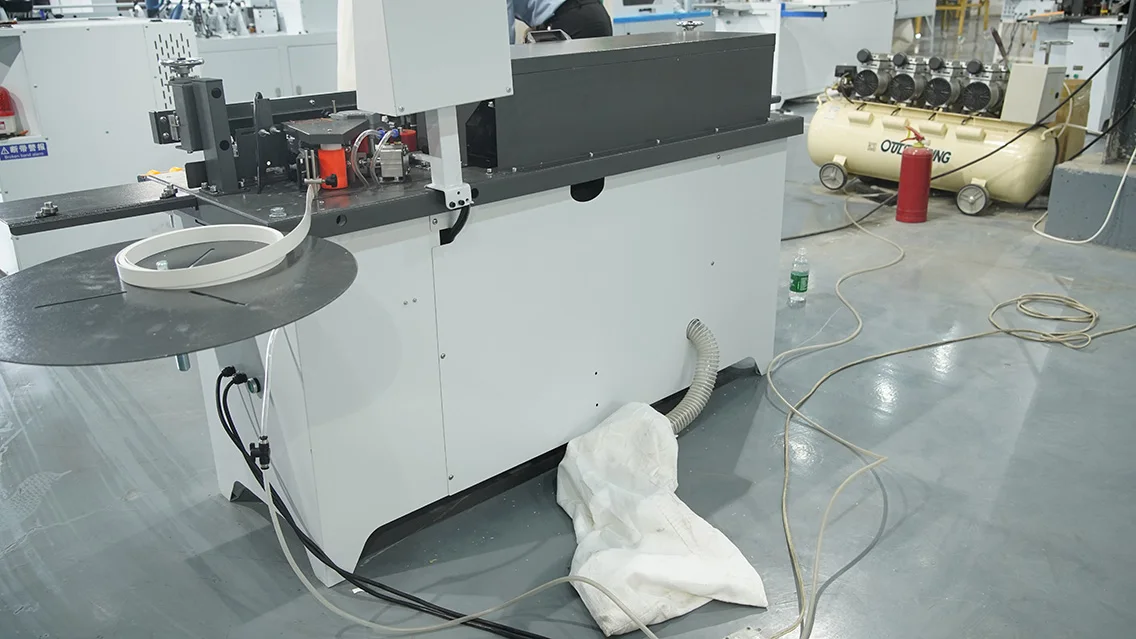

Floor space is a constraint for most small-to-medium joinery operations. At 150×57×96cm, this edge bander fits against a wall or at the end of an existing panel processing line without requiring a facility rearrangement. Despite the compact dimensions, it includes secondary scraping and cleaning stations that larger machines often carry as optional extras. The integrated aluminum alloy pressure beam keeps the frame rigid during continuous runs, which directly influences how consistently the banding adheres across a batch of panels [NEED_CITE: pressure beam rigidity and edge adhesion consistency].
How the Specs Translate to Daily Production

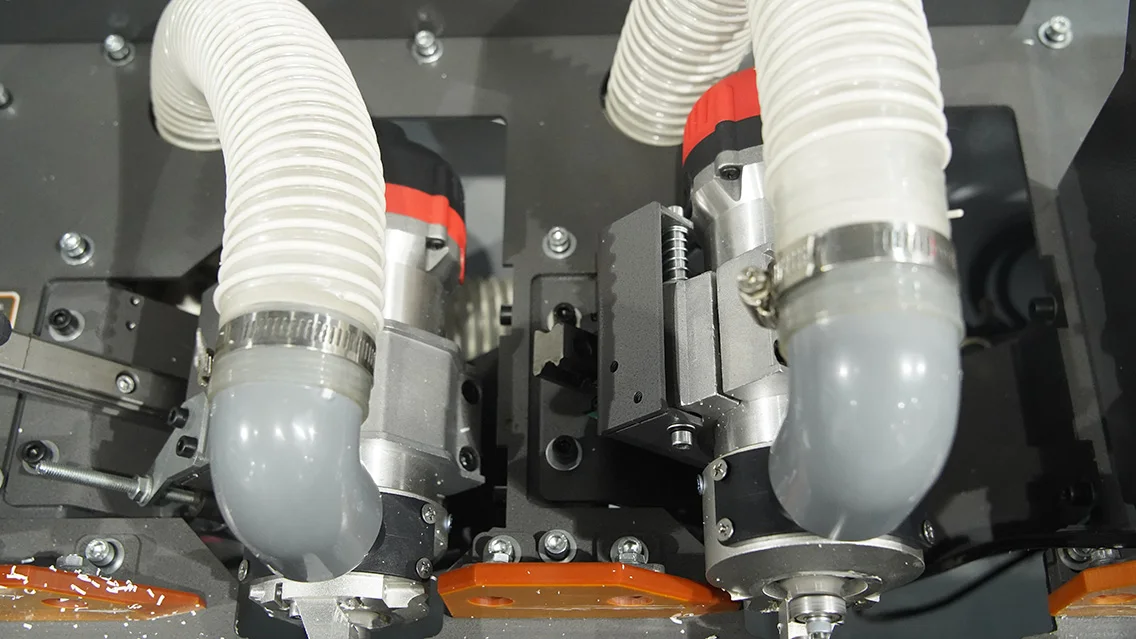

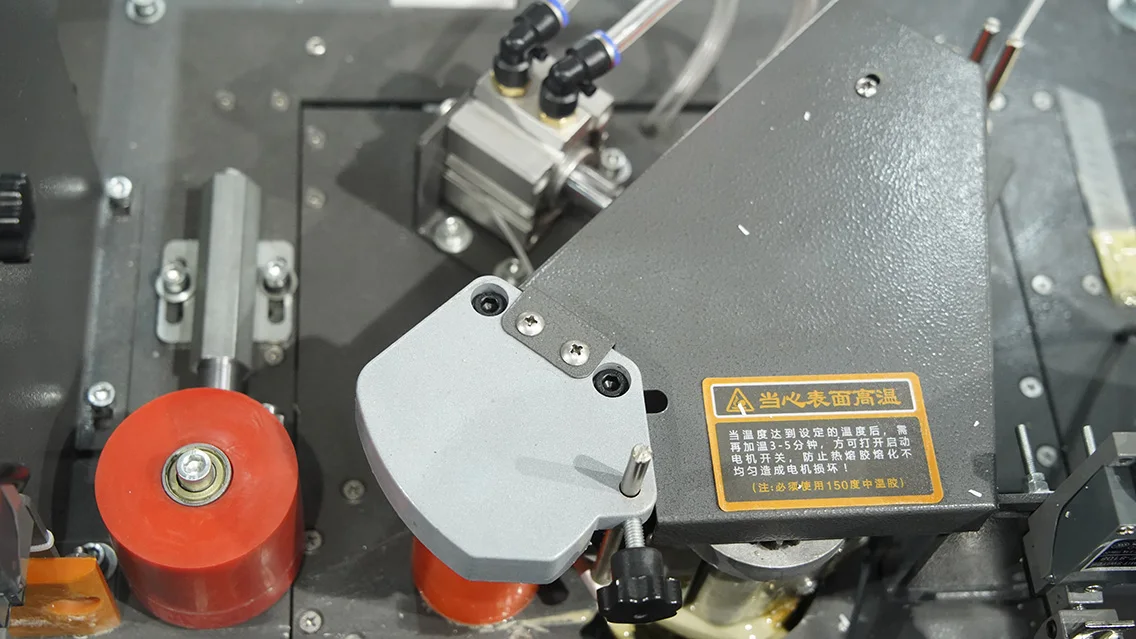

The 10-50mm sheet thickness range covers the full span of materials a custom furniture shop typically handles — from thin 10mm MDF shelving to thick 50mm solid wood tabletops. The digital board thickness display removes the guesswork: operators set the exact value rather than relying on a handwheel position they have to memorize. The concave-convex glue wheel design mimics the even distribution of a full-size glue pot, ensuring adhesive spreads uniformly across the panel edge regardless of strip width. The 800W glue pot reaches working temperature in roughly five to ten minutes, which is practical for shops that power up in the morning and want to start banding without a prolonged warm-up. The double-row inclined pressure wheels hold the strip firmly against the edge during the critical bonding window, and the included vacuuming system at 1200W captures trim waste before it accumulates around the work area.
The Cost of Overlooking Specification Compatibility
Buyers who select an edge bander purely on price often discover downstream costs that erase the initial savings. A machine rated for lighter duty cycles cannot sustain the feed volume of a workshop processing hundreds of panels daily — premature wear on the conveying motor and trimming heads follows. Similarly, if the pressure beam lacks rigidity, banding on thicker panels develops visible gaps, forcing operators into manual rework that slows the entire line [NEED_CITE: edge banding rework rates in small furniture workshops]. Choosing a model whose specifications align with your actual daily volume and material mix prevents these compounding losses.
Why Source This Unit Through This Channel
The ZDS290 automatic edge banding machine in stock is dispatched with voltage and plug type confirmed for the destination country, so there is no three-week standstill waiting for electrical conversion. Every unit ships with an operation manual in the agreed language, which means the operator can begin commissioning without a translator. The four-stage quality check covers incoming material inspection through to a pre-shipment functional test, and the test record travels with the machine. Engineer-led configuration support ensures the specification matches your panel thickness and strip material before the order is finalized. Factory test documentation provides verifiable evidence of tolerance and performance, not just claims on a spec sheet.
Documentation & Verification
- Machine specification sheet confirming ZDS290 rated voltage and power draw
- Electrical schematic with voltage and frequency matching your local supply
- Factory test record covering all functional stations before crating
- Operation and maintenance manual provided in your agreed language
- Packing photographs documenting machine condition prior to dispatch
- CE declaration of conformity included with customs documentation
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated above the 4165W total draw
- Compact 150×57×96cm footprint allows placement without structural changes
- 0.6-0.8MPa compressed air supply must be connected before first run
- Digital display calibrated during commissioning for your specific panel range
- Glue pot heat-up cycle verified at installation for your ambient conditions
- Spare parts list with part numbers included for trimming blades and pressure wheels
What We Need to Move Your Order Forward
To confirm the ZDS290 is the right fit for your line, share the panel materials you process most frequently along with typical sheet thicknesses and the edge strip types you plan to use. Let us know your local voltage and frequency so we verify electrical compatibility before dispatch. If you have space constraints, provide your available floor length and any adjacent equipment so we can advise on placement and material flow.
Frequently Asked Questions
Q: Is this automatic edge banding machine currently in stock and how fast can it ship?
A: Yes, the ZDS290 is held as an automatic edge banding machine in stock for prompt dispatch. Once your voltage and language requirements are confirmed, the unit undergoes a pre-shipment test and is prepared for crating. Typical lead time from order confirmation to port departure is measured in days rather than weeks, though exact timing depends on shipping route availability.
Q: Can you confirm the voltage and plug type will match my local electrical supply?
A: Before dispatch, we verify your local voltage and frequency against the machine configuration. The ZDS290 ships at 220V with the plug type matched to your country standard. An electrical schematic is included in the documentation package so your on-site electrician can verify the connection before first power-on.
Q: What edge banding materials and panel thicknesses does this model handle?
A: The ZDS290 processes PVC and veneer edge strips from 0.5mm to 2.5mm thick, applied to panels ranging from 10mm to 50mm in thickness. This covers MDF, plywood, particleboard, and solid wood panels commonly used in custom furniture and cabinet production within a small workshop environment.
Q: Do you provide shipping support including customs documentation?
A: Yes, customs documentation support is included with every shipment. We provide CE declaration of conformity, packing photographs, and all required export paperwork. For door-to-door delivery arrangements, share your destination port or address during the inquiry and we will outline available shipping options.
Q: What spare parts are included and how do I order replacements later?
A: A spare parts list with part numbers is included in the documentation package. Common wear items such as trimming blades, pressure wheels, and glue wheel components are identified. Replacement parts can be ordered directly using the part numbers provided, and we advise keeping a basic consumable set on hand to minimize downtime.
