Description

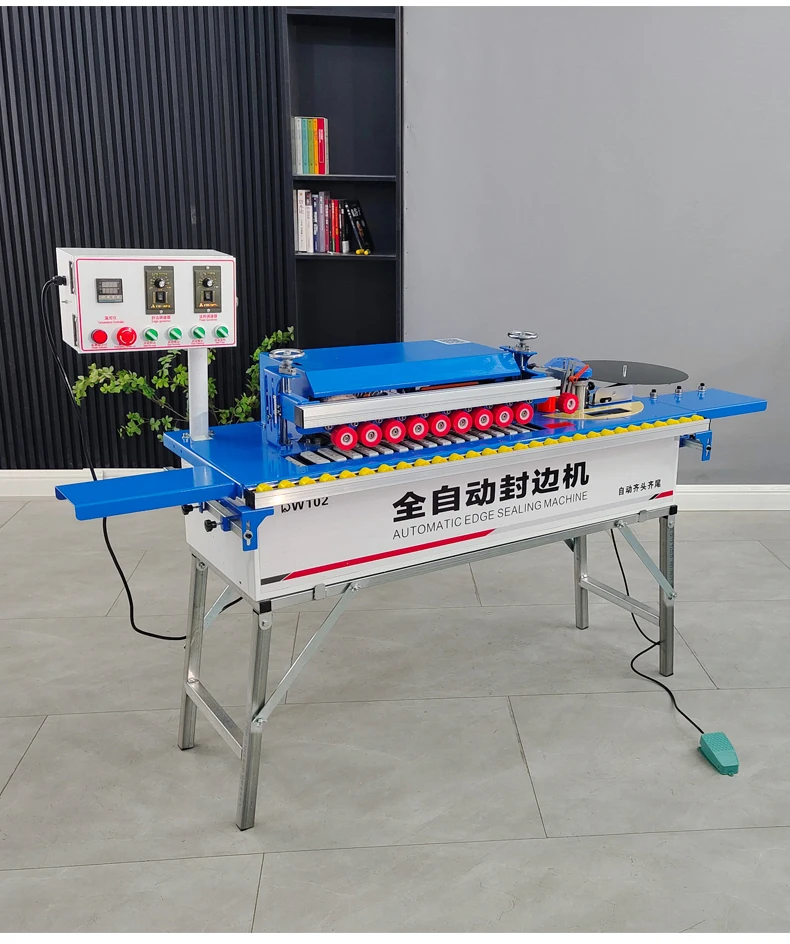

Ready Stock Dispatch — DW102 mini edge bander ships from warehouse inventory with voltage and plug confirmed before crating, eliminating production-slot waits.

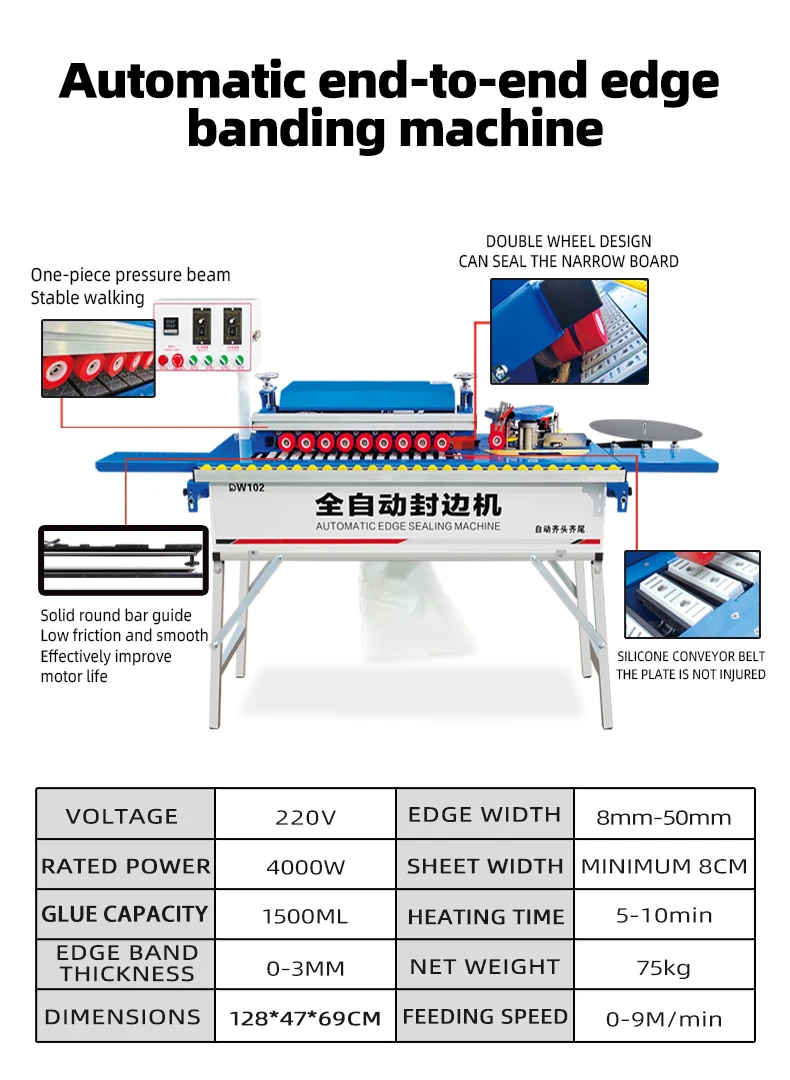

Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW102 |
| Product Type | Mini Automatic Edge Banding Machine |
| Total Power | 3800W |
| Voltage & Frequency | 220V/380V, customizable (frequency to be confirmed) |
| Edge Banding Height | 0–50mm |
| Edge Banding Thickness | 0.3–3mm |
| Minimum Sheet Length | 250mm |
| Minimum Sheet Width | 50mm |
| Trimming Power | 650W×2 |
| Polishing Power | 180W×2 |
| Vacuum Power | 1200W |
| Edge Feed Power | 20W |
| Transmission Power | 60W |
| Glue Pot Capacity | 1000ml |
| Air Source Pressure | 0.5–0.8MPa |
| Machine Dimensions (L×W×H) | 1280×470×690mm |
| Net Weight | 75kg |

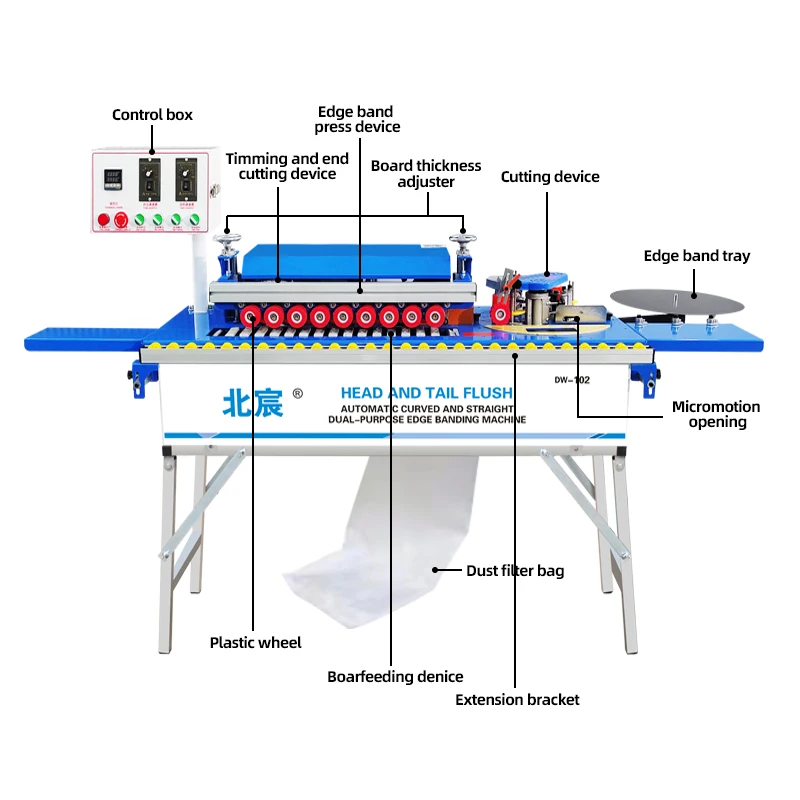

| Standard Functions | Curved and straight edge banding, edge trimming, polishing, automatic head and tail, vacuum hold |
| Language Options | Chinese and English standard; other languages customizable |
| Certification | CE, ISO 9001 |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door edge finishing | MDF and particleboard with PVC or veneer banding |
| Small-batch custom furniture | Plywood and blockboard panels, straight and curved profiles |
| Joinery workshop first automation | Polymer door components and wood-based substrates |
| Backup edge banding station | Secondary line for overflow or specialty panel runs |
Why Voltage Confirmation Must Happen Before You Pay
A machine wired for the wrong frequency will burn out its trimming motors within the first week — and no warranty covers it.
I have watched a workshop in Southeast Asia receive an edge bander set to 50Hz when their grid runs 60Hz. The trimming motors overheated on the second day. The operator thought it was a defective unit. It was not. It was a missing question on the order form [NEED_CITE: voltage and frequency standards by export market]. With the DW102 Mini Automatic Edge Banding Machine in stock, we confirm your local voltage, frequency, and plug type before the machine leaves the warehouse. That single checkpoint prevents the most common — and most expensive — commissioning failure I see in small workshop equipment.
Fast Dispatch Without Sacrificing Configuration Accuracy
Ordering a Mini Automatic Edge Banding Machine in stock does not mean accepting a default setup. Each DW102 unit is verified against your electrical standard and plug requirement before crating. The 220V/380V configurable range covers most single-phase and three-phase workshop supplies, and the plug type — EU, USA, AU, or UK — is swapped to match your local sockets. You receive a machine you can plug in and run, not one that sits idle while you source an adapter or rewire a panel.
What Ready Stock Actually Means for Your Timeline
When a joinery workshop decides to move from hand-edging to machine banding, the owner rarely wants to wait weeks for a production slot. The DW102 ships from existing warehouse inventory, which cuts the typical multi-week lead times down to dispatch within days of order confirmation. This matters most when you are replacing a machine that just failed, or when a new cabinet contract demands edge finishing capacity you do not yet have. The machine arrives as a single, self-contained unit — no line integration required [NEED_CITE: typical lead times for stocked woodworking machinery].
Reading the Specs That Actually Matter on the Shop Floor
The 0.3–3mm edge banding thickness range covers the PVC and veneer strips most small workshops use daily. If you run 0.4mm PVC on flat panels, the dual 650W trimming motors handle the cut without chatter. Move to 2mm solid wood veneer on a curved cabinet door, and those same motors maintain edge contact through the radius. The 1000ml glue pot is sized for intermittent production — enough for a morning run of cabinet sides without stopping to refill, but small enough that the adhesive stays fresh rather than degrading in an oversized reservoir.
The vacuum hold system at 1200W keeps lighter panels — especially 18mm particleboard — stable against the fence during curved edge work. Without adequate vacuum, the panel drifts and the banding skews. The 0.5–0.8MPa air pressure requirement means you need a modest compressor in the shop, not an industrial air plant. Most small workshops already have this capacity from running nail guns or spray equipment.
The Hidden Cost of Skipping the Material Conversation
A cabinet maker once ordered a compact edge bander without telling anyone which board he was actually running. The machine arrived, the operator loaded 0.8mm PVC strip, and the trimming knives — set for thinner veneer — gouged into the substrate. Forty panels scrapped before lunch. The machine was not faulty. The setup was wrong for the material [NEED_CITE: edge banding trim quality relative to material thickness mismatch]. That is why every DW102 order goes through a material confirmation step: your board type, your edge strip thickness, your typical panel dimensions. Five minutes on the front end prevents a day of waste on the back end.
Why Buyers Source This Machine Here
In-house manufacturing with patented cutting mechanisms means the DW102 trimming heads are built and tested under one roof — not assembled from anonymous subcontracts. Voltage, language, and plug customization are standard on every unit, not treated as a special order that adds weeks. The four-stage QC process includes a pre-shipment test run on panel material matching your specification, with photographs sent before crating. An engineer reviews your workshop layout and panel requirements to confirm the DW102 is the right fit for your volume, rather than pushing you toward a larger machine you do not need. Factory visits are available for buyers who want to see the assembly floor before committing.
Documentation & Verification
- CE declaration of conformity covering the DW102 trimming and polishing assembly
- Factory test record run on your specified panel thickness and edge strip before dispatch
- Electrical schematic confirming your ordered voltage and plug configuration
- Operation manual in your chosen language with troubleshooting section for common trim faults
- Spare parts list with part numbers for trimming blades, polishing wheels, and glue pot seals
- Packing photographs showing machine secured and accessories counted before crate closure
Installation, Commissioning & Support
- Place the DW102 on a level floor; the 1280×470mm footprint fits against a standard workshop wall
- Connect to a dedicated circuit matching your confirmed 220V or 380V supply with proper grounding
- Machine ships fully assembled — remove transit bolts and connect air supply at 0.5–0.8MPa
- First-run calibration covers glue temperature, trimming depth, and polishing pressure for your material
- Operator training covers curved versus straight banding mode switching and daily glue pot cleaning
- Consumable spare set included: trimming blades, polishing pads, and feed roller covers
What We Need From You to Ship
Tell us your primary board material and its thickness range, the edge strip type and thickness you run most often, and your workshop voltage and frequency. If you are replacing an existing machine, share what model you are coming from and what problems you experienced. For buyers adding a first automated edge bander, let us know your daily panel count and whether you run curved profiles or only straight edges.
Frequently Asked Questions
Q: What is the dispatch lead time for the DW102 from ready stock?
A: The DW102 ships from warehouse inventory, typically dispatching within days of order confirmation and voltage verification. This avoids the production-slot wait that applies to custom-built machines. Exact dispatch timing depends on the confirmation steps and your shipping method selection.
Q: Can I order a single unit, and what are the shipping options?
A: Yes, the DW102 is available as a single-unit order. At 75kg and compact dimensions, it ships via standard freight or express courier depending on your destination and urgency. Shipping options are quoted at the time of order based on your delivery address.
Q: Is the voltage and plug type confirmed before I receive the machine?
A: Every DW102 order includes a voltage, frequency, and plug type confirmation step before dispatch. The machine is set to your local electrical standard — 220V or 380V — and fitted with the correct plug for your market so it can be connected immediately on arrival.
Q: What spare parts and consumables ship with the machine?
A: Each DW102 includes a spare parts kit with trimming blades, polishing pads, and glue pot seals sufficient for initial operation. A full spare parts list with part numbers is provided so you can reorder consumables as needed without searching for compatible components.
Q: Can the control panel language be set to my operator’s language before dispatch?
A: Chinese and English are standard on the DW102 control interface. Additional languages can be configured before shipment so your operator reads instructions and settings in a familiar language from the first day of production.
