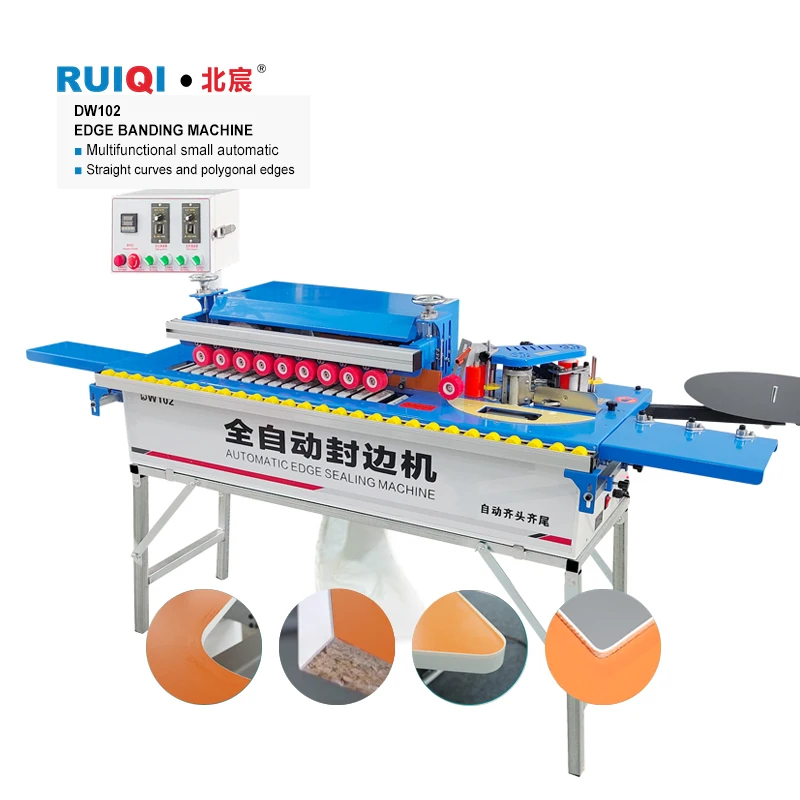

DW102 Small Pvc Mdf Wood Working Semi Automatic Banding Machine Straight Edge Equipments China Furniture Machinery
CE Certified ISO9001
Edge banding machine

DW102 Small Pvc Mdf Wood Working Semi Automatic Banding Machine Straight Edge Equipments China Furniture Machinery

This product is currently out of stock and unavailable. SKU: DW102 Small Pvc Mdf Wood Working Semi Auto-36334832 Category: Edge banding machine Description Additional information Table of ContentsDescriptionAdditional informationRelated productsManual Portable Circular Board Banding Small Automatic Curved Line Edge Sealing Machine Woodworking Machinery ManufacturersDW102 Factory’s Automatic Edge Banding Machine Pre-milling Corner TrimmingDW102 Qingdao Direct Hot […]

20yrs
Experience
100+
Countries
OEM
Customizable
  • CE & ISO9001 certified -- meets global import standards
  • Full OEM/ODM: custom logo, voltage (110V-440V), multilingual panels
  • Factory-direct pricing with stable supply chain
  • Professional after-sales: remote support, warranty & spare parts
  • Suitable for small workshops to large industrial factories
Request a Free Quote WhatsApp Now

Direct Contact

woodmachinebc@aliyun.com +86 156 6441 3539

Products Description
Beichen DW102 edge banding machine with auto gluing and trimming buffing and automatic end cutting
DW102 automatic mini MDF double pvc edge
Trimmer manual edge banding machine wood edge bander
This machine is suitable for medium density fiber board. blockboard. wood panels. particleboard. plywood and other polymer doors.straight edge trimming. disposable with double-sided adhesive tape cutting edge bonding edge pressing. block. chamfer.
Tinker.finishing. polishing and other functions of scraping edge. edge smooth. smooth. feel good sealing wire. flat and smooth.
Theequipment operation is stable. reliable and durable. is especially suitable for large and medium-sized furniture. cabinets and other furniture manufacturers plate using.
Product Paramenters
Model
DW102


Total power
3800W


Standard features
Curved and straight edge banding. edge trimming. polishing. automatic head and tail. with vacuum
Voltage
220V/380V/customization
Minimum length of sheet
25CM
Minimum width of sheet
5CM
Edge banding height
0-50MM
Edge banding thickness
0.3-3MM
Edge power/speed
20W
Air source pressure
0.5-0.8Mpa
Transmission power/speed
60W
Glue pot capacity
1000ml
Trimming power/speed
650W*2
Vacuum power
1200W
Polishing power/speed
180W*2


Product Size
128*47*69CM
Product weight
75KG
Package Size
134*51*58CM


Why Choose Us
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products. Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ? We are manufacturer in Dezhou city. Shandong province of China.
We can offer competitive price of machine with high quality. Q2:Can I choose the Plug? Yes.we have EU.USA.AU.UK plug for your country use Q3:Is it OK to print my logo on the product? Yes.Please inform us formally before our production and confirm the design firstly for the mass production. Q4.I do not know Chinese.will the operation panel in English or French or other? Yes.all our machine are with Chinese and English.If you want only English or Spanish or other. we also can customize to you Q5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world. also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries. Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe. Q7.What to do if l have any other specifications for the current? lf you have any different requirements.just contact us and we will meet you. Q8.lf I need a sample for pretest. do you sale sample for this inquiry ? Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation. Q9.Can you produce the products according to my own drawings? Yes. we can do OEM according to your requirement

Technical Specifications

Certification
CE, ISO9001
Voltage Options
110V / 220V / 380V / 440V (customizable)
Origin
Shandong, China
OEM/ODM
Supported
Warranty
1 Year
After-Sales Service
Remote support & spare parts supply
Export Markets
100+ countries worldwide
Lead Time
Contact us for current lead time

* Detailed technical parameters (dimensions, motor power, processing speed, etc.) vary by model. Please contact us for the full spec sheet.

Shipping & Packaging

  • Professional export-grade wooden crate packaging
  • Stable supply chain -- on-time delivery guaranteed
  • Sea freight (FCL/LCL), air freight & express options
  • Customs clearance documentation provided
  • Exporting to 100+ countries: Europe, Americas, SEA, Africa, Latin America

After-Sales Support

  • 1-year warranty on all machines
  • Remote technical support via video call
  • English & Spanish-speaking support teams
  • Spare parts supply with fast international shipping
  • Operation manuals in multiple languages

Full OEM / ODM Customization

We support complete OEM/ODM services for global distributors, regional agents and brand owners. Customize any aspect of the machine to fit your market requirements.

Custom Logo & Branding
Your brand name, logo and color scheme on all visible surfaces
Voltage Customization
110V, 220V, 380V, 440V -- any frequency for any market
Multilingual Control Panels
English, Spanish, French, Arabic and more
Custom Packaging
Branded packaging, user manuals and accessory kits
Specification Adjustments
Motor power, processing dimensions and feature configurations
Certification Support
Assistance with CE, FCC, RoHS and other regional certifications
