Description
Voltage-Confirmed Dispatch — Every DW602 edge bander is tested and photographed with its electrical nameplate matching your local grid before it leaves our Ningjin facility, preventing the three-week delay I once saw when a 380V unit landed on a 220V/60Hz site.
Technical Specifications
| Parameter | Value |
|---|---|

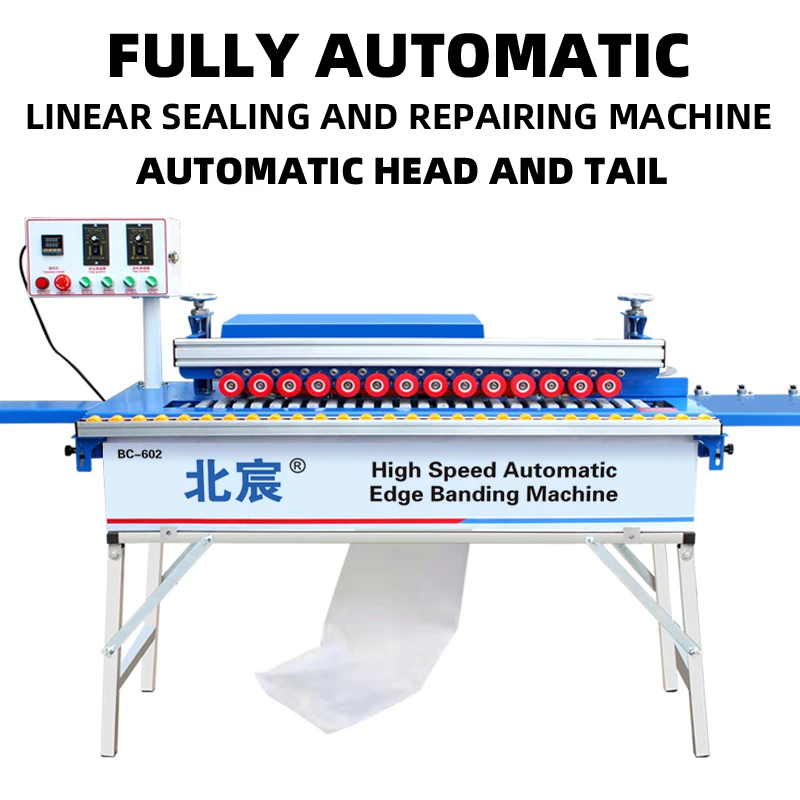

| Model | DW602 |
| Product Type | Automatic Edge Banding Machine |
| Total Rated Power | 3800W |
| Available Voltage | 220V / 380V / Custom |
| Edge Banding Thickness Range | 0.3 – 3 mm |
| Edge Banding Height | 0 – 50 mm |
| Minimum Sheet Dimensions | 25 cm (L) x 5 cm (W) |
| Glue Pot Capacity | 1000 ml |
| Air Pressure Requirement | 0.5 – 0.8 MPa |
| Machine Dimensions | 128 x 47 x 69 cm |
| Net Weight | 90 kg |
| Key Features | Automatic Head/Tail Cutting, Trimming, Polishing, Vacuum Feed |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet Door Edge Finishing | MDF and Plywood with PVC or Wood Veneer banding |
| Custom Furniture Panel Processing | Particleboard and Blockboard up to 50mm thickness |
| Small Batch Joinery | Polymer doors and solid wood panels for residential carpentry |
| Workshop Capacity Supplement | Quick-turnaround edge banding for medium-volume furniture plants |
Why Your Local Voltage Must Be Confirmed Before Dispatch
Sending an Edge Banding Machine in stock to a country with mismatched frequency is a guaranteed way to stall a production line.
In my years supporting exports to Latin America, I have seen control panels fry and motors refuse to start because the local 60Hz grid met a machine configured for 50Hz. The DW602 is configurable, but the specification must be locked in writing before the crate is sealed. A unit sitting in a shipping container with the wrong voltage is just dead weight until an electrician can source a transformer, which is rarely simple in industrial zones [NEED_CITE: impact of frequency mismatch on induction motors].
Rapid Availability Without the Blind Risk
Buyers looking for an Edge Banding Machine in stock usually need it because a main line is down or a sudden contract landed. This DW602 unit is prepared for fast dispatch, but speed should never bypass the electrical check. We hold the machine and verify the exact voltage requirement of your workshop—whether that is a standard 380V 3-phase setup or a specialized 220V single-phase line—before generating the shipping documents.
Small Footprint, Immediate Integration
The DW602 is built for workshops that cannot afford to rearrange their entire floor plan. At just over a meter in length and under 100kg, this unit slots between a panel saw and a boring machine with minimal fuss. Its compact chassis does not mean a compromise on function; the integrated vacuum and automatic head/tail cutting allow it to handle the same material range as larger, fixed-line machines, just at a pace suited for flexible, small-to-medium runs [NEED_CITE: workshop layout and material flow for compact machinery].
Decoding the Power and Pneumatic Specs

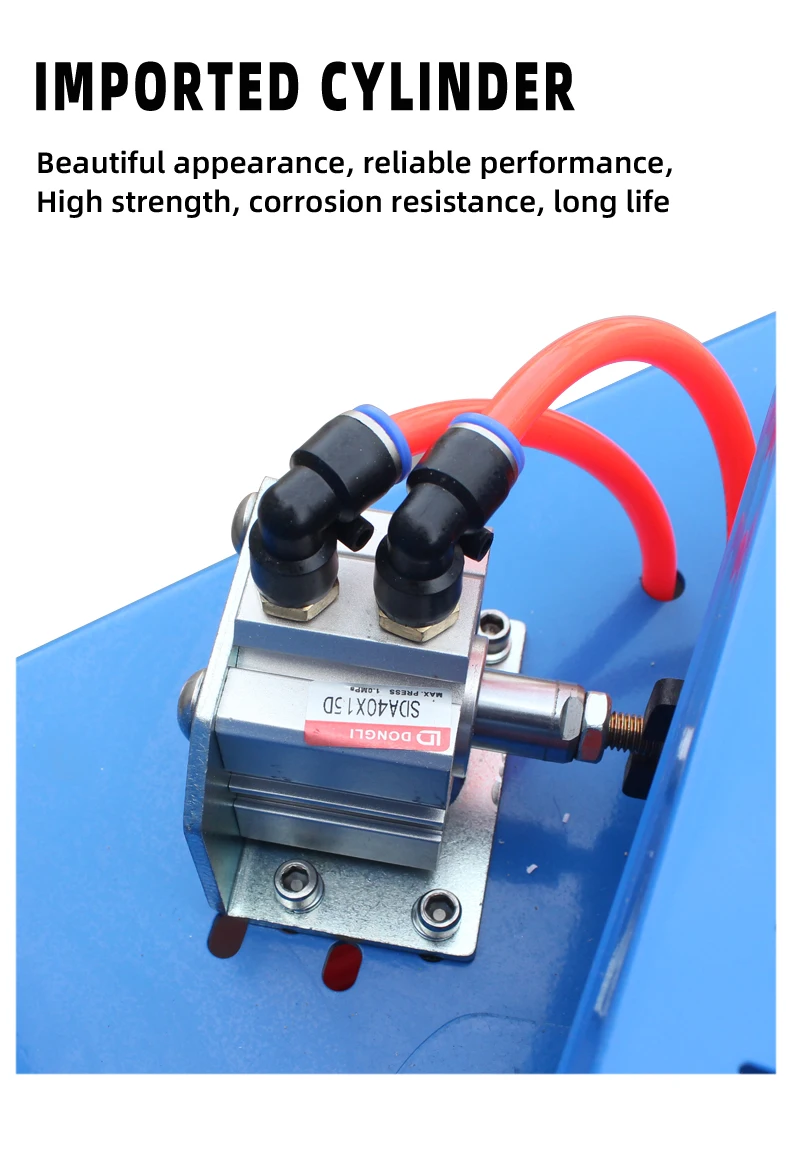

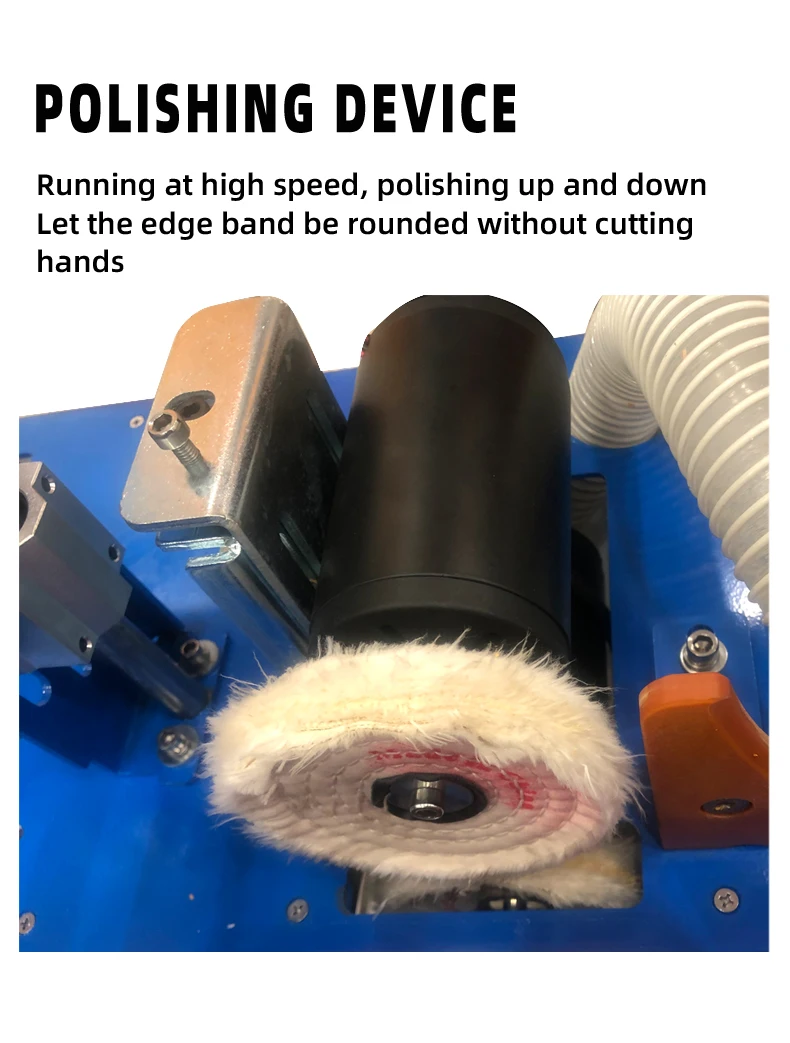

The 3800W total power is distributed across specialized stations: 650W for each of the two trimming motors, 180W for each polishing wheel, and a 1200W vacuum pump. The vacuum is critical here—it is not just for dust collection, but often assists in holding the edge banding strip against the panel during the glue application phase on smaller machines. The 0.5-0.8 MPa air requirement is standard for actuating the pneumatic cutters that perform the head and tail snips. If your shop’s compressor drops below this threshold, the cutters may lag, resulting in the exact overhang issues that force a manual trim pass later.
The Cost of Ignoring the Air Source
I have walked into facilities where the edge quality looked terrible, only to find the plant’s main air compressor was leaking and the pressure at the machine was hovering around 0.3 MPa. The DW602’s pneumatic cutters need that 0.5 MPa minimum to snap the banding cleanly. Without it, the strip tears instead of cutting, and the trimming station then has to work twice as hard to clean up the edge, wearing out the cutters prematurely. Verifying your shop’s air pressure is as important as checking the voltage before this Edge Banding Machine in stock arrives on your dock.
Why Procure This Unit Through Ruiqi
This is not a generic reseller transaction. Because we manufacture the DW602 in our Ningjin facility, we can reconfigure the control panel language and the motor winding in-house before the machine ships. We do not simply stick a label on a box; we run a test board through the glue pot, verify the polishing wheels are tracking true, and photograph the specific settings. This level of pre-shipment verification is what separates a reliable machine delivery from a container full of problems.
Documentation & Verification
- Electrical schematic confirming your specific voltage and phase before the DW602 is crated.
- Factory test record showing a sample edge finish on your specified MDF or plywood thickness.
- Operation manual translated to your preferred language, matching the DW602 control panel labels.
- CE declaration of conformity and ISO 9001 certificate included with the shipping documents.
- Spare parts list identifying the specific trimming blades and polishing wheels for this DW602 unit.
Installation, Commissioning & Support
- Requires a dedicated circuit matching the confirmed voltage to support the 3800W peak draw without tripping breakers.
- Leveling feet on the 128cm chassis must be adjusted to match your adjacent panel saw’s outfeed height for smooth transfer.
- Initial glue pot temperature calibration performed via remote video call based on your specific PVC or wood veneer banding.
- Daily cleaning routine for the 1000ml glue pot to prevent adhesive carbonization during weekend shutdowns.
- Pneumatic line filter installation recommended upstream of the DW602 to protect the 0.5-0.8 MPa valves from moisture.
Pre-Shipment Verification Checklist
To ensure your DW602 Edge Banding Machine in stock arrives ready to run, please confirm the exact material thickness you plan to process most frequently and the ambient temperature range of your workshop. This allows us to pre-set the glue pot thermostat and select the correct pressure roller tension before the machine is secured for transit.
Frequently Asked Questions
Q: How soon can a DW602 be dispatched if it is currently in stock?
A: Once the voltage and control panel language are confirmed in writing, we typically require a brief window for final electrical testing and export crating. This ensures the machine is not just physically present, but actually configured for your facility before it boards the vessel.
Q: Can the DW602 handle both PVC and real wood veneer edge banding?
A: Yes, the machine accommodates thicknesses from 0.3mm to 3mm. The glue pot temperature and feed speed need adjustment when switching between the flexible PVC and the more rigid wood veneer, a process covered in the operation manual we provide.
Q: What happens if the machine arrives and the local plug type is different?
A: We install the correct industrial plug or provide a certified adapter based on the photos you send of your workshop outlets. Sending a picture of your wall receptacle during the order confirmation stage prevents any connection issues upon arrival.
Q: Is the 90kg weight manageable for a small workshop without a forklift?
A: The compact 128cm length and sub-100kg weight mean the DW602 can typically be moved using a standard pallet jack and positioned by a small team. We provide rigging instructions in the documentation to help your local movers place it safely.
