Description
Voltage-Locked Dispatch — every DW102 ships with a signed voltage confirmation and matched plug type, eliminating three-week transformer delays on arrival.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW102 |
| Product Type | Edge Banding Machine |
| Total Power | 3800W |
| Voltage & Frequency | 220V / 380V / customization |
| Control System | PLC |
| Overall Dimensions (L×W×H) | 128×47×69 cm |
| Net Weight | 75 kg |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 5 cm |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Edge Power | 20W |
| Transmission Power | 60W |
| Trimming Power | 650W×2 |
| Polishing Power | 180W×2 |
| Vacuum Power | 1200W |
| Glue Pot Capacity | 1000 ml |
| Air Source Pressure | 0.5–0.8 MPa |

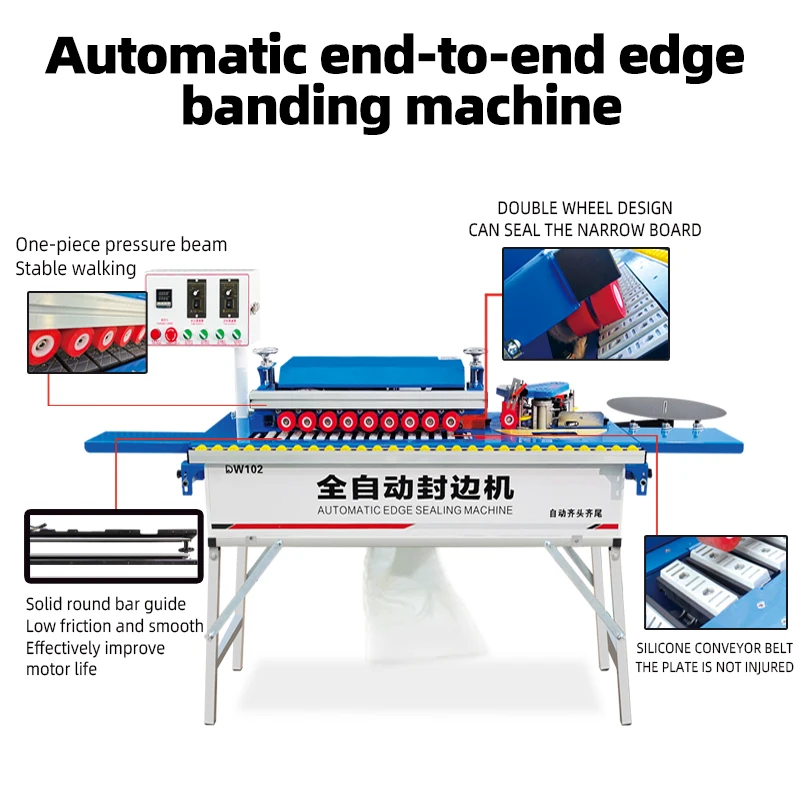

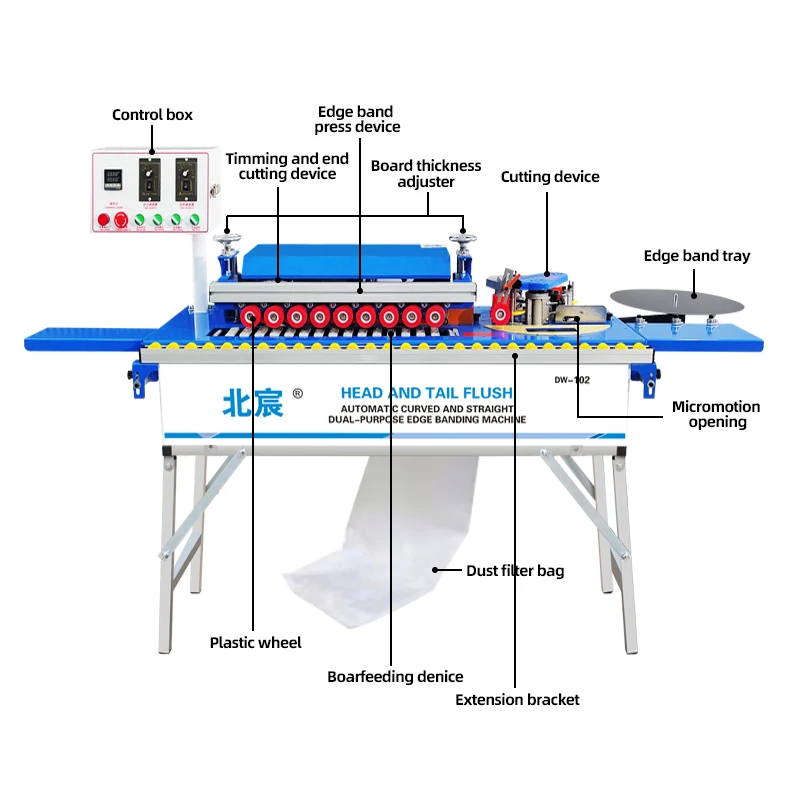

| Key Features | Curved and straight edge banding, edge trimming, polishing, automatic head and tail cutting, vacuum hold |
| Language Options | Chinese, English (customizable to Spanish, French, others) |
| Plug Options | EU, USA, AU, UK |
| Assembly State | Fully assembled |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge banding | MDF, particleboard, plywood |
| Cabinet door and carcass edging | Blockboard, wood panels |
| Polymer door profile trimming | Polymer composite sheets |
| Small-batch workshop production | Straight and curved edge profiles on sheet stock |
Why the Voltage Question Should Come Before the Price
A machine that cannot plug in is not a machine — it is a crate.
I once stood in a Chilean workshop watching a PLC-controlled edge bander sit idle for three weeks because it arrived wired for 380V/50Hz into a 220V/60Hz facility. The crew had cleared floor space, rerouted dust extraction, and scheduled operator training. None of that mattered while we waited for a step-down transformer to clear customs. Since then, I treat voltage confirmation as the first document in any order file, not an afterthought buried in shipping notes [NEED_CITE: voltage and frequency standards by export market]. When you source an Edge Banding Machine in stock fast delivery, the dispatch speed means nothing if the electrical configuration does not match the facility it lands in.
Dispatch That Actually Means Ready to Run
Stock availability only matters when the machine is configured for the destination market. The DW102 ships fully assembled with plug type matched to your region — EU, USA, AU, or UK — and the control panel language set before crating. An Edge Banding Machine in stock fast delivery loses its advantage if the buyer still needs to source adapters, rewire motors, or translate an HMI screen on the shop floor.
Single-Unit Orders Without the Usual Friction
Many workshops need one edge bander, not a container load. The DW102 is available for single-unit dispatch, which matters for a joinery shop replacing a failed manual unit or a cabinet maker adding curved-edge capability for the first time. Lead time stays short because the voltage and plug confirmation happens at order placement, not during production [NEED_CITE: CE machinery directive requirements for industrial equipment].
What the Numbers Mean on the Floor
The 0.3–3 mm edge banding thickness range covers PVC, ABS, melamine, and thin wood veneer — the materials most small-to-mid furniture workshops process daily. Two trimming stations at 650W each handle both coarse and fine trimming passes, which directly affects whether the operator needs a secondary hand-finishing step. The 1000 ml glue pot capacity supports continuous small-batch runs without frequent refills, and the 1200W vacuum system holds panels down to 5 cm width — narrow offcuts that lighter vacuum units struggle with. Minimum sheet length of 25 cm and the curved-and-straight capability mean drawer sides and radius cabinet components run on the same pass. The PLC control keeps feed speed and glue temperature coordinated, reducing the operator judgment calls that cause inconsistency across a batch [NEED_CITE: edge banding adhesion standards for engineered wood panels].
The Cost Nobody Quotes
Ordering a machine without locking the electrical specification creates downstream expenses that never appear on the proforma invoice. A wrong-voltage motor burns out under load rather than tripping a breaker, damaging the trimming and polishing drives. An unmatched plug forces the workshop electrician to improvise a connection that may not meet local code, complicating insurance and inspection. A control panel in an unreadable language stalls commissioning until a translation arrives, leaving trained operators idle [NEED_CITE: industrial equipment safety compliance by import market].
What This Order Includes Beyond the Crate
Every DW102 order ships with a formal voltage confirmation document signed before production starts. The operation and maintenance manual arrives in the language agreed at order stage — English, Spanish, French, or another specified language. A factory test record covering your specified panel thickness range and edge material accompanies the packing photographs. The electrical schematic matches the as-shipped voltage configuration, so a local electrician can trace any fault without guessing at wiring intent.
Documentation & Verification
- CE declaration of conformity covering the DW102 edge banding unit
- ISO 9001 certificate for the manufacturing facility
- Electrical schematic matching your confirmed voltage and plug type
- Factory test record on your specified panel thickness and edge material
- Operation and maintenance manual in your agreed language
- Pre-shipment packing photographs for condition verification
Installation, Commissioning & Support
- Requires a dedicated circuit matching the confirmed voltage at 3800W total draw
- Fully assembled on arrival — no on-site mechanical assembly required
- PLC control panel set to your language before crating for immediate operation
- Air supply connection at 0.5–0.8 MPa for pneumatic trimming and feed components
- Spare wear parts list included for trimming blades and polishing wheels
- Installation guidance provided for first power-on and parameter calibration
What We Need to Move Your Order Forward
Send us your workshop voltage and frequency, preferred plug type, and the primary panel materials you process along with typical sheet dimensions. If you run curved-edge components, include the minimum radius so we can confirm feed path clearance. Specify your preferred control panel language and whether you need the operation manual duplicated in a second language for your maintenance team.
Frequently Asked Questions
Q: What voltage and plug type will my machine ship with?
A: We confirm your local voltage, frequency, and plug type in writing before the DW102 enters production or leaves stock. Options include 220V or 380V configurations with EU, USA, AU, or UK plugs. The machine arrives wired and plugged for your facility — no adapters or transformers needed on the day of delivery.
Q: How fast can the DW102 dispatch after order confirmation?
A: Dispatch timing depends on stock availability and the voltage confirmation step. Once your electrical specification is signed off, the unit is prepared, tested, and crated. The voltage-lock step adds minimal time but prevents the multi-week delays that happen when a machine arrives with the wrong configuration.
Q: Can I order a single unit or is there a minimum quantity?
A: Single-unit orders are standard for the DW102. Workshops replacing a manual edge bander or adding curved-edge capability for the first time typically order one machine. The same voltage confirmation, documentation, and pre-shipment testing apply regardless of order quantity.
Q: What spare parts ship with the machine and how do I reorder?
A: Each DW102 ships with a spare parts list covering trimming blades, polishing wheels, and wear components specific to this model. Reorders can be placed directly, and parts are matched to the machine serial number so compatibility is confirmed before dispatch.
Q: Do you provide installation guidance and after-sales support on arrival?
A: Installation guidance covers first power-on, PLC parameter setup, and feed calibration for your panel materials. The DW102 arrives fully assembled, so the focus is on electrical connection verification, air supply setup, and running test pieces to confirm edge quality before full production starts.
