Description
Pre-Dispatch Power Verification — every DW3000 unit is triple-checked for voltage, frequency, and plug format before crating, so it runs on arrival instead of sitting dead on your floor.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW3000 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 11 kW |
| Voltage & Frequency | 380V / 415V (frequency to be confirmed at order) |
| Feed Speed | 0–12 m/min |
| Minimum Panel Length | 30 cm |
| Minimum Panel Width | 15 cm |
| Edge Banding Height Range | 0–50 mm |
| Edge Banding Thickness Range | 0.3–3 mm |
| Pre-milling Motor | 2.2 kW |
| Heating Power | 2.2 kW × 2 (double heat gun) |
| Trimming Motor | 2.2 kW × 2 (3 spindle motors total) |
| Polishing Motor | 0.4 kW × 2 |
| Vacuum Power | 550 W |
| Air Supply Pressure | 0.5–0.7 MPa |
| Glue Pot Capacity | 4000 ml |
| Oblique Pressure Wheels | 8 groups, adjustable 30°–90° |

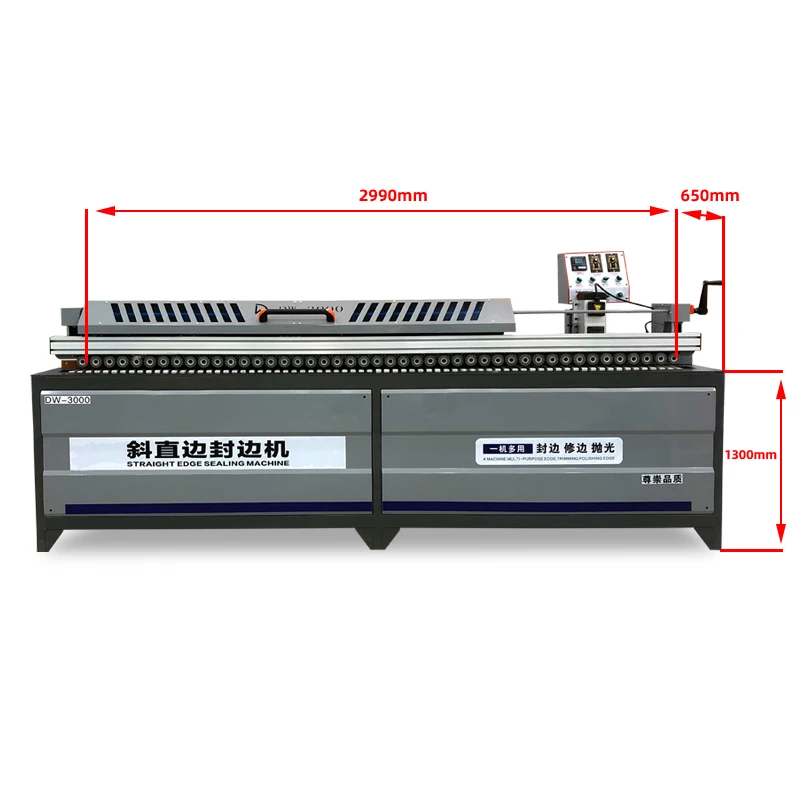

| Overall Dimensions (L×W×H) | 299 × 65 × 130 cm |
| Net Weight | 430 kg |
| Key Features | Pre-milling, 30°–90° oblique & straight banding, edge trimming, scraping, polishing, vacuuming, edge band slotting |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge banding | MDF, particleboard, plywood with PVC or veneer banding |
| Cabinet and wardrobe door production | Laminated panels requiring straight and 45° oblique bevel edges |
| Angled panel joinery | Boards needing 30°–90° bevel edge finishing for non-standard joints |
| Small-to-medium workshop output | Single-machine edge finishing for batch and one-off panel runs |
Why the Voltage Question Should Come Before the Price on an edge banding machine in stock
Confirming your local supply before dispatch prevents a three-week line stoppage.
I watched a container arrive at a Southeast Asian furniture factory with the right machine and the wrong voltage. The crew stood around an edge bander that would not power on, waiting for a step-down transformer that took weeks to source locally. The factory lost production time, the buyer lost trust, and the machine earned a reputation before it ever ran a single panel. That edge banding machine in stock was technically perfect — just electrically incompatible [NEED_CITE: voltage and frequency standards by export market]. The DW3000 ships with configurable voltage options and plug formats for EU, USA, AU, and UK markets, but only if someone asks the right question before it leaves the loading bay.
Stock Availability and Dispatch Timing
The DW3000 sits in our ready-stock pool, meaning the machine is built, tested, and crated rather than waiting in a production queue. For workshops that cannot absorb a multi-week build lead, having an edge banding machine in stock shortens the gap between purchase order and first panel output. We dispatch single units without requiring a container-load commitment.

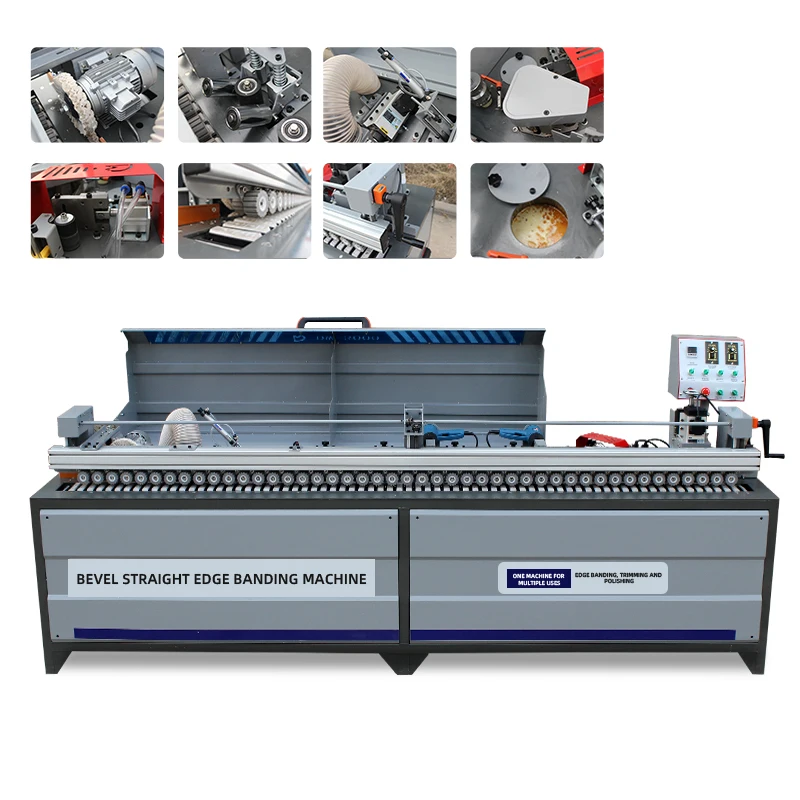

Straight and Bevel Banding on One Machine Floor
Most small workshops buy a straight bander first, then discover they also need oblique bevel edges for angled cabinet joints and end up shopping for a second machine. The DW3000 handles both within one pass sequence. The eight-group oblique pressure wheel assembly adjusts from 30° to 90°, so operators switch between straight edge finishing and bevel work without reconfiguring the line [NEED_CITE: woodworking joint types requiring bevel edge preparation].
What the Power and Feed Specs Mean at the Bench

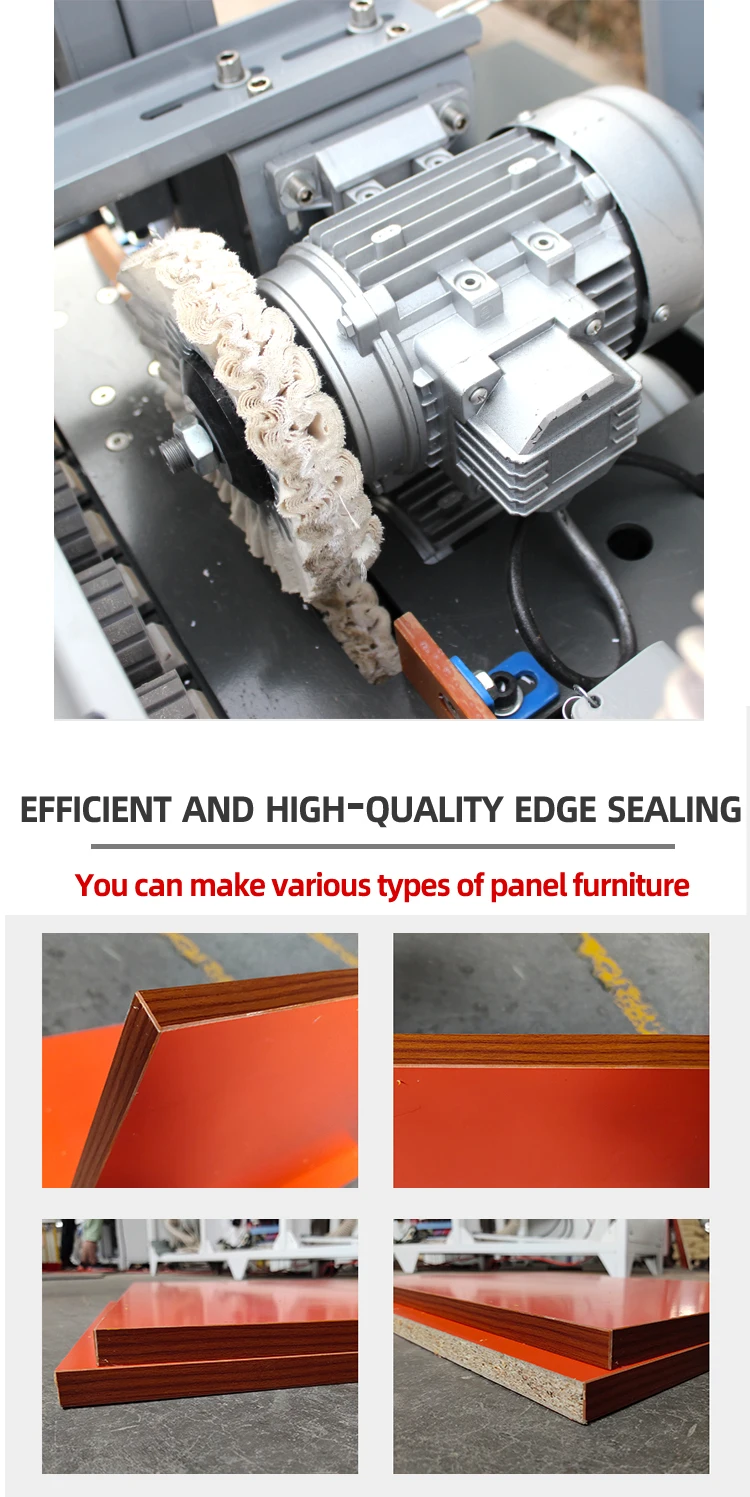

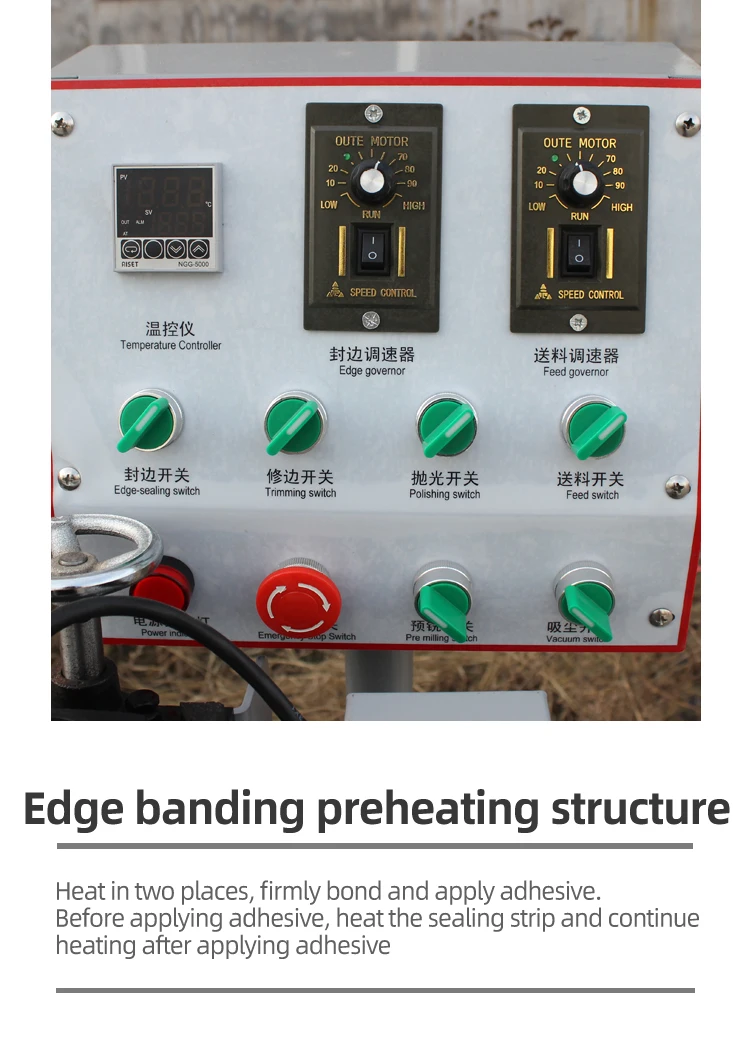

The double heat gun design at 2.2 kW each addresses a problem that shows up when workshop temperature drops or when thicker PVC banding resists standard glue activation. Two independent heating elements keep the adhesive at working temperature across varying conditions, reducing cold-glue failures on the first panels of a morning shift. The 0–12 m/min variable feed speed pairs with a double cylinder feeding belt, which matters when you are running thin 0.3 mm veneer that demands a slower, steadier feed versus 3 mm PVC that tolerates higher throughput. Pre-milling at 2.2 kW cleans the panel edge before the glue roller meets it — this step removes saw marks and minor chip-out from the panel saw, directly affecting how tight the glue line appears on the finished piece. Three spindle motors handle trimming across the oblique and straight profiles, and the flexible scraper that follows removes residual adhesive before the polishing wheels finish the surface [NEED_CITE: edge banding process stages and quality checkpoints].
The Cost of Skipping Configuration Checks
A workshop that orders an edge bander without confirming whether their supply is 380V or 415V, 50 Hz or 60 Hz, faces a binary outcome: the machine runs or it does not. There is no middle ground. When the frequency is wrong, motors spin at incorrect speeds, feed rates drift, and heaters cycle unpredictably. I have seen operators blame the machine for months before an electrician finally measured the supply and found the mismatch [NEED_CITE: industrial motor behavior under frequency mismatch]. The plug format seems minor until your facility uses a standard that does not match the shipped cable, forcing an adapter that may not carry the full 11 kW load safely.
What Ready-Stock Procurement Actually Covers
The DW3000 is held in fully assembled state, tested on actual panel stock before crating, and photographed during the pre-shipment verification. You receive a factory test record specific to your panel thickness range, packing photographs showing crating condition, and an operation manual in your chosen language — English as standard, with Spanish and other options configurable. Voltage and plug type are locked in at order confirmation, not guessed at dispatch. Our engineer-led configuration process means the quotation you receive reflects your actual power supply and panel requirements rather than a generic spec sheet [NEED_CITE: pre-shipment inspection standards for industrial machinery].
Documentation & Verification
- Factory test record run on your specified panel thickness and banding material
- Electrical schematic confirming voltage, frequency, and plug type for your facility
- Operation and maintenance manual in agreed language with illustrated fault guide
- Spare parts list with part numbers matched to your machine serial
- Packing photographs showing crating condition before container loading
- CE declaration of conformity and ISO 9001 certificate copy included with shipment
Installation, Commissioning & Support
- Requires a level concrete floor capable of supporting 430 kg across the 299 cm footprint
- Dedicated 380V/415V circuit rated above 11 kW total draw with appropriate breaker sizing
- Arrives fully assembled — position, level, connect power and air supply at 0.5–0.7 MPa
- First-run parameter setting for your specific edge banding thickness from 0.3 to 3 mm
- Remote installation guidance covering feed speed calibration and pressure wheel angle setup
- Spare wear parts included in shipment for immediate maintenance readiness
What We Need to Move Your Order Forward
Send us your panel material types and the thickness range you run most often, your local voltage and frequency as printed on your facility’s main supply panel, and the plug standard your electrician uses. If your production includes angled joints requiring bevel banding, note the angle so we can verify the pressure wheel setup before dispatch.
Frequently Asked Questions
Q: How soon can the DW3000 ship after I place an order?
A: The DW3000 is held as ready stock, meaning the unit is already assembled and has passed factory testing. Once we confirm your voltage, frequency, plug type, and language preference, we complete pre-shipment verification and crating. Dispatch follows within a short window, significantly faster than ordering a machine built from scratch against a production schedule.
Q: My country uses 415V at 60 Hz — can the machine be configured for that?
A: The DW3000 supports both 380V and 415V configurations, and frequency requirements are confirmed at order stage. We also supply EU, USA, AU, and UK plug formats. You provide your local supply details from your electrical panel label, and we match the configuration before the machine leaves the factory.
Q: Is there a minimum order quantity, or can I buy a single unit?
A: Single-unit orders are standard on this site. The DW3000 ships as one fully assembled machine with its own crating, documentation set, and spare parts kit. You do not need to fill a container or commit to a multi-machine purchase to place an order.
Q: Will the control panel be in English, or can I request another language?
A: Chinese and English are standard on the control interface. Spanish and additional languages are available as custom configurations. Specify your preferred language at order confirmation so the panel is set before the machine ships rather than requiring a firmware update on arrival.
Q: What support is available once the machine is delivered?
A: We provide remote installation guidance covering positioning, power connection, air supply setup, and first-run calibration for your panel range. The shipment includes an operation and maintenance manual in your agreed language plus a spare parts list with numbered references for straightforward reordering.
