Description
Stocked and Verified — the XZF-450 ships only after your site voltage and frequency are confirmed, eliminating the three-week transformer delays we have seen on past orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | XZF-450 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 9.5 kW |
| Pre-milling Motor | 4 kW |
| Trimming Power | 2.2 kW × 2 |
| Polishing Power | 0.4 kW × 2 |
| Edge Feeding Power | 0.16 kW |
| Transmission Power | 180 W |

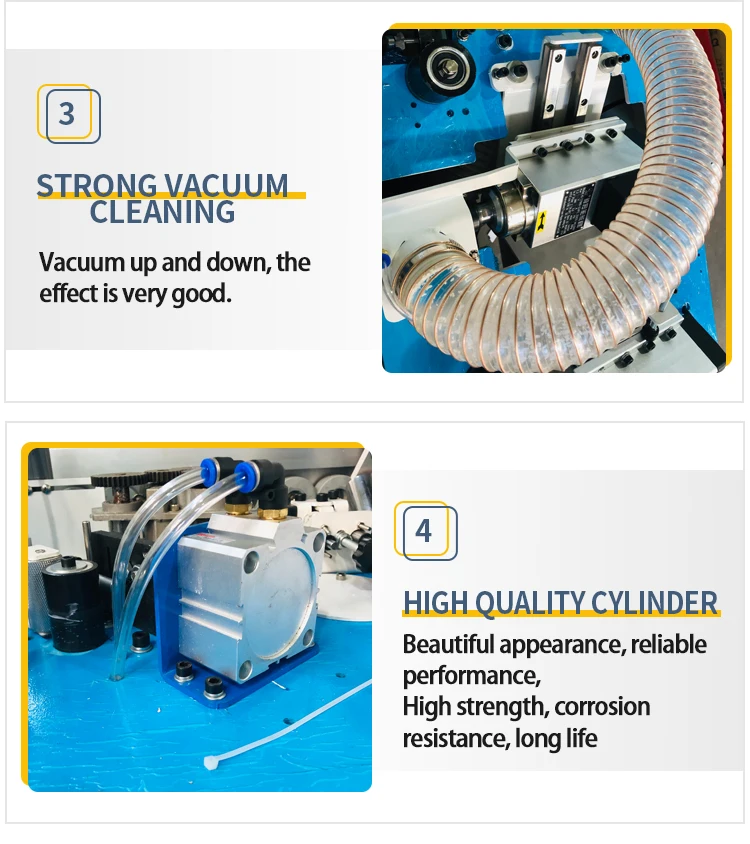

| Vacuum Power | 550 W |
| Voltage | 380V / 415V (frequency and phase to be confirmed per destination market) |
| Feed Speed | 0 – 12 m/min |
| Edge Banding Height | 0 – 50 mm |
| Edge Banding Thickness | 0.3 – 3 mm |
| Minimum Sheet Length | 300 mm |
| Minimum Sheet Width | 150 mm |
| Glue Pot Capacity | 4000 ml |
| Air Source Pressure | 0.5 – 0.7 MPa |
| Machine Dimensions | 3000 × 650 × 1350 mm |
| Machine Weight | 430 kg |
| Key Features | Pre-milling, 30°/45°/60° bevel banding, trimming, scraping, polishing, high-power vacuum extraction |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door and carcass edge finishing | MDF, melamine-faced particleboard |
| Custom furniture panel edging | Plywood, blockboard, solid wood panels |

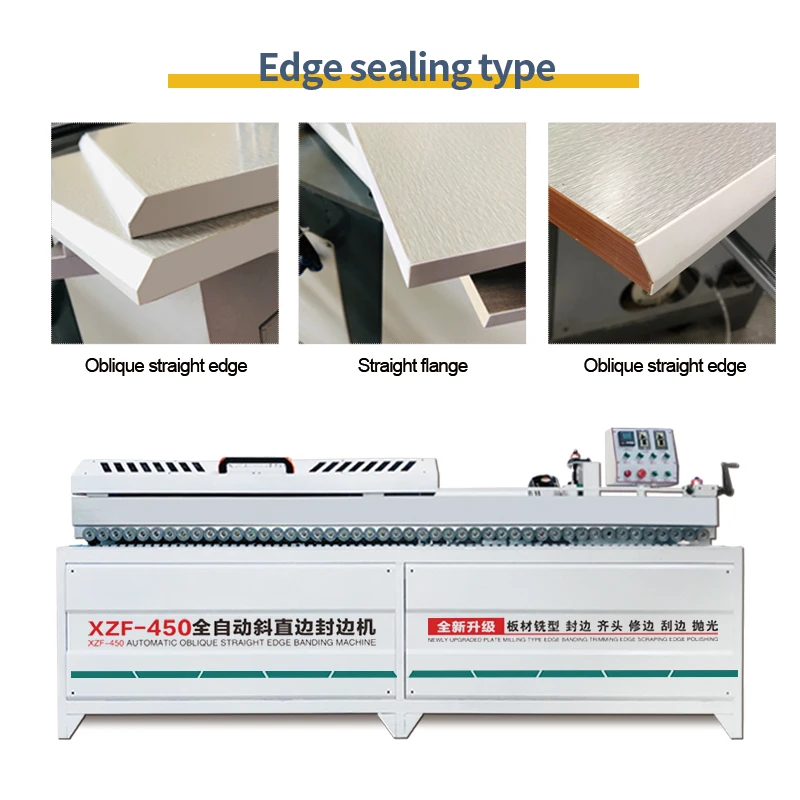

| 45° bevel edge banding for polymer doors | PVC and ABS edge banding on polymer substrates |
| Small-batch batch runs with mixed substrates | Particleboard and MDF in alternating production |
Why Voltage Confirmation Must Precede Every Shipment
An edge banding machine that cannot run on arrival costs more than the shipping itself.
I once arranged dispatch of a full-function bander to a Middle East workshop where the local grid ran at 60 Hz. The motor was wound for 50 Hz. When the operator switched it on, the feed chain dragged and the glue pot overheated within minutes. The customer spent three weeks sourcing a step-up transformer before the machine could produce a single edged panel. That Automatic Edge Banding Machine in stock sat idle while a transformer was freighted in. Every XZF-450 leaving our Shandong floor now goes through a documented voltage and frequency check before the crate is closed [NEED_CITE: voltage and frequency standards by export market].
Dispatch Timing Without the Guesswork
Workshops that need a replacement bander during peak season cannot absorb multi-week production lead times. The XZF-450 Automatic Edge Banding Machine in stock configuration means the unit is assembled, tested, and crated before your purchase order is finalised. Once we confirm your three-phase supply matches the motor winding and the control transformer taps, the machine moves to the loading bay. Stock status is verified daily, so the dispatch window quoted at inquiry holds through to the bill of lading.
Language and Plug Fit for Your Operators
A control panel the operator cannot read stalls commissioning just as effectively as a voltage mismatch. The XZF-450 ships with Chinese and English interface labels as standard, and we can supply Spanish or other language overlays before dispatch. Plug configuration is matched to your market — EU, USA, AU, or UK — so the electrician on site does not have to improvise adapters on the day of installation [NEED_CITE: industrial plug standards across export regions].
Reading the Numbers That Matter on the Shop Floor

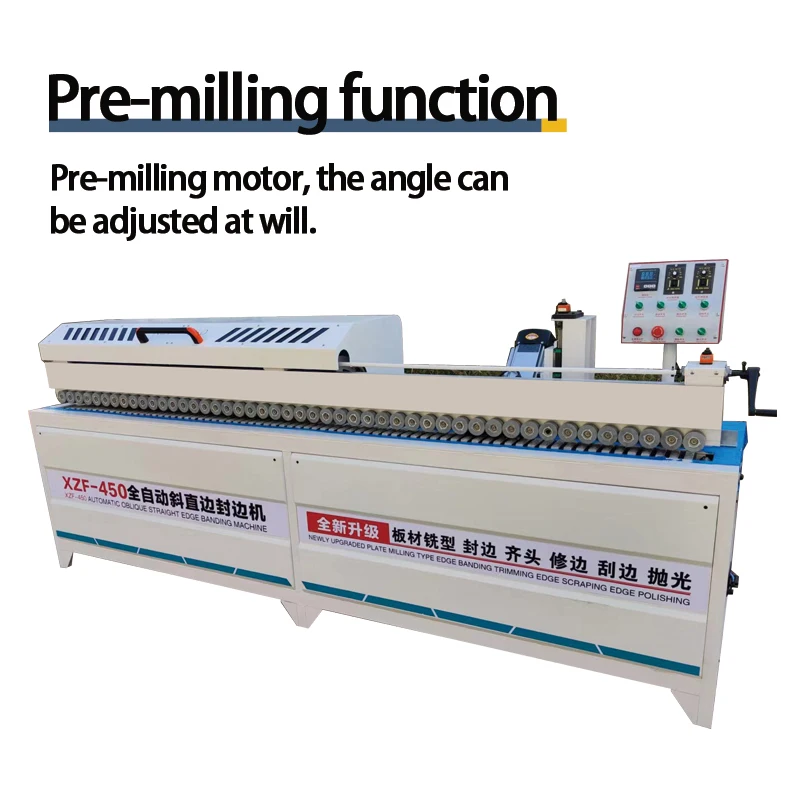

Feed speed range directly determines whether a bander can handle both delicate veneer and high-density PVC. The XZF-450 runs from 0 to 12 m/min, which lets the operator slow the feed for thin veneer on plywood and then open the belt for 3 mm PVC on particleboard without changing tooling. The 4 kW pre-milling motor removes saw marks and minor sizing errors from the panel edge in a single pass, giving the glue a clean substrate to bond to. Glue pot capacity at 4000 ml supports a full shift of continuous edging without stopping to refill, and the 0.5 – 0.7 MPa air requirement keeps the pressure feed rollers and pneumatic scrapers cycling consistently. Trimming stations rated at 2.2 kW each handle both straight and bevel cuts, so 45° edging on polymer doors does not require a secondary machine.
What Happens When Infeed Height Is Ignored
Buying a single bander without checking the infeed conveyor height against existing roller tables almost always creates a bottleneck. Panels tip or jam at the transfer point, operators hand-lift sheets to compensate, and edge quality degrades because the panel is not sitting flat against the fence. The XZF-450 stands at a fixed bed height that matches standard European and Asian conveyor lines, but if your existing tables sit higher or lower, we supply adjustable leg shims before dispatch rather than asking you to re-engineer the line on arrival [NEED_CITE: conveyor height alignment standards in panel processing].
Why Buyers Source the XZF-450 Through This Store
In-house assembly with patented pre-milling cutters means the ±0.02 mm tolerance is set on our floor, not outsourced. Four-stage quality control — incoming material, in-process, finished product, and pre-shipment verification — is documented and photographed for every unit. Voltage, language, and plug customisation are treated as standard line items, not special orders. Engineer-led configuration is confirmed in a formal quotation within one working day, and factory visits or sample processing tests are available before you commit. The product family spans entry-level to full-function models, so a workshop can add capacity later without changing suppliers.
Documentation & Verification
- Factory test record run on your specified panel thickness and edge material before crating
- Electrical schematic showing confirmed voltage taps, motor winding, and breaker sizing
- Operation and maintenance manual printed in your agreed language with illustrated lubrication points
- CE declaration of conformity covering machinery and low-voltage directives
- Packing photographs showing crate bracing, moisture barrier, and accessory boxes
Installation, Commissioning & Support
- Floor space of roughly 3.5 m length by 1.5 m width required for the XZF-450 with operator clearance
- Dedicated 3-phase circuit rated for at least 15 A to cover the 9.5 kW total draw plus start-up surge
- Machine arrives fully assembled; only the dust extraction hood and infeed guide require bolting
- Glue pot heat-up and feed chain alignment checked by our technician during remote video commissioning
- Spare scraper blades, trimming cutters, and polishing wheels ship inside the accessory crate
What We Need to Quote Your Shipment
Tell us the substrates you run most often, the edge banding thickness range, and your local three-phase voltage and frequency. If you are adding the XZF-450 to an existing line, share the infeed conveyor height and the language your operators prefer. We will return a confirmed dispatch date and a packing list within one working day.
Frequently Asked Questions
Q: What is the dispatch lead time for stocked XZF-450 units?
A: Stocked units are assembled and tested on our floor. Once your voltage, frequency, and language requirements are confirmed, the machine is crated and moved to the loading bay. Typical dispatch happens within a few working days after order confirmation, though exact timing depends on current stock rotation and your port schedule.
Q: How do you confirm voltage and plug type match my facility before shipping?
A: We ask for your supply voltage, phase, and frequency in writing before production or crating begins. The motor winding, control transformer, and plug are then set to match. A pre-shipment electrical test photograph is included in the packing documentation so your electrician can verify on arrival.
Q: Can I add this machine to an existing production line with different feed heights?
A: The XZF-450 bed height matches most standard conveyor lines. If your existing tables differ, we supply adjustable leg shims or an infeed transfer bridge before dispatch. Share your current conveyor height at inquiry so we can confirm compatibility.
Q: What spare parts ship with the machine, and how do I reorder consumables?
A: Each XZF-450 ships with a set of scraper blades, trimming cutters, polishing wheels, and pneumatic seals. A spare parts list with OEM part numbers is included in the documentation crate. Reorders are handled through our export desk with typical lead times quoted at the time of order.
Q: Do you provide installation guidance and remote commissioning support?
A: Yes. We schedule a video call with your technician on the day of uncrating. Our engineer walks through glue pot start-up, feed chain tensioning, and first-panel trimming adjustment. Follow-up calls are available throughout the commissioning week at no extra charge.
