Description
Verified Voltage Match — We cross-check your local electrical standard against the JT160 schematic before dispatch, so the machine runs on day one without waiting for a transformer.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Portable Folding Panel Saw |
| Model | JT160 / JT160 PRO |
| Total Power | 6200W |
| Main Saw Power | 3000W |
| Main Saw Speed | 3800 r/min |
| Main Saw Blade Diameter | 200mm |
| Sub Saw Power | 2000W |
| Sub Saw Speed | 13000 r/min |
| Vacuum Cleaner Power | 1200W |
| Maximum Plank Cutting Length | 2.44m (basis not stated in source) |
| Maximum Plank Cutting Thickness | 40mm (basis not stated in source) |
| Cutting Angle | 45° / 90° |
| Track Width | 80mm, double track |
| Track Length | 1000mm |
| Net Weight | 55kg (saw table) + 22kg (saw unit) |
| Product Size (Folded) | 1000 × 720 × 300mm |
| Product Size (Expanded) | 2500 × 2050 × 750mm |
| Voltage Options | 220V / 380V / customization available |
| Edge Banding Power (JT160 PRO) | 1000W |
| Edge Banding Height (JT160 PRO) | 0–50mm |
| Edge Banding Thickness (JT160 PRO) | 0.3–3mm |
| Air Source Pressure (JT160 PRO) | 0.5–0.8 MPa |
| Glue Pot Capacity (JT160 PRO) | 1000ml |
| Control Panel Language | Chinese and English standard; other languages customizable |
| Plug Options | EU, USA, AU, UK |
Application Suitability
| Application | Material or Output |
|---|---|
| On-site cabinet cutting for custom furniture installations | MDF, particleboard, plywood up to 40mm |
| Small workshop panel sizing and trimming | Melamine-faced chipboard and veneered panels |
| Compact joinery operations transitioning from hand tools | Solid wood panels and laminated boards |
| Portable cutting stations for renovation contractors | Plywood sheathing and MDF substrate sheets |
| Complete cut-and-band workstation (JT160 PRO) | PVC and wood veneer edge banding 0.3–3mm |
Why the Voltage Question Should Come Before the Price for a Portable Folding Panel Saw in Stock
A machine that cannot match your local grid is dead weight on the workshop floor.
I learned this after sending a table saw to a Middle East site where the 415V supply was never confirmed. The motor would not turn, and the crew stood idle while a transformer was air-freighted across three time zones. That delay reshaped how I handle every order. When you are sourcing a Portable Folding Panel Saw in stock, confirming voltage, frequency, and plug type before the crate closes prevents weeks of downtime and avoids the embarrassment of explaining to a crew why the new saw still sits in its box [NEED_CITE: voltage and frequency standards by export market].
Immediate Dispatch Without Electrical Surprises
The JT160 and JT160 PRO ship from stocked inventory, which means lead time shrinks from typical multi-week production waits to the time needed for pre-dispatch testing and crating. Voltage confirmation happens in writing before the saw leaves the floor, and the electrical schematic travels with the shipment. Single-unit orders move through the same verification process as full container loads.
Ready-to-Run on Arrival
Operators open the crate to find the control panel in their working language, the plug matching their site outlets, and a pre-shipment test record documenting a live cut on their specified material. There is no commissioning delay from untranslated error codes or mismatched connectors. A Portable Folding Panel Saw in stock should run the first panel within an hour of unpacking, not sit waiting for a local electrician to improvise an adapter [NEED_CITE: CE machinery directive requirements for industrial equipment].
Reading the Numbers That Matter on Site

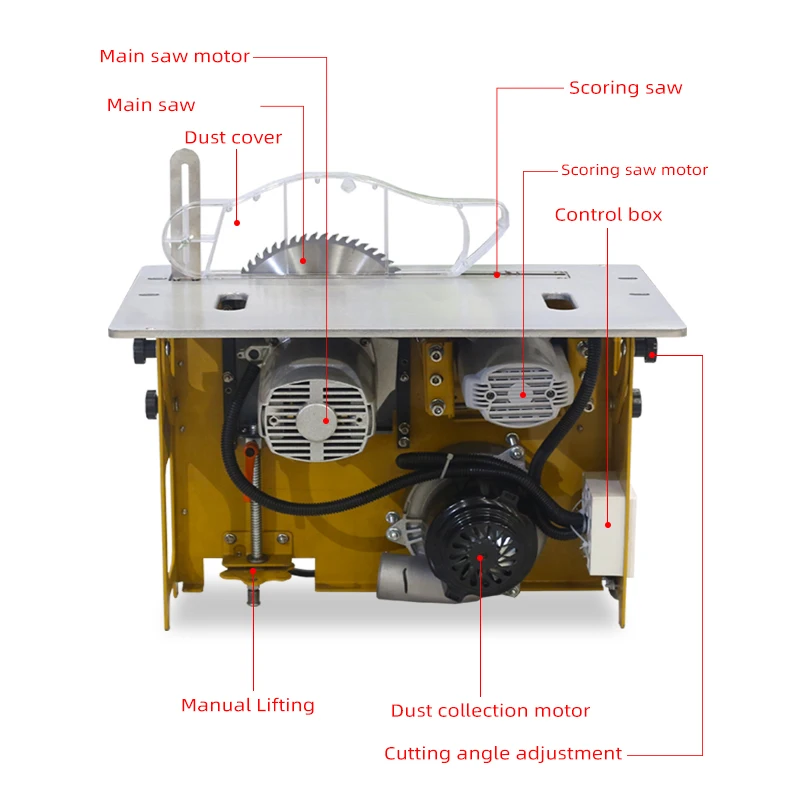

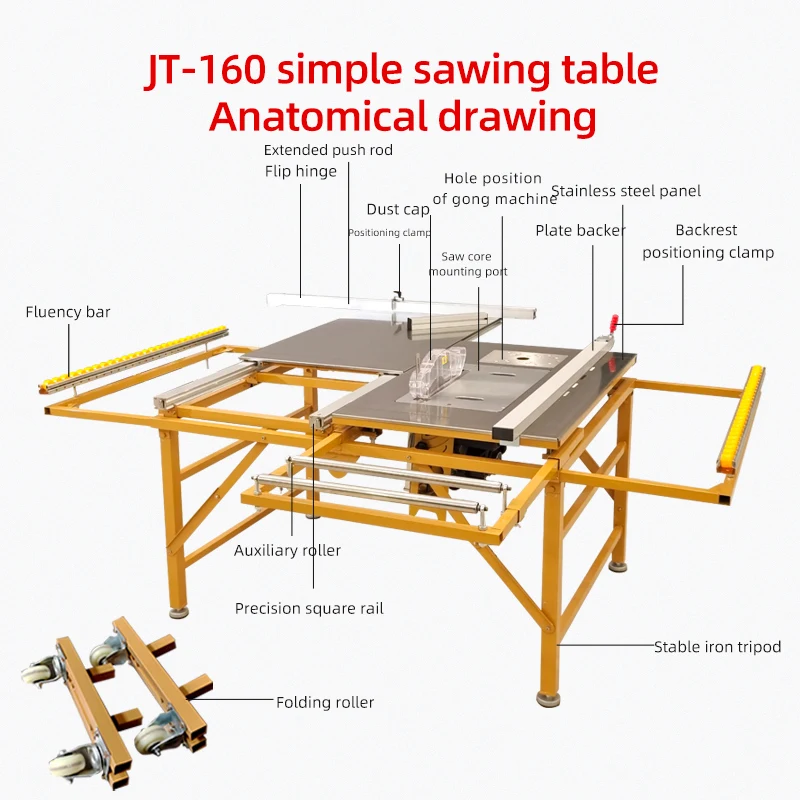

The dual-saw configuration pairs a 3000W main blade at 3800 r/min with a 2000W scoring blade at 13000 r/min. The high-speed sub-saw scores the laminate or melamine face before the main blade passes through, which is what prevents chip-out on the visible side of cabinet panels. Without that scoring action, melamine-faced chipboard splinters along the cut line and the edge becomes unusable for exposed cabinet gables. The 200mm main blade diameter handles sheet stock up to 40mm, covering standard 18mm particleboard and double-layered MDF builds common in wardrobes and shelving units. The 80mm double track keeps the saw carriage square across the full 2.44m cutting stroke, and the aluminum flip plate lets you switch between 45° and 90° without stopping to adjust mechanical stops.
The Cost of Skipping Configuration Verification
Ordering a panel saw without confirming local voltage is the most common reason machines sit idle after delivery. A 220V motor connected to a 380V supply burns out within minutes, and warranty claims do not cover electrical mismatch. Language mismatches on the control panel cause operators to misread feed speed settings, which leads to blade chatter and poor cut quality on expensive veneered stock. These are not engineering failures — they are paperwork failures that a single pre-shipment checklist would have prevented [NEED_CITE: electrical mismatch as a leading cause of export machine failure].
Why Buyers Source This Saw Here
In-house manufacturing with patented cutting mechanisms means tolerance claims are verifiable on your own material before the saw ships. The JT160 family spans a basic panel saw through to the JT160 PRO with integrated edge banding, so a workshop can add capability later without switching suppliers. Voltage, plug type, and control language are confirmed as standard procedure, not treated as a special request. Four-stage quality control with pre-shipment verification means every saw runs on your specified panel thickness before it is crated. Engineer-led configuration recommendations arrive within one working day of your inquiry.
Documentation & Verification
- CE declaration of conformity covering the JT160 portable panel saw series
- ISO 9001 certificate available for audit review
- Electrical schematic with voltage and frequency confirmation for your destination country
- Factory test record documenting a live cut on your specified panel material and thickness
- Operation and maintenance manual in your agreed language with illustrated spare parts list
Installation, Commissioning & Support
- Folding design collapses to 1000 × 720 × 300mm for transport through standard doorways and onto lifts
- Expanded working footprint of 2500 × 2050mm requires a clear floor area with level surface
- Dedicated circuit required for 6200W total draw; confirm breaker rating matches your local standard
- JT160 PRO requires compressed air supply at 0.5–0.8 MPa for edge banding pneumatic feed
- Pre-shipment test record guides initial parameter setup for your panel type and blade selection
- Spare parts list identifies consumables including 200mm main blades and scoring blades for reorder
Starting Your Order
To match the right JT160 configuration to your workshop, share your panel material types and thicknesses, your local voltage and frequency, and whether you need the edge banding bundle. We also need to know your preferred control panel language and plug type. If you are replacing an existing saw or adding capacity to a line, tell us what upstream and downstream equipment you already run.
Frequently Asked Questions
Q: What JT160 stock models are ready for immediate dispatch and what is the typical lead time?
A: Both the standard JT160 and the JT160 PRO with edge banding are held in ready stock. Typical dispatch lead time covers pre-shipment testing on your specified panel material, voltage verification, crating, and customs documentation preparation. Single units and small batches ship on the same timeline. We quote shipping options upfront once your destination port or address is confirmed.
Q: How do I confirm the correct voltage and plug type before ordering?
A: Provide your country and local electrical standard during inquiry. We confirm voltage, frequency, and plug type in writing before production release, and supply an electrical schematic with your shipment. Available options include 220V and 380V configurations with EU, USA, AU, or UK plugs. Custom voltage is available for markets outside these standards.
Q: Can I order a single JT160 unit and how is shipping quoted?
A: Single-unit orders are accepted from ready stock with the same pre-dispatch verification as larger orders. Shipping is quoted upfront once we have your delivery address or nearest port. The folded dimensions of 1000 × 720 × 300mm keep freight volume low, and packing photographs are provided for your receiving inspection.
Q: What is the difference between the JT160 standard and JT160 PRO?

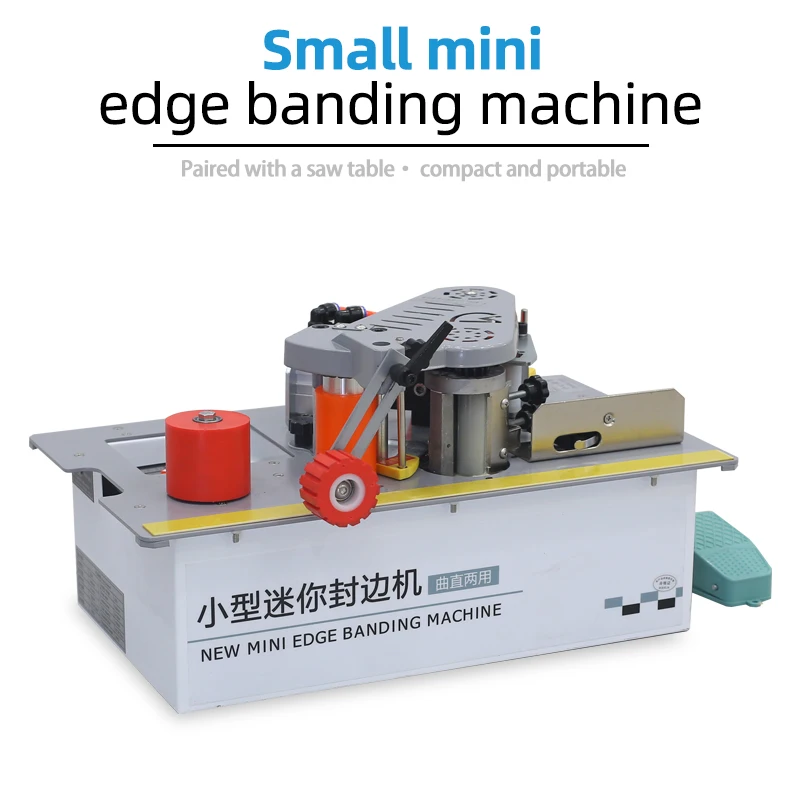

A: The standard JT160 provides the portable folding panel saw with dual-saw cutting and dust extraction. The JT160 PRO adds a compact edge banding unit handling 0.3–3mm banding thickness on straight and curved edges, with a 1000ml glue pot and pneumatic feed requiring 0.5–0.8 MPa air supply. The PRO variant creates a combined cut-and-band workstation in one portable footprint.
Q: What spare parts ship with the machine and how do I reorder?
A: Each JT160 ships with a spare parts list identifying wear items including main and scoring blades. The operation manual includes an illustrated parts diagram with reference numbers. Reorders are placed directly using these reference numbers. We provide packing photographs and customs documentation to support receiving inspection at your facility.
