Description
Ready-to-Dispatch Inventory — S-140 units tested at 220V and held in stock, eliminating multi-week build lead times for workshops that cannot afford line downtime.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | S-140 |
| Product Type | Portable Curve Edge Banding Machine |
| Voltage | 220V |
| Total Power | 1.4 kW |
| Air Source Pressure | 0.5-0.8 MPa |
| Edge Banding Speed | 0-180 mm/s |
| Overall Dimensions | 960×620×880 mm |
| Machine Dimensions | 1050×650×1200 mm |
| Net Weight | 88 kg |
| Suction Cup Size | 200×26 mm |
| Edge Band Thickness Range | 0.4-2 mm |
| Edge Band Width Range | 8-50 mm |
| Breaking Method | Automatic tape break (double cylinder controlled) |
| Glue Pot Capacity | 1000 ml |
| Gluing Type | Double-sided gluing |
| Machine Function | Straight and curved dual purpose |
| Arm Type | Folding arm device |
| Motor | Pure copper motor |

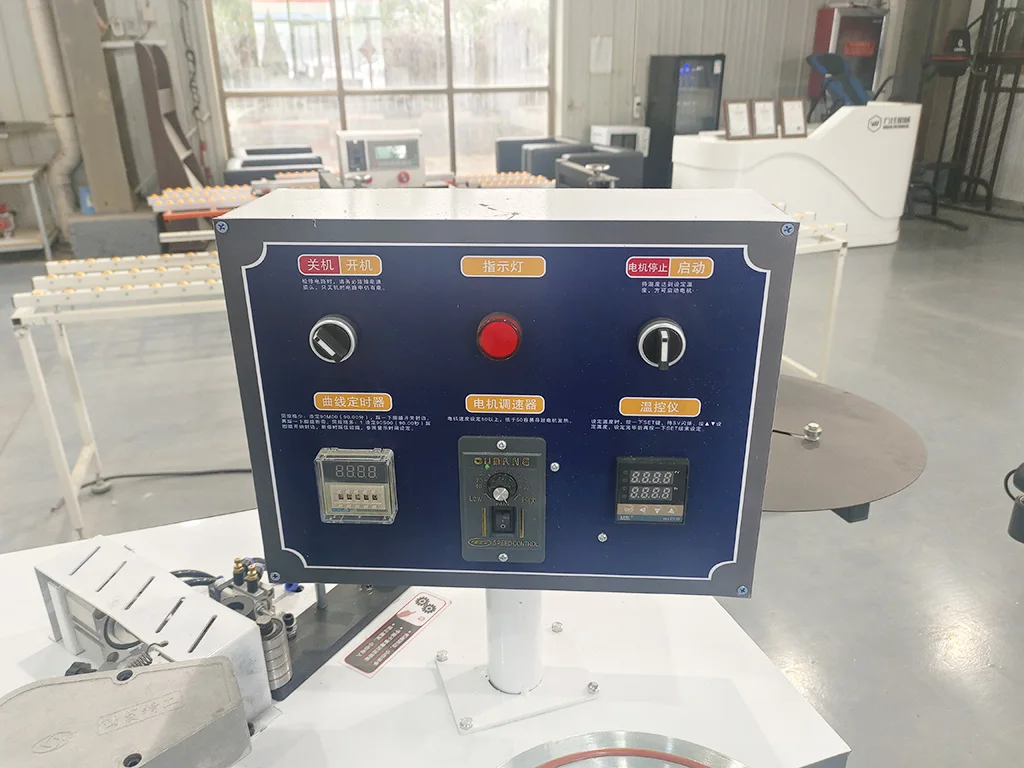

| Control Panel | Intelligent temperature control, speed adjustment, timer |
| Hot Air Device | Bottom-up hot air heating for improved adhesion |
| Edge Banding Wheel | Adjustable +0.5 mm to prevent strip shifting |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge banding | MDF and particleboard with PVC or veneer strips |
| Cabinet and wardrobe production | Plywood panels with 0.4-2 mm edge banding |
| Office furniture and table edging | Laminated boards with straight and curved profiles |
| Door and window frame finishing | Solid wood and composite substrates with veneer banding |
| On-site decoration and fit-out | Portable operation on installed panels and joinery |
Why the Voltage Question Must Come Before You Hit "Order"
Confirming local voltage and frequency is the single most important step before any portable curve edge banding machine in stock leaves the warehouse.
I once watched a customer’s entire production line stall for three weeks because a machine arrived at their facility and could not be powered on. The voltage had not been verified before shipment, and a transformer had to be sourced locally. That is not a problem unique to large automated lines — it happens just as often with compact units like this S-140, where the assumption is that a smaller machine somehow carries less risk [NEED_CITE: voltage and frequency standards by export market]. A 220V unit landing in a 110V region, or a 50Hz motor running on 60Hz supply, does not just underperform — it can overheat, trip breakers, or damage the pure copper motor inside. Before we confirm any order, the electrical match is checked against your facility supply, not guessed from a country list.
Immediate Availability Without the Build Queue

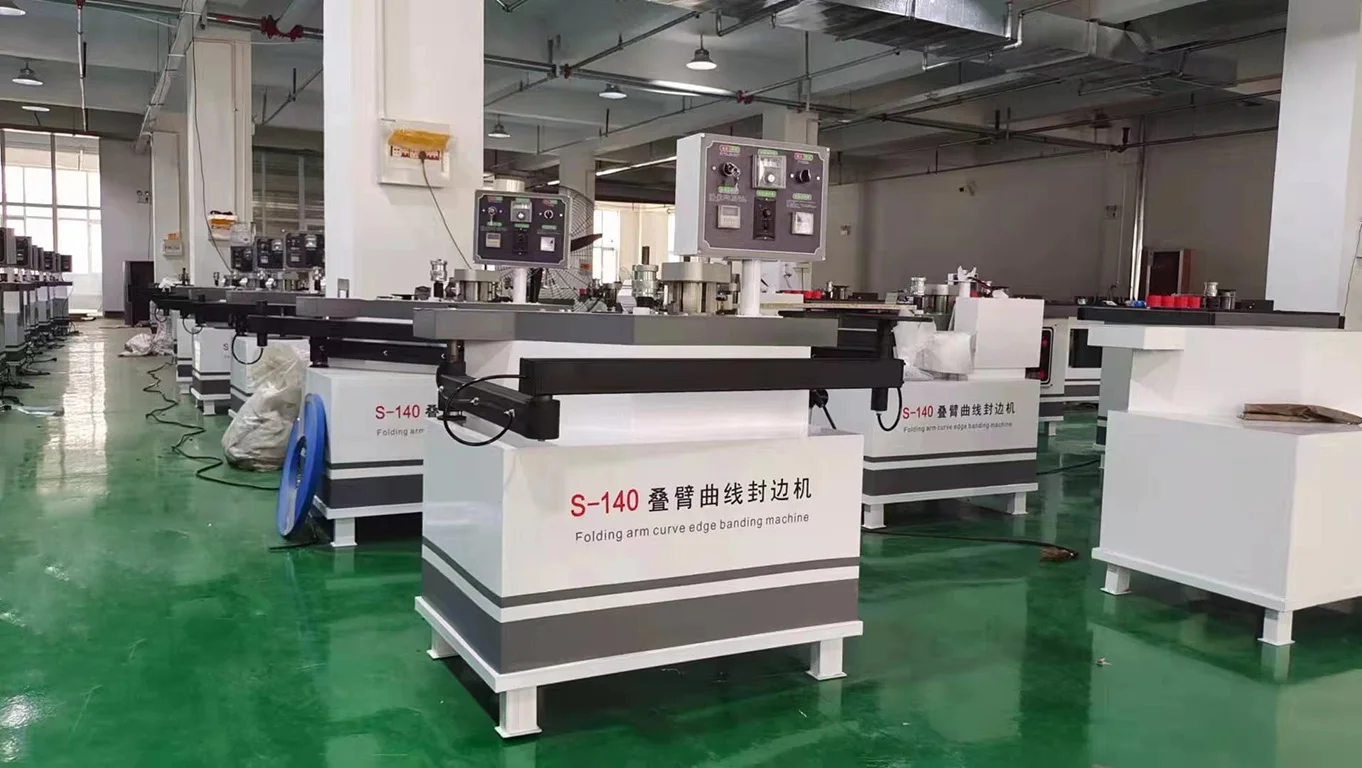

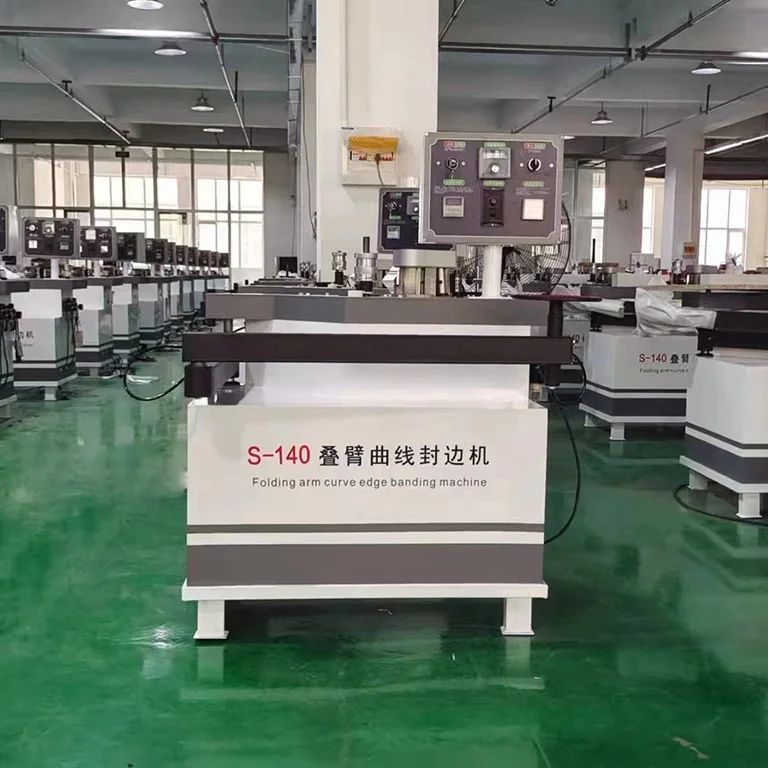

Most woodworking equipment is built to order, which means a typical multi-week lead time between payment and dispatch. This S-140 portable curve edge banding machine in stock sits ready in the warehouse, tested and crated. For a small cabinet maker who just landed a contract with a tight deadline, or a joinery workshop replacing a failed unit mid-production, waiting weeks for a new machine is not an option. Stock availability means the machine can ship within days of order confirmation, not weeks.
Straight and Curved Edges on One Machine Footprint

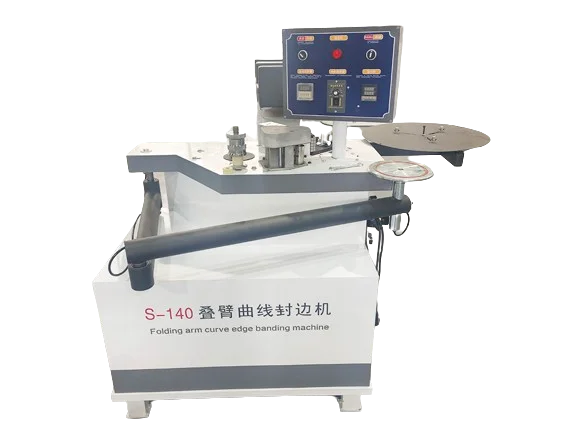

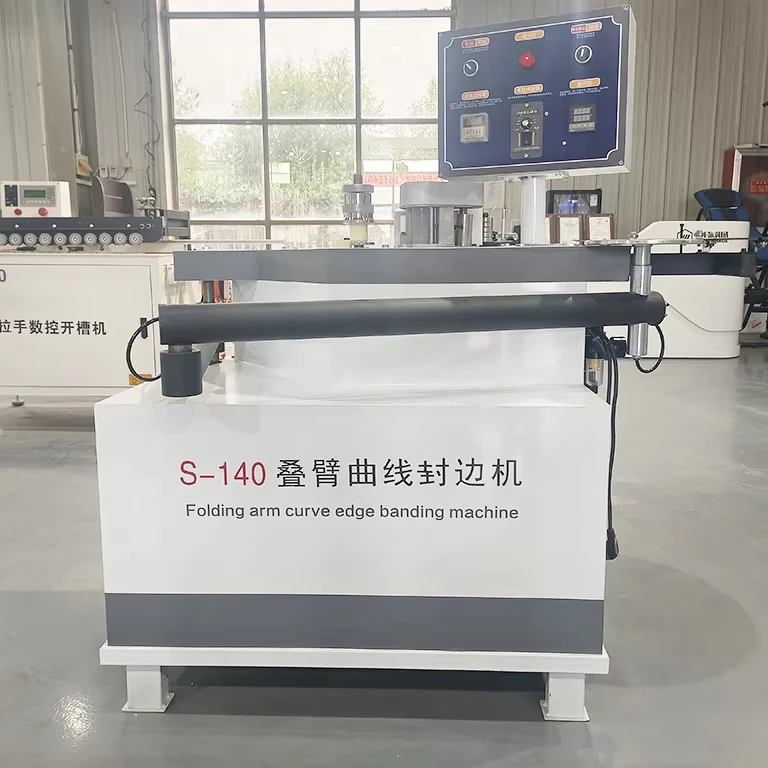

The folding arm design lets the operator switch between linear edge profiles and curved contours without moving the workpiece to a second station. In a small workshop where floor space is limited, having one machine handle both straight runs and radius cuts on cabinet doors or rounded table edges removes the need for a dedicated curve bander. The adjustable edge banding wheel with +0.5 mm offset keeps the strip aligned on curves where centrifugal force would otherwise push the banding outward.
Reading the Specs That Actually Matter in Production
The 0-180 mm/s feed speed range gives operators control over how quickly banding is applied — slower speeds for veneer on curved profiles where adhesion time matters, faster speeds for PVC on long straight cabinet sides. The 1000 ml glue pot capacity means fewer interruptions during a production run; smaller pots on entry-level machines require refilling mid-batch, which introduces temperature inconsistency at the glue line. Double-sided gluing applies adhesive to both the panel edge and the banding strip simultaneously, which improves bond strength on porous substrates like particleboard where single-sided gluing can starve the joint [NEED_CITE: edge banding adhesion standards for wood-based panels]. The bottom-up hot air heating device pre-warms the strip before it meets the panel, which matters in cold workshops where ambient temperature drops below the glue activation threshold. Edge band thickness from 0.4 to 2 mm covers the full range from thin PVC foil to thicker solid wood veneer used on visible furniture edges.
What Happens When the Wrong Machine Gets Shipped
A portable bander bought without checking air source requirements arrives at a shop with no compressor capable of sustaining 0.5-0.8 MPa — the double cylinder tape break system simply will not cycle. A machine ordered without confirming edge band width compatibility forces the operator to trim 60 mm stock down by hand before feeding it through a machine limited to 50 mm. These are not theoretical problems; they show up on the shop floor as delayed commissioning, wasted material, and frustrated operators who lose confidence in the equipment before the first week is over [NEED_CITE: common commissioning failures in imported woodworking machinery].
What Stock Purchasing From This Facility Actually Includes
Voltage confirmation happens before the crate is sealed, not after the machine arrives at your dock. Every unit ships with a pre-shipment test record documenting the machine running on your specified electrical supply. The S-140 in our ready-to-ship inventory has already passed four-stage quality control — incoming material inspection, in-process assembly checks, finished product testing, and final pre-shipment verification. Engineer-led configuration support means you get a recommendation based on your actual panel materials and edge profiles, not a generic catalog push. Factory visits are available if you want to see the unit run on your own substrate before it ships.
Documentation & Verification
- CE declaration of conformity matching the S-140 model designation
- Factory test record on your panel thickness and edge band material before dispatch
- Electrical schematic confirming 220V wiring and pure copper motor specifications
- Operation and maintenance manual provided in your required language
- Spare parts list covering suction cups, glue pot components, and banding wheel assemblies
Installation, Commissioning & Support
- 220V single-phase supply with dedicated 1.4 kW circuit required at the workstation
- Air compressor delivering 0.5-0.8 MPa must be available before first operation
- Folding arm unfolds on arrival — no heavy rigging needed for this 88 kg unit
- Glue pot temperature calibrated to your specific PVC or veneer banding material during setup
- Suction cup and edge banding wheel adjustment demonstrated during operator walkthrough
- Spare suction cups and glue pot seals included for initial maintenance intervals
What We Need to Confirm Your Order
To make sure this portable curve edge banding machine in stock is the right match for your workshop, share your primary panel material and thickness range, the edge banding strip types you run most often, and your local voltage and frequency. If you are integrating this unit into an existing production line, let us know the upstream and downstream equipment so we can verify feed height and workflow compatibility.
Frequently Asked Questions
Q: Is this model in stock and what is the dispatch lead time?
A: The S-140 is held in ready-to-ship inventory. Once your voltage and specification requirements are confirmed, the machine can be dispatched within days rather than weeks. Pre-shipment testing on your panel material is completed before crating.
Q: Can voltage be changed to match my country’s supply standard?
A: Voltage customization from 110V to 440V is available, but stock units are configured at 220V. If your facility requires a different voltage, confirm before ordering so the correct unit is allocated or configured prior to dispatch.
Q: What edge banding materials are compatible with this machine?
A: The S-140 handles PVC and veneer edge banding from 0.4 to 2 mm thick and 8 to 50 mm wide. Double-sided gluing and bottom-up hot air heating support reliable adhesion on both porous substrates like particleboard and smoother surfaces like laminated MDF.
Q: What spare parts are included and how do I order replacements?
A: Each unit ships with a spare parts list covering suction cups, glue pot components, and edge banding wheel parts. Replacement orders can be placed directly, and we recommend stocking high-wear items based on your monthly production volume.
Q: How do I arrange door-to-door shipping and customs clearance?
A: Shipping options and transit timelines are quoted upfront at the time of order. We provide full customs documentation including packing photographs and commercial paperwork, and can coordinate delivery to your facility door.
