Description
Fast-Dispatch Inventory — stocked 45 degree automatic edge banding machine in stock, voltage confirmed before packing so it runs the day it arrives.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | XZF450 |
| Product Type | 45 Degree Automatic Edge Banding Machine |
| Total Power | 9.5 kW |
| Voltage | 380V / 415V (50Hz/60Hz to be confirmed before dispatch) |
| Pre-milling Motor | 4 kW |
| Feed Speed | 0–12 m/min (rated or peak not specified in source — basis to be confirmed) |
| Feed Motor Power | 0.16 kW |
| Transmission Power | 180 W |
| Trimming Power | 2.2 kW × 2 |
| Polishing Power | 0.4 kW × 2 |
| Glue Pot Capacity | 4000 ml |
| Dust Extraction Power | 550 W |
| Air Source Pressure | 0.5–0.7 MPa |
| Edge Banding Height Range | 0–50 mm |
| Edge Banding Thickness Range | 0.3–3 mm |
| Minimum Sheet Length | 30 cm |
| Minimum Sheet Width | 15 cm |
| Overall Dimensions | 300 × 65 × 135 cm |
| Net Weight | 430 kg |
| Standard Features | Pre-milling, 30/45/60° edge banding, end trimming, rough trimming, fine trimming, scraping, polishing, high-power dust extraction |
| Plug Options | EU, USA, AU, UK |
| Language Options | Chinese, English standard; other languages on request (source value — verify against manufacturer catalog) |
| Certification | CE (implied by company profile — verify) |
Application Suitability
| Application | Material or Output |
|---|---|

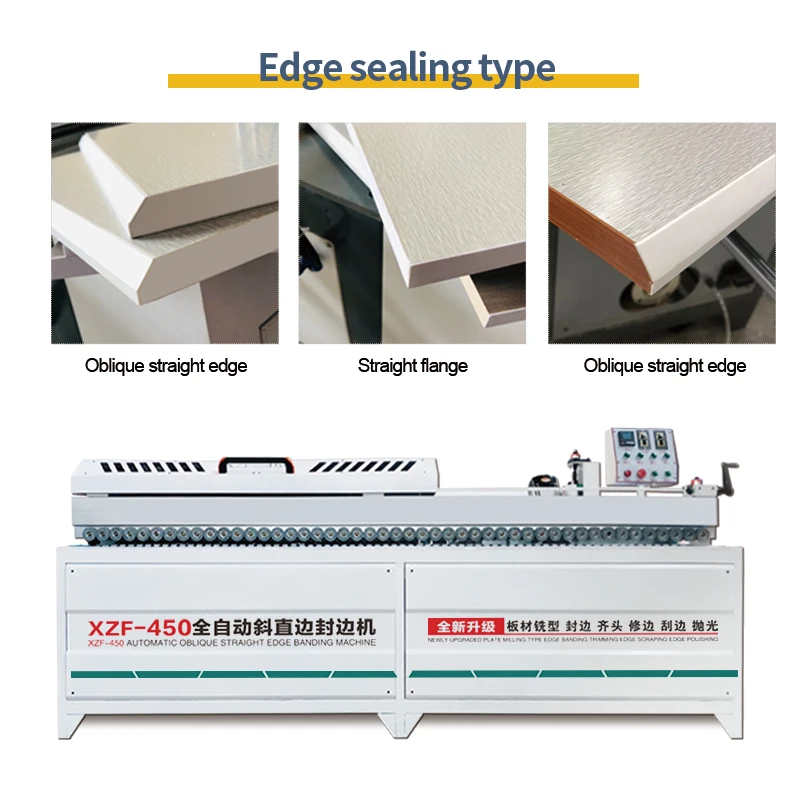

| 45-degree miter edge banding for panel assemblies | MDF, melamine board, plywood |
| 90-degree edge banding for cabinet carcasses | Particleboard, blockboard |
| Polymer door edge finishing | PVC and ABS edge banding up to 3 mm |
| Custom furniture panel processing | Solid wood board, veneer banding |
| Medium-scale workshop production runs | Mixed substrates requiring pre-milling |
Why the Voltage Question Should Come Before the Price
Machines quoted without confirming local voltage and frequency, arriving unusable — we confirm your supply specs before the 45 degree automatic edge banding machine in stock leaves the floor.
Your voltage, your frequency, your plug — confirmed before dispatch.
I have watched a container arrive at a South American port, the buyer excited to commission, only to find the motor wired for a frequency his grid does not supply. Two weeks of silence from the production floor while transformers were sourced locally. That is not a machine problem; that is a communication failure before the order was locked. Every unit we ship from stock has its electrical schematic checked against the buyer’s confirmed supply. [NEED_CITE: voltage and frequency standards by export market]
Ready for Immediate Dispatch
When a workshop commits to a production deadline, waiting weeks for a build slot is not an option. The XZF450 sits in our Shandong warehouse with pre-milling, trimming, scraping, and polishing stations already assembled and tested. A 45 degree automatic edge banding machine in stock means the lead time is measured in days for packing and container loading, not weeks on the assembly floor.
Single-Unit Orders Welcome
Not every buyer is outfitting a full factory on day one. This model ships as a single unit for joinery workshops transitioning from manual edge work to automated finishing. When your volumes grow, the same product family offers higher-throughput configurations, so the operational knowledge your team builds on the XZF450 carries forward without retraining.
Reading the Numbers That Matter

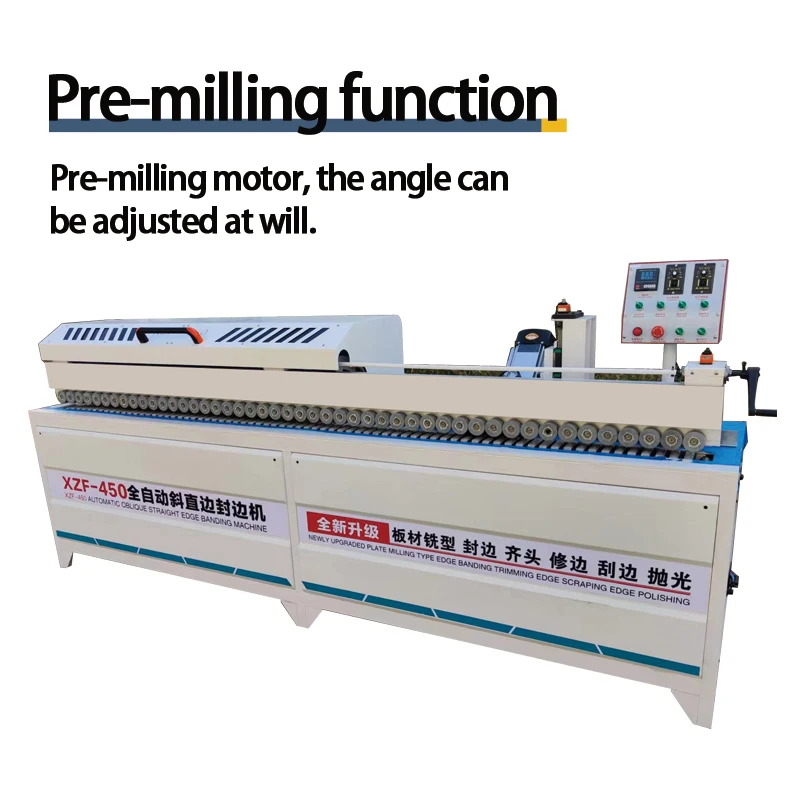

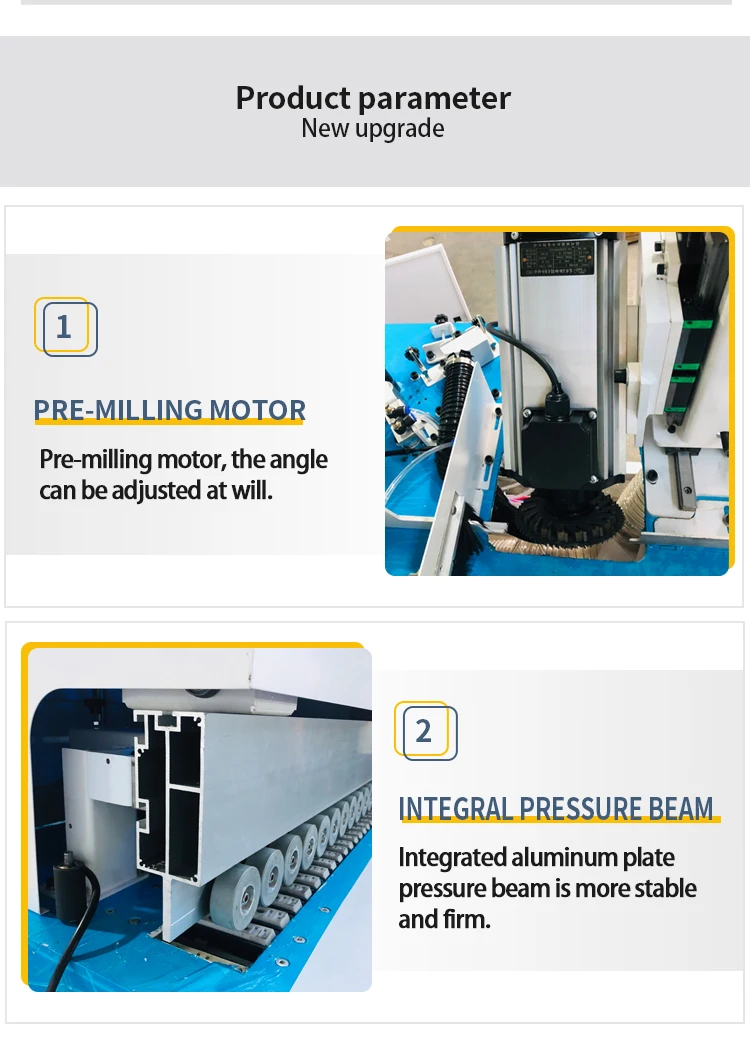

The 4 kW pre-milling motor is the first station the panel encounters, and its job is to remove any surface irregularity from the substrate edge before glue meets board. On MDF and particleboard, factory-cut edges often carry micro-chips that leave visible glue lines if not milled away. The adjustable feed speed from 0 to 12 m/min lets operators dial back for dense substrates like high-moisture MDF and push forward on standard melamine — one machine covering a wide material range without mechanical compromise. The 4000 ml glue pot holds enough adhesive for sustained runs without frequent refills, reducing the thermal cycling that degrades glue consistency. Trimming at 2.2 kW per station gives the cutters enough torque to handle 3 mm PVC banding cleanly, which lighter motors tend to stall on at higher feed rates. [NEED_CITE: edge banding feed speed and material density correlation]
The Hidden Cost of Skipping Material Confirmation
I once had a buyer order an automatic edge bander based on PVC banding throughput, only to run high-density MDF panels that forced the feed speed down to half. Two weeks of stalled production while the configuration was reworked. The lesson is simple: the machine must match the actual substrate, not the brochure example. When feed speed, glue temperature, and trimming torque are all calibrated for one material and then fed another, the result is visible glue lines, chipped edges, and rework that erases any speed advantage. Every stock unit we dispatch goes through a material-confirmation step so the operator opens the crate with the right settings already documented. [NEED_CITE: common commissioning failures in panel processing equipment]
Why Buyers Source This Model Here
Stock availability means your project timeline is not hostage to a production queue. The XZF450 ships with voltage and plug configured to your market, verified against your electrical standard before the crate is sealed. The four-stage QC process runs incoming material checks, in-process assembly inspection, finished-product functional testing, and a pre-shipment verification that includes a test record on your specified panel material. Operation manuals ship in your chosen language so the operator reading the control panel is reading words they understand. The full product family — from entry-level to high-throughput — stays with one supplier, which simplifies spare parts, service calls, and operator training as your workshop scales.
Documentation & Verification
- CE declaration of conformity matched to the XZF450 configuration
- Electrical schematic confirming your voltage, frequency, and plug type
- Factory test record run on your specified panel thickness and edge banding material
- Operation and maintenance manual in your agreed language
- Spare parts list itemized for the XZF450 included with first shipment
- Packing photographs taken before crate sealing for condition verification
Installation, Commissioning & Support
- 300 × 65 × 135 cm footprint requires a level concrete pad with clearance on the feed and exit sides
- 9.5 kW total draw demands a dedicated circuit rated above 15 A at your confirmed voltage
- 0.5–0.7 MPa air supply must be filtered and regulated before connecting to the glue and trimming stations
- Pre-milling and trimming stations calibrated on your panel material during the pre-shipment test
- English or alternate-language control panel set before dispatch to avoid commissioning delays

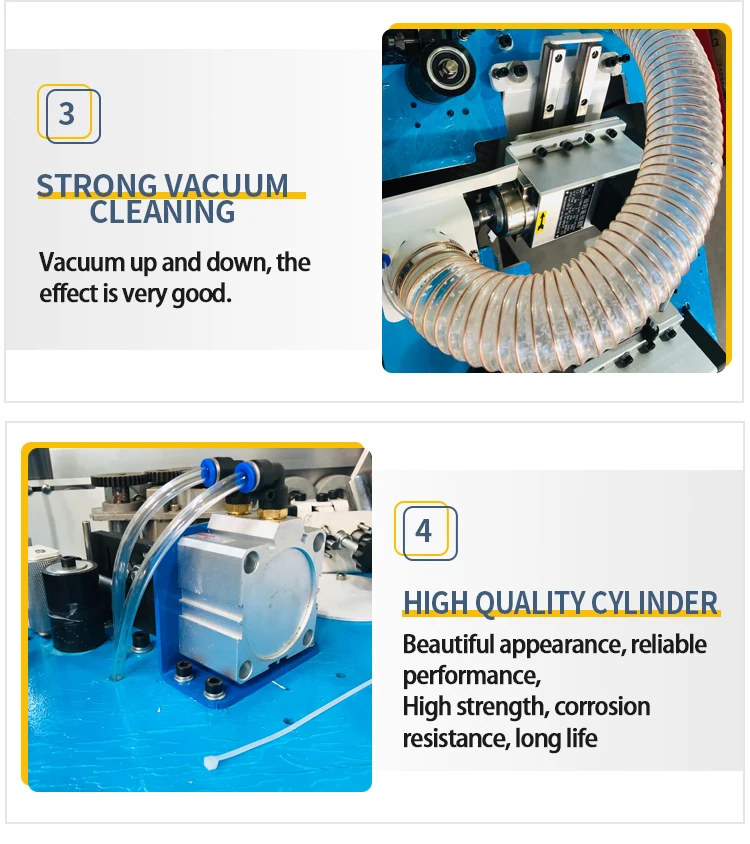

- Dust extraction port at 550 W requires connection to your workshop collection system or a standalone unit
What We Need to Ship Your Machine
Send us your panel material type and typical thickness range, the edge banding material and width you run most often, and your workshop voltage with frequency. If you have a target dispatch date, let us know so we can match it against current stock position. We will return a configuration confirmation and packing schedule within one working day.
Frequently Asked Questions
Q: Is this model currently in stock and what is the dispatch lead time?
A: The XZF450 is held in our Shandong warehouse as a stocked configuration. Once your voltage, frequency, plug type, and control-panel language are confirmed, packing and container loading typically take several working days. We provide a confirmed dispatch date in the quotation so your logistics planning is not left open-ended.
Q: Which voltage and plug configurations can be shipped immediately?
A: The machine supports 380V and 415V configurations, with plug options covering EU, USA, AU, and UK standards. Frequency must be confirmed as 50Hz or 60Hz before dispatch. Units in stock can be rewired or reconfigured during the packing stage to match your local supply, verified against the electrical schematic we send for your approval.
Q: What edge banding thicknesses and materials does the XZF450 handle?
A: The machine accepts edge banding from 0.3 mm to 3 mm thick and up to 50 mm in height. This covers PVC, ABS, melamine, wood veneer, and solid-wood strips. The 4 kW pre-milling station prepares substrates including MDF, particleboard, plywood, and melamine board so the glue bond is consistent regardless of the factory-cut edge condition.
Q: How is the machine packed for shipping and what are the freight options?
A: The 430 kg unit is secured in a wooden crate with internal bracing to protect the pre-milling and polishing stations during transit. Packing photographs are taken before sealing. Freight options include FCL for single-unit orders or consolidated container shipping, and we provide customs documentation to support clearance at your destination port.
Q: Can I order a single unit and add more machines later?
A: Yes. The XZF450 ships as a standalone unit, and the same product family covers higher-throughput models when your volume grows. Spare parts, service documentation, and operator training stay consistent across the range, so scaling does not mean starting over with a different supplier or unfamiliar controls.
