Description
In-stock readiness — every DW102 unit ships with voltage, plug type and control language locked in before dispatch, so your workshop gets a machine that runs on arrival rather than waiting for an electrician.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW102 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 3800W |
| Voltage & Frequency | 220V/380V/customization |
| Overall Dimensions (L×W×H) | 128×47×69 cm |
| Net Weight | 75 kg |

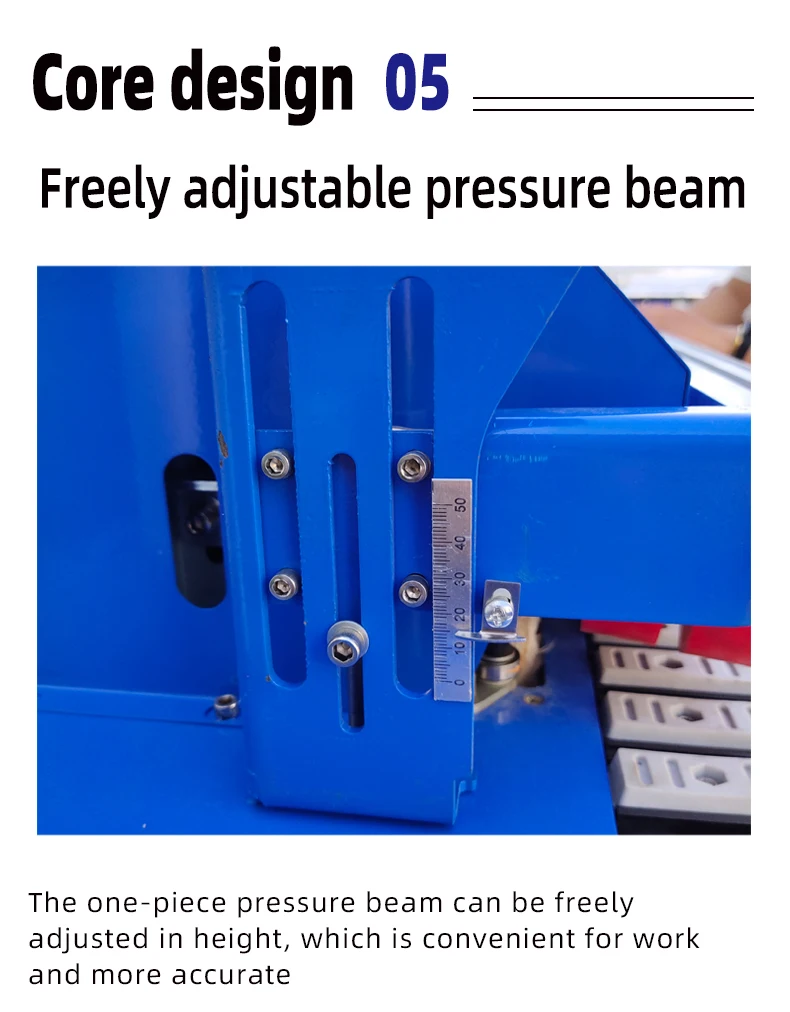

| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 5 cm |
| Edge Trimming Power | 650W×2 |
| Polishing Power | 180W×2 |
| Transmission Power | 60W |
| Vacuum Power | 1200W |
| Air Source Pressure | 0.5–0.8 MPa |
| Glue Pot Capacity | 1000 ml |
| Key Features | Curved and straight edge banding, edge trimming, polishing, automatic head and tail cutting, integrated vacuum |
| Language Options | Chinese and English (customizable to Spanish or other languages) |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door and panel edge finishing | MDF, particleboard, plywood with PVC or melamine edge band |
| Curved profile furniture components | Shaped panels, radius corners on blockboard and solid wood |
| Small-batch joinery production | Polymer door skins, custom shelving, workshop prototyping runs |
| Straight-run casegoods edges | Chipboard and medium density fiberboard for carcass assembly |
Why the Voltage Question Should Come Before the Price on Any Automatic Edge Banding Machine in Stock Fast Delivery
A machine built for 380V/50Hz that lands in a 220V/60Hz workshop is scrap metal until someone rewires it.
I have watched container doors open in Southeast Asia to reveal equipment that could not be plugged in. The buyer had negotiated hard on unit price, but no one had confirmed the local supply standard in writing. Three weeks of lost production followed while transformers were sourced locally — if they could be found at all [NEED_CITE: voltage and frequency standards by export market]. With the DW102, the specification and voltage confirmation step is mandatory before production begins, because an automatic edge banding machine in stock fast delivery is only fast if it actually runs when the crate opens.
Dispatch Speed Without the Compatibility Gamble
Stock availability matters only when the configuration matches your site conditions. This automatic edge banding machine in stock fast delivery ships from a prepared inventory, but each order still passes through written voltage and frequency confirmation — 220V, 380V, or a custom requirement — before the machine is crated. The goal is to eliminate the arrival-day surprise that stalls commissioning.
Compact Footprint, Full Function Sequence

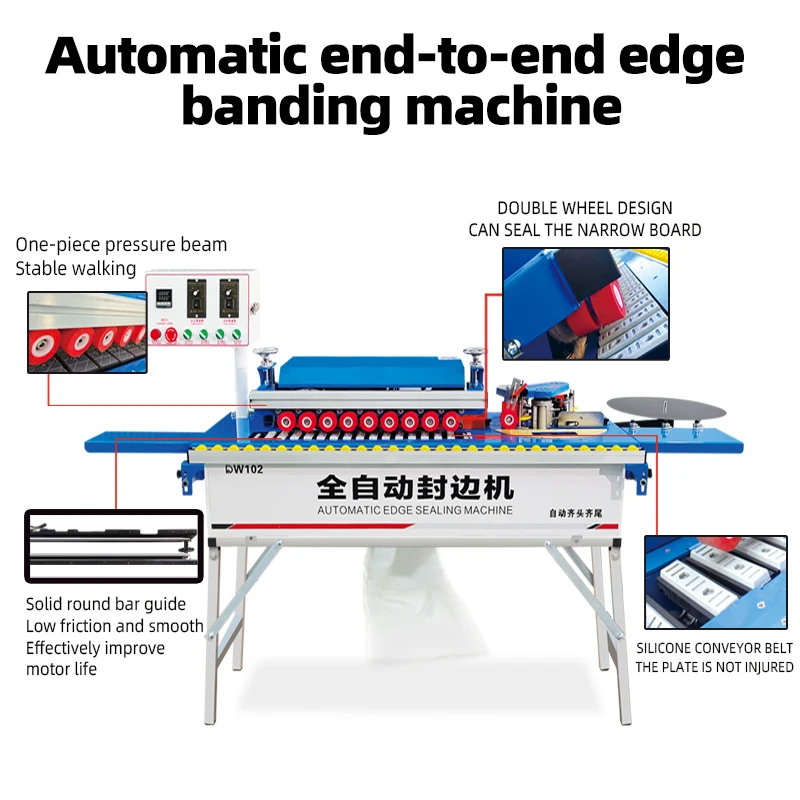

The DW102 packs curved and straight banding, dual edge trimming stations, dual polishing heads, automatic head-and-tail cutting, and a 1200W vacuum system into a 128×47×69 cm frame weighing 75 kg. For a joinery workshop or small cabinet operation, this means the machine fits through a standard doorway and occupies minimal floor area while still delivering the complete edge finishing sequence that larger lines provide [NEED_CITE: CE machinery directive requirements for industrial equipment].
Reading the Numbers That Matter
The 0.3–3 mm banding thickness range covers standard PVC, ABS, and melamine paper strips used in cabinet and furniture production. Edge trimming at 650W×2 provides sufficient torque to cleanly shear excess band on both top and bottom faces in a single pass, while the 180W×2 polishing stations burnish the trimmed edge to a smooth finish that is ready for assembly without secondary handwork. The 0–50 mm banding height accommodates most panel thicknesses encountered in carcass and door production. Minimum sheet dimensions of 25 cm length and 5 cm width allow the DW102 to process narrow drawer components and small offcuts that larger automatic machines cannot feed reliably.
What Happens When Skipped Steps Come Back to Haunt You
Ordering a machine on price alone and discovering after delivery that the control panel is in a language your operators cannot read means commissioning stalls until someone translates the interface. Buying a unit whose minimum sheet length exceeds your smallest panel means half your production still goes to a manual bench. And when the glue pot capacity is too small for your batch volume, you stop the line repeatedly to refill [NEED_CITE: common causes of edge banding adhesion failure in tropical climates]. These are not catastrophic failures — they are the slow, daily friction of a configuration that was never matched to the actual work.
Why Procurement Teams Source This Model Here
Every DW102 ships with a factory test record documenting performance on the buyer’s specified panel material and edge band type — not a generic bench test on convenient stock. Voltage and plug type are confirmed in writing before crating, so the machine arrives with the correct electrical configuration for the destination market. Operation manuals and control panel labels are produced in the agreed language, whether English, Spanish, or another specified option, removing the translation gap at commissioning. Pre-shipment verification includes photographic documentation of the machine running the buyer’s sample material. The product family spans from entry-level models to full-function production machines, so a workshop that outgrows the DW102 can scale to a higher-tier unit within the same supplier relationship without relearning a new ecosystem.
Documentation & Verification
- CE declaration of conformity covering the DW102 automatic edge banding machine
- Electrical schematic with confirmed voltage and frequency for your site
- Factory test record on your specified panel material and edge band
- Operation and maintenance manual in your chosen language
- Spare parts list with part numbers for consumables and wear items
Installation, Commissioning & Support
- Requires a dedicated circuit matching the confirmed 220V or 380V supply with appropriate breaker rating for the 3800W total load
- Compressed air supply at 0.5–0.8 MPa needed at the machine connection point for pneumatic actuators
- Arrives assembled; position on a level floor within the 128×47×69 cm footprint and connect power and air
- Glue pot requires initial fill and heat-up cycle before first production pass to stabilize adhesive temperature
- Control panel language verified at dispatch; on-site parameter adjustment guidance available for initial runs

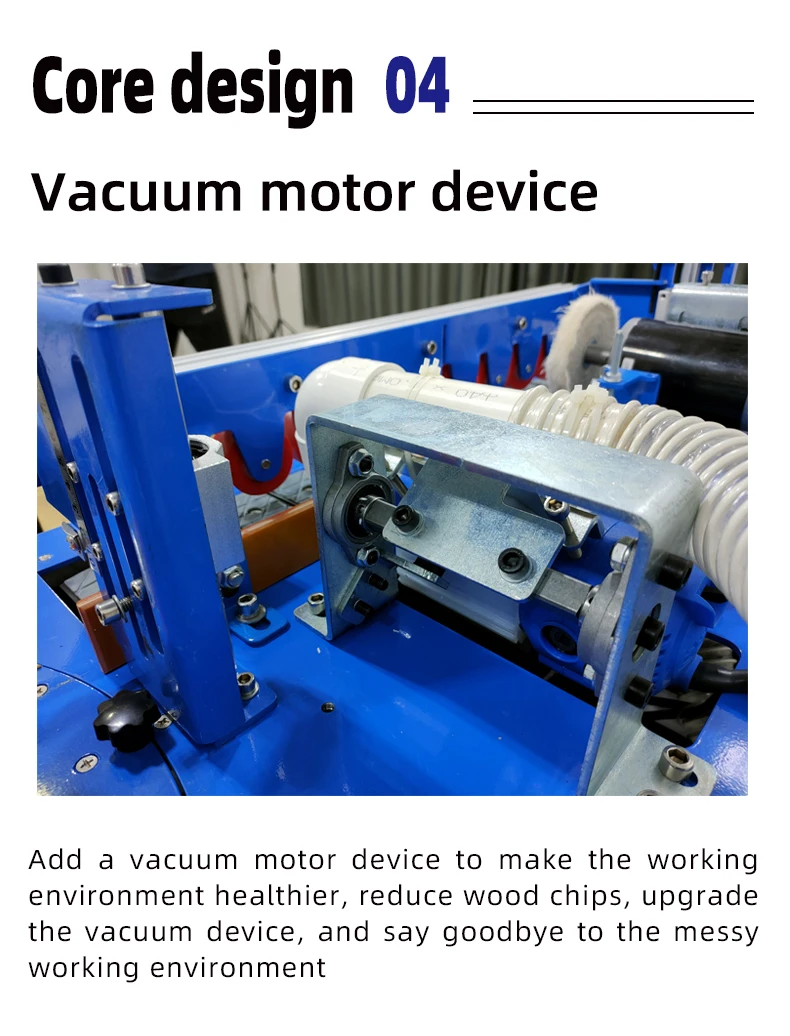

- Vacuum extraction port connects to workshop dust collection or the integrated 1200W system for immediate use
What We Need to Move Your Order Forward
To configure and dispatch a DW102 that matches your workshop, provide the panel materials and edge band types you process most frequently, your local voltage and frequency standard, and the preferred control panel language. If your production includes curved profiles, share the typical radius range and panel thickness so the test run reflects your actual output.
Frequently Asked Questions
Q: Is this model currently in stock and what is the dispatch lead time?
A: The DW102 is maintained in ready-to-ship inventory. Once voltage, plug type, and control panel language are confirmed in writing, the machine goes through pre-shipment testing and crating. Typical dispatch follows within a short window, though the exact timeline depends on the customization scope agreed at order.
Q: Can you confirm the exact voltage, frequency and plug type for my country before I order?
A: Yes. Voltage and frequency confirmation is a mandatory step before the machine leaves the factory. The DW102 supports 220V, 380V, or custom configurations, and the plug type is matched to your destination market standard. This is documented in writing before production finalizes.
Q: What is the minimum order quantity — can I buy a single unit?
A: Single-unit orders are standard for this model. The DW102 is designed for workshops and small factories that may only need one machine now and add capacity later. There is no minimum order requirement beyond the unit itself.
Q: Will the control panel be in English or another language I specify?
A: The control panel and operation manual are produced in your specified language. Chinese and English are standard options, and Spanish or other languages can be configured at order. This ensures your operators can read all settings and fault messages from day one.
Q: What shipping options are available and how is the machine packed for safe transit?
A: The 75 kg, 128×47×69 cm DW102 is crated for ocean freight or air cargo depending on urgency. Packing includes protective wrapping and secured bracing inside the crate. Shipping method and routing are confirmed at order based on destination port and delivery timeline requirements.
