Description
Voltage verified before dispatch — every ZDSF190 edge bander ships with a confirmed electrical match document so the machine runs the moment it is plugged in at your workshop.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF190 |
| Product Type | Edge Banding Machine |
| Function | Automatic plate feeding, automatic belt breaking, double-sided gluing, upper and lower trimming and polishing, curved and straight edge banding, large diameter surrounding vacuum |
| Edge Type | Both curved and straight lines |
| Voltage & Frequency | 220V 50Hz (other voltages configurable from 110V to 440V) |
| Rated Power | 4 kW |
| Rated Air Pressure | 0.4–0.6 MPa |
| Suction Power | 1200 W |
| Belt Power | 25 W |
| Transmission Power | 120 W |
| Heating Power | 800 W |
| Polishing Power | 180 W × 2 |
| Trimming Power | 800 W × 2 |
| Conveyor Belt Speed | 0–14 m/min |
| Feed Speed | 0–14 m/min |
| Sheet Thickness Range | 10–50 mm |
| Strip Thickness Range | 0.5–2.5 mm |
| Glue Capacity | 1000 ml |
| Overall Dimensions | 1900 × 560 × 1300 mm |
| Weight | 120 kg |
| Transmission | Steel rod slide rails |
| Trimming Cutter | 4-blade alloy arc knife |
| Dust Collection | Two large diameter dust collectors (suction capacity and port diameter basis not stated in source) |
| Pressure Beam | Aluminum alloy, adjustable |
| Feed Mechanism | Double-row rubber pressure wheels |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and plywood panels with PVC or veneer edge banding |
| Curved furniture component banding | Solid wood panels and particleboard with 0.5–2.5 mm strips |
| Small batch mixed-profile production | Straight and curved panels processed on a single machine |
| Joinery workshop first-machine setup | Panel processing where floor space limits separate straight and curved stations |
Why Voltage Confirmation Matters More Than the Quoted Price
A machine that arrives with the wrong voltage is a crate of steel sitting in your loading bay until an electrician rewires it.
I have watched entire installation schedules collapse because the edge bander on the dock was 380V three-phase while the workshop only had single-phase 220V available. The contractor had to pull new cable from the main distribution board, and the carpenters stood idle for days. When sourcing an Edge Banding Machine in stock, the first document I ask for is the voltage and frequency confirmation sheet — not the commercial invoice. Mismatches happen far more often than most buyers expect [NEED_CITE: voltage and frequency standards by export market]. The ZDSF190 ships at 220V/50Hz as standard, and alternative configurations are built before dispatch rather than adapted on site.
Stock Availability and Single-Unit Ordering
Most small workshops do not have the cash flow or floor space to commit to a full production line in one purchase. This Edge Banding Machine in stock is available for single-unit orders, which means a joinery shop moving off manual edge banding can bring one machine in, learn its behaviour, and add capacity later. Ready stock eliminates the typical multi-week build lead, so the machine arrives while the project timeline still has room for commissioning.
Dispatch Lead Time and What Ships With the Machine
When a unit leaves the warehouse, it carries the operation manual in the agreed language, a spare parts list, and a pre-shipment test record. Buyers ordering from ruiqistore.com see dispatch timing quoted upfront alongside shipping options. The emphasis is on getting the ZDSF190 on a truck fast, with paperwork complete, rather than holding the order while specifications are still being debated [NEED_CITE: CE machinery directive requirements for industrial equipment].
Reading the Specs That Actually Affect Your Panels
The 10–50 mm sheet thickness range covers most furniture-grade MDF, plywood, and particleboard. Panels below 10 mm tend to flex under the pressure beam and produce uneven glue lines, while boards above 50 mm exceed the trimming cutter reach. The 0–14 m/min variable feed speed lets the operator slow down for curved profiles where the strip needs more dwell time against the glue roller, then speed up for straight runs. The 4-blade alloy arc knife trims both top and bottom overhang in a single pass, which keeps edge quality consistent across mixed batches. Dust collection through two large-diameter ports captures the bulk of trim waste, though suction capacity should be confirmed against your existing extraction system. The double-row rubber pressure wheels grip the panel steadily, preventing the lateral shift that causes visible glue lines on lighter substrates.
The Cost of Skipping the Pre-Shipment Voltage Check
Workshops that accept a machine without verifying the electrical match often discover the problem only when the control panel refuses to power on. Retrofitting a voltage transformer or rewinding motors adds expense and delays production start. In humid environments, an undersized circuit breaker trips repeatedly under the combined heating and motor load, which operators mistake for a machine fault. These issues are avoidable when the electrical schematic and voltage confirmation are reviewed before the crate is sealed [NEED_CITE: electrical safety compliance for imported woodworking machinery].
Why Procurement Through This Channel Works
Voltage and language customization is confirmed at order stage, not discovered during unpacking. Single-unit orders are standard here, so you are not forced into a container load to access the ZDSF190. A formal quotation arrives within 24 hours with the engineer’s configuration recommendation based on your panel types and daily volume. Pre-shipment testing includes an actual edge banding run on your specified material, with photographs sent before dispatch. The four-stage quality process covers incoming material inspection through to final verification, which keeps tolerance claims honest and verifiable.
Documentation & Verification
- CE declaration of conformity covering the ZDSF190 edge banding machine
- Electrical schematic confirming voltage, frequency, and circuit protection ratings
- Factory test record showing edge banding results on your panel thickness range
- Operation and maintenance manual written in the language your operators read
- Spare parts list with part numbers for trimming blades and pressure wheels
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated for at least 4 kW with proper grounding
- Overall footprint of 1900 × 560 mm fits through a standard single-leaf workshop door

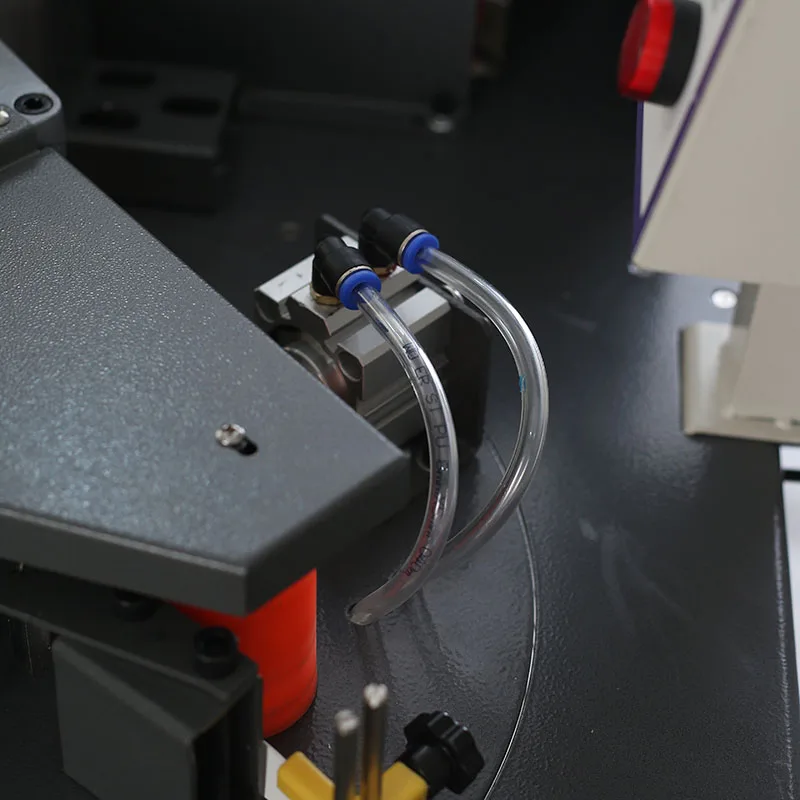

- Air supply must deliver 0.4–0.6 MPa clean dry air to the glue and feed cylinders
- First run should verify trimming alignment on a test panel at both straight and curved profiles
- Dust extraction hoses connect to two large-diameter ports; confirm suction matches your system
- Operator training covers glue pot temperature setting for different strip materials
What to Share When Requesting a Quote
Send the panel materials you run most often, the strip thickness range, and your local voltage and frequency. If the workshop ceiling height is under three metres, mention it so shipping and unloading logistics are planned in advance. Note whether your operators need the control panel in a specific language.
Frequently Asked Questions
Q: Is this model currently in stock and what is the dispatch lead time?
A: The ZDSF190 is held in ready stock for single-unit and small-batch orders. Dispatch lead time is quoted at the point of order confirmation and depends on whether voltage customization or language-specific manuals are required. Standard 220V/50Hz units typically leave the warehouse faster than custom-configured builds.
Q: Can voltage be changed from 220V/50Hz to match my local power supply before shipping?
A: Yes. Voltage is configurable from 110V to 440V and the change is completed at the factory before dispatch. An electrical schematic and voltage confirmation document are included with the machine so your electrician can verify the match on arrival without guesswork.
Q: What panel materials and edge strip types does this machine handle?
A: The ZDSF190 processes MDF, plywood, particleboard, and solid wood panels between 10 and 50 mm thick. It accepts PVC and veneer edge banding strips from 0.5 to 2.5 mm. Both curved and straight profiles are handled on the same machine through a 180-degree rotation setup.
Q: How do I order a single unit and what shipping options are available?
A: Single-unit orders are accepted directly through ruiqistore.com. Shipping options are quoted upfront at the order stage. The machine ships with a complete spare parts list and packing photographs so you can verify condition before it reaches your dock.
Q: What spare parts and consumables ship with the machine?
A: Each ZDSF190 includes a spare parts list identifying trim blades, pressure wheels, and other wear items. Consumables required for the first production run should be planned from that list. Replacement parts are available for reorder with part numbers printed on the documentation.
