Description
Ready from the Warehouse — ZDSF400 automatic edge banding machine in stock, pre-tested at 220V single-phase and dispatched within days instead of typical multi-week lead times.
Technical Specifications
| Parameter | Value |
|---|---|

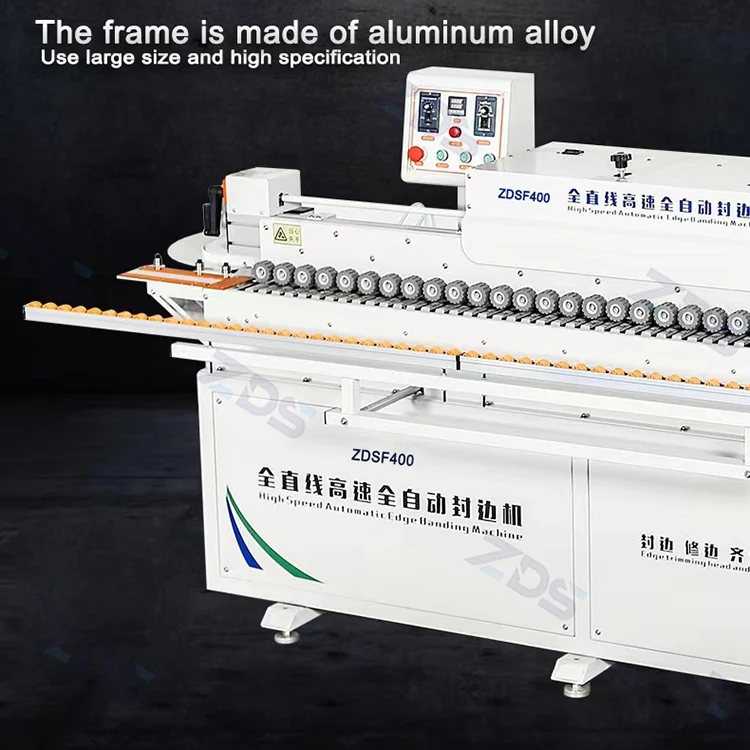

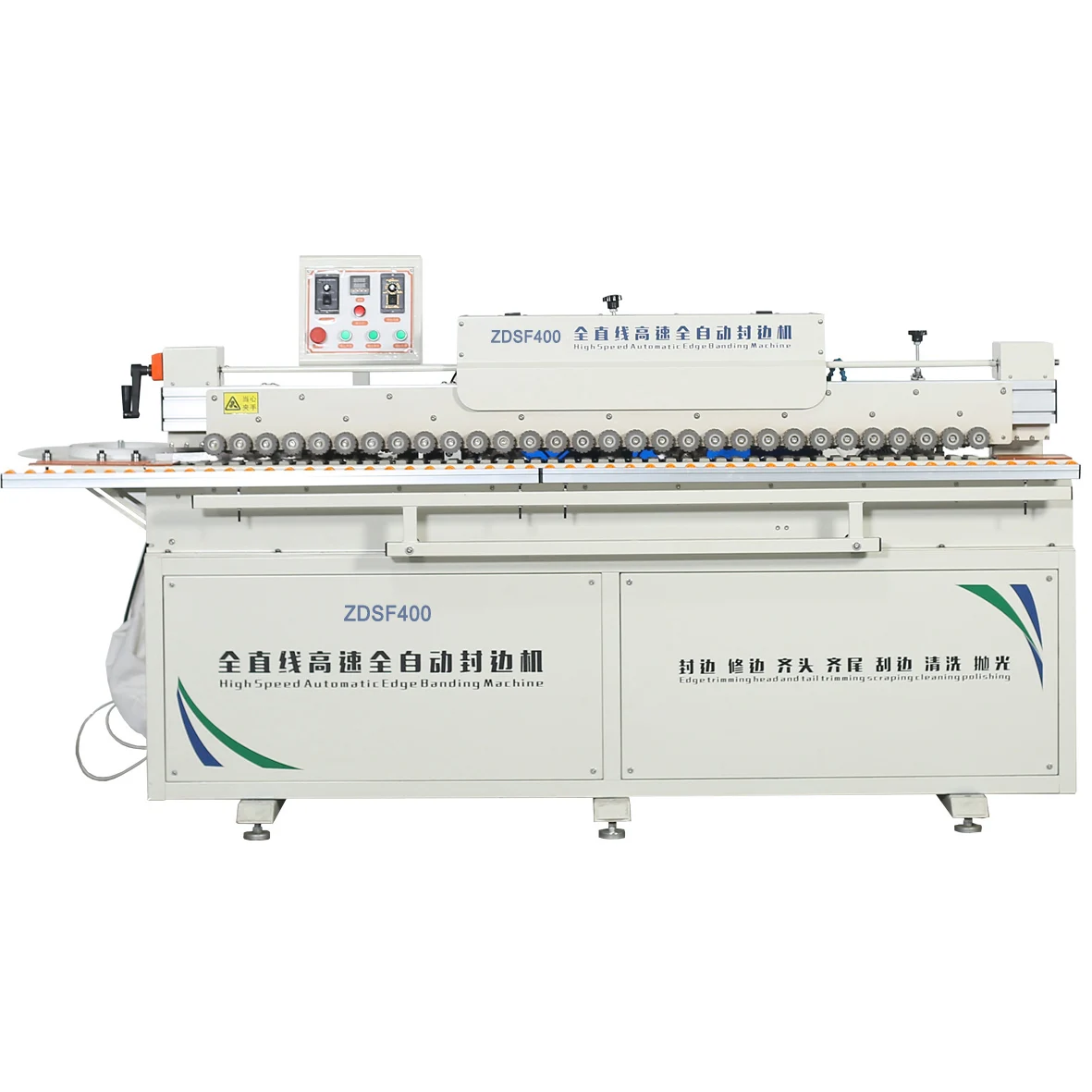

| Model | ZDSF400 |
| Product Type | Automatic Edge Banding Machine |
| Function Sequence | Gluing, End Cutting, Trimming, Scraping, Polishing, Vacuuming |
| Edge Type | Straight Line |
| Rated Voltage | 220V (confirm 50/60 Hz with local supply) |
| Rated Power | 3 kW |
| Rated Air Pressure | 0.4–0.6 MPa |
| Strip Thickness Range | 1–3 mm |
| Panel Thickness Range | 10–55 mm |
| Feed Speed | 0–14 m/min |
| Conveyor Belt Speed | 0–14 m/min |
| Glue Pot Capacity | 1000 ml |
| Glue Heating Power | 800 W (heat-up time 5–10 min) |
| Trimming Motor Power | 800 W × 2 (24,000 rpm) |
| Polishing Motor Power | 180 W × 2 (5,500 rpm) |

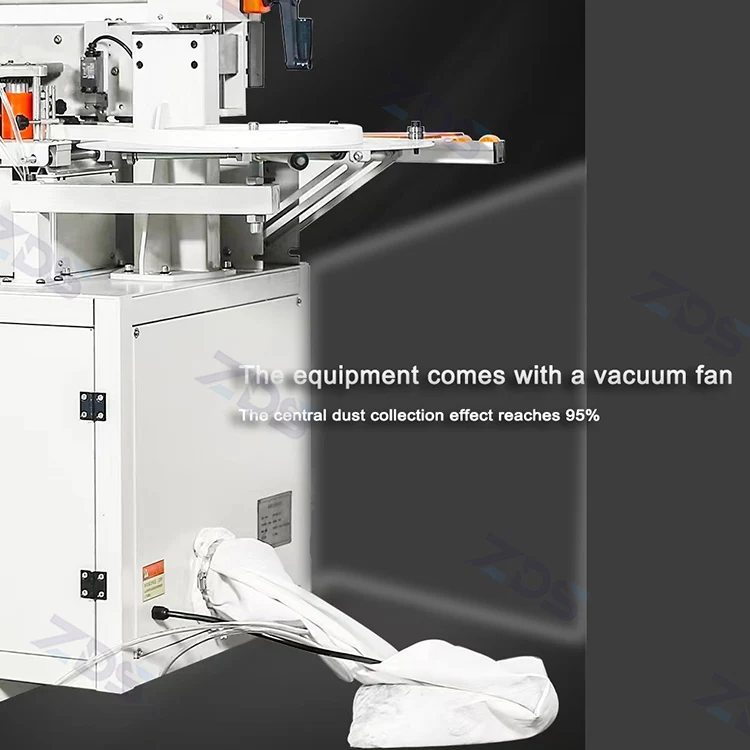

| Suction Power | 550 W |
| Overall Dimensions (L×W×H) | 240 × 70 × 120 cm |
| Machine Weight | 370 kg |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Small custom cabinet shop adding edge banding capability | MDF and particleboard panels with PVC edge strips 1–3 mm |
| Joinery workshop replacing manual iron-on banding | Plywood and melamine-faced boards 10–55 mm thick |
| Furniture repair or prototyping studio | Solid wood panels requiring straight-line edge finishing |
| Starter workshop moving from manual to semi-automated production | Standard cabinet stock with straight edges |
Why Voltage Verification Matters Before You Commit to an Automatic Edge Banding Machine in Stock
Ordering a machine without confirming local voltage and frequency is the single most preventable cause of commissioning failure.
I once visited a cabinet maker who had taken delivery of an edge bander that matched his budget perfectly. The problem was the frequency — his workshop ran on 60 Hz, and the machine had been configured for 50 Hz. The trimming motors spun faster than the conveyor could feed, leaving chatter marks on every panel. He spent weeks waiting for replacement motor windings while production sat idle. When sourcing an automatic edge banding machine in stock, the voltage and frequency question must be settled before the order is placed, not after the crate arrives [NEED_CITE: voltage and frequency standards by export market].
Dispatch Speed Without the Configuration Surprises
Buying from ready stock eliminates the typical multi-week production lead time, which matters when a workshop has orders waiting and a machine down. The ZDSF400 sits in the warehouse at 220V single-phase configuration, a voltage standard common across many export markets. Before dispatch, the electrical schematic and voltage confirmation document are shared with the buyer so there is no ambiguity about what arrives on the shop floor.
Compact Footprint for Workshops Tight on Space
At 2.4 metres long and 70 centimetres wide, this automatic edge banding machine in stock fits into joinery shops where floor space is already crowded with panel saws and workbenches. The single-phase 3 kW power draw means no three-phase supply installation is needed, which removes a common bottleneck for smaller workshops moving from hand tools to machine-assisted edge finishing [NEED_CITE: single-phase power availability in small woodworking workshops].
What the Six-Station Sequence Means for Edge Quality

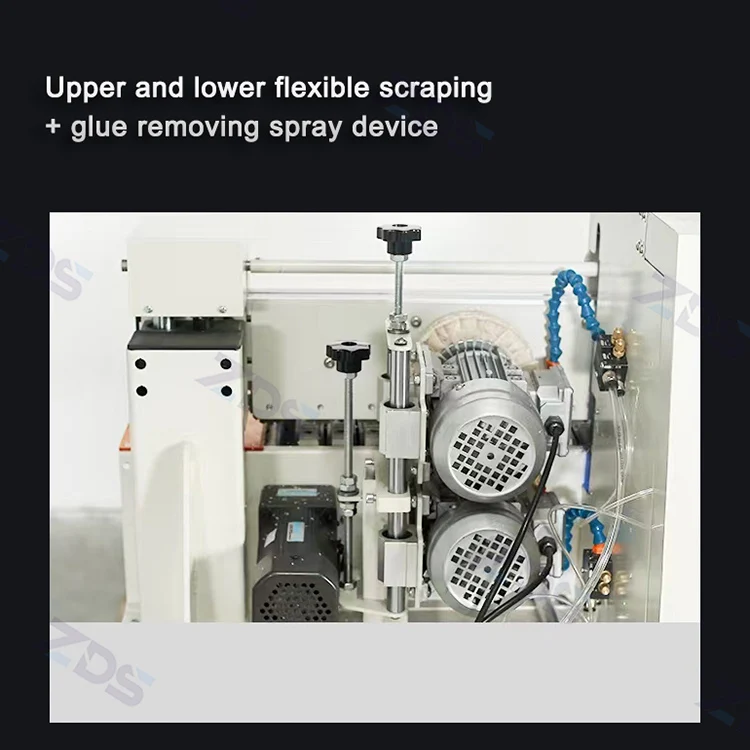

The ZDSF400 runs a complete sequence — gluing, end cutting, rough and fine trimming, scraping, and polishing — in one pass through a 2.4-metre frame. The dual trimming motors at 24,000 rpm cut through PVC and veneer strips cleanly, while the scraping station removes the micro-ridges left by the trimmer knives. The polishing wheels at 5,500 rpm then bring the edge to a smooth finish ready for assembly. For a cabinet shop running 10–55 mm panels, this means the edge comes off the machine ready for the next production step without hand-sanding or touch-up work.
The Real Cost of Sizing a Machine Below Your Production Volume
Every edge bander has a duty cycle it was designed around, and running it beyond that cycle is where quality breaks down. I have seen small-format edge banders of this class pushed into full production shifts, and within a few months the glue pot cannot maintain consistent temperature at sustained feed rates. The trimming motors start leaving visible lines on the strip, and operators slow the feed speed to compensate, which then bottlenecks the entire workshop. The ZDSF400 is built for starter workshops and low-to-medium volume runs — not eight-hour continuous production on a panel line. Matching the machine to the actual daily panel count avoids the cost of rework and premature component wear [NEED_CITE: edge banding machine duty cycle and production volume matching].
Why Sourcing This Machine Through a Ready-Stock Channel Works
Stocked configuration means the ZDSF400 has already passed through the four-stage quality check — incoming material inspection, in-process assembly verification, finished product testing, and pre-shipment run-off — so the buyer receives a factory test record alongside the machine. Voltage is confirmed at 220V before packing, and the operation manual ships in the buyer’s agreed language. Single-unit orders are accepted without minimum quantity requirements, which suits a workshop adding one edge bander to existing equipment. The patented cutting mechanisms used across the product family deliver the same tolerance standard regardless of whether the machine ships from stock or is built to order. Spare parts — trimming knives, polishing wheels, glue pot elements — are listed on the packing slip so replacements can be reordered without a production halt.
Documentation & Verification
- CE declaration of conformity matched to the ZDSF400 model number
- Factory test record run on your specified panel thickness and strip type
- Electrical schematic with 220V wiring diagram and frequency confirmation
- Operation and maintenance manual printed in your operator’s language
- Spare parts list with trimming knife and polishing wheel part numbers
Installation, Commissioning & Support
- Requires a level concrete floor with a 240 × 70 cm clear footprint and access clearance on both sides
- 220V single-phase dedicated circuit rated for the 3 kW total draw plus compressor inrush
- Ships fully assembled at 370 kg — forklift or pallet jack needed for unloading
- Glue pot heat-up takes 5–10 minutes before first panel feed at operating temperature
- Air supply at 0.4–0.6 MPa from a clean, filtered line with moisture trap
- Trimming knife and polishing wheel replacements available through the supplied spare parts list
What We Need to Confirm Before Shipping
To make sure the ZDSF400 arrives ready to run on day one, share your local voltage and frequency so we can cross-check the electrical configuration. Let us know the panel materials and thicknesses you run most often, along with the edge strip type and thickness, so the factory test can replicate your actual production conditions. If your operators need the control labels and manual in a specific language, tell us at the order stage so documentation is prepared before dispatch.
Frequently Asked Questions
Q: Is this automatic edge banding machine in stock and what is the dispatch lead time?
A: The ZDSF400 is held in ready stock and typically ships within days of order confirmation, not weeks. Dispatch timing is confirmed once the voltage and documentation requirements are agreed upon, and the factory test record is completed before packing.
Q: What voltage options are available and can it run on 110V or 380V three-phase?
A: The stocked configuration is 220V single-phase. Other voltage options from 110V to 440V are available on a build-to-order basis. Confirm your local supply voltage and frequency before placing the order so the correct configuration is shipped.
Q: What is the minimum order quantity — can I buy a single unit?
A: Single-unit orders are accepted without minimum quantity requirements. This suits workshops adding one edge bander or replacing a manual process with a consistent machine operation.
Q: Can this machine handle curved or contoured edges, or is it straight-line only?
A: The ZDSF400 is a straight-line edge banding machine designed for flat panel edges. Curved or contoured edge work requires a different machine configuration that we can recommend based on your production needs.
Q: What spare parts ship with the machine and how do I order replacements?
A: The machine ships with a spare parts list covering trimming knives, polishing wheels, and glue pot elements. Replacement parts are ordered directly using the part numbers provided, and the list is included with the packing documentation.
