Description
Stock-Verified Dispatch — Electrical schematics confirmed against your facility’s voltage standard before the ZDS802 leaves the floor.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDS802 |

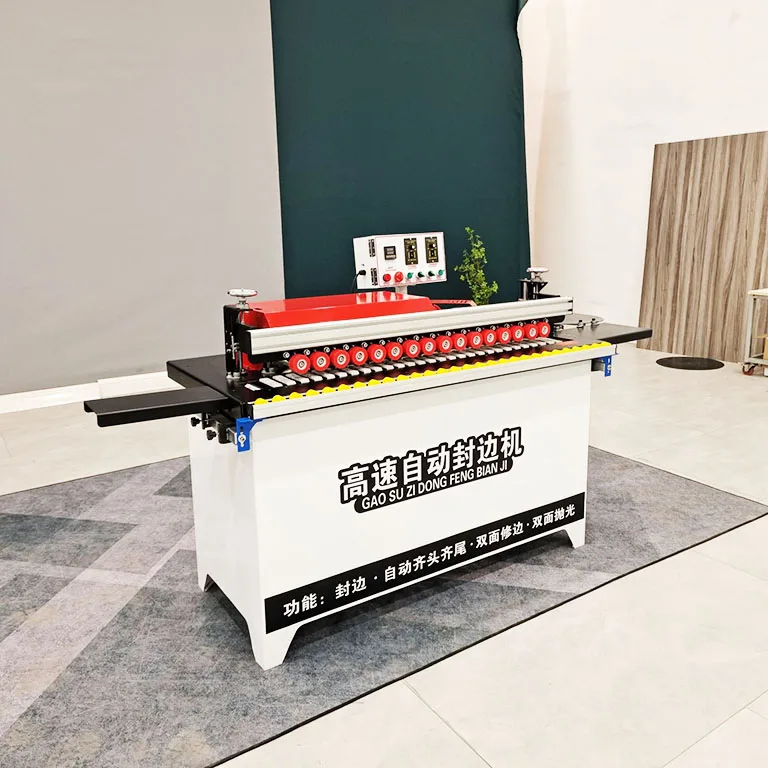

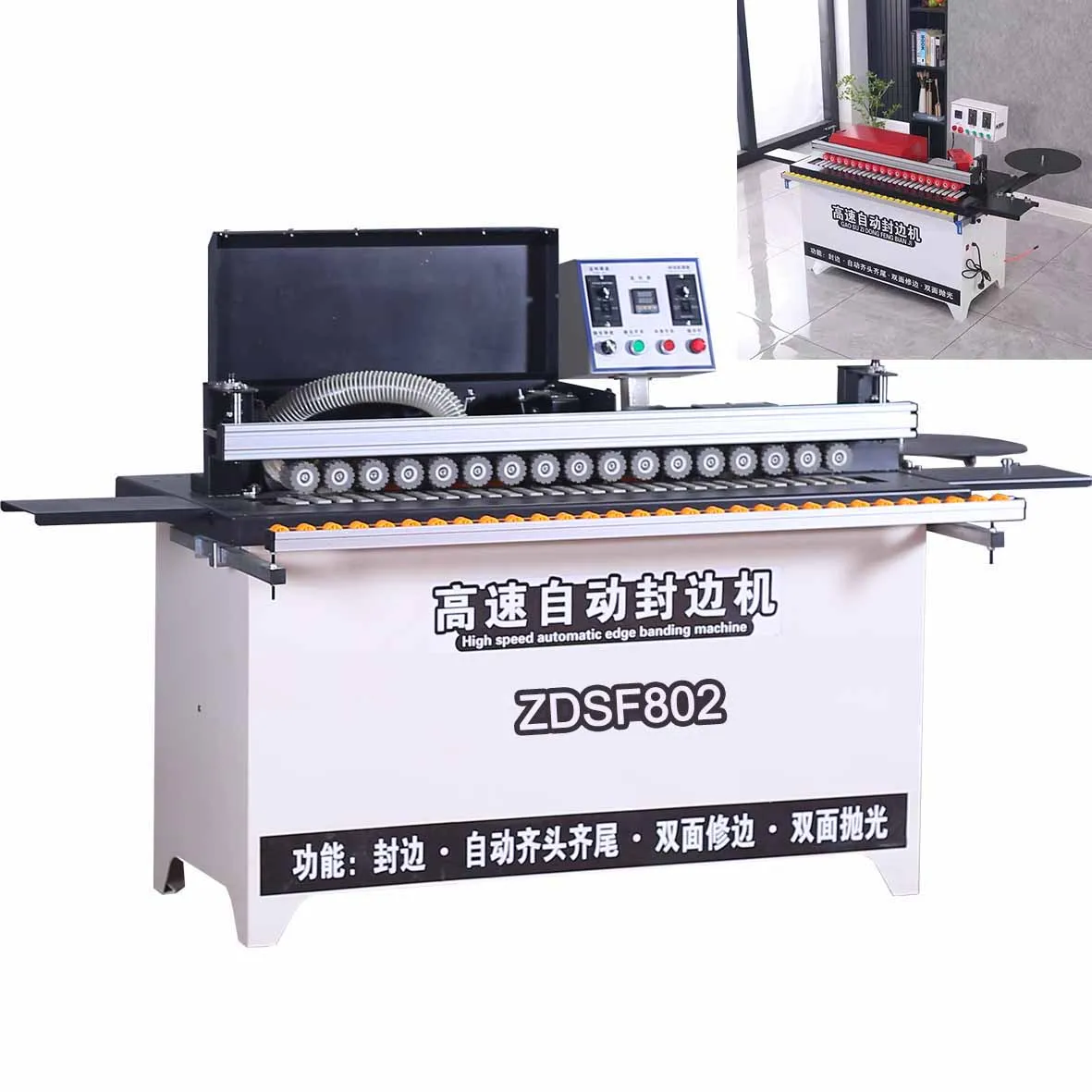

| Product Type | Automatic Edge Banding Machine |
| Rated Voltage | 220V |
| Rated Power | 4kW |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Suction Power | 1200W |
| Heating Power | 1000W |
| Feed Speed | 0-10 m/min |
| Conveyor Belt Speed | 0-10 m/min |
| Strip Thickness Range | 0.5-2.5 mm |
| Sheet Thickness Range | 10-50 mm |
| Glue Pot Capacity | 4000 ml |
| Rated Air Pressure | 0.4-0.6 MPa |
| Overall Dimensions | 130 × 65 × 75 cm |
| Machine Weight | 150 kg |
| Edge Type | Straight line |

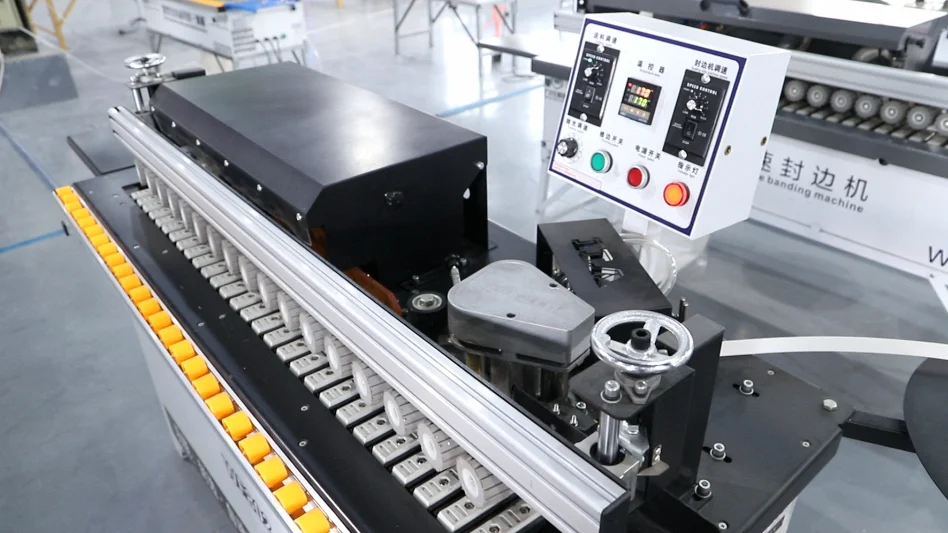

| Key Features | Digital temperature display, independent switches, integrated dust collector, extendable fluent strips |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet edge banding | MDF, particleboard |
| Joinery workshop panel processing | Plywood panels up to 50 mm thick |
| Straight-line banding for furniture | PVC and veneer strips 0.5-2.5 mm |
| Small-scale production runs | Boards requiring automated feeding and trimming |
Why the Voltage Question Must Precede the Shipment Date
Confirming your facility’s local supply against the ZDS802 electrical schematic prevents a non-functional arrival.
Machines quoted without verifying local frequency often arrive with burnt variable frequency drives or tripped breakers, halting a production line while replacement parts cross borders. The ZDS802 Automatic Edge Banding Machine in stock is quoted only after matching your site’s specific 220V requirement to our dispatch checklist [NEED_CITE: IEC voltage and frequency standards for exported machinery].
Fast Dispatch Without Compromising Electrical Integrity
Buying an Automatic Edge Banding Machine in stock should not mean skipping the pre-shipment verification. We review the heating element rating and motor winding configuration against your confirmed grid frequency before the crate is sealed. This step ensures the 1000W glue pot heats within the expected 5-10 minute window on your shop floor rather than tripping a breaker on first power-up.
Stock Availability and Single-Unit Ordering
Waiting weeks for a container consolidation is not an option when a single machine stands between a workshop and its next delivery deadline. The ZDS802 is held in ready-to-ship inventory, allowing single-unit orders to move from confirmation to dispatch without minimum quantity constraints [NEED_CITE: typical lead time reduction for stocked woodworking machinery]. This model suits a joinery startup replacing manual banding or a cabinet maker adding capacity to an existing line.
How the 4-Liter Glue Pot and Double Trimming Serve Daily Output

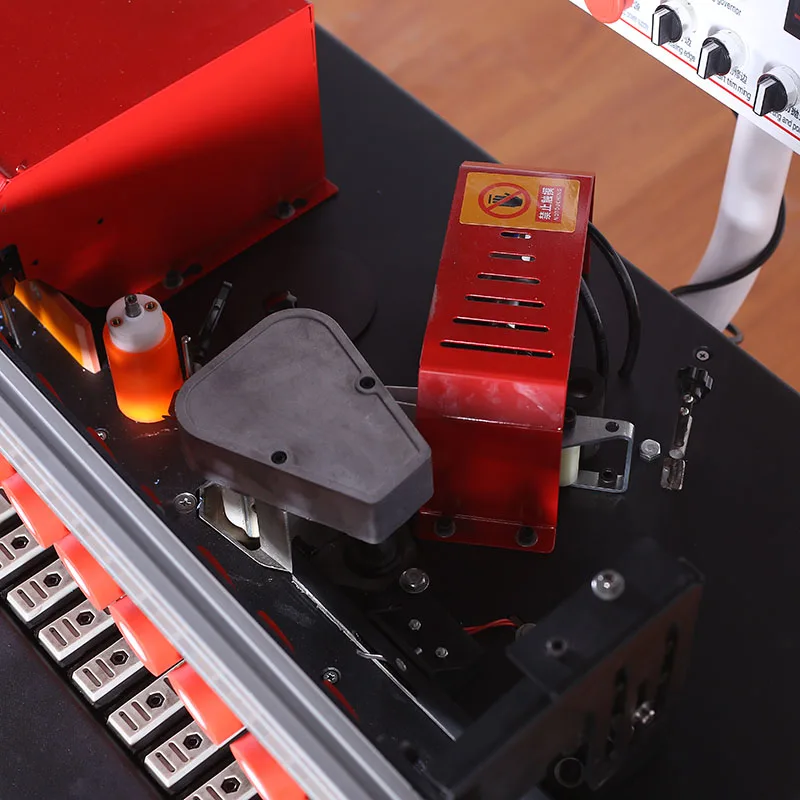

A 4000 ml glue pot capacity means fewer interruptions for refills during a batch run of cabinet sides. The double high-speed trimming motors handle head and tail cuts at feed speeds up to 10 m/min, while the integrated 1200W dust collector captures trim waste without requiring a separate extraction duct. The silicone conveyor belt and double-row pressure beam keep panels stable and scratch-free through the entire sequence.
Reading the Specs That Determine Panel Edge Quality
The sheet thickness range of 10-50 mm defines which panels the ZDS802 can process without adjustment delays. Feed speed is variable from 0-10 m/min, allowing operators to slow down for thick veneer strips that need longer glue open time or speed up for standard PVC banding on particleboard. The trimming power of 800W × 2 provides the torque needed for clean end cuts on dense MDF without chipping the strip edge. Pneumatically controlled belt breaking separates the strip from the panel end cleanly, reducing manual cleanup between boards.
The Cost of Overlooking the Air Pressure Requirement
The ZDS802 requires a steady 0.4-0.6 MPa air supply for the pneumatic belt breaker and pressure beam engagement. Workshops that connect the machine to an undersized compressor often experience inconsistent strip separation or intermittent pressure beam release, leading to visible glue lines or misaligned trimming. These faults are typically blamed on the machine rather than the air supply, resulting in unnecessary service calls and production downtime [NEED_CITE: pneumatic supply requirements for edge banding machinery].
Why Procure This Model Through This Channel
Voltage confirmation is documented on the electrical schematic before dispatch, not assumed from a regional default. Pre-shipment test records are generated on panel stock matching your specified thickness range, so you receive verification footage rather than generic factory footage. The operation manual is prepared in your requested language at the order stage, ensuring your operator can read the digital temperature display and switch labels on day one. Spare parts lists include trimming blades, polishing wheels, and conveyor belt segments specific to the ZDS802, so you know what to reorder locally.
Documentation & Verification
- CE declaration of conformity matching the ZDS802 model designation
- Electrical schematic confirming 220V and frequency before crating
- Factory test record on your specified panel thickness and edge material
- Operation manual in your confirmed language with digital display reference
- Spare parts list identifying trimming blades, polishing wheels, and belt segments
Installation, Commissioning & Support
- Requires assembly on arrival; allocate floor space of at least 150 × 80 cm for the extendable fluent strips
- Dedicated 220V circuit rated for 4kW continuous load with appropriate breaker sizing
- Pneumatic connection to a compressor delivering 0.4-0.6 MPa at the machine inlet
- Glue pot heat-up time of 5-10 minutes before first panel feed
- Trimming blade and polishing wheel replacement intervals noted in the maintenance schedule
- Video guidance available for belt tensioning and pressure beam adjustment
Inquiry Direction
Provide your local voltage and frequency, the panel materials and thicknesses you will process, and your daily output target so we can confirm the ZDS802 Automatic Edge Banding Machine in stock matches your line. Specify your preferred manual language and any required spare parts beyond the standard list.
Frequently Asked Questions
Q: Is this machine in stock and what is the dispatch lead time?
A: The ZDS802 is held in ready-to-ship inventory for single-unit orders. Dispatch occurs after electrical verification and pre-shipment testing, which typically adds a short holding period to confirm your voltage requirement. Exact timing depends on the current queue and your confirmation speed on the specification sheet.
Q: Can I order a single unit, or is there a minimum order quantity?
A: Single-unit orders are accepted with no minimum quantity requirement. This model is positioned for workshops adding one edge bander to an existing setup or replacing a manual process. The ordering process is structured for straightforward dispatch without container consolidation delays.
Q: What voltage and frequency does the ZDS802 ship with, and can it be changed?
A: The ZDS802 is rated at 220V as standard. Before dispatch, we verify your local frequency and confirm the motor and heating element compatibility. If your facility runs on a different voltage, a custom configuration must be arranged at the quotation stage rather than after production.
Q: What edge banding materials and panel thicknesses does it handle?
A: The machine processes straight-line PVC and veneer strips from 0.5 to 2.5 mm thick. Sheet thickness ranges from 10 to 50 mm, covering standard MDF, particleboard, and plywood panels used in cabinet and furniture production. Curved or contour edge banding is outside this model’s capability.
Q: How is installation handled — is assembly guidance or video support included?
A: The ZDS802 requires assembly on arrival, including pressure beam mounting and conveyor belt tensioning. We provide video guidance and the operation manual in your confirmed language. The extendable fluent strips and dust collector integration are covered in the setup documentation.
