Description
Multiple Configurations in Ready Stock — five automatic edge banding machine tiers held in our Shandong warehouse, each verified for voltage and phase before dispatch to prevent on-site commissioning failures.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDS365 / ZDS-368 / ZDS-468 / ZDS-468J / ZDS-468JJ |
| Product Type | Automatic Edge Banding Machine |
| Min. Panel Size | 300×60 mm (ZDS365 to ZDS-468); 150×150 mm (ZDS-468JJ) |
| Total Power | 8.15 kW (ZDS365) to 18.5 kW (ZDS-468JJ) |
| Overall Dimensions | 4070×900×1600 mm to 8000×900×1600 mm |
| Net Weight | 1200 kg (ZDS365) to 2300 kg (ZDS-468JJ) |
| Panel Thickness Range | 10–60 mm |
| Edge Thickness Range | 0.4–3 mm |
| Working Pressure | 0.6 MPa |
| Control System | PLC control system |
| Pre-milling Unit | Available on ZDS-468J / ZDS-468JJ; 2×2.2 kW, 12000 rpm, max. cut depth 2 mm |
| Corner Rounding | Available on ZDS-468 / ZDS-468J / ZDS-468JJ; four-motor profiling |
| Gluing System | Teflon-sprayed anti-carbonization glue pot; upgradeable to PUR or dual pots |
| Feed Speed | (basis to be confirmed) |
| Voltage | Configurable 3-phase (e.g., 380V, 440V, customized to destination market) |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge banding | MDF, plywood, and particleboard with PVC or ABS edges |
| Cabinet door and carcass production | Laminated board and melamine-faced chipboard |
| Solid wood panel finishing | Solid wood panels with veneer edge banding |
| High-volume panel processing plants | Continuous runs requiring pre-milling and double buffing |
Why the Voltage Question Must Precede the Price Quote
Machines locked out by a voltage mismatch sit idle for weeks while replacement boards ship overseas. I recall an order that left our Ningjin facility configured for a standard 380V/50Hz grid, only to arrive at a Middle Eastern plant running on 440V/60Hz industrial power; the main PLC board alarmed and locked immediately upon startup. Since that incident, every automatic edge banding machine in stock is logged with its voltage variant, and dispatch is held until written confirmation of the buyer’s local phase and frequency is received [NEED_CITE: voltage and frequency standards by export market]. Ordering a machine without this verification step risks not just a delayed installation, but the cost of return freight and component replacement.
Dispatch Readiness Across Five Model Tiers
Holding stock across the ZDS365 through ZDS-468JJ range means a buyer can source an entry-level unit for a small joinery shop or a full-function pre-milling model for a panel processing plant from the same facility. This availability is critical when a production line goes down and an automatic edge banding machine must be deployed within days rather than months. The warehouse maintains partially assembled units that undergo final configuration only after the destination’s electrical and language requirements are locked in.
Verifying the Machine Before It Leaves the Dock
Our dispatch protocol involves pulling the specific unit from stock and running a panel test that mirrors the buyer’s actual material thickness and edge type. The pre-milling cutters on the ZDS-468J and ZDS-468JJ are engaged during this test to verify the 2 mm depth setting against the buyer’s substrate. Electrical parameters, including inverter settings and motor rotation direction, are checked against the confirmed voltage document [NEED_CITE: pre-shipment inspection standards for woodworking machinery]. This step eliminates the scenario where a machine arrives physically intact but electrically incompatible.
Matching Function Count to Workshop Volume

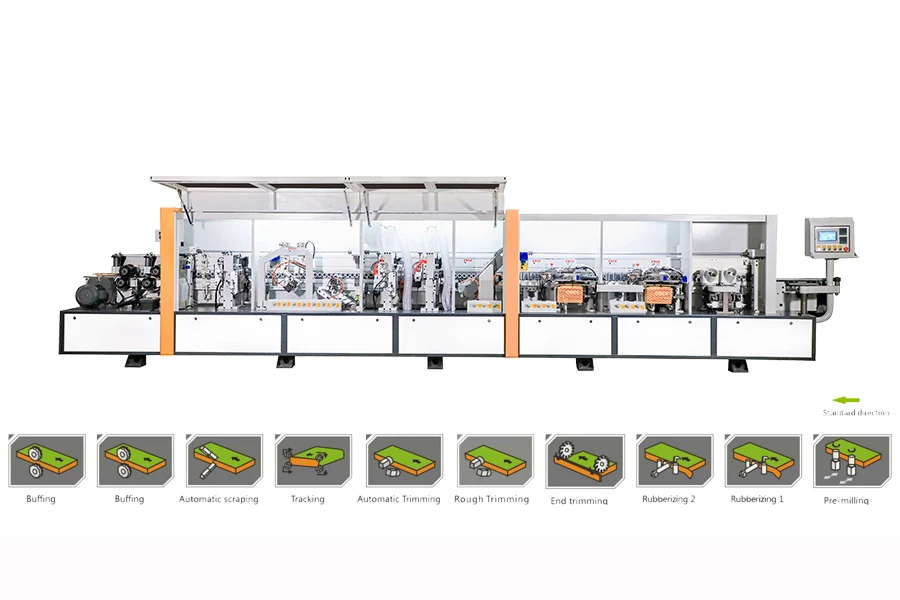

The ZDS365 covers gluing, end trimming, fine trimming, scraping, and buffing in a 4070 mm footprint, drawing 8.15 kW — a configuration that suits a startup workshop moving from manual edge application to mechanized output. Stepping up to the ZDS-468 adds rough trimming and corner rounding, which removes the need for a separate profiling station on cabinet door lines. The ZDS-468JJ extends the overall length to 8000 mm and incorporates dual glue pots and double buffing, enabling color changes and a finer finish on high-visibility furniture panels without a secondary pass. The panel thickness range of 10–60 mm across all models ensures that thick solid-wood components and thin particleboard shelving can be processed on the same line.
The Cost of Skipping the Specification Check
When a buyer selects a machine based on price alone and ignores the function list, the result is often a bottleneck that appears only after installation. A workshop running PVC edge on MDF may find that an entry-level model without rough trimming leaves excess material that requires manual cleanup, slowing throughput noticeably. Similarly, specifying a machine without pre-milling for a plant that processes laminated boards with uneven edges leads to visible glue lines that fail quality inspection [NEED_CITE: edge banding adhesion failure causes]. The hidden cost is not the machine itself, but the labor and rework it generates downstream.
Procurement Backed by Manufacturing Depth
The ZDS series is built in our 10,000 sqm facility where component precision grinding and four-stage quality control are applied to every unit, from the entry-level ZDS365 to the ZDS-468JJ. We configure voltage from 110V to 440V and supply multilingual control panels as a standard part of the order, not as a premium add-on. An engineer reviews the buyer’s production requirement and issues a formal configuration proposal within 24 hours, ensuring the selected model matches the actual feed volume and panel mix. Factory visits are welcomed so buyers can witness the pre-shipment test on their own material samples.
Documentation & Verification
- Machine specification sheet listing the exact model tier, function sequence, and confirmed voltage.
- Electrical schematic with voltage and phase marked to match the buyer’s facility grid.
- Factory test record showing edge banding output on the agreed panel thickness and material.
- Operation and maintenance manual provided in the buyer’s selected language.
- Spare parts list identifying consumable cutters, scraper blades, and buffing wheels.
- Packing photographs documenting the crate condition and component securing before loading.
Installation, Commissioning & Support
- Foundation must be level to support net weights up to 2300 kg on the ZDS-468JJ.
- Dedicated 3-phase circuit required, sized to the confirmed total power up to 18.5 kW.
- Unit arrives partially assembled; final roller and extraction hood fitting done on-site.
- PLC control system powered up and language set during initial commissioning call.
- Pre-milling cutter depth and corner rounding profiles calibrated to first production batch.
- Consumable scraper blades and buffing wheels included in the initial spare parts package.
Send Us Your Production Variables
To match you with the correct stock unit, we need to know the primary panel material and the edge banding thickness you run most frequently. Provide your facility’s voltage, phase, and frequency so we can lock the electrical configuration before the machine leaves the warehouse. If your line includes upstream saws or downstream boring stations, share their feed height to ensure compatibility across the workflow.
Frequently Asked Questions
Q: Which models are currently in stock and what is the dispatch timeline?
A: We maintain ready stock across the ZDS365, ZDS-368, ZDS-468, ZDS-468J, and ZDS-468JJ tiers. Dispatch lead time depends on the final electrical and language configuration required for your market, which we confirm in writing before the machine leaves the facility. Single-unit orders are fulfilled from this same stock pool.
Q: How do I confirm the correct voltage and frequency before ordering?
A: We require written confirmation of your facility’s voltage, phase, and frequency before any machine is released from stock. Our electrical team then verifies the inverter parameters and motor wiring against that document, and a voltage confirmation sheet is included in the shipping documentation.
Q: Can I order a single unit, and what shipping options exist?
A: Single-unit orders are standard for this product range. Machines are crated at our Ningjin facility and shipped via sea freight to your designated port. We provide the necessary customs documentation and packing photographs to support your import clearance process.
Q: What distinguishes the five model tiers in practical terms?
A: The ZDS365 provides basic gluing and trimming for lower-volume workshops. The ZDS-468 adds rough trimming and corner rounding for cabinet work. The ZDS-468J introduces pre-milling for uneven panels, while the ZDS-468JJ adds dual glue pots and double buffing for high-volume plants requiring color flexibility and superior edge finish.
