Description
Immediate Dispatch Ready — Model 802 automatic edge bander is stocked and crated for fast shipping, eliminating multi-week production waits for workshops needing quick capacity.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 802 |
| Product Type | Automatic Edge Banding Machine |

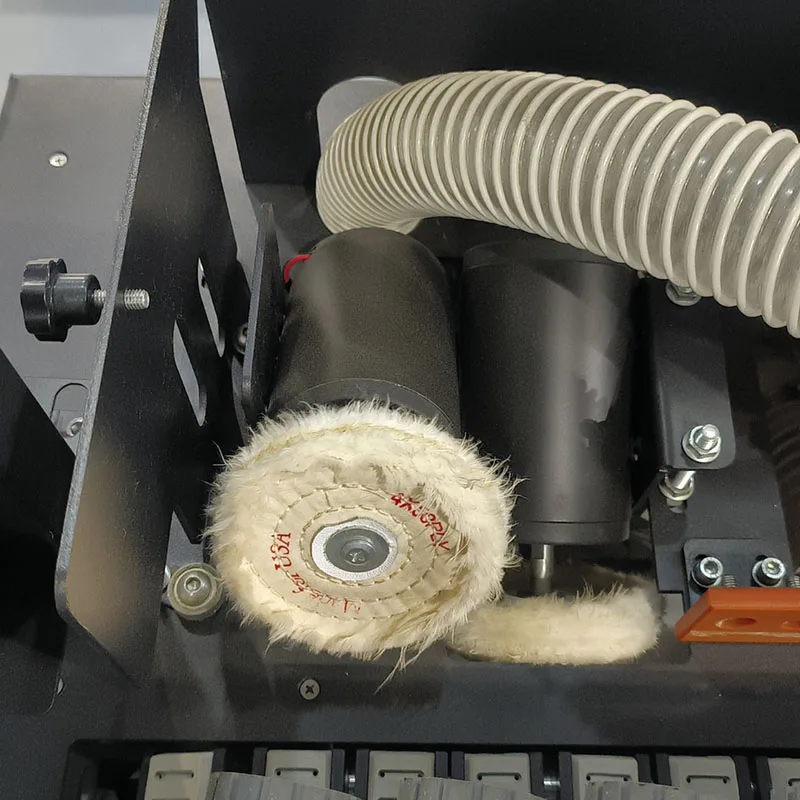

| Function Sequence | Automatic plate feeding, end cutting, head/tail trimming, upper/lower polishing |
| Edge Type | Straight line |
| Rated Voltage | 220V |
| Rated Power | 4kW |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Suction Power (Dust Collector) | 1200W |
| Heating Power | 1000W (5-10min warm-up) |
| Feed Speed | 0-10m/min |
| Conveyor Belt Speed | 0-10m/min |
| Strip Thickness Range | 0.5-2.5mm |
| Sheet Thickness Range | 10-50mm |
| Glue Pot Capacity | 4000ml |
| Rated Air Pressure | 0.4-0.6MPa |
| Overall Dimensions (L×W×H) | 130×65×75cm |
| Machine Weight | 150kg |
| Control Panel | Digital display (glue pot temp), independent switch |

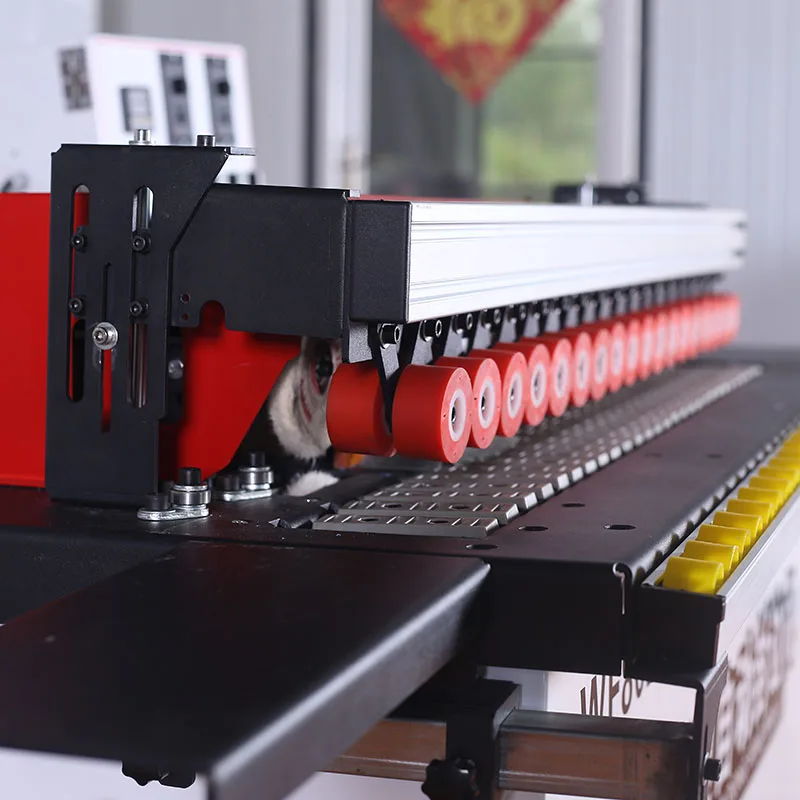

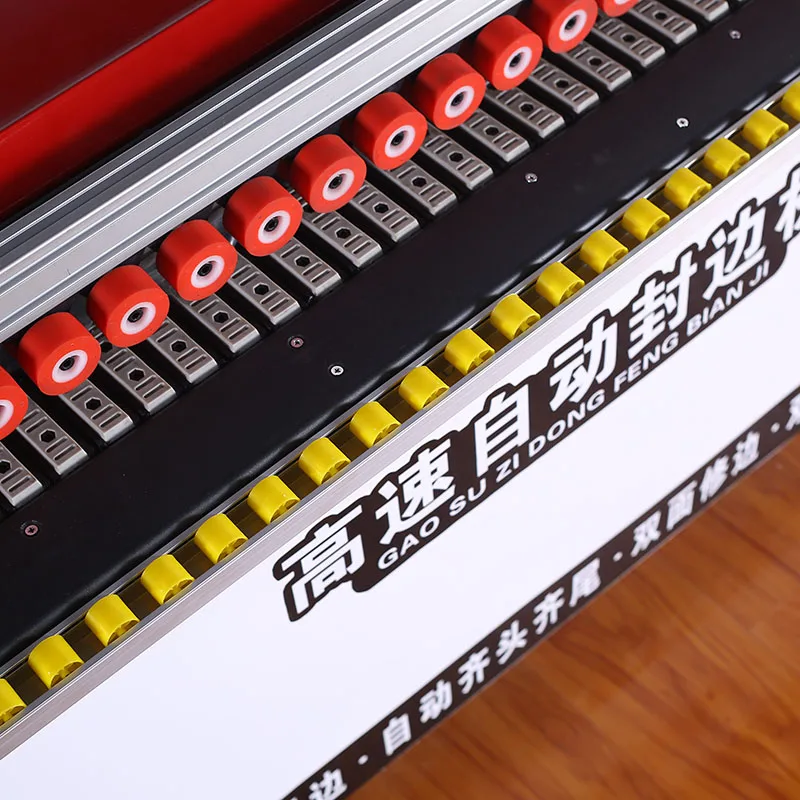

| Pressure Beam | One-piece, double rows of pressure wheels |
| Conveyor Belt Material | Silicone |
| Belt Breaking Method | Pneumatically controlled |

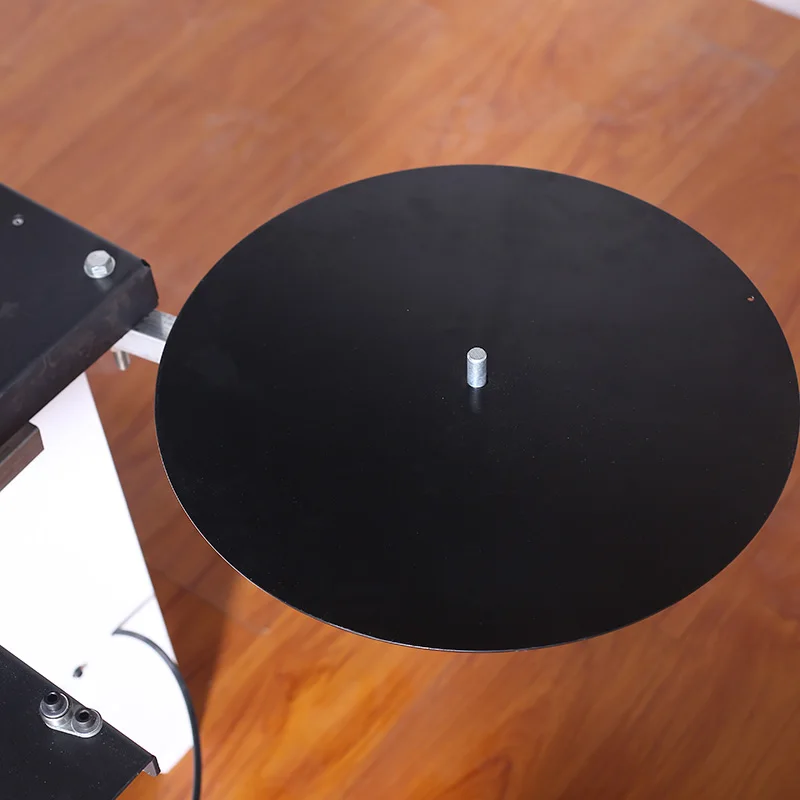

| Key Features | Extendable fluent strip support for large plates, integrated dust collector |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge banding | MDF, particleboard with PVC or melamine edge strips |
| Cabinet door and carcass sealing | Plywood and blockboard up to 50mm thickness |
| Small-batch joinery production | Straight-line panels for shelving and storage units |
| Secondary edge bander for backup capacity | Any panel substrate within 10-50mm thickness range |
Why the Voltage Question Must Come Before You Hit "Order"
Confirming 220V compatibility with your local grid avoids a machine that arrives as dead weight.
I have watched crates get pried open in workshops from Hanoi to Lima, only for the electrician to shake his head at the nameplate. The machine sits on the floor, still bolted to the pallet, while the buyer scrambles for a transformer or files a return claim. This Automatic Edge Banding Machine in stock ships at a fixed 220V configuration, which covers a wide range of single-phase markets but is not universal. A quick check of your facility’s supply voltage and frequency takes two minutes and prevents weeks of downtime [NEED_CITE: voltage and frequency standards by export market].
Stock Availability and Dispatch Timing
When a primary edge bander goes down mid-week or a new contract demands extra sealing capacity, waiting for a custom build is not an option. This Automatic Edge Banding Machine in stock sits in our Yangtze Delta warehouse, crated and ready for freight booking. Single-unit orders ship without minimum-order delays, and we quote shipping options at the point of confirmation so you know the landed timeline before committing.
Fast Ordering Without Configuration Guesswork
The 802 is configured as a complete straight-line edge banding unit with integrated dust collection, meaning there are fewer auxiliary decisions holding up your purchase order. You confirm your voltage compatibility, approve the dispatch, and the crate leaves with operation manual, spare parts list, and a starter consumables kit already inside. The emphasis here is speed and simplicity — no engineering back-and-forth required for a standard panel sealing application.
Reading the Specs That Actually Matter on the Shop Floor

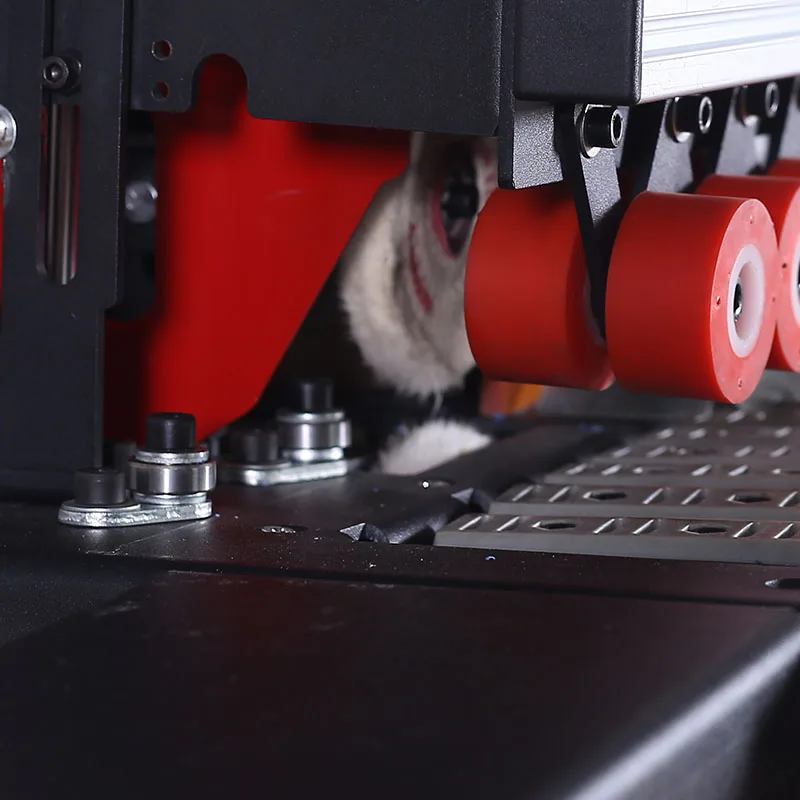

The 4000ml glue pot capacity means operators can run extended batches without pausing for adhesive refills, which matters when you are banding a full set of cabinet carcasses in one session. Feed speed adjustability from 0 to 10m/min lets you dial in the rate for different strip thicknesses — thicker PVC strips at 2.5mm benefit from slower feeds to allow proper adhesive bonding, while thin 0.5mm melamine edges can run at the upper range. The one-piece pressure beam with double-row pressure wheels keeps panels flat against the silicone conveyor belt, preventing the micro-lift that causes visible glue lines on finished edges. Pneumatically controlled belt breaking removes the manual trimming step at each panel’s leading and trailing edge, reducing operator fatigue and improving cut consistency across a batch [NEED_CITE: CE machinery directive requirements for pneumatic controls in woodworking equipment].
The Hidden Cost of Buying Blind on Spares
A workshop in Southeast Asia once took delivery of a competing brand’s fully automatic edge bander with nothing in the crate but the machine itself. On day twelve, the trimming blades wore through. No spares were on-site, no local dealer stocked the specific size, and the line sat idle for two weeks while replacement blades shipped internationally. Every Model 802 I dispatch leaves with a starter spares kit — trimming blades, polishing wheels, and wear-prone pneumatic seals — packed inside before the crate is nailed shut [NEED_CITE: common edge bander consumable replacement intervals in small workshop environments].
Why Source This Machine Through Our Stock Channel
Engineer-led configuration support means if the 802 does not match your panel thickness or feed speed requirement, you get a redirected recommendation within one business day rather than a forced upsell. Four-stage quality control runs through incoming material checks, in-process assembly inspection, finished product testing, and pre-shipment verification — so the machine you receive has been run on actual panel stock before crating. Custom documentation language ensures your operator can read the control panel labels and maintenance schedule without translation guesswork. Voltage confirmation is handled explicitly at the order stage, not discovered at the destination. Factory test records are available for review before dispatch, covering feed accuracy, trimming quality, and polishing finish on your specified material.
Documentation & Verification
- CE declaration of conformity covering the 802’s electrical and mechanical safety systems
- Factory test record on your specified panel thickness and edge strip material before dispatch
- Operation and maintenance manual provided in your agreed language with illustrated troubleshooting
- Electrical schematic with voltage confirmation sheet matching your local supply specification
- Spare parts list with part numbers for trimming blades, polishing wheels, and pneumatic components
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated for at least 4kW continuous draw with proper grounding
- Overall footprint of 130×65×75cm fits standard workshop bays; allow clearance for the extendable fluent strip support
- Pneumatic supply at 0.4-0.6MPa needed for belt breaking and pressure beam operation
- Glue pot requires 5-10 minutes warm-up at 1000W before first panel feed of the day
- Silicone conveyor belt inspection and pressure wheel alignment check recommended weekly
- Starter spares kit included; consumable reorder list provided with part numbers for local sourcing
What We Need to Move Your Order Forward
To confirm stock allocation and provide a shipping quote, share your destination port or delivery address along with your facility’s confirmed voltage and frequency. Let us know the primary panel material and typical sheet thickness you will be running so we can include a relevant factory test sample with the shipment. If your operator requires the control panel labels and manual in a specific language, state that at order confirmation so documentation is prepared before crating.
Frequently Asked Questions
Q: What is the current stock availability and dispatch lead time for the Model 802?
A: The 802 is held in ready stock at our Yangtze Delta warehouse. Once voltage compatibility is confirmed and the order is placed, the crate is typically handed to the freight forwarder within a few business days. Shipping transit time depends on your destination, and we quote available options at the point of order confirmation.
Q: Is the 220V configuration compatible with my local power supply and frequency?
A: The machine ships at 220V single-phase. You need to verify that your workshop supply matches this voltage and that the local frequency is compatible with the motor ratings. We provide an electrical schematic and voltage confirmation sheet with every shipment. If your supply differs, discuss alternatives before ordering to avoid on-site electrical issues.
Q: Can I order a single unit and what shipping options are available?
A: Single-unit orders are standard on our stock channel — there is no minimum order quantity. Shipping options include sea freight to your nearest port or express freight for faster delivery. We quote available methods and estimated transit windows when you confirm your destination, so you can choose based on urgency and budget.
Q: What panel and edge strip thickness ranges does this machine handle?
A: The Model 802 processes sheet material from 10mm to 50mm thick and applies edge strips ranging from 0.5mm to 2.5mm. This covers standard MDF, particleboard, and plywood panels used in cabinet and furniture production. For materials outside these ranges, confirm compatibility before placing your order.
Q: How do I obtain spare parts and after-sales support once the machine arrives?
A: Every shipment includes a starter spares kit and a detailed parts list with numbered references for reordering. Our after-sales team provides remote troubleshooting guidance based on the included maintenance manual. For consumable items like trimming blades and polishing wheels, the parts list enables sourcing through local industrial suppliers or direct reorder from our facility.
