Description

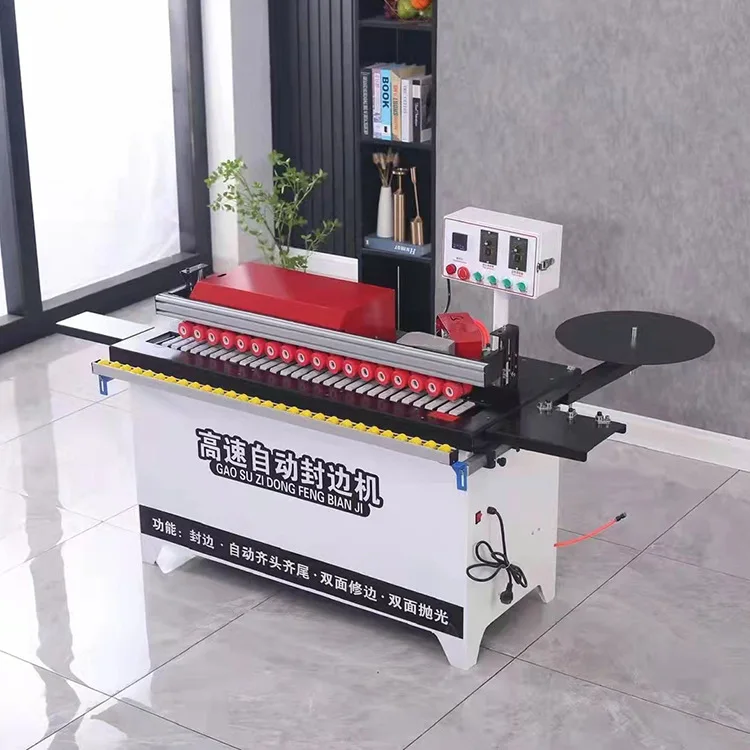

In-stock readiness — The ZDSF802 automatic edge banding machine ships from inventory with pre-verified voltage and language settings, eliminating the typical multi-week production delay for workshops needing immediate capacity.

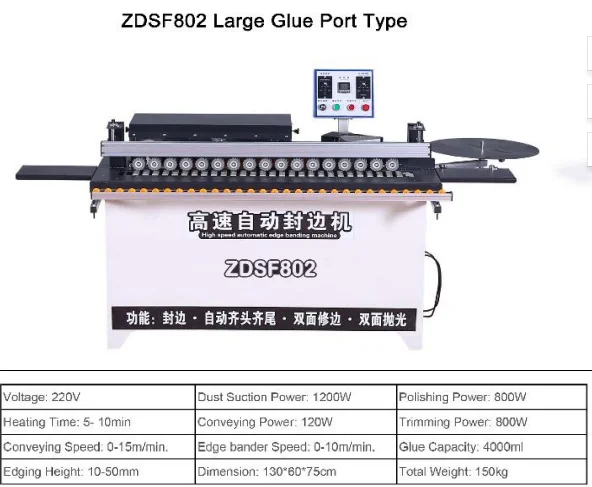

Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF802 |
| Product Type | Automatic Edge Banding Machine |
| Edge Type | Straight line |
| Rated Voltage | 220V |
| Rated Power | 4 kW |
| Feed Speed | 0-10 m/min |
| Conveyor Belt Speed | 0-10 m/min |
| Sheet Thickness Range | 10-50 mm |
| Strip Thickness Range | 0.5-2.5 mm |
| Glue Pot Capacity | 4000 ml |
| Heating Power | 1000 W (heat-up 5-10 min) |
| Trimming Power | 800 W × 2 (double high-speed motors, up and down) |
| Polishing Power | 180 W × 2 (up and down motors) |
| Suction Power | 1200 W |
| Rated Air Pressure | 0.4-0.6 MPa |
| Conveyor Belt Material | Silicone |
| Pressure Beam | One-piece integrated, double rows of pressure wheels |
| Belt Breaking Method | Pneumatically controlled |
| Control Panel | Digital display of glue pot temperature, independent switch |
| Extension Table | Extendable fluent strips for large plates |
| Overall Dimensions | 130 × 65 × 75 cm |
| Machine Weight | 150 kg |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door edge banding | MDF panels with PVC strip, 0.5-2.5 mm thickness |
| Plywood furniture components | Plywood sheets 10-50 mm thick with veneer or PVC edge |
| Small-batch particleboard shelving | Particleboard panels with straight-line PVC banding |
| Workshop upgrade from manual banding | Mixed board substrates in low-to-medium volume production |
| Secondary edge bander for backup | Straight-line panels in furniture and joinery shops |
Why Confirming Voltage Before Dispatch Matters More Than You Think
A machine that cannot plug into your workshop’s supply is not a machine — it is a crate of expensive parts.
I have watched containers arrive at small furniture shops with 380V three-phase motors destined for single-phase 220V outlets. The automatic edge banding machine in stock today avoids that scenario because the ZDSF802 ships configured at 220V with a confirmation sheet matched to your facility before dispatch [NEED_CITE: voltage and frequency standards by export market]. Mismatched voltage does not just stall commissioning; it burns out heating elements and motor windings within the first hour of operation.
Ready Inventory Means Your Workshop Runs This Week
Small cabinet makers and joinery startups cannot afford eight-week lead times when a customer deadline is pressing. The ZDSF802 automatic edge banding machine ships from ready stock, covering glue application, end cutting, head-and-tail trimming, and upper-and-lower polishing in a single pass. When the machine arrives, the glue pot heats to working temperature within 5-10 minutes, and the digital temperature display lets operators confirm conditions before the first panel enters the feed.
One-Piece Pressure Beam and Feed Stability

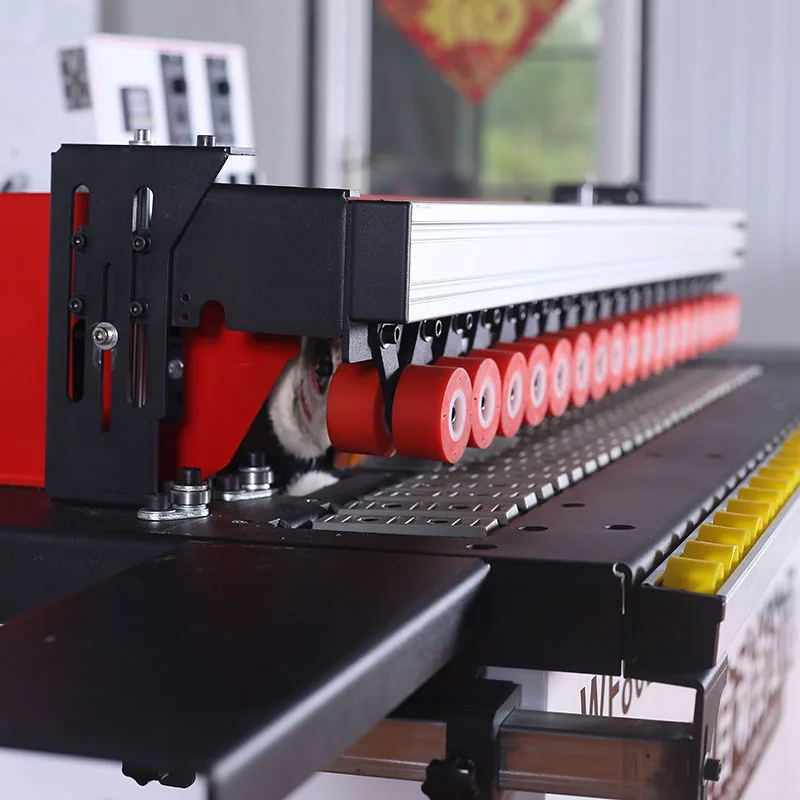

Panel chatter during edge banding produces visible glue lines and uneven trimming, especially on thinner MDF or particleboard. The ZDSF802 uses a one-piece integrated pressure beam with double rows of silicone pressure wheels to hold the workpiece flat across the entire conveyor path. This design prevents surface scratching on finished veneer panels while keeping feed resistance consistent at any speed between 0 and 10 m/min [NEED_CITE: edge banding feed stability and surface quality].
What the Spec Sheet Tells You About Daily Output

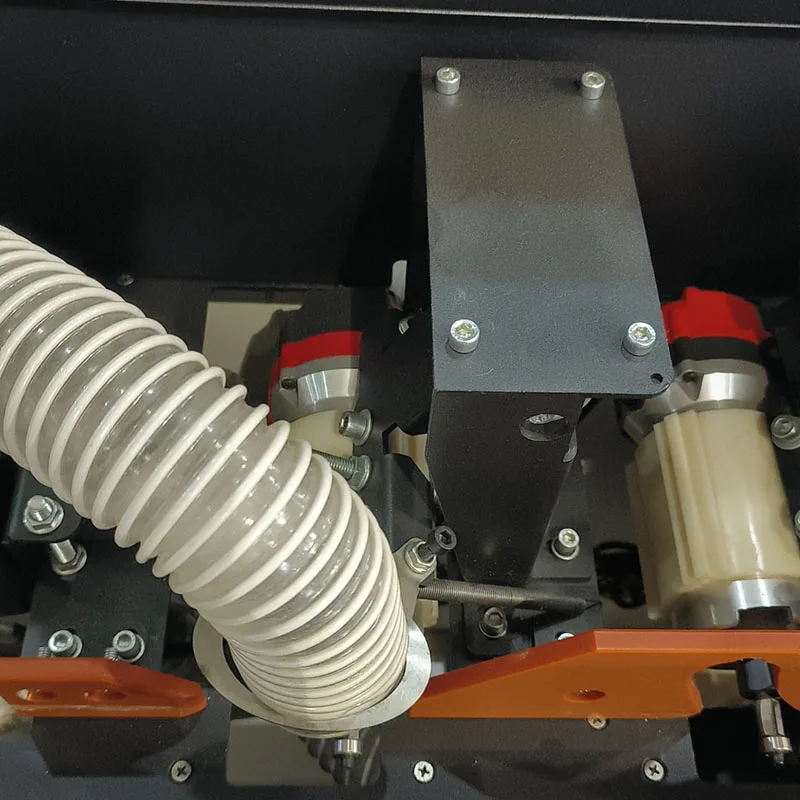

The 4000 ml glue pot capacity means operators can run continuous straight-line panels without stopping to refill adhesive mid-shift, which matters when a batch of cabinet sides needs matching edge quality across every piece. The 10-50 mm sheet thickness range covers standard MDF, particleboard, and plywood used in furniture production, while the 0.5-2.5 mm strip range accepts both thin PVC and thicker veneer banding. Double high-speed trimming motors at 800 W each handle flush and radius cuts in one station, and the up-and-down polishing motors at 180 W remove residual adhesive for a clean finish. The 1200 W suction port connects to a dust collector to keep the trimming zone clear of PVC chips that would otherwise embed in fresh glue on the next panel. Pneumatically controlled belt breaking ensures a clean strip cutoff without manual intervention, and the extendable fluent strip table supports oversized panels that would overhang a fixed bed.
The Hidden Cost of Skipping Material Verification
Workshops that test a new edge bander on standard MDF and then switch to high-density particleboard often see adhesion failures appear mid-run. Glue temperature that works on porous MDF may not penetrate the denser surface of moisture-resistant particleboard, causing strip lift at the leading edge. Without pre-shipment testing on your actual substrate, the fault shows up only after you have committed a full production batch [NEED_CITE: substrate density and hot-melt adhesion behaviour]. That rework cost in wasted board, wasted strip, and lost press time far exceeds the few days it takes to send sample panels for a factory test.
Why Source This Machine Through Ready Stock

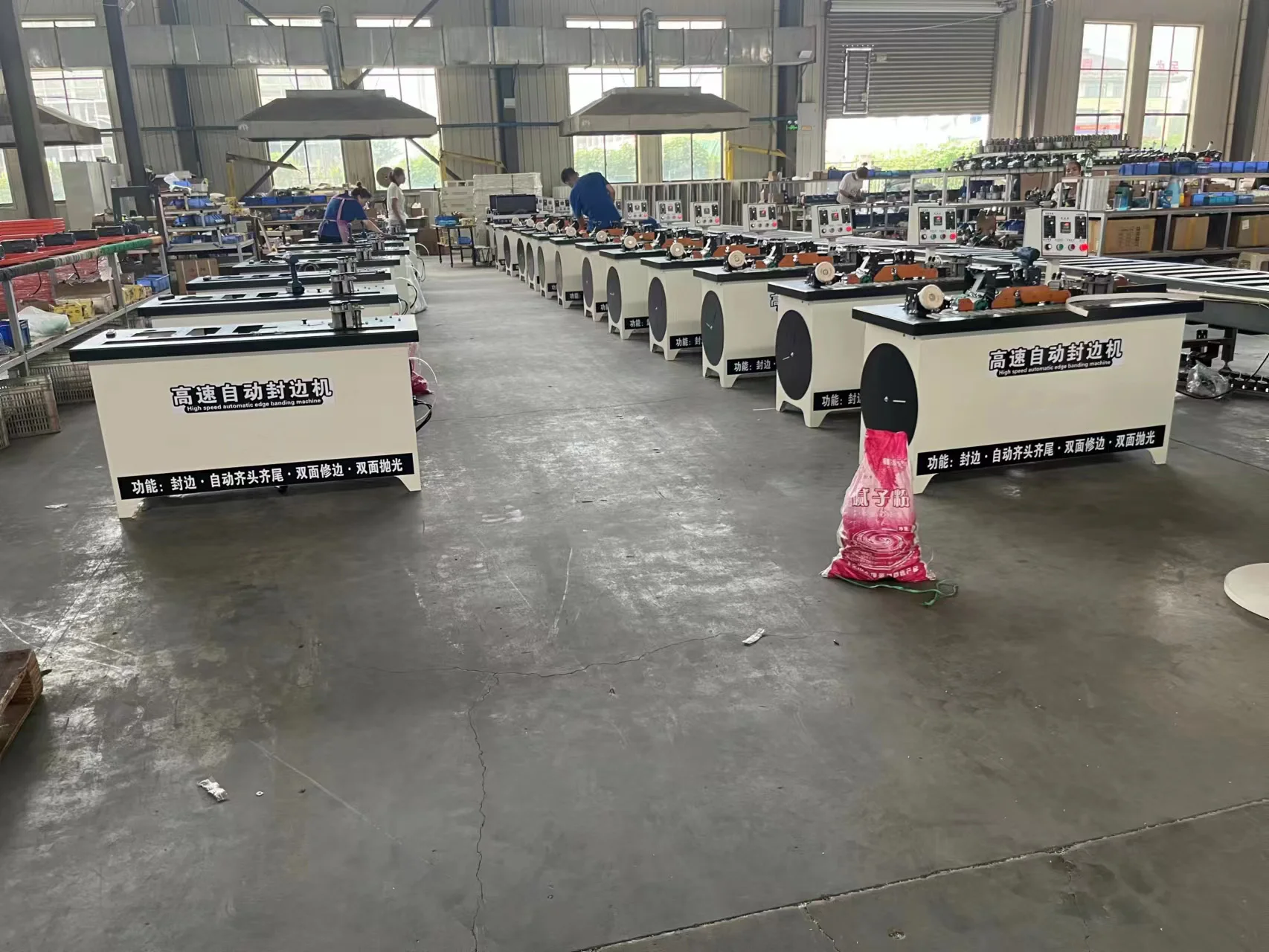

Inventory availability means the ZDSF802 ships within days, not weeks — critical when a workshop needs capacity now. Voltage and language configuration are confirmed before dispatch, so the operator reads the control panel on day one. The full product family ranges from entry-level to full-function pre-milling models, so when your volume grows, you stay with the same supplier and the same support structure. Pre-shipment testing records accompany every unit, documenting performance on your specified panel material and thickness. Engineer-led configuration guidance ensures the model matches your feed speed and panel range rather than pushing a machine rated for volumes you will never reach.
Documentation & Verification
- Voltage confirmation sheet matched to your workshop supply before dispatch
- Electrical schematic included for your local electrician’s reference
- Factory test record on your specified panel thickness and material
- Operation and maintenance manual provided in your operator’s language
- Spare parts list covering consumables and wear components
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated for the 4 kW total power draw
- Compact 130 × 65 × 75 cm footprint fits standard single-bay workshop layouts
- Arrives fully assembled — connect power, air supply at 0.4-0.6 MPa, and dust extraction
- Glue pot heat-up takes 5-10 minutes; verify temperature on digital display before first run
- Silicone conveyor belt and pressure wheels require periodic cleaning to prevent adhesive buildup
- Extension table fluent strips should be checked for free movement before processing oversized panels
What We Need to Confirm Your Order
Send us your primary panel material (MDF, plywood, or particleboard), typical sheet thickness range, and the edge strip type and thickness you run most often. Confirm your workshop voltage and frequency so we verify compatibility before the machine leaves the floor. If you have an existing dust collector, share its suction capacity so we confirm the 1200 W extraction port will integrate without modification.
Frequently Asked Questions
Q: Is the ZDSF802 in stock and how quickly can it ship?
A: Yes, the ZDSF802 is held in ready stock for fast dispatch. Once voltage and language requirements are confirmed, the machine typically ships within a few business days. Pre-shipment testing on your specified panel material is completed before packing, so commissioning at your workshop is straightforward.
Q: Does the 220V rating work with single-phase supply in my country?
A: The ZDSF802 is configured for 220V operation. Before dispatch, we provide a voltage confirmation sheet and electrical schematic so your electrician can verify compatibility with your local single-phase supply and frequency. This step prevents the common problem of machines arriving with unusable motor or heating configurations.
Q: What panel thickness and edge strip range does this machine handle?
A: The ZDSF802 processes sheet thicknesses from 10 mm to 50 mm and accepts edge strip thicknesses between 0.5 mm and 2.5 mm. This covers standard MDF, plywood, and particleboard used in cabinet and furniture production, with both PVC and veneer strip materials.
Q: Can I order a single unit or is there a minimum order quantity?
A: Single-unit orders are accepted. The ZDSF802 is stocked for individual dispatch to small workshops and cabinet makers who need one machine now rather than waiting to consolidate a larger shipment. Each unit ships with full documentation and spare parts.
Q: What shipping options are available and how long is transit?
A: Shipping options depend on your destination port and urgency. We provide transit estimates once the delivery address is confirmed. The machine is packed with protective crating, and packing photographs are shared before dispatch so you can verify condition prior to collection by the carrier.
